2017.5 VAUXHALL MOVANO_B Owner's Manual

Technical data239Platform CabFront-wheel driveGross vehicle weight
[kg]
350035003500
SizeL1L2L3Length [mm]503055306180Width without mirrors [mm]207020702070Width with mirrors [mm]247024702470Height - unladen (without antenna) [mm]
H1227622702264H2-24632457Wheelbase [mm]318236824332Track width [mm]
Front175017501750Rear173017301730

240Technical dataLoadspace dimensionsVanFront-wheel driveLengthL1L2L3Roof heightH1H2H2H3H2H3
Gross vehicle weight
[kg]
2800,
3300,
35002800,
3300,
3500
3300,
3500
350035003500
Maximum rear door aperture height [mm]162718201820182018201820Rear door aperture width (at floor) [mm]157715771577157715771577Maximum load area height [mm]170018941894214418942144Maximum load area width [mm]176517651765176517651765Width between wheel arches [mm]138013801380138013801380Maximum load floor length [mm]258325833083308337333733Sliding side door aperture height [mm]158117801780178017801780Sliding side door aperture width [mm]105010501270127012701270

Technical data241VanRear-wheel driveLengthL3L4Roof heightH2H3H2H3Gross vehicle weight
[kg]
35004500350045003500450035004500
Maximum rear door aperture height [mm]17241724172417241724172417241724Rear door aperture width (at floor) [mm]15771577157715771577157715771577Maximum load area height [mm]17981798204820481798179820482048Maximum load area width [mm]17651765176517651765176517651765Width between wheel arches - with Single rear wheels [mm]1380-1380-1380-1380-Width between wheel arches - with Twin rear wheels [mm]10801080108010801080108010801080Maximum load floor length [mm]37333733373337334383438343834383Sliding side door aperture height [mm]16841684168416841684168416841684Sliding side door aperture width [mm]12701270127012701270127012701270

242Technical dataCapacities
Engine oilEngineM9TEngine oil including filter [l] (approx.)8.0 Front-wheel drive
8.9 Rear-wheel drivebetween MIN and MAX [l] (approx.)1.5 - 2.0
Fuel tank
Fuel tank, nominal capacity [l]80 or 105
AdBlue tank
AdBlue, nominal capacity [l]22.5

Technical data243Tyre pressuresFront-wheel driveTyre pressure with full load16)17)EngineGross Vehicle WeightTyreFront
[kPa/bar] (psi)Rear
[kPa/bar] (psi)M9T2800215/65 R16 C 109/107R340/3.4 (49)360/3.6 (52)3300215/65 R16 C 109/107R360/3.6 (52)430/4.3 (62)3500225/65 R16 C 112/110R380/3.8 (55)460/4.6 (68)3900225/65 R16 C 112/110R380/3.8 (55)460/4.6 (68)16) The spare wheel should be set to the highest applicable pressure shown in the table.
17) When towing a trailer with a fully laden vehicle, the tyre pressure must be increased by 20 kPa/0.2 bar (3.0 psi) and the maximum
speed limited to 60 mph.Rear-wheel drive, with single rear wheelsTyre pressure with full load 16)17)EngineGross Vehicle WeightTyreFront
[kPa/bar] (psi)Rear
[kPa/bar] (psi)M9T3500235/65 R16 C 115/113R360/3.6 (52)450/4.5 (65)16) The spare wheel should be set to the highest applicable pressure shown in the table.
17) When towing a trailer with a fully laden vehicle, the tyre pressure must be increased by 20 kPa/0.2 bar (3.0 psi) and the maximum
speed limited to 60 mph.

244Technical dataRear-wheel drive, with twin rear wheelsTyre pressure with full load16)17)EngineGross Vehicle WeightTyreFront
[kPa/bar] (psi)Rear
[kPa/bar] (psi)M9T3500195/75 R16 C 107/105R420/4.2 (61)420/4.2 (61)4500195/75 R16 C 107/105R420/4.2 (61)420/4.2 (61)16) The spare wheel should be set to the highest applicable pressure shown in the table.
17) When towing a trailer with a fully laden vehicle, the tyre pressure must be increased by 20 kPa/0.2 bar (3.0 psi) and the maximum
speed limited to 60 mph.
The tyre pressure information label on the driver's door frame indicates the original equipment tyres and the correspondent
tyre pressures. Always inflate tyres to the pressures shown on the label.
Tyre pressure information label 3 198.
Tyre designations 3 198.

Customer information245Customer
informationCustomer information ................245
Declaration of conformity .........245
Collision damage repair ...........247
Registered trademarks ............247
Vehicle data recording and pri‐
vacy ........................................... 247
Event data recorders ...............247
Radio Frequency Identification (RFID) ..................................... 248Customer information
Declaration of conformity
Radio transmission systems
This vehicle has systems that
transmit and/or receive radio waves subject to Directive 1999/5/EC or
2014/53/EU. These systems are in compliance with the essential
requirements and other relevant
provisions of Directive 1999/5/EC or 2014/53/EU. Copies of the original
Declarations of Conformity can be
obtained on our website.

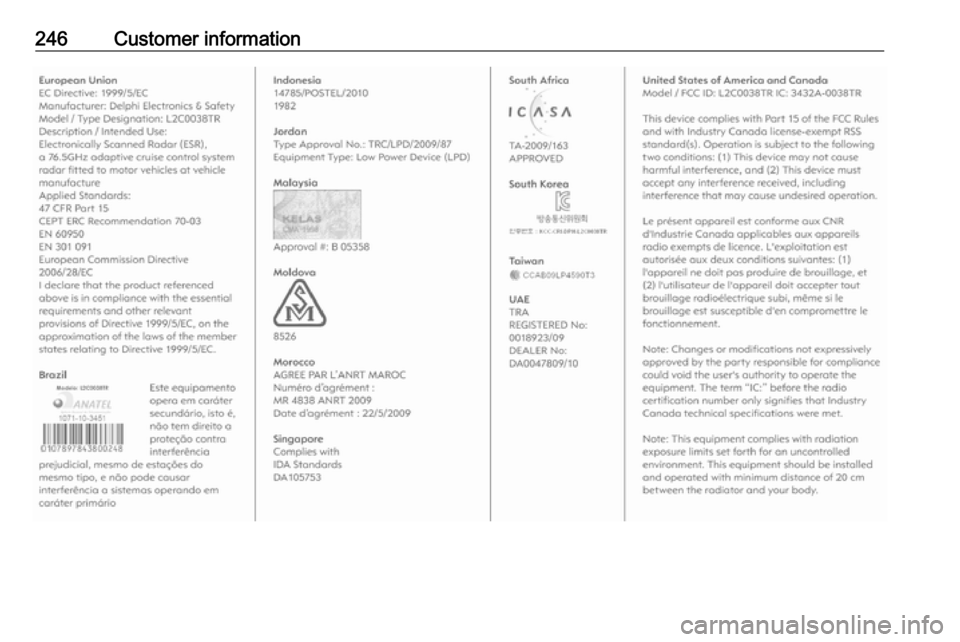

Radar systems
Country-specific Declarations of
Conformity for radar systems are
shown on the following page:

246Customer information
