In brief17Starting the engine
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Operate clutch and brake.
● Do not operate accelerator pedal.
● Turn the key to position 2 for
preheating and wait until control
indicator ! extinguishes in the
Driver Information Centre.
● Turn key to position 3 and
release.
Starting the engine 3 133.
Stop-start system
An Autostop is indicated when control
indicator Ï illuminates green in the
instrument cluster.
Manual transmission If the vehicle is at low speed or in
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
● depress the clutch pedal● move the selector lever to neutral
● release the clutch pedal
To restart the engine, with the
selector lever in neutral, depress the
clutch pedal.
Manual transmission automated
If the vehicle is at a standstill and
certain conditions are fulfilled,
activate an Autostop as follows:
● selector lever in position N (or
A/M )
● depress brake pedal firmly
● do not accelerate
To restart the engine, with the
selector lever in position N (or A/M)
and the parking brake released,
release the brake pedal.
Stop-start system 3 134.

Instruments and controls81Instruments and
controlsControls ....................................... 82
Steering wheel adjustment ........82
Steering wheel controls .............82
Horn ........................................... 82
Steering column controls ...........82
Windscreen wiper/washer .........83
Outside temperature ..................84
Clock ......................................... 85
Power outlets ............................. 85
Cigarette lighter ......................... 87
Ashtrays .................................... 87
Warning lights, gauges and indi‐
cators ........................................... 87
Instrument cluster ......................87
Speedometer ............................. 87
Odometer .................................. 88
Trip odometer ............................ 88
Tachometer ............................... 88
Fuel gauge ................................ 89
AdBlue gauge ............................ 89
Engine coolant temperature gauge ....................................... 89
Engine oil level monitor .............90
Service display .......................... 90Transmission display .................91
Control indicators ......................91
Turn signal ................................. 94
Seat belt reminder .....................94
Airbag and belt tensioners .........94
Airbag deactivation ....................94
Charging system .......................95
Malfunction indicator light ..........95
Service vehicle soon .................95
Stop engine ............................... 96
Brake system ............................. 96
Antilock brake system (ABS) .....96
Upshift ....................................... 96
Lane departure warning ............96
Electronic Stability Program ......97
Electronic Stability Program off ............................................. 97
Engine coolant temperature ......97
Preheating ................................. 97
AdBlue ....................................... 97
Tyre pressure monitoring system ...................................... 97
Engine oil pressure ....................98
Low fuel ..................................... 98
Stop-start system ......................98
Exterior light .............................. 99
High beam ................................. 99
High beam assist .......................99
Fog light ..................................... 99
Rear fog light ............................. 99Cruise control............................ 99
Tachograph ............................... 99
Door open .................................. 99
Information displays ...................100
Driver Information Centre ........100
Info display .............................. 100
Vehicle messages ......................101
Warning chimes .......................101
Trip computer ............................. 102
Tachograph ................................ 104

Instruments and controls87Cigarette lighter
Press in cigarette lighter. It switches
off automatically once the element is
glowing. Pull out lighter.
Ashtrays
Caution
To be used only for ash and not for combustible rubbish.
Portable ashtray
Ashtray container for mobile use in
the vehicle. To use, open cover.
Warning lights, gauges
and indicators
Instrument cluster
In some versions, the needles of the
instruments briefly rotate to the end
position when the ignition is switched
on.
Speedometer
Indicates vehicle speed.

90Instruments and controlsCaution
If engine coolant temperature is
too high, stop vehicle, switch off
engine. Danger to engine. Check
coolant level.
For physical reasons, the coolant temperature gauge shows the coolant temperature only if the coolant level is adequate.
Engine oil level monitor
The engine oil level monitor is correct
only if the vehicle is parked on a level
surface with a cold engine.
If the engine oil level is correct when
the ignition is switched on OIL LEVEL
CORRECT appears briefly in the
Driver Information Centre.
If the engine oil is above the minimum level, press the trip computer button
on the end of the wiper lever within
30 seconds of switching on the
ignition. The message OIL LEVEL is
displayed in combination with the
squares that correspond to the oil
level.
As the oil level diminishes, the
squares in the display are replaced
with dashes.▢▢▢▢▢▢:maximum level▢▢▢- - -:intermediate level- - - - - -:minimum level
If the minimum engine oil level is
reached TOP-UP OIL LEVEL is
displayed in combination with control
indicator A after the ignition is
switched on for 30 seconds. Check
and top up engine oil 3 175.
To exit the oil level monitor display,
press either trip computer button.
Trip computer 3 102.
Service display When the ignition is switched on, the
remaining distance before the next
service is due may be shown briefly in the Driver Information Centre. Based
on driving conditions, the interval at
which a service will be indicated can
vary considerably.
When the remaining distance before
the next service is less than
1800 miles or two months, SERVICE
IN appears in the Driver Information
Centre.
When the distance reaches 0 miles or
the service date is due, control
indicators o and A illuminate in the
instrument cluster and SERVICE
DUE appears in the Driver
Information Centre.
The vehicle needs a service. Seek the assistance of a workshop.
Resetting the service display After a service, the service display
must be reset: if available, select the
distance before service display in the
Driver Information Centre, then press and hold button on end of wiper lever
for approx. ten seconds until the
distance before service is displayed
continuously.
Trip computer 3 102.
Driver Information Centre 3 100.
Service information 3 218.

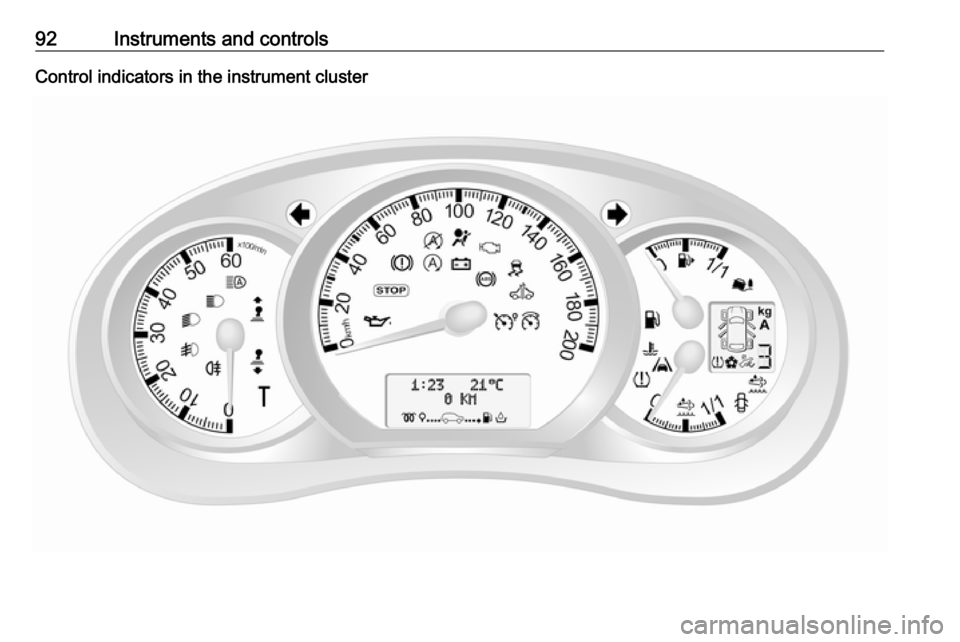

92Instruments and controlsControl indicators in the instrument cluster

100Instruments and controlsInformation displaysDriver Information Centre The Driver Information Centre is
located in the instrument cluster
below the speedometer.
Depending on vehicle configuration,
the following items appear in the
display:
● outside temperature 3 84
● clock 3 85
● odometer, trip odometer 3 88
● engine oil level monitor 3 90
● service display 3 90
● vehicle messages 3 101
● trip computer 3 102
Some of the displayed functions differ
when the vehicle is being driven or at a standstill. Some functions are only
available when the vehicle is being
driven.
Info display
The central display in the
Infotainment system displays the time (and/or outside temperature,
depending on version) and
Infotainment system information.
Press X to switch the Infotainment
system on. Alternatively, it
automatically switches on when the
ignition is switched on.
Depending on system, the
Infotainment system is operated via
buttons and rotary knobs on the
Infotainment system fascia, the
steering column controls, the voice
recognition system (if available) or via
the touchscreen display.Touchscreen operation
Make the appropriate selection from
the available menus and options by
touching the display screen with the
finger.
For further information, refer to the
Infotainment system manual.

Instruments and controls103● average speed
● distance before service 3 90
● clock 3 85
● cruise control and speed limiter stored speed 3 157
● fault and information messages
● odometer 3 88, trip odometer
3 88
Fuel used Displays the amount of fuel
consumed since the last reset.
The measurement can be restarted at
any time by pressing and holding the
button on the end of the wiper lever.
Average consumption
The value is displayed after driving a
distance of 0.25 miles.
Average consumption is displayed,
taking into consideration the distance travelled and the fuel used since the
last reset.
The measurement can be restarted at
any time.Instantaneous consumption
The value is displayed after reaching
a speed of 20 mph.
Range
The value is displayed after driving a distance of 0.25 miles.
The range is calculated from the
current contents of the fuel tank and
the average consumption since the
last reset.
The range will not display if control
indicator Y is illuminated in the
instrument cluster 3 98.
The measurement can be restarted at
any time.
Distance travelled
Displays the distance driven since the
last reset.
The measurement can be restarted at
any time.
Average speed The value is displayed after driving adistance of 0.25 miles.The average speed since the last
reset is displayed.
The measurement can be restarted at
any time.
Interruptions in the journey with the
ignition off are not included in the
calculations.
Reset trip computer information
To reset the trip computer, select one
of its functions then press and hold
button on end of wiper lever.
The following trip computer
information can be reset:
● fuel used
● average consumption
● distance travelled
● average speed
The trip computer will reset
automatically when the maximum
value of any of the parameters is
exceeded.

104Instruments and controlsFuel economy rating (ecoScoring)
If equipped, a rating of 0 to 100 is shown in the Infotainment system
display screen, to help evaluate fuel
efficiency, based on your driving
style.
Higher ratings indicate better fuel
economy.
Tips to improve fuel economy are also given in the display. Journeys can be
saved in the system memory,
enabling you to compare
performances. Refer to Infotainment
manual for further information.
Vehicle messages 3 101.
Journey record
When the engine is switched off, a record of the last journey may be
shown in the Infotainment system
display screen.
The following information is
displayed:
● average fuel consumption
● trip odometer
● fuel saved in milesRefer to Infotainment manual for
further information.
Interruption of power supply
If the power supply has been
interrupted or if the vehicle battery
voltage has dropped too low, the
values stored in the trip computer will
be lost.Tachograph
The tachograph is operated as
described in the operating
instructions supplied. Observe
regulations regarding use.
Control indicator & illuminates in the
instrument cluster in the event of a
fault. Seek the assistance of a
workshop.
