MAINTENANCE AND SERVICING
}}
* Option/accessory, for more information, see Introduction.487
Function[A]
––
Horn20
Alarm siren*5
Brake system control module (valves, parking brake)40
Windshield wipers30
Tailgate window washer25
Heated windshield *, passenger
side40
––
Brake system control module (ABS pump)40
––
Heated windshield *, passenger
sideShunt
Feed when ignition is switched on to: engine control module,transmission components, elec-trical power steering, centralelectrical module5
Exterior vehicle sound (certain markets)5
Function[A]
Passenger side headlight7,5
––
––
––
Air bags; Occupant Weight Sen- sor (OWS)5
Driver side headlight7,5
Accelerator pedal sensor5
Transmission control module; Gear selector control module15
Engine control module5
––
––
––
––
Engine control module; Turbo- charger valve20
Solenoids; Valves; Engine cool- ing system thermostat10
Function[A]
Vacuum regulators; Valve7,5
Spoiler shutter control module; Radiator shutter control module;Fuel leakage detection5
––
Heated oxygen sensors (front and rear)15
Oil pump solenoid; A/C mag- netic coupling; heated oxygensensor (center)15
––
Engine control module20
Ignition coil; Spark plugs15
––
––
Transmission oil pump control module30
Vacuum pump control module40
Transmission actuator25
––
Page 490 of 546
||
MAINTENANCE AND SERVICING
488

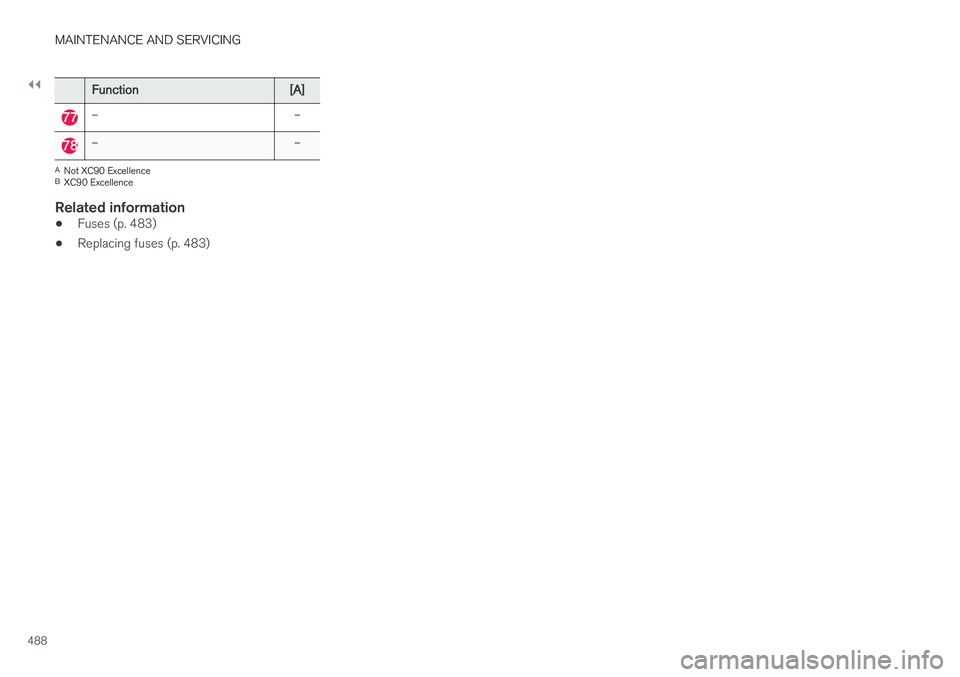

Function[A]
––
––
ANot XC90 Excellence
B XC90 Excellence
Related information
• Fuses (p. 483)
• Replacing fuses (p. 483)
Page 491 of 546
MAINTENANCE AND SERVICING
}}
489

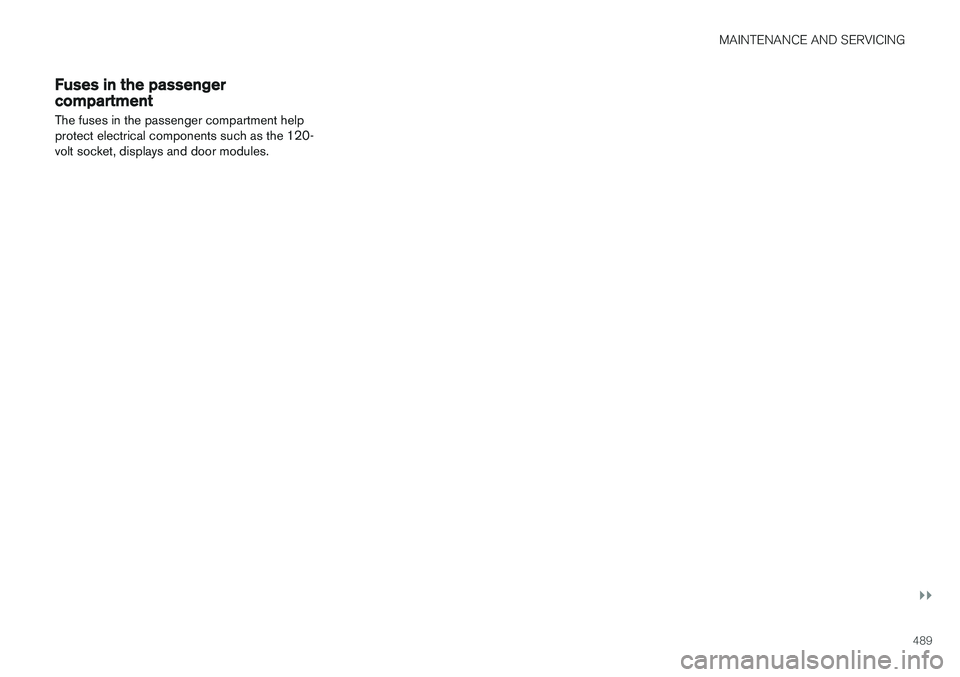

Fuses in the passenger compartment
The fuses in the passenger compartment help protect electrical components such as the 120-volt socket, displays and door modules.
Page 492 of 546
||
MAINTENANCE AND SERVICING
490
Page 493 of 546

MAINTENANCE AND SERVICING
}}
* Option/accessory, for more information, see Introduction.491

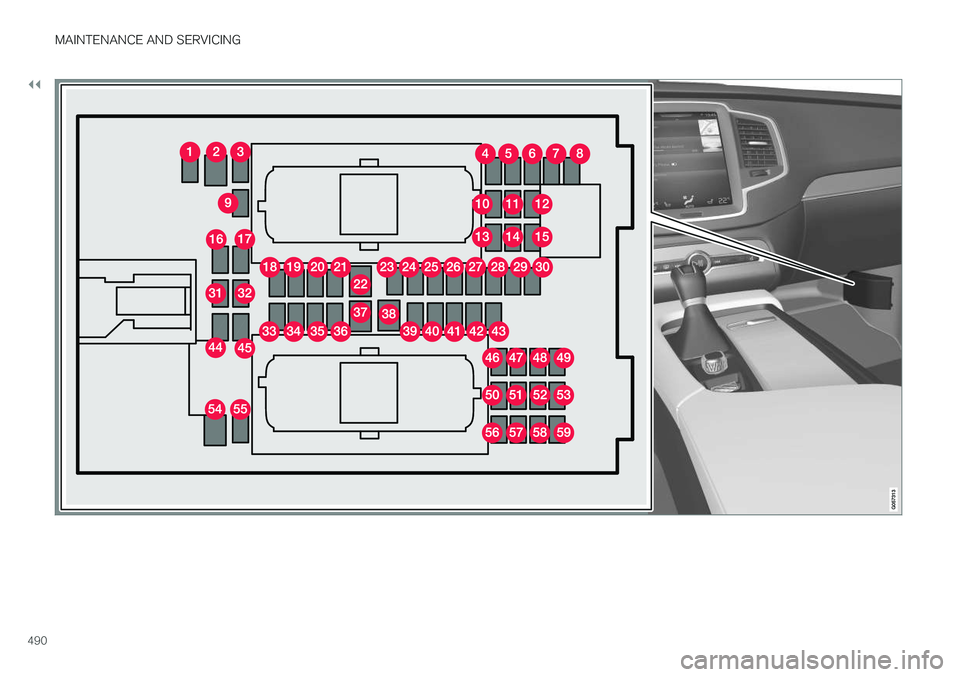

Positions
•Fuses 1, 3–21, 23–36, 39–53 and 55–59 are called "Micro".
• Fuses 2, 22, 37–38 and 54 are called"MCase" and should only be replaced by atrained and qualified Volvo service technician.
FunctionA
––
– 120-volt socket between the rear seats A–
––
Alarm system movement sensor B5
Media player5
Instrument panel5
Center console buttons5
Sun sensor5
––
––
Steering wheel module5
Module for start knob and parking brake5
FunctionA
Heated steering wheel
* module15
––
––
––
––
Climate system control module10
––
On-board diagnostics (OBDII)10
Center display5
Climate system blower module (front)40
––
Instrument lighting; Courtesy light- ing; Rearview mirror auto-dim func-tion; Rain and light sensor; Rear tunnel console keypad *A
; Power
front seats *; Power rear seats A
;
Display for rear seat conveniencefunctions A
; Rear seat massage
function A7.5
FunctionA
Control module for driver support functions5
Panorama roof and sun shade
*20
Head-up display*5
Courtesy lighting5
––
Ceiling console display (seat belt reminder, front passenger side air-bag indicator)5
––
Humidity sensor5
Rear passenger-side door module20
Fuses in the cargo compartment10
Internet connection control module; Volvo On Call control module5
Rear driver-side door module20
Infotainment control module (amplifier)40
Climate system blower module (rear)40
Page 494 of 546
||
MAINTENANCE AND SERVICING
* Option/accessory, for more information, see Introduction.
492
FunctionA
Multi-band antenna module5
Front seat massage function5
––
Tailgate window wiper15
Fuel pump control module15
Relay windings for engine compart- ment electrical module; Relay wind-ing for transmission oil pump5
––
Driver side seat heating *15
Passenger side seat heating *15
Coolant pump10
––
Front driver-side door module20
Active chassis control module *20
––
Sensus control module10
––
FunctionA
––
Front passenger-side door module20
Display for rear seat convenience functionsA5A
––
Circuit breaker for fuses 53 and 5815
A
XC90 Excellence.
B Certain markets only.
Related information
• Fuses (p. 483)
• Replacing fuses (p. 483)
Page 495 of 546
MAINTENANCE AND SERVICING
}}
* Option/accessory, for more information, see Introduction.493

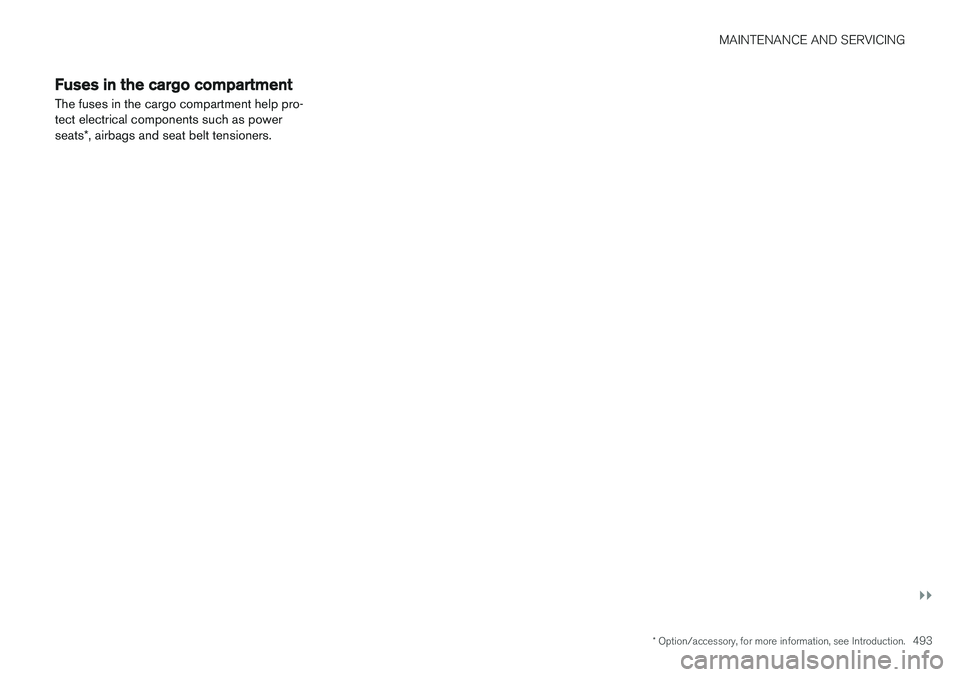

Fuses in the cargo compartment The fuses in the cargo compartment help pro- tect electrical components such as power seats*, airbags and seat belt tensioners.
Page 496 of 546
||
MAINTENANCE AND SERVICING
494
The fuse box is under the storage compartment on the right side
