Page 481 of 546

MAINTENANCE AND SERVICING
}}
479

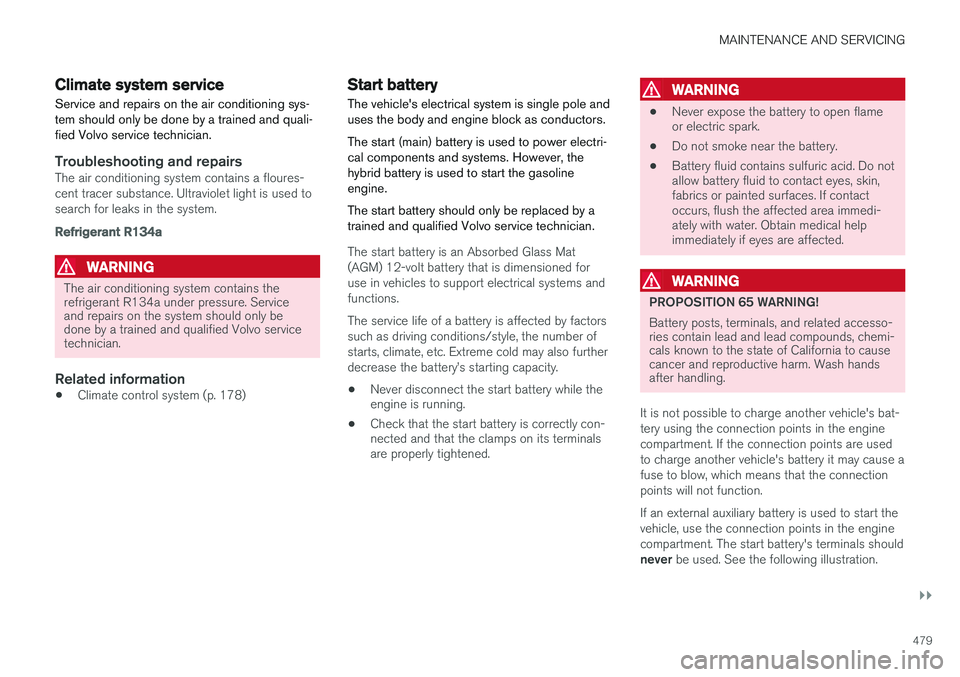

Climate system serviceService and repairs on the air conditioning sys- tem should only be done by a trained and quali-fied Volvo service technician.
Troubleshooting and repairsThe air conditioning system contains a floures- cent tracer substance. Ultraviolet light is used tosearch for leaks in the system.
Refrigerant R134a
WARNING
The air conditioning system contains the refrigerant R134a under pressure. Serviceand repairs on the system should only bedone by a trained and qualified Volvo servicetechnician.
Related information
• Climate control system (p. 178)
Start battery
The vehicle's electrical system is single pole and uses the body and engine block as conductors. The start (main) battery is used to power electri- cal components and systems. However, thehybrid battery is used to start the gasolineengine. The start battery should only be replaced by a trained and qualified Volvo service technician.
The start battery is an Absorbed Glass Mat (AGM) 12-volt battery that is dimensioned foruse in vehicles to support electrical systems andfunctions. The service life of a battery is affected by factors such as driving conditions/style, the number ofstarts, climate, etc. Extreme cold may also furtherdecrease the battery
Page 482 of 546

||
MAINTENANCE AND SERVICING
480

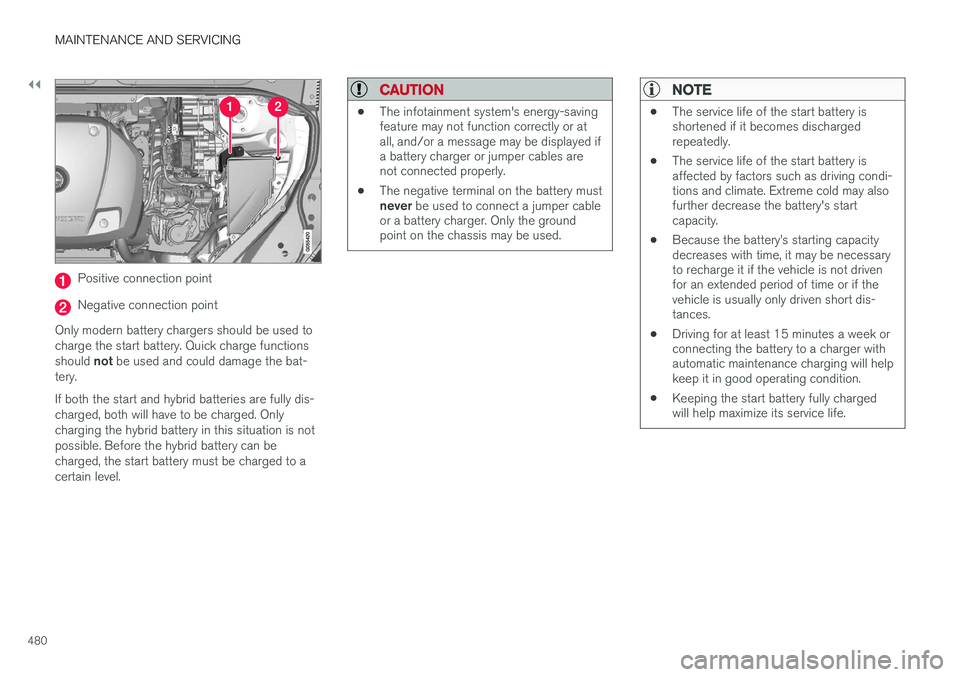

Positive connection point
Negative connection point
Only modern battery chargers should be used to charge the start battery. Quick charge functions should not be used and could damage the bat-
tery. If both the start and hybrid batteries are fully dis- charged, both will have to be charged. Onlycharging the hybrid battery in this situation is notpossible. Before the hybrid battery can becharged, the start battery must be charged to acertain level.
CAUTION
• The infotainment system's energy-saving feature may not function correctly or atall, and/or a message may be displayed ifa battery charger or jumper cables arenot connected properly.
• The negative terminal on the battery must never
be used to connect a jumper cable
or a battery charger. Only the ground point on the chassis may be used.
NOTE
• The service life of the start battery is shortened if it becomes dischargedrepeatedly.
• The service life of the start battery isaffected by factors such as driving condi-tions and climate. Extreme cold may alsofurther decrease the battery's startcapacity.
• Because the battery
Page 483 of 546

MAINTENANCE AND SERVICING
}}
481

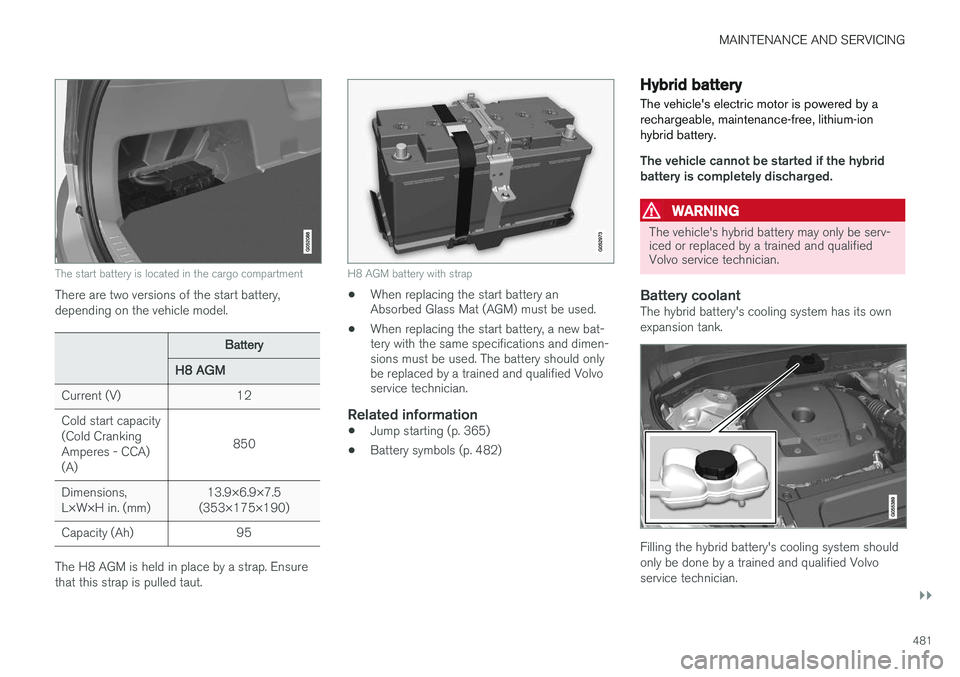

The start battery is located in the cargo compartment
There are two versions of the start battery, depending on the vehicle model.
Battery
H8 AGM
Current (V)12
Cold start capacity (Cold CrankingAmperes - CCA)(A)
850
Dimensions, L×W×H in. (mm)13.9×6.9×7.5
(353×175×190)
Capacity (Ah)95
The H8 AGM is held in place by a strap. Ensure that this strap is pulled taut.
H8 AGM battery with strap
• When replacing the start battery an Absorbed Glass Mat (AGM) must be used.
• When replacing the start battery, a new bat-tery with the same specifications and dimen-sions must be used. The battery should onlybe replaced by a trained and qualified Volvoservice technician.
Related information
• Jump starting (p. 365)
• Battery symbols (p. 482)
Hybrid battery
The vehicle's electric motor is powered by a rechargeable, maintenance-free, lithium-ionhybrid battery.
The vehicle cannot be started if the hybrid battery is completely discharged.
WARNING
The vehicle's hybrid battery may only be serv- iced or replaced by a trained and qualifiedVolvo service technician.
Battery coolantThe hybrid battery's cooling system has its own expansion tank.
Filling the hybrid battery's cooling system should only be done by a trained and qualified Volvoservice technician.
Page 484 of 546
||
MAINTENANCE AND SERVICING
482
Related information
•Hybrid battery specifications (p. 527)
• Charging the hybrid battery (p. 383)

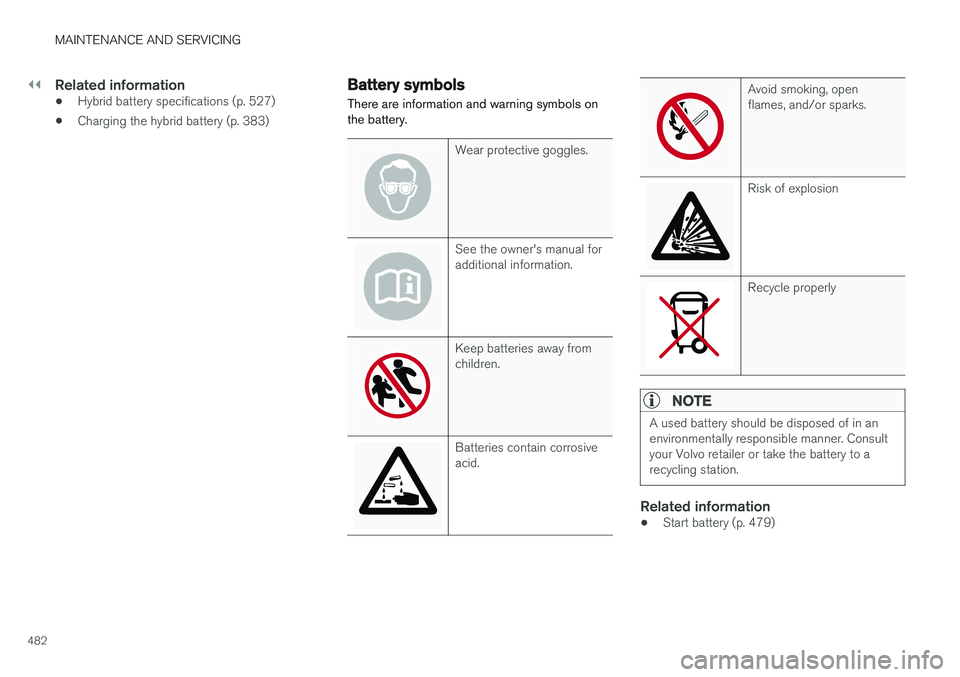

Battery symbols
There are information and warning symbols on the battery.
Wear protective goggles.
See the owner's manual for additional information.
Keep batteries away from children.
Batteries contain corrosive acid.
Avoid smoking, open flames, and/or sparks.
Risk of explosion
Recycle properly
NOTE
A used battery should be disposed of in an environmentally responsible manner. Consultyour Volvo retailer or take the battery to arecycling station.
Related information
• Start battery (p. 479)
Page 485 of 546

MAINTENANCE AND SERVICING
483
Fuses The fuses help protect the vehicle's electrical components from overloading or short circuits.
WARNING
Never use metal objects or fuses with higher amperage than those stated on the lists offuses. Doing so could seriously damage oroverload the vehicle's electrical system. Orange wires may only be handled by trained and authorized Volvo service technicians orlicensed electricians. A number of component in the vehicle used high voltage electrical current and can be verydangerous to touch. Do not touch any components that are not clearly described in this owner's information.
If an electrical component fails to function, this may be due to a blown fuse. If the same fuseblows repeatedly, this indicates a problem withthe component, which should be inspected by atrained and qualified Volvo service technician.
Location of the fuseboxes
Engine compartment
Under the glove compartment
Cargo compartment
Related information
• Replacing fuses (p. 483)
• Fuses in the cargo compartment (p. 493)
• Fuses in the engine compartment (p. 484)
• Fuses in the passenger compartment (p. 489)
Replacing fuses The fuses help protect the vehicle's electrical components from overloading or short circuits.
Fuse replacement1. See the list of fuse boxes for their locations.
2. Pull the fuse straight out and examine it from
the side to see if the curved metal wire in the fuse is intact.
3. If the wire is broken, insert a new fuse of the same color and amperage (written on thefuse).
WARNING
Never use metal objects or fuses with higher amperage than those stated on the followingpages. Doing so could seriously damage oroverload the vehicle's electrical system.
Related information
• Fuses (p. 483)
• Fuses in the cargo compartment (p. 493)
• Fuses in the engine compartment (p. 484)
• Fuses in the passenger compartment (p. 489)
Page 486 of 546
MAINTENANCE AND SERVICING
484

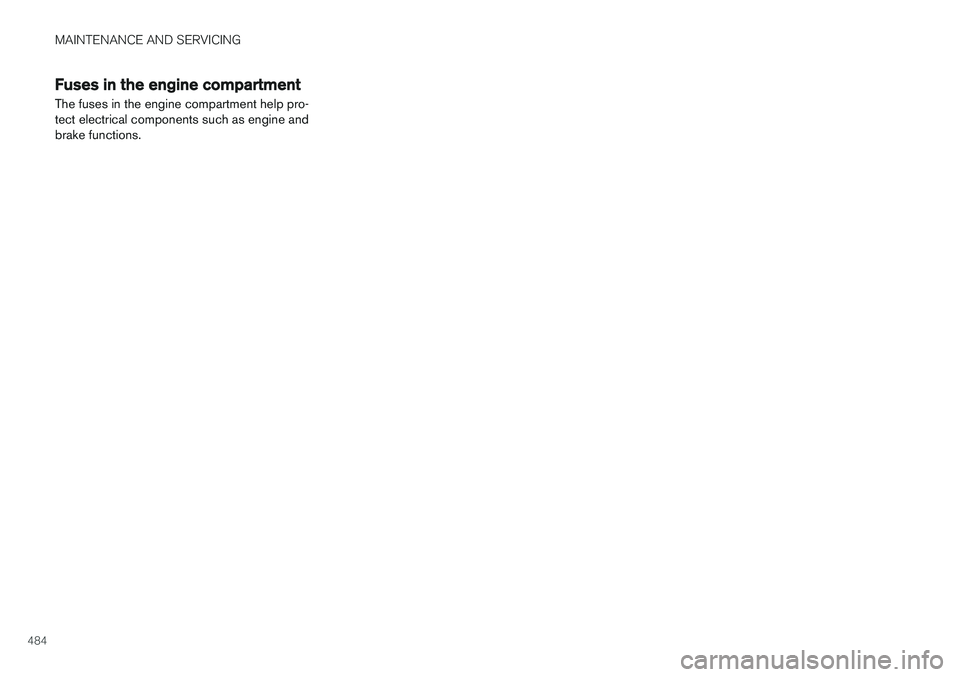

Fuses in the engine compartment
The fuses in the engine compartment help pro- tect electrical components such as engine andbrake functions.
Page 487 of 546
MAINTENANCE AND SERVICING
}}
485
There is a fuse removal tool on the inside of the fuse box cover.PositionsThere is a decal on the inside of the cover with alist of fuses.
Page 488 of 546

||
MAINTENANCE AND SERVICING
* Option/accessory, for more information, see Introduction.
486 •

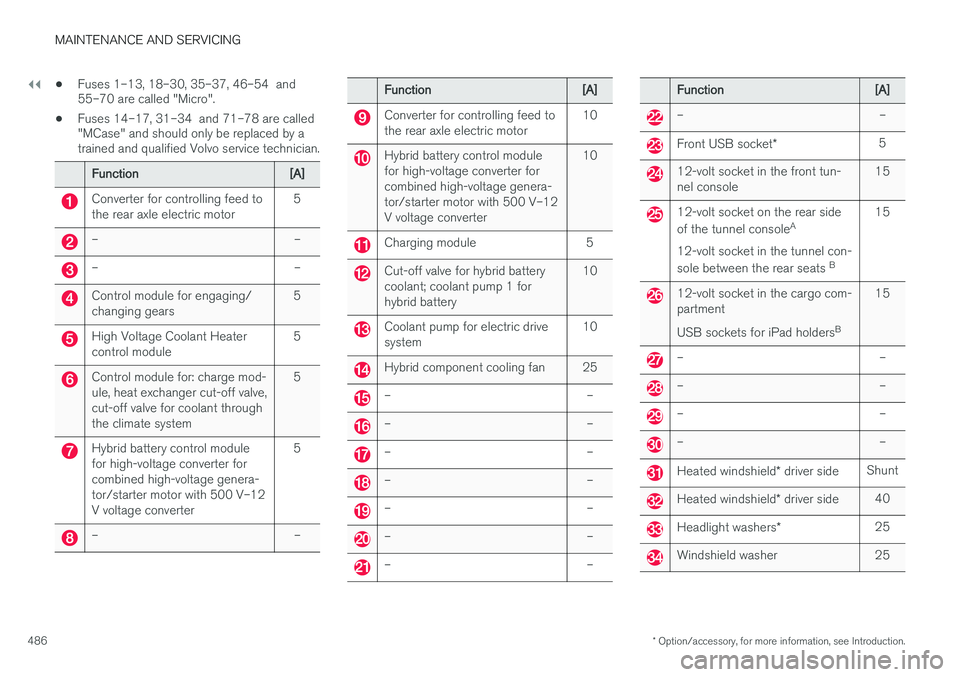

Fuses 1–13, 18–30, 35–37, 46–54 and 55–70 are called "Micro".
• Fuses 14–17, 31–34 and 71–78 are called"MCase" and should only be replaced by atrained and qualified Volvo service technician.
Function[A]
Converter for controlling feed to the rear axle electric motor5
––
––
Control module for engaging/ changing gears5
High Voltage Coolant Heater control module5
Control module for: charge mod- ule, heat exchanger cut-off valve,cut-off valve for coolant throughthe climate system5
Hybrid battery control module for high-voltage converter forcombined high-voltage genera-tor/starter motor with 500 V–12V voltage converter5
––
Function[A]
Converter for controlling feed to the rear axle electric motor10
Hybrid battery control module for high-voltage converter forcombined high-voltage genera-tor/starter motor with 500 V–12V voltage converter10
Charging module5
Cut-off valve for hybrid battery coolant; coolant pump 1 forhybrid battery10
Coolant pump for electric drive system10
Hybrid component cooling fan25
––
––
––
––
––
––
––
Function[A]
––
Front USB socket
*5
12-volt socket in the front tun- nel console15
12-volt socket on the rear side of the tunnel console A
12-volt socket in the tunnel con-sole between the rear seats B15
12-volt socket in the cargo com- partment USB sockets for iPad holders B15
––
––
––
––
Heated windshield
* driver sideShunt
Heated windshield * driver side40
Headlight washers *25
Windshield washer25
