1-6. Theft deterrent system
VERSO_EE_OM64590E

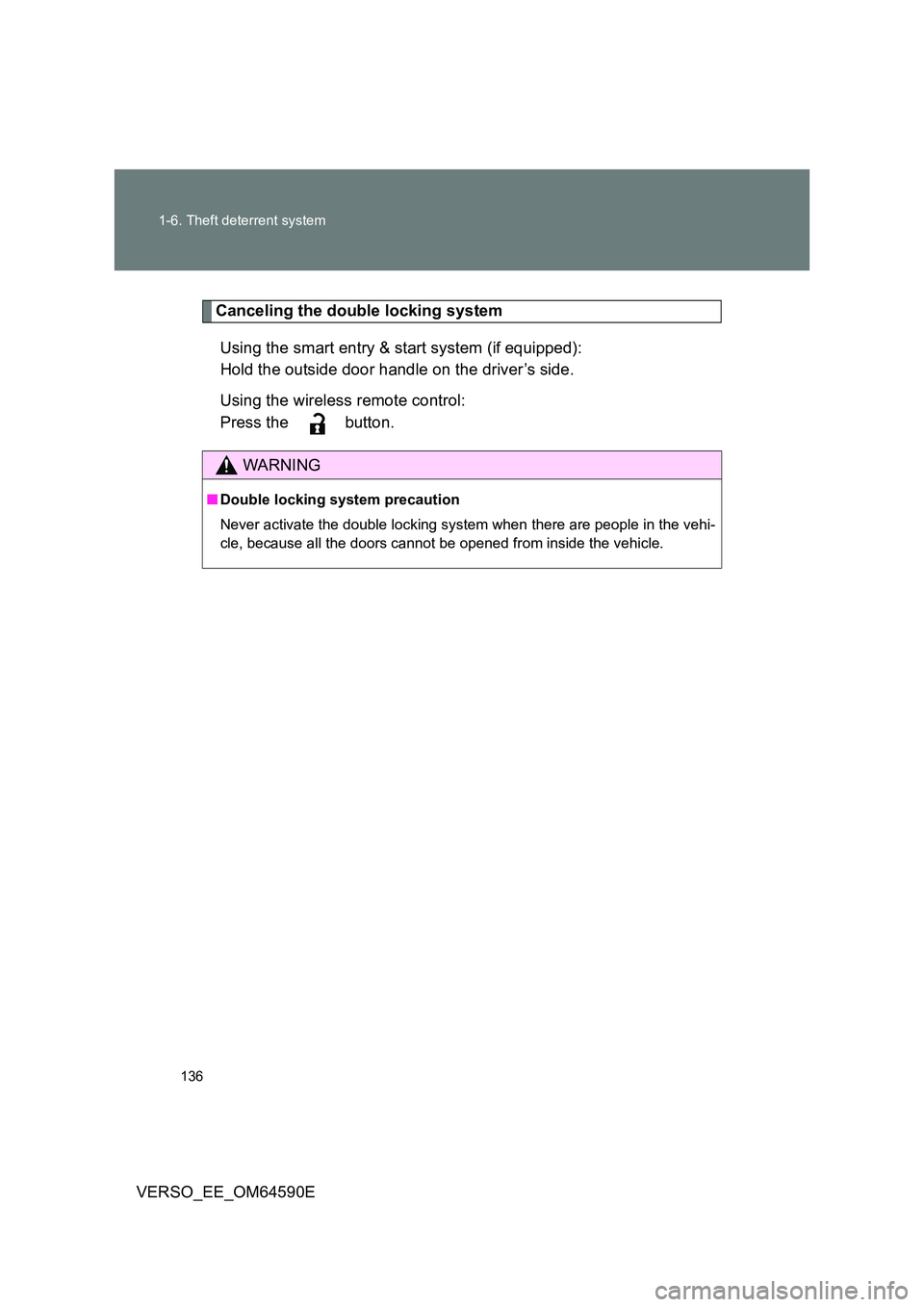

Canceling the double locking system
Using the smart entry & start system (if equipped):
Hold the outside door handle on the driver’s side.
Using the wireless remote control:
Press the button.
WARNING
■ Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle, because all the doors cannot be opened from inside the vehicle.

137
1
1-6. Theft deterrent system
Before driving
VERSO_EE_OM64590E
Alarm
: If equipped
The system sounds the alarm and flashes the lights when forcible
entry is detected.
■ Triggering of the alarm
The alarm is triggered in the following situations when the alarm
is set.
● A locked door is unlocked or opened in any way other than
using the entry function (vehicles with smart entry & start sys-
tem) or wireless remote control. (The doors will lock again
automatically.)
● The hood is opened.
● Vehicles with the intrusion sensor: The intrusion sensor
detects something moving inside the vehicle. (An intruder gets
in the vehicle.)
● Vehicles with the glass breakage sensor: The back door win-
dow is tapped or broken.
● The battery is reconnected.

138
1-6. Theft deterrent system
VERSO_EE_OM64590E

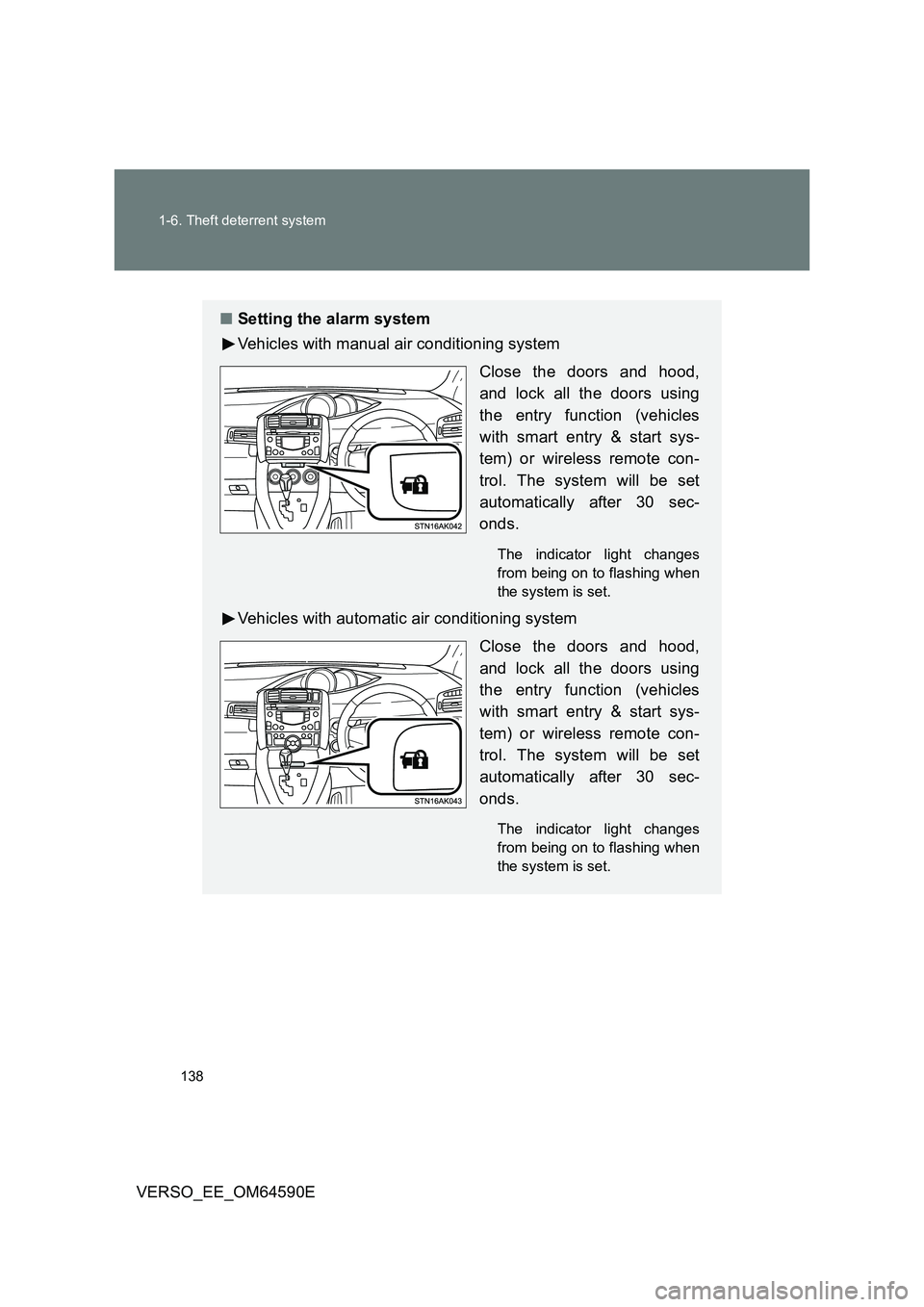

■ Setting the alarm system
Vehicles with manual air conditioning system
Close the doors and hood,
and lock all the doors using
the entry function (vehicles
with smart entry & start sys-
tem) or wireless remote con-
trol. The system will be set
automatically after 30 sec-
onds.
The indicator light changes
from being on to flashing when
the system is set.
Vehicles with automatic air conditioning system
Close the doors and hood,
and lock all the doors using
the entry function (vehicles
with smart entry & start sys-
tem) or wireless remote con-
trol. The system will be set
automatically after 30 sec-
onds.
The indicator light changes
from being on to flashing when
the system is set.

139
1-6. Theft deterrent system
1
Before driving
VERSO_EE_OM64590E
Intrusion sensor (if equipped)
The intrusion sensor detects an intruder or movement in the vehicle.
The intrusion sensor can be canceled using the cancel switch.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
■ Canceling the intrusion sensor
Vehicles without smart entry &
start system: Turn the engine
switch to the “LOCK” position
and press the intrusion sensor
cancel switch.
Vehicles with smart entry & start
system: Turn the “ENGINE
START STOP” switch off and
press the intrusion sensor cancel
switch.
Pressing the switch again will re-
enable the intrusion sensor.
To cancel the intrusion sensor, perform the necessary procedure
each time canceling the sensor is desired.
■ Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
● Unlock the doors using the entry function (vehicles with smart
entry & start system) or wireless remote control.
● Start the engine. (The alarm will be deactivated or stopped
after a few seconds.)

141
1-6. Theft deterrent system
1
Before driving
VERSO_EE_OM64590E
■ When the battery is disconnected
Be sure to cancel the alarm system.
If the battery is discharged before canceling the alarm, the system may be
triggered when the battery is reconnected.
■ Alarm-operated door lock
In the following cases, depending on the situation, the door may automati-
cally lock to prevent improper entry into the vehicle:
● When a person remaining in the vehicle unlocks the door and the alarm
is activated.
● While the alarm is activated, a person remaining in the vehicle unlocks
the door.
● When recharging or replacing the battery.
■ Canceling and automatic re-enabling of the intrusion sensor
● The alarm will still be set even when the intrusion sensor is canceled.
● Vehicles without smart entry & start system: After the intrusion sensor is
canceled, turn the engine switch to the “ON” position or unlocking the
doors using the wireless remote control will re-enable the intrusion sen-
sor.
● Vehicles with smart entry & start system: After the intrusion sensor is
canceled, pressing the “ENGINE START STOP” switch or unlocking the
doors using the smart entry & start system or wireless remote control will
re-enable the intrusion sensor.
● When the alarm system is set again, the intrusion sensor will also be set.
■ Intrusion sensor considerations
The sensor may trigger the alarm in the following situations.
● Persons or pets are in the vehicle.

483
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
■ If the key battery is discharged
The following symptoms may occur.
● The smart entry & start system (if equipped) and wireless remote control
will not function properly.
● The operational range is reduced.
■ Use the following types of lithium battery
Vehicles without smart entry & start system: CR2016
Vehicles with smart entry & start system: CR1632
● Batteries can be purchased at any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional, jewelers, or camera
stores.
● Replace only with the same or equivalent type recommended by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
● Dispose of used batteries according to local laws.

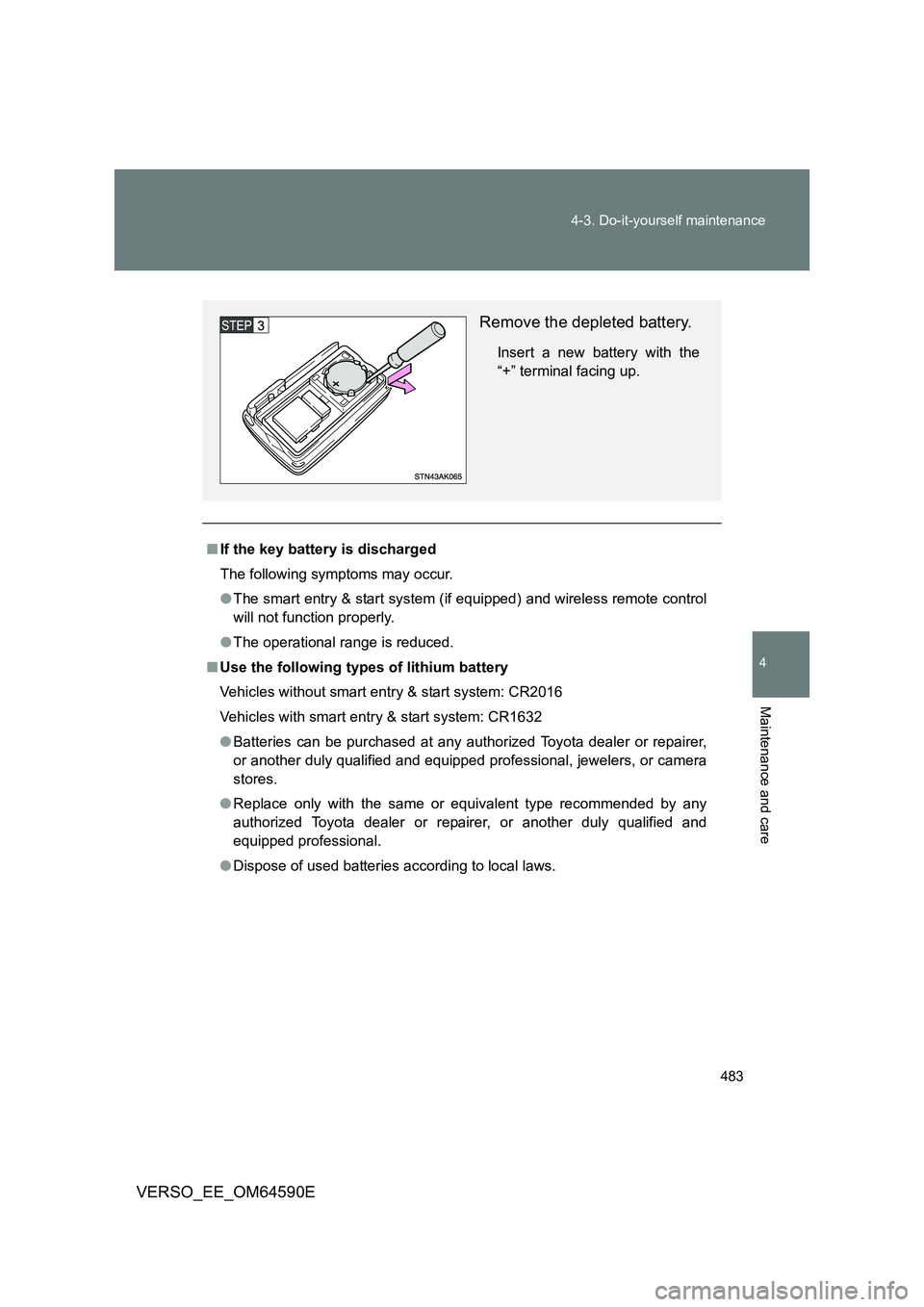

Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.

492
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
16 SPARE 10 A Spare fuse
17 SPARE 30 A Spare fuse
18 SPARE 20 A Spare fuse
19 EFI MAIN
NO.2*17.5 A
Multiport fuel injection system/
sequential multiport fuel injection
system
20 ECU-B2 10 A
Smart entry & start system, air con-
ditioning system, power windows,
gateway ECU
21 D.C.C SHORT No circuit
22 ECU-B 10 A
Gauges and meters, sub-battery,
steering sensor, double locking
system, wireless remote control,
smart entry & start system
23 RAD NO.1*220 A Audio system
24 DOME 10 A
Luggage compartment light, vanity
lights, front door courtesy lights,
personal/interior lights, foot lights
25 AM2 NO.2 7.5 A Starting system
26 TURN-HAZ 10 A Turn signal lights, emergency
flashers
27 ETCS*210 A Electronic throttle control system
28 AM2 30 A Starting system
29 STRG LOCK 20 A Steering lock system
30 IGT/INJ*215 A
Multiport fuel injection system/
sequential multiport fuel injection
system
FuseAmpereCircuit

600
5-2. Steps to take in an emergency
VERSO_EE_OM64590E
If the electronic key does not operate properly (vehicles with smart entry & start system)

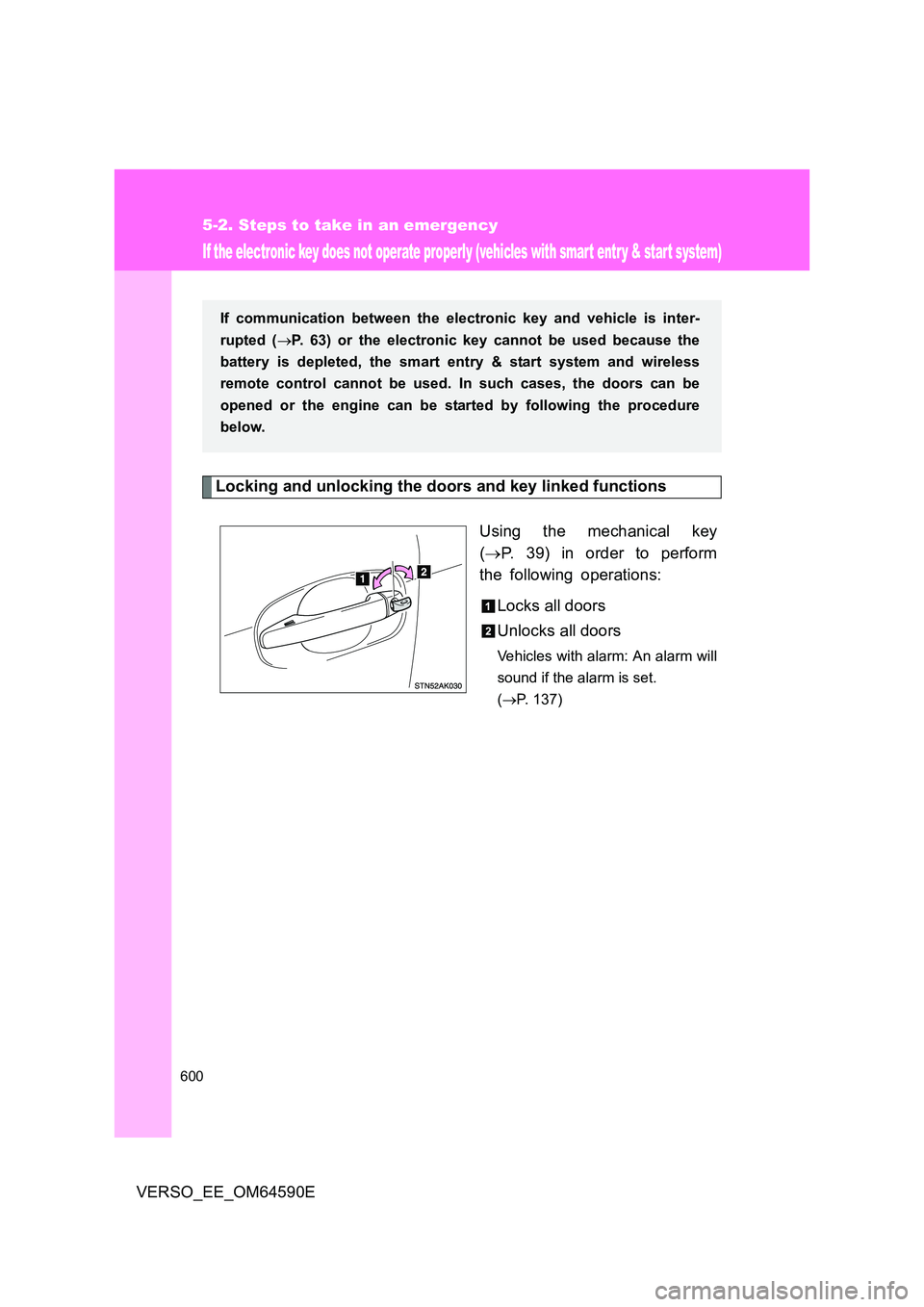

Locking and unlocking the doors and key linked functions
Using the mechanical key
( P. 39) in order to perform
the following operations:
Locks all doors
Unlocks all doors
Vehicles with alarm: An alarm will
sound if the alarm is set.
( P. 137)
If communication between the electronic key and vehicle is inter-
rupted ( P. 63) or the electronic key cannot be used because the
battery is depleted, the smart entry & start system and wireless
remote control cannot be used. In such cases, the doors can be
opened or the engine can be started by following the procedure
below.
