2016 TOYOTA VERSO remote start

63
1-2. Opening, closing and locking the doors
1
Before driving
VERSO_EE_OM64590E
NOTICE
■ Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situ-
ations, the communication between the electronic key and the vehicle may
be affected, preventing the smart entry & start system and wireless remote
control from operating properly. (Way of coping P. 600)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that gener ates strong radio waves or electrical
noise
● When a portable radio, cellular phone, cordless phone or other wireless
communication device is in the vicinity
● When the electronic key has come into contact with, or is covered by a
metallic object, such as the following
• Cards on which metal sheets such as foil are attached
• Cigarette boxes in which foil is used
• Metallic wallets or bags
• Coins
• Hot packs or pocket warmers
• Optical media such as CDs and DVDs
● When other wireless keys that emit radio waves are used in the vicinity
● When carrying the electronic key together with the following devices
• Another vehicle’s electronic key or a wireless key that emits radio
waves
• Personal computers or PDAs
• Digital audio players
• Hand-held game consoles
● If window tint with a metallic content or metallic objects are attached to the
rear window

64
1-2. Opening, closing and locking the doors
VERSO_EE_OM64590E

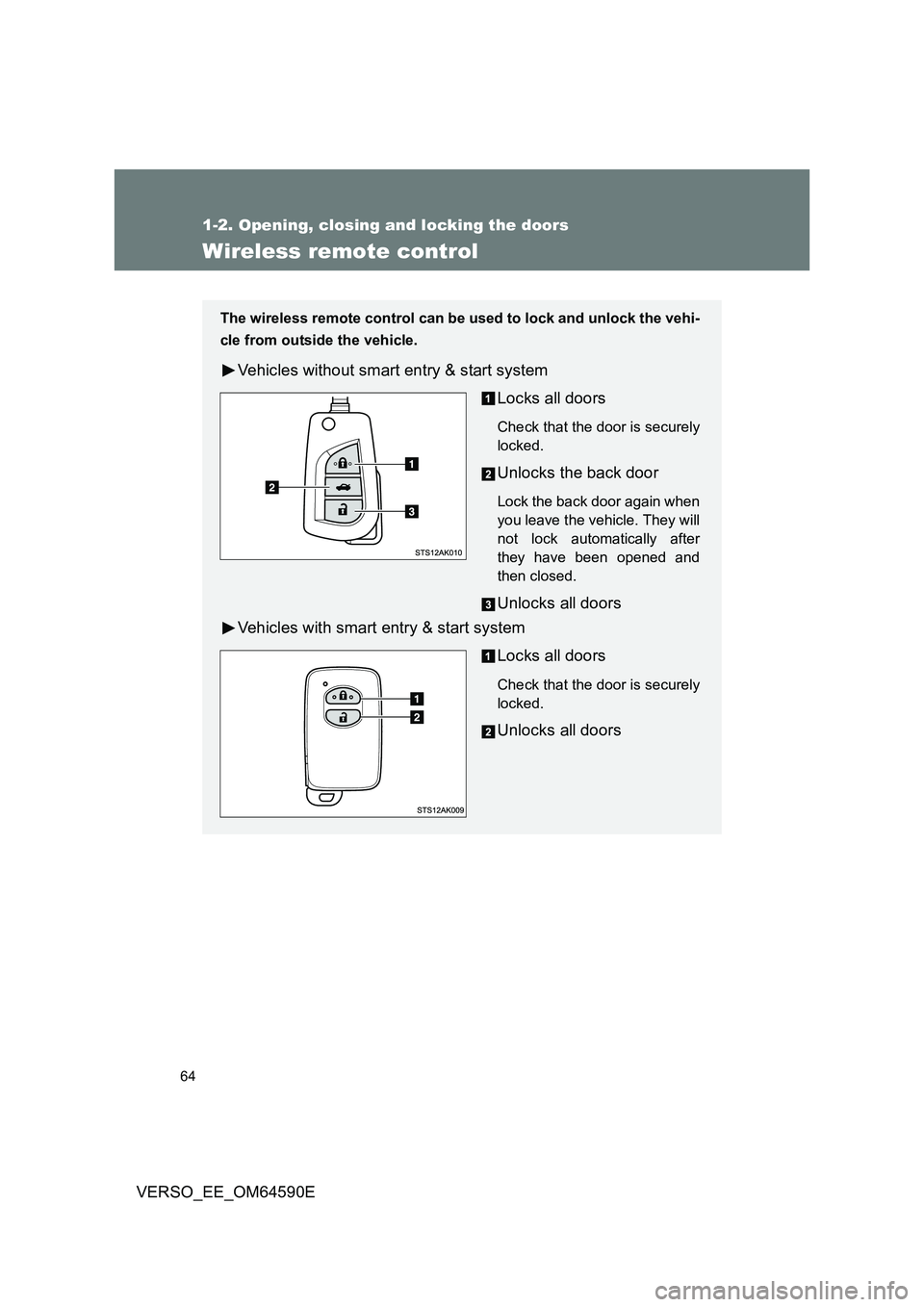

Wireless remote control
The wireless remote control can be used to lock and unlock the vehi-
cle from outside the vehicle.
Vehicles without smart entry & start system
Locks all doors
Check that the door is securely
locked.
Unlocks the back door
Lock the back door again when
you leave the vehicle. They will
not lock automatically after
they have been opened and
then closed.
Unlocks all doors
Vehicles with smart entry & start system
Locks all doors
Check that the door is securely
locked.
Unlocks all doors

65
1-2. Opening, closing and locking the doors
1
Before driving
VERSO_EE_OM64590E
■ Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: Once; Unlocked: Twice)
■ Door lock buzzer
If the door is not fully closed, a buzzer sounds continuously for 5 seconds if
an attempt to lock the door is made. Fully close the door to stop the buzzer,
and lock the vehicle once more.
■ Back door operation (vehicles without smart entry & start system)
When the back door is locked, it can be unlocked by the back door unlock
button of the wireless key. Lock the back door again when you leave the
vehicle. The back door will not lock automatically after it has been opened
and then closed.
■ Alarm (if equipped)
Using the wireless remote control to lo ck the doors will set the alarm system.
( P. 137)
■ Key battery depletion
Vehicles without smart entry & start system
If the wireless remote control function does not operate, the battery may
be depleted. Replace the battery when necessary. ( P. 481)
Vehicles with smart entry & start system
 P. 47, 481
■ Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ If the wireless remote control does not operate properly
Vehicles without smart entry & start system
Locking and unlocking the doors: Use the key. ( P. 73)
Vehicles with smart entry & start system
 P. 600

66
1-2. Opening, closing and locking the doors
VERSO_EE_OM64590E

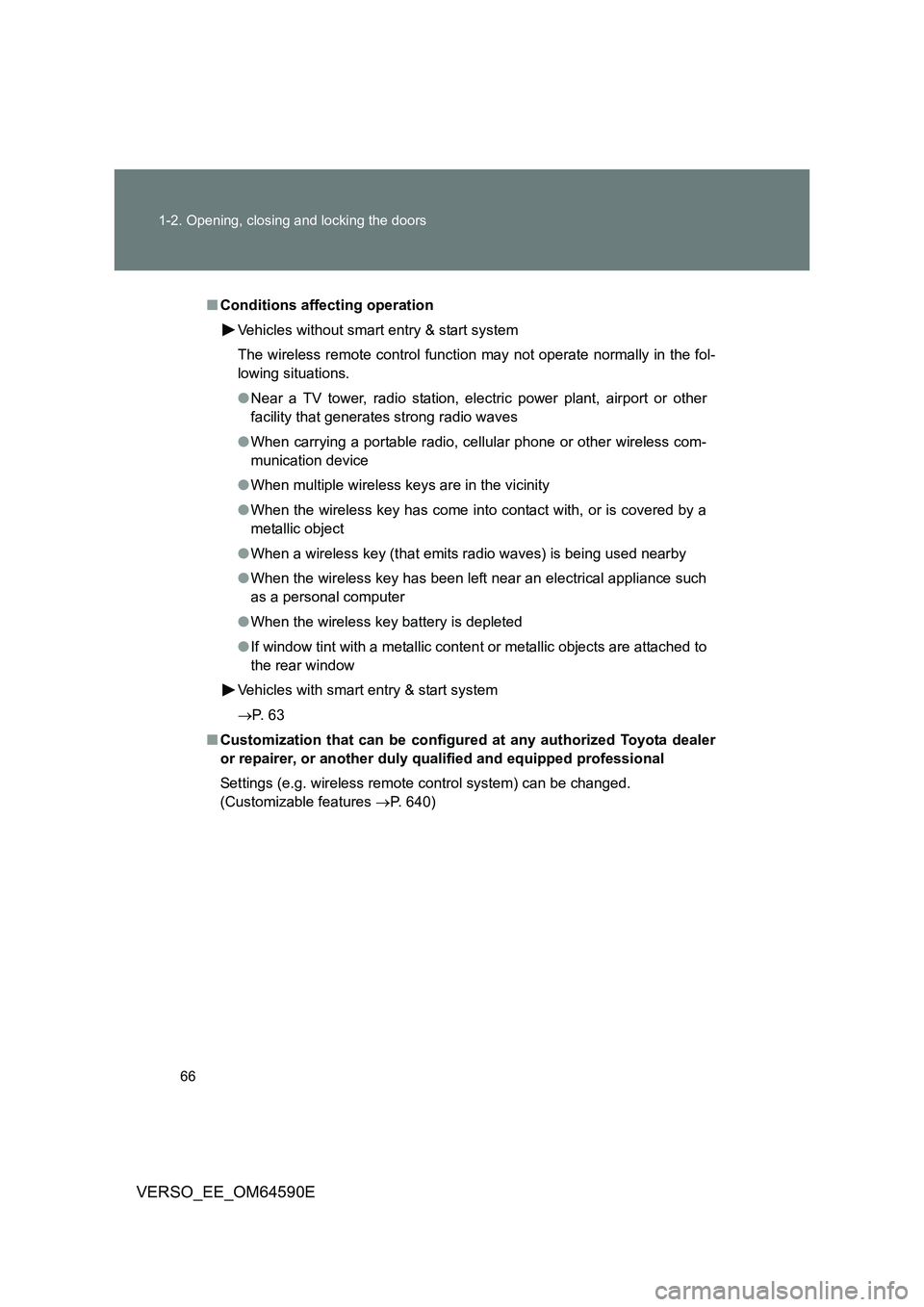

■ Conditions affecting operation
Vehicles without smart entry & start system
The wireless remote control function may not operate normally in the fol-
lowing situations.
● Near a TV tower, radio station, electric power plant, airport or other
facility that generates strong radio waves
● When carrying a portable radio, cellular phone or other wireless com-
munication device
● When multiple wireless keys are in the vicinity
● When the wireless key has come into contact with, or is covered by a
metallic object
● When a wireless key (that emits radio waves) is being used nearby
● When the wireless key has been left near an electrical appliance such
as a personal computer
● When the wireless key battery is depleted
● If window tint with a metallic content or metallic objects are attached to
the rear window
Vehicles with smart entry & start system
 P. 6 3
■ Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. wireless remote control system) can be changed.
(Customizable features P. 640)

67
1-2. Opening, closing and locking the doors
1
Before driving
VERSO_EE_OM64590E

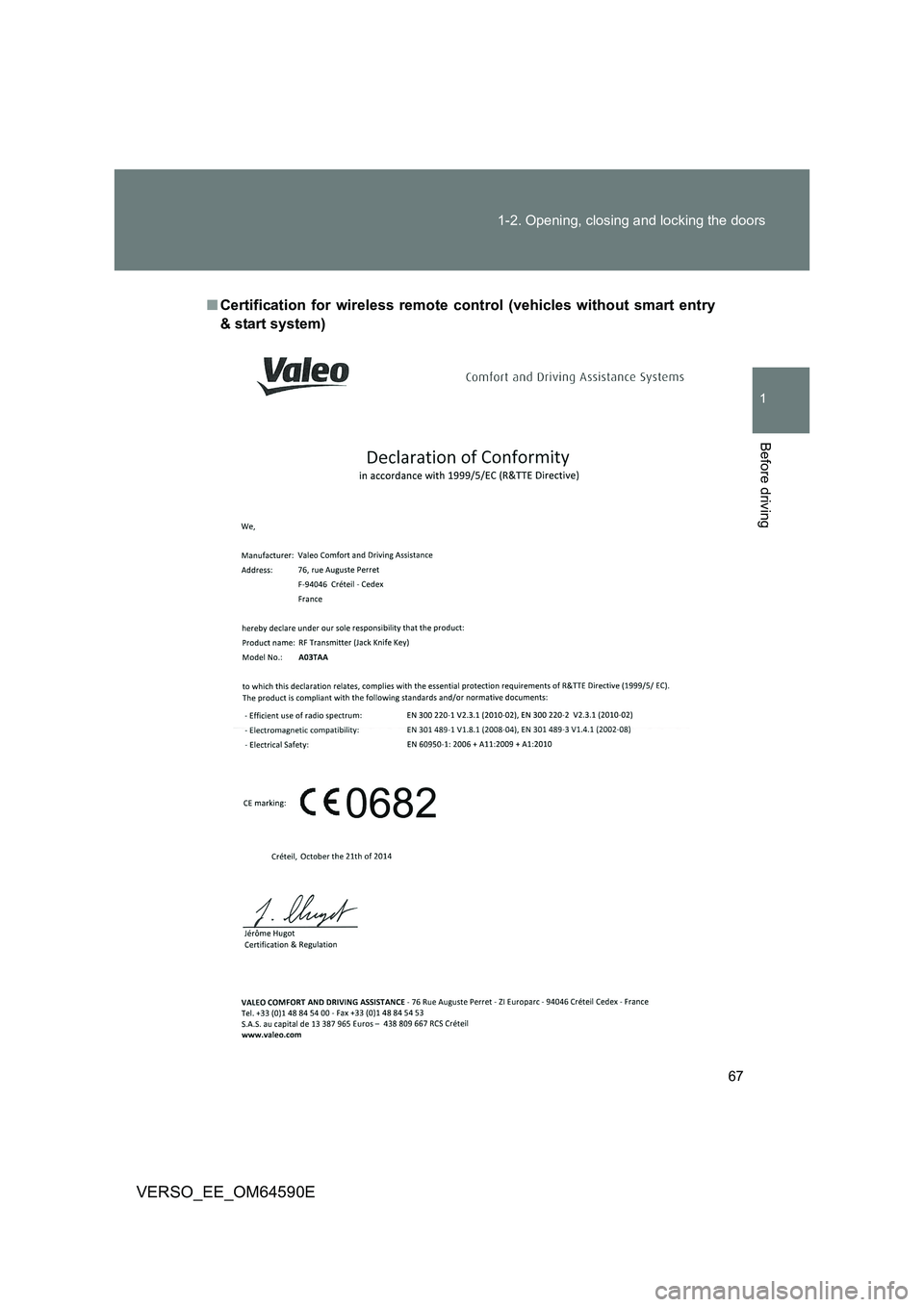

■ Certification for wireless remote control (vehicles without smart entry
& start system)

73
1
1-2. Opening, closing and locking the doors
Before driving
VERSO_EE_OM64590E
Side doors
The vehicle can be locked and unlocked using the smart entry &
start system, wireless remote control, key or door lock switch.
■ Smart entry & start system (if equipped)
 P. 4 2
■ Wireless remote control
 P. 6 4
■ Key (driver’s door only)
Turning the key operates the doors as follows:
Vehicles without smart entry & start system
Locks all doors
Unlocks all doors
Vehicles with smart entry & start system
The doors can also be locked and unlocked with the mechanical
key. ( P. 600)
■ Door lock switch
Locks all doors
Unlocks all doors

79
1
1-2. Opening, closing and locking the doors
Before driving
VERSO_EE_OM64590E
Back door
The back door can be locked/unlocked and opened by the following
procedures.
■ Locking and unlocking the back door
Smart entry & start system (if equipped)
 P. 4 2
Wireless remote control
 P. 6 4
Key
 P. 7 3
Door lock switch
 P. 7 3
■ Opening the back door from outside the vehicle
Raise the back door while
pushing up the back door
opener switch.

135
1
1-6. Theft deterrent system
Before driving
VERSO_EE_OM64590E
Double locking system
Setting the double locking system
Vehicles without smart entry & start system
Turn the engine switch to the “LOCK” position, have all the passen-
gers exit the vehicle and ensure that all the doors are closed.
Using the wireless remote control:
Press the button twice within 5 seconds.
Vehicles with smart entry & start system
Turn the “ENGINE START STOP” switch off, have all the passen-
gers exit the vehicle and ensure that all the doors are closed.
Using the smart entry & start system:
Touch the sensor area on the outside door handle twice within 5
seconds.
Using the wireless remote control:
Press the button twice within 5 seconds.
: If equipped
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of the
vehicle.
Vehicles employing this sys-
tem have labels on the win-
dow glass of both front doors.
