4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
■ Under the instrument panel (type B)
FuseAmpereCircuit
1 WIPER NO.2 7.5 A Charging system
2 POWER 30 A Power windows (driver side)
3 DEF 30 A Rear window defogger, MIR HTR
■ After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 500)
● If the replaced fuse blows again, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.

500
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. As there is a danger that
components may be damaged, we recommend that replacement is
carried out by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
■ Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. ( P. 636)
■ Remove the engine compartment cover
 P. 4 4 6
■ Front bulb locations
Headlight high beam (halogen headlights)
Headlight low beam
(halogen headlights)
Front turn
signal light
Front fog light
Front position light/
daytime running light
(halogen headlights)
Side turn signal lights

501
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
■ Rear bulb locations
*1: Left-hand drive vehicles
*2: Right-hand drive vehicles
Ta i l l i g h t
Rear fog light*2
License plate lights
Rear turn signal light
Back-up light*1
Rear fog light*1
Back-up light*2

508
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
After replacing the light bulb, air cleaner duct, and/or washer
fluid filler opening, return it to the original position. ( P. 502)
■ Front fog light
Remove the 2 bolts.
Remove the clip and then par-
tially remove the fender liner.

510
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn the
front fog light on once and visu-
ally confirm that no light is leaking
through the mounting.
When installing the fender liner, install by conducting
and with the directions reversed.
■ Front position light/daytime running light (halogen headlights)
Removing the air cleaner duct and/or moving the washer fluid
filler opening. ( P. 502)
Turn the bulb base counterclock-
wise.

517
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
Disengage the 2 claws and
remove the rear combination
light socket.
Remove the light bulb.
Tail light
Rear turn signal light
Back-up light or rear fog light
Align the tabs and while pushing,
twist and install the bulb.
Tail light
Rear turn signal light
Back-up light or rear fog light
Check that the wire harness is
attached to the clamp.

636
6-1. Specifications
VERSO_EE_OM64590E
Light bulbs
A: H11 halogen bulbs B: D4S discharge bulbs
C: HB3 halogen bulbs D: H16 halogen bulbs
E: Wedge base bulbs (amber) F: Wedge base bulbs (clear)
G: Single end bulbs (amber) H: Single end bulbs (clear)
I: Double end bulbs
Light BulbsWTy p e
Exterior
Headlights
Low beam (Halogen bulbs)
Low and high beam (Discharge bulbs)
High beam (Halogen bulbs)
55
35
60
A
B
C
Front fog lights 19 D
Front position lights/daytime running
lights (Bulb type) 21/5 F
Front turn signal lights 21 E
Rear turn signal lights 21 G
Tail lights 5 H
Back-up light 21 H
Rear fog light 21 H
License plate lights 5 F
Side turn signal lights 5 E
Interior
Front personal/interior lights 5 F
Rear personal/interior lights 8 F
Vanity lights 8 F
Door courtesy lights 5 F
Luggage compartment light 5 I

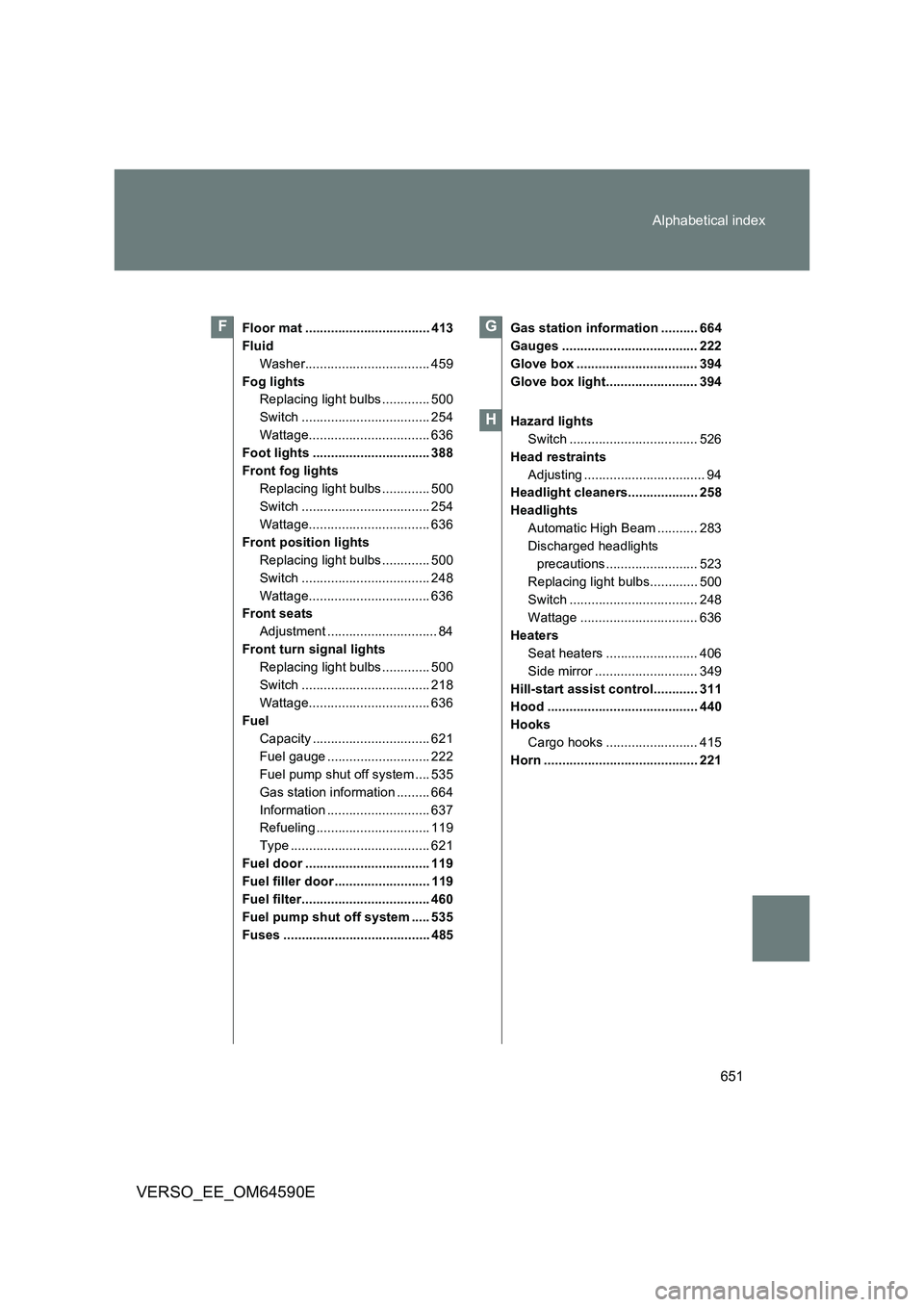

651
Alphabetical index
VERSO_EE_OM64590E
Floor mat .................................. 413
Fluid
Washer.................................. 459
Fog lights
Replacing light bulbs ............. 500
Switch ................................... 254
Wattage................................. 636
Foot lights ................................ 388
Front fog lights
Replacing light bulbs ............. 500
Switch ................................... 254
Wattage................................. 636
Front position lights
Replacing light bulbs ............. 500
Switch ................................... 248
Wattage................................. 636
Front seats
Adjustment .............................. 84
Front turn signal lights
Replacing light bulbs ............. 500
Switch ................................... 218
Wattage................................. 636
Fuel
Capacity ................................ 621
Fuel gauge ............................ 222
Fuel pump shut off system .... 535
Gas station information ......... 664
Information ............................ 637
Refueling ............................... 119
Type ...................................... 621
Fuel door .................................. 119
Fuel filler door .......................... 119
Fuel filter................................... 460
Fuel pump shut off system ..... 535
Fuses ........................................ 485
Gas station information .......... 664
Gauges ..................................... 222
Glove box ................................. 394
Glove box light......................... 394
Hazard lights
Switch ................................... 526
Head restraints
Adjusting ................................. 94
Headlight cleaners................... 258
Headlights
Automatic High Beam ........... 283
Discharged headlights
precautions......................... 523
Replacing light bulbs............. 500
Switch ................................... 248
Wattage ................................ 636
Heaters
Seat heaters ......................... 406
Side mirror ............................ 349
Hill-start assist control............ 311
Hood ......................................... 440
Hooks
Cargo hooks ......................... 415
Horn .......................................... 221
