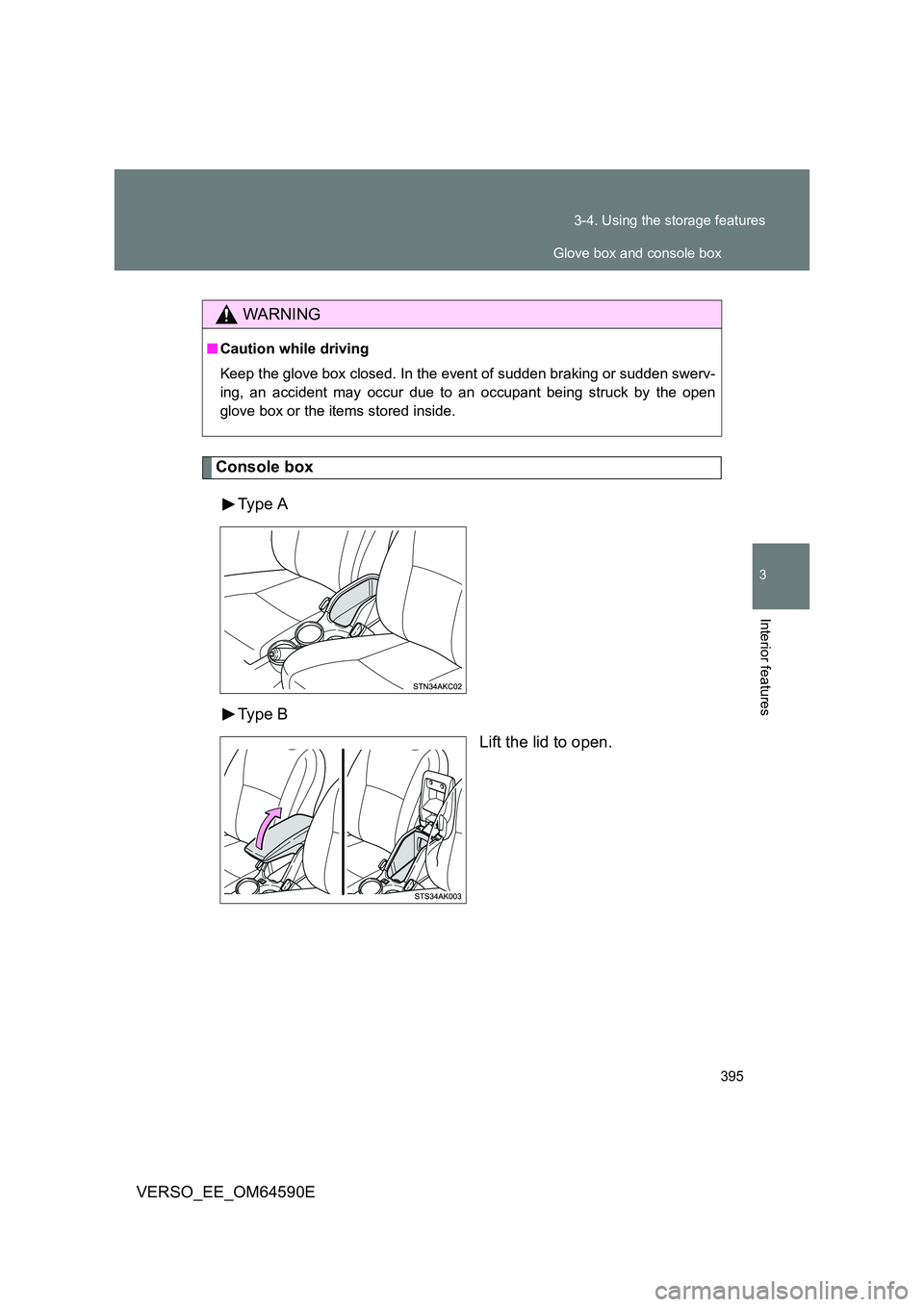

395
3-4. Using the storage features
3
Interior features
VERSO_EE_OM64590E
Console box
Type A
Type B
Lift the lid to open.
WARNING
■ Caution while driving
Keep the glove box closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by the open
glove box or the items stored inside.
Glove box and console box
478
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
Air conditioning filter
The air conditioning filter must be changed regularly to maintain air
conditioning efficiency.
■ Removal method
Vehicles without smart entry & start system:
Turn the engine switch to the “LOCK” position.
Vehicles with smart entry & start system:
Turn the “ENGINE START STOP” switch off.
Open the glove box. Slide off
the damper.
Push in each side of the glove
box to disconnect the claws.
487
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
Remove the lid.
Ty p e B
1. Open the glove box. Slide
off the damper.
2. Lift the glove box to discon-
nect the claws at the bottom
and remove it.
After a system failure, see “Fuse layout and amperage
ratings” ( P. 490) for details about which fuse to check.
495
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
■ Under the instrument panel (type A)
FuseAmpereCircuit
1 TAIL 10 A
Front position lights, tail lights,
license plate lights, rear fog light,
front fog lights, manual headlight
leveling system, instrument cluster
lights, glove box light, switch illumi-
nation, Toyota parking assist-sen-
sor ECU, PCS (Pre-Collision
System) switch
2 ECU-IG NO.3 10 A
Panoramic roof shade, auto anti-
glare inside rear view mirror, smart
entry & start system, audio system,
Stop & Start system*1, PCS (Pre-
Collision System), buzzer, gate-
way ECU
3 FR DOOR 20 A Power windows (front passenger
side)
4 RL DOOR 20 A Power windows (rear left)
5 RR DOOR 20 A Power windows (rear right)
6 CIG 15 A Power outlets
7 ACC 7.5 A
Shift lock system, audio system,
main body ECU, power outlet, out-
side rear view mirrors, Stop & Start
system*1, gateway ECU
8 MIR HTR 10 A Outside rear view mirror defoggers
651
Alphabetical index
VERSO_EE_OM64590E
Floor mat .................................. 413
Fluid
Washer.................................. 459
Fog lights
Replacing light bulbs ............. 500
Switch ................................... 254
Wattage................................. 636
Foot lights ................................ 388
Front fog lights
Replacing light bulbs ............. 500
Switch ................................... 254
Wattage................................. 636
Front position lights
Replacing light bulbs ............. 500
Switch ................................... 248
Wattage................................. 636
Front seats
Adjustment .............................. 84
Front turn signal lights
Replacing light bulbs ............. 500
Switch ................................... 218
Wattage................................. 636
Fuel
Capacity ................................ 621
Fuel gauge ............................ 222
Fuel pump shut off system .... 535
Gas station information ......... 664
Information ............................ 637
Refueling ............................... 119
Type ...................................... 621
Fuel door .................................. 119
Fuel filler door .......................... 119
Fuel filter................................... 460
Fuel pump shut off system ..... 535
Fuses ........................................ 485
Gas station information .......... 664
Gauges ..................................... 222
Glove box ................................. 394
Glove box light......................... 394
Hazard lights
Switch ................................... 526
Head restraints
Adjusting ................................. 94
Headlight cleaners................... 258
Headlights
Automatic High Beam ........... 283
Discharged headlights
precautions......................... 523
Replacing light bulbs............. 500
Switch ................................... 248
Wattage ................................ 636
Heaters
Seat heaters ......................... 406
Side mirror ............................ 349
Hill-start assist control............ 311
Hood ......................................... 440
Hooks
Cargo hooks ......................... 415
Horn .......................................... 221
FG
H
