2016 TOYOTA PRIUS V Owners Manual

PRIUS v_OM_OM47B12U_(U)
5539-1. Specifications
9
Vehicle specifications

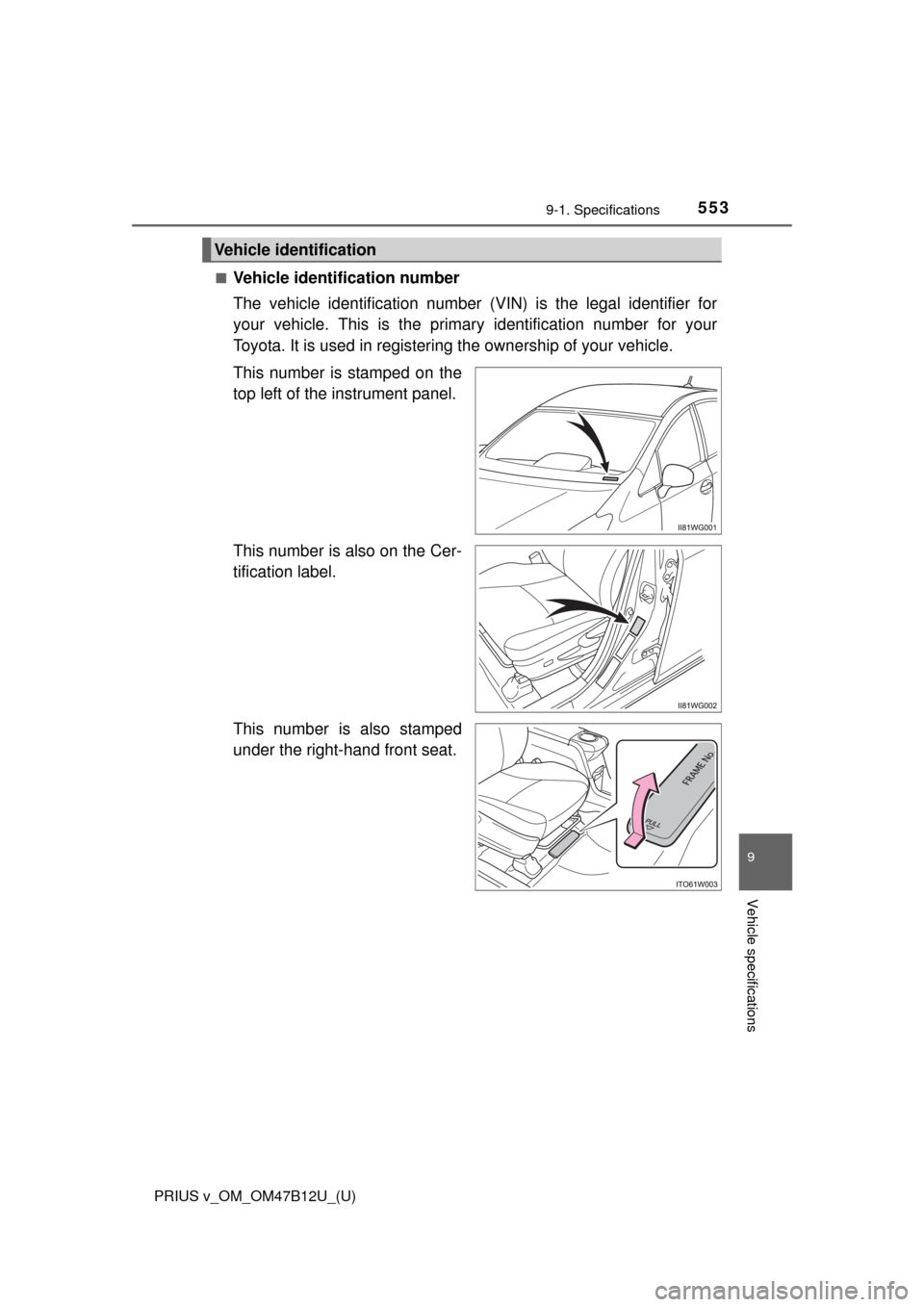

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Cer-
tification label.
This number is also stamped
under the right-hand front seat.
Vehicle identification

554
PRIUS v_OM_OM47B12U_(U)
9-1. Specifications
■Engine number
The engine number is stamped
on the engine block as shown.
Engine
Model1.8 L 4-cylinder (2ZR-FXE)
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke3.17  3.48 in. (80.5  88.3 mm)
Displacement109.7 cu.in. (1798 cm3)
Valve clearanceAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)11.9 gal. (45 L, 9.9 Imp.gal.)
Electric motor (traction motor)
Ty p ePermanent magnet motor
Maximum output60 kW
Maximum torque153 ft•lbf (207 N•m, 21.1 kgf•m)

PRIUS v_OM_OM47B12U_(U)
5559-1. Specifications
9
Vehicle specifications
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up the engine and turn off the hybrid system, wait
more than 5 minutes, and check the oil level on the dipstick.
Hybrid battery (traction battery)
Ty p eNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity28 modules
Overall voltage201.6 V
Lubrication system
Oil capacity
(Drain and refill —
reference
*)
With filter
Without filter4.4 qt. (4.2 L, 3.7 Imp.qt.)
4.1 qt. (3.9 L, 3.4 Imp.qt.)

556
PRIUS v_OM_OM47B12U_(U)
9-1. Specifications
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and
good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark
is added to some oil containers
to help you select the oil you
should use.
Outside temperature

PRIUS v_OM_OM47B12U_(U)
5579-1. Specifications
9
Vehicle specifications
Cooling system
Capacity
Gasoline
engine7.3 qt. (6.9 L, 6.1 Imp.qt.)
Power
control unit2.9 qt. (2.7 L, 2.4 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO SC20HR11 or SC16HR11
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
12-volt battery
Open voltage at 68F (20C):
12.0 V or higher
If the voltage is lower than the standard
value, charge the battery.
(Voltage is checked 30 seconds after the
hybrid system and all lights are turned off.)
Charging rates4.2 A max.

558
PRIUS v_OM_OM47B12U_(U)
9-1. Specifications
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact your Toyota dealer.
*1: Minimum pedal clearance when depressed with a force of 44.1 lbf (196 N,
20.0 kgf) while the hybrid system is operating.
*2: Parking brake pedal travel when depressed with a force of 67.5 lbf (300 N,
30.6 kgf).
Transmission
Fluid capacity*3.6 qt. (3.4 L, 3.0 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage the transmission of your vehicle.
Brakes
Pedal clearance*12.95 in. (75 mm) Min.
Pedal free play0.04 — 0.24 in. (1.0 — 6.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear
limit0.04 in. (1.0 mm)
Parking brake pedal travel*28 —11 clicks
Fluid typeFMVSS No. 116 DOT 3 or SAE J1703
Steering
Free playLess than 1.2 in. (30 mm)

PRIUS v_OM_OM47B12U_(U)
5599-1. Specifications
9
Vehicle specifications
Ty p e A
Ty p e B
Compact spare tire

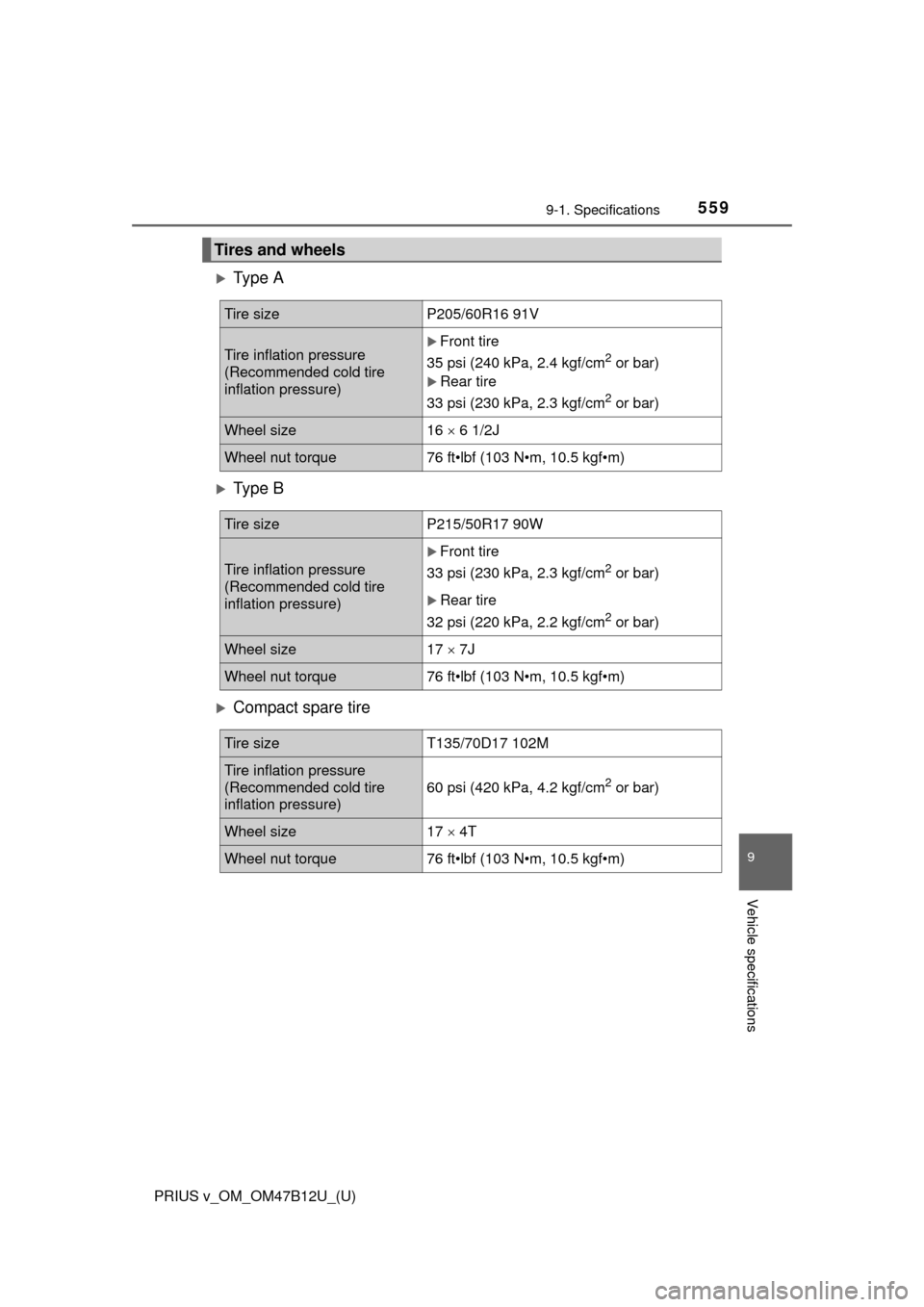

Tires and wheels
Tire sizeP205/60R16 91V
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front tire
35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Rear tire
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Wheel size16  6 1/2J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire sizeP215/50R17 90W
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Rear tire
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Wheel size17  7J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire sizeT135/70D17 102M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size17  4T
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

560
PRIUS v_OM_OM47B12U_(U)
9-1. Specifications
Light bulbs
Light bulbsBulb No.WTy p e
Exterior
Halogen headlights*
Low beam
High beamH11
HB355
60A
B
Fog lights*H1619C
Front turn signal lights
Halogen headlights
LED headlights
7444NA
WY21W28
21D
D
Front side marker lights (vehi-
cles with halogen headlights)W5W5E
Parking lights (vehicles with
halogen headlights)W5W5E
Rear turn signal lightsWY21W21D
Back-up lightsW21W21E
License plate lightsW5W5E
Interior
Vanity lights8E
Personal/interior lights
Vehicles without
panoramic roof
Vehicles with
panoramic roof

5
8E
E
Rear interior light8F
Door courtesy lights5E
Luggage compartment light5E
A: H11 halogen bulbs
B: HB3 halogen bulbs
C: H16 halogen bulbs
D: Wedge base bulbs (amber)E: Wedge base bulbs (clear)
F: Double end bulbs
*: If equipped
