21Pictorial index
PRIUS v_OM_OM47B12U_(U)MPH or km/h button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 93
Clock adjustment buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 386
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . . . P. 445
*: If equipped
1
2
3

92
PRIUS v_OM_OM47B12U_(U)
2. Instrument cluster
Hybrid System Indicator
Displays hybrid system output or regeneration level
Speedometer
Displays the vehicle speed
Shift position indicators
Displays the selected shift position. (P. 181)
Fuel gauge
Displays the quantity of fuel remaining in the tank
Hybrid battery (traction battery) status
The amount of charge remaining in the hybrid battery (traction battery) is
shown by 8 bars.
Clock
Displays the time. (Adjustment procedure: P. 386)
Odometer and trip meter display
Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.
Trip information display
Displays fuel consumption, etc.
Multi-information display
Presents the driver with a variety of driving-related data (P. 100)
Displays warning messages in case of a malfunction (P. 503)
1
2
3
4
5
6
7
8
9

PRIUS v_OM_OM47B12U_(U)
932. Instrument cluster
2
Instrument cluster

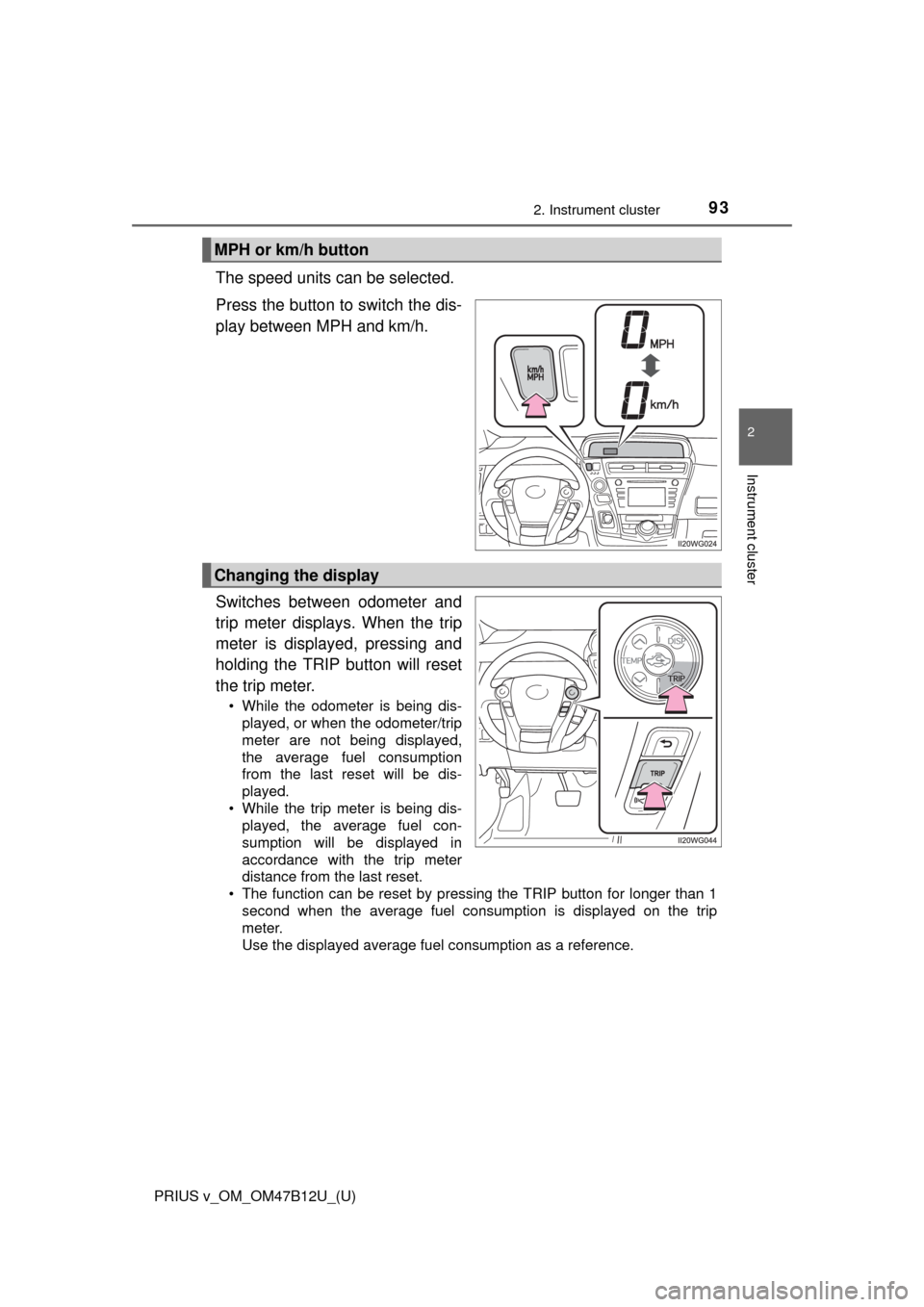

The speed units can be selected.
Press the button to switch the dis-
play between MPH and km/h.
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the TRIP button will reset
the trip meter.
• While the odometer is being dis-
played, or when the odometer/trip
meter are not being displayed,
the average fuel consumption
from the last reset will be dis-
played.
• While the trip meter is being dis-
played, the average fuel con-
sumption will be displayed in
accordance with the trip meter
distance from the last reset.
• The function can be reset by pressing the TRIP button for longer than 1
second when the average fuel consumption is displayed on the trip
meter.
Use the displayed average fuel consumption as a reference.
MPH or km/h button
Changing the display

PRIUS v_OM_OM47B12U_(U)
952. Instrument cluster
2
Instrument cluster
■Current fuel consumption
Displays the instant fuel consumption.
■Average fuel consumption
The average fuel consumption is displayed on both the odometer
and the trip meter.
The function can be reset by pressing the DISP button for longer
than 1 second when the average fuel consumption is displayed on
the odometer.
Use the displayed average fuel consumption as a reference.
■Cruising range
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed based on your average fuel consump-
tion.
As a result, the actual distance that can be driven may differ from
that displayed.
• When only a small amount of fuel is added to the tank, the dis-
play may not be updated.
When refueling, turn the power switch off. If the vehicle is refu-
eled without turning the power switch off, the display may not be
updated.
■“SET” screen
The items displayed on Hybrid System Indicator can be setup.
(P. 97)

PRIUS v_OM_OM47B12U_(U)
992. Instrument cluster
2
Instrument cluster
■Remaining hybrid battery (traction battery) charge display
The charge amount of the hybrid battery (traction battery) is automatically
controlled by the hybrid system. For this reason, even if electricity is recov-
ered via the regenerative braking, or electricity is generated via the gasoline
engine, the displayed hybrid battery (traction battery) charge amount may not
reach the highest level (level 8). However, this does not indicate a malfunc-
tion.
■Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions etc.
■Brightness of the instrument panel light
If the headlight switch is turned to ON while the surrounding area is dark, the
instrument panel lights will dim.
■When disconnecting and reconnecting 12-volt battery terminals
The fuel consumption display and average vehicle speed will be reset.
NOTICE
■To prevent damage to the engine and its components
The engine may be overheating if the high coolant temperature warning
light comes on or flashes. In this case, immediately stop the vehicle in a
safe place, and check the engine after it has cooled completely. (P. 543)
■The trip information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

PRIUS v_OM_OM47B12U_(U)
1072. Instrument cluster
2
Instrument cluster
■System check display
After turning the power switch to ON mode, opening image is displayed while
system operation is checked. When the system check is complete, the nor-
mal screen will return.
■Pop-up display
When a system that supports pop-up displays, such as the air conditioning
system, is operated, a pop-up display will be temporarily displayed.
■When disconnecting and reconnecting 12-volt battery terminals
The fuel consumption display and average vehicle speed will be reset.
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
■Meter display setting initialization
Press or on the meter control switch to select , and then
press .
Press or to select meter setting initialization, press , and then
select “YES”.
■Customization
The meter settings can be changed.
(Customizable features: P. 575)
NOTICE
■The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
1
2

112
PRIUS v_OM_OM47B12U_(U)
2. Instrument cluster
Audio system with “CAR” button
Press the “CAR” button. (P. 108)
Audio system with “APPS” button
Press the “APPS” button. (P. 108)
Select “ECO” on the “APPS”
screen
If “Energy Monitor” screen is dis-
played, touch “Trip Information”.
If “Past Record” screen is dis-
played, touch “Trip Information”.
Resetting the consumption
data
Fuel consumption in the past 15 minutes
Regenerated energy in the past 15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
Cruising range (P. 11 3 )
Elapsed time since the hybrid system was started.
Average vehicle speed since the hybrid system was started.
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the power
switch was last turned to ON mode. Use the displayed average fuel
consumption as a reference.
The image is an example only.
Trip information
1
1
2
1
2
3
4
5
6

PRIUS v_OM_OM47B12U_(U)
1132. Instrument cluster
2
Instrument cluster
Audio system with “CAR” button
Press the “CAR” button. (P. 108)
Audio system with “APPS” button
Press the “APPS” button. (P. 108)
Select “ECO” on the “APPS”
screen.
If “Energy Monitor” screen is dis-
played, touch “Past Record”.
If “Trip Information” screen is dis-
played, touch “Past Record”.
Best recorded fuel consump-
tion
Resetting the past record data
Average fuel consumption
Previous fuel consumption record
Updating the average fuel consumption data
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
The image is an example only.
■Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.
■Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.

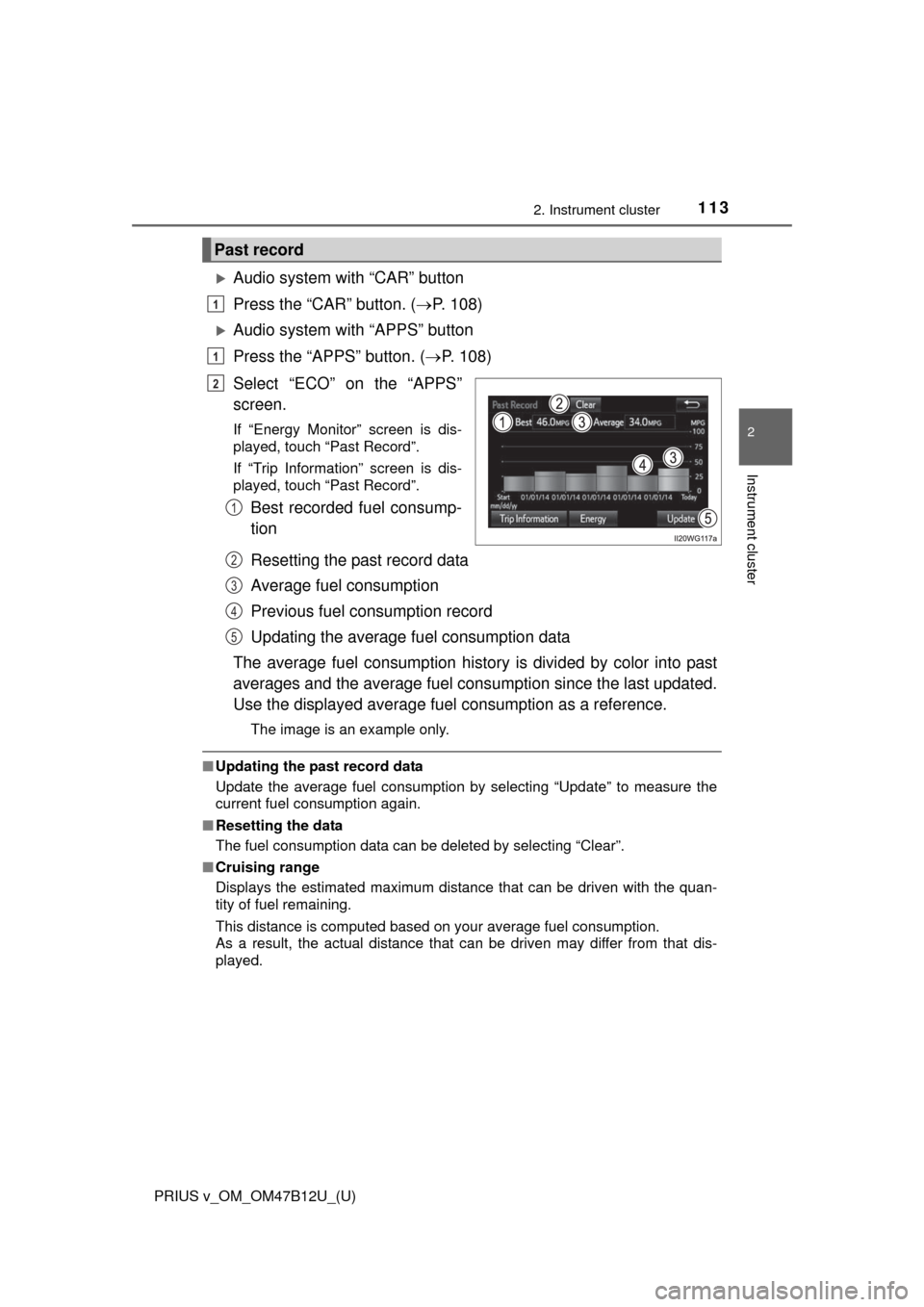

Past record
1
1
2
1
2
3
4
5
