7-3. Do-it-yourself maintenance
7
Maintenance and care
Air conditioning filter

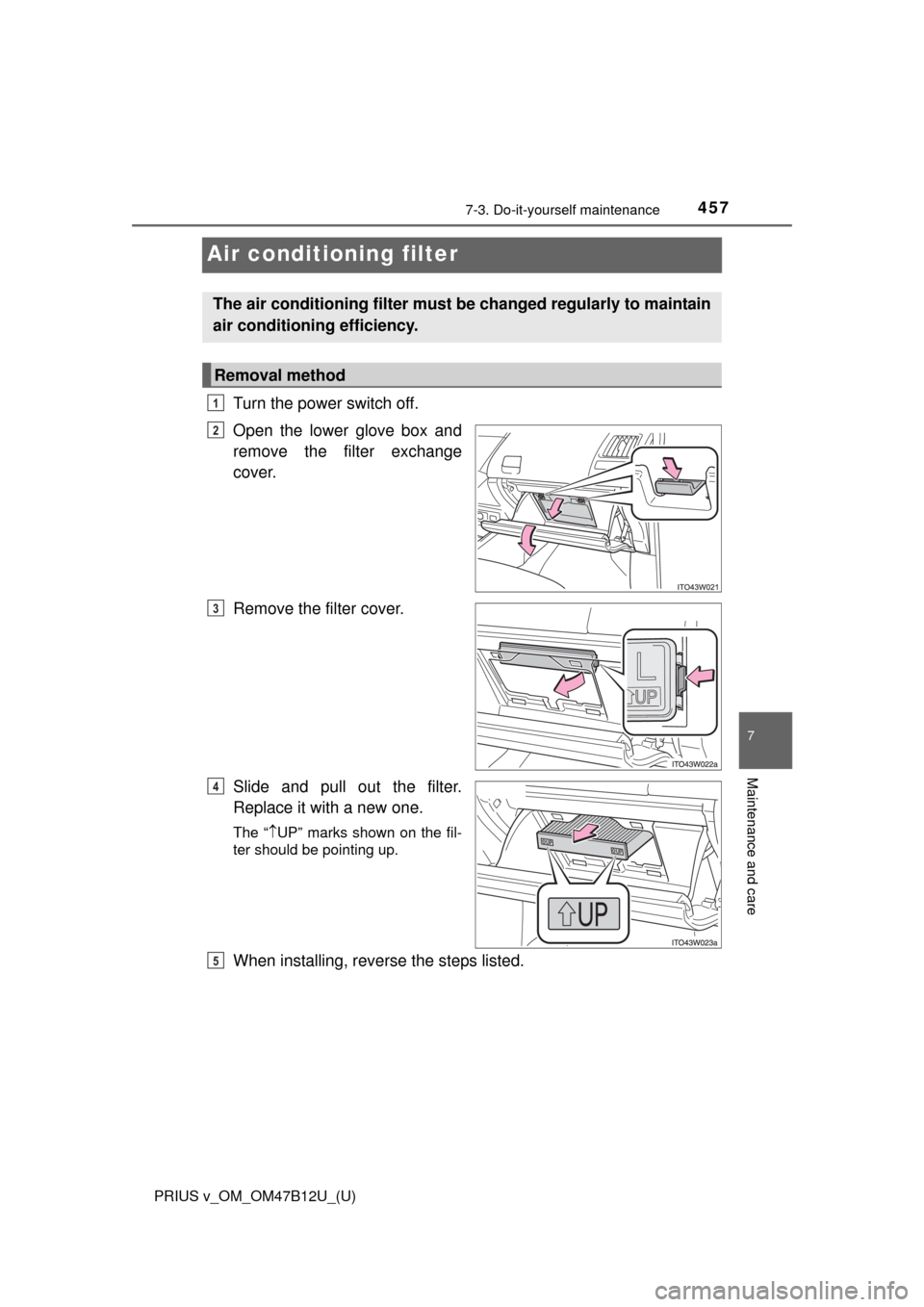

Turn the power switch off.
Open the lower glove box and
remove the filter exchange
cover.
Remove the filter cover.
Slide and pull out the filter.
Replace it with a new one.
The “UP” marks shown on the fil-
ter should be pointing up.
When installing, reverse the steps listed.
The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.
Removal method
1
2
3
4
5

458
PRIUS v_OM_OM47B12U_(U)
7-3. Do-it-yourself maintenance
■Checking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
“Scheduled Maintenance Guide” or “Owner’s Manual Supplement”.)
■If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
■When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.

459
PRIUS v_OM_OM47B12U_(U)
7-3. Do-it-yourself maintenance
7
Maintenance and care
Wiper rubber replacement
■Front

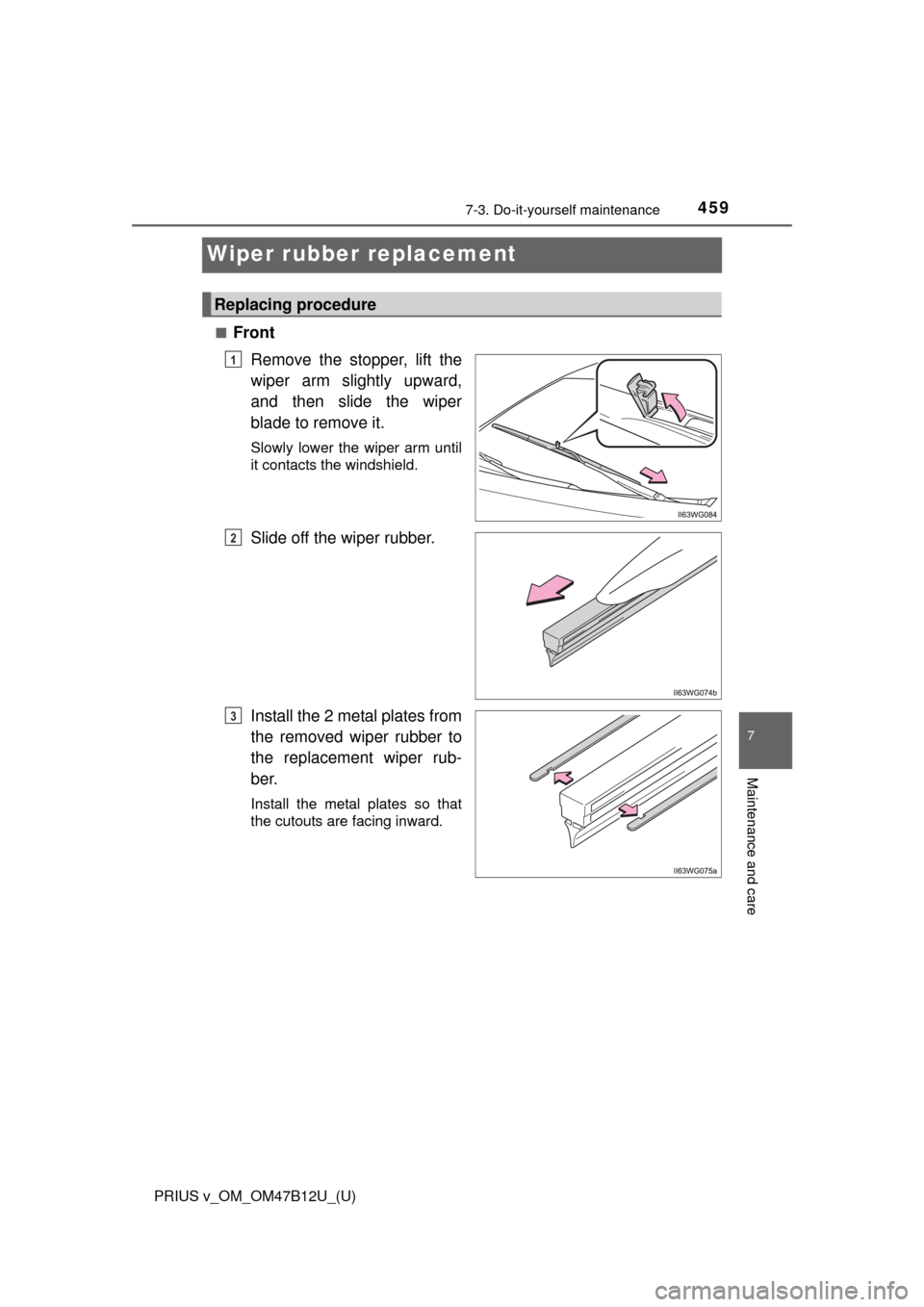

Remove the stopper, lift the
wiper arm slightly upward,
and then slide the wiper
blade to remove it.
Slowly lower the wiper arm until
it contacts the windshield.
Slide off the wiper rubber.
Install the 2 metal plates from
the removed wiper rubber to
the replacement wiper rub-
ber.
Install the metal plates so that
the cutouts are facing inward.
Replacing procedure
1
2
3

460
PRIUS v_OM_OM47B12U_(U)
7-3. Do-it-yourself maintenance
When installing, insert the
wiper rubber in the direction
opposite that used during the
removal procedure until the
wiper rubber becomes
locked and stops moving.
Check the direction the wiper
rubber is facing before installing.
After installing the wiper rubber, install the wiper blade to the wiper arm
and secure the stopper.
■
Rear
With the wiper extended,
remove the wiper rubber.
Install the 2 metal plates from
the removed wiper rubber to the
replacement wiper rubber so
that the cutouts are facing
inward.
When installing, insert the
wiper rubber as shown in the
illustration.
4
1
2

461
PRIUS v_OM_OM47B12U_(U)
7-3. Do-it-yourself maintenance
7
Maintenance and care
Electronic key batter y
●Flathead screwdriver
●Lithium battery CR1632

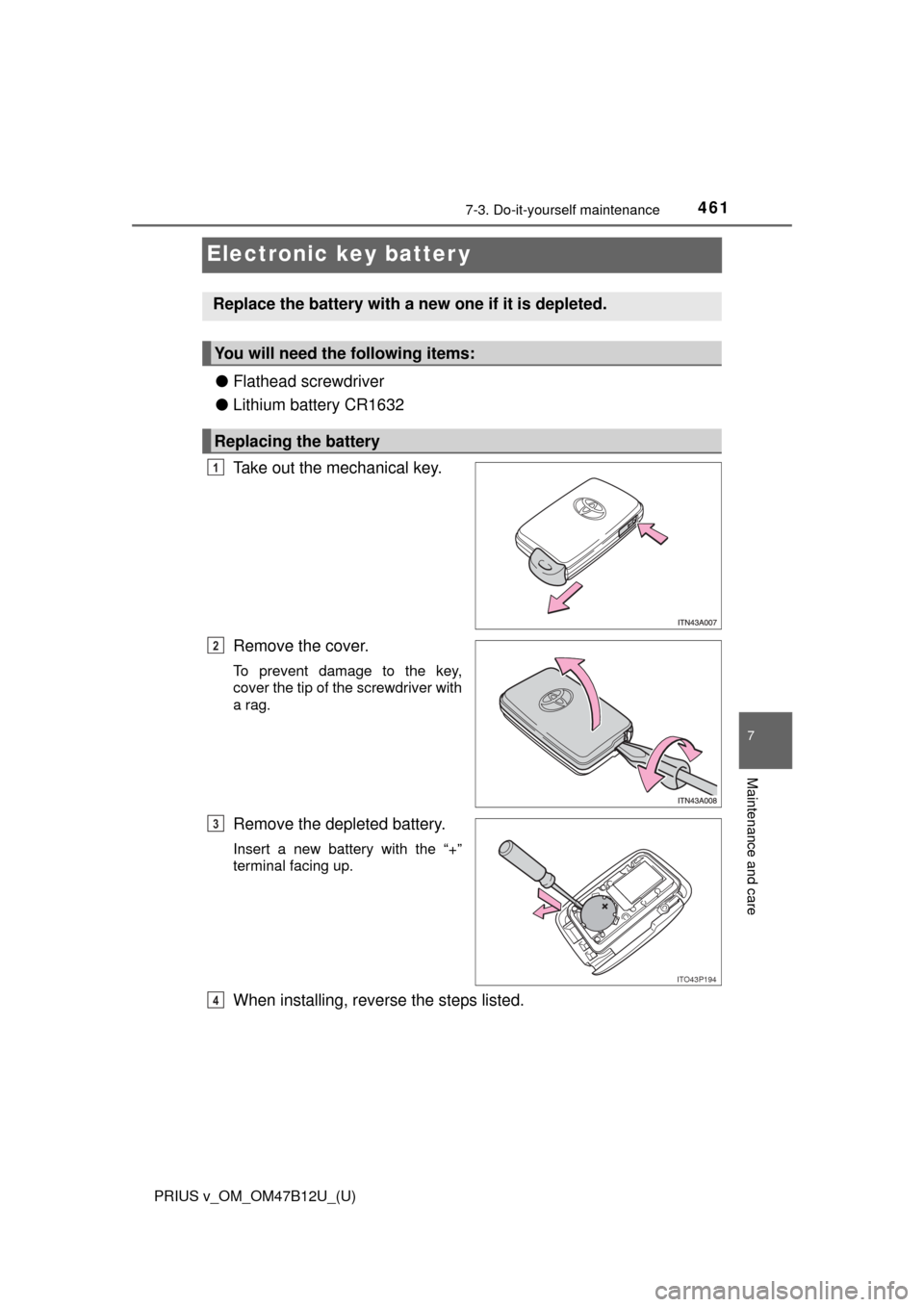

Take out the mechanical key.
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
When installing, reverse the steps listed.
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery
1
2
ITO43P194
3
4

462
PRIUS v_OM_OM47B12U_(U)
7-3. Do-it-yourself maintenance
■Use a CR1632 lithium battery
●Batteries can be purchased at your Toyota dealer, local electrical appliance
shops or camera stores.
●Replace only with the same or equivalent type recommended by the manu-
facturer.
●Dispose of used batteries according to the local laws.
■If the electronic key battery is depleted
The following symptoms may occur:
●The smart key system and wireless remote control will not function properly.
●The operational range will be reduced.
WARNING
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote control.
●Do not bend either of the battery terminals.

463
PRIUS v_OM_OM47B12U_(U)
7-3. Do-it-yourself maintenance
7
Maintenance and care
Checking and replacing fuses
Turn the power switch off.
Open the fuse box cover.
Remove the fuse.
Only type A fuse can be
removed using the pullout tool.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
Engine compartmentLeft side instrument panel
Push the tab in and lift the lid
off.
When closing, first hook the lid
onto the two rear tabs.
Remove the lid.
3

464
PRIUS v_OM_OM47B12U_(U)
7-3. Do-it-yourself maintenance
Check if the fuse is blown.
Normal fuse
Blown fuse
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
4
1
2
Ty p e AType B
Ty p e C
