2016 TOYOTA HIGHLANDER HYBRID Owners Manual

5698-2. Customization
HIGHLANDER_HV_U (OM48F12U)
8
Vehicle specifications
■Illumination (P. 341)
*:If equipped
■
Seat belt reminder ( P. 463)
FunctionDefault settingCustomized set-
ting
Time elapsed before the
interior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation after the
power switch is turned
off
OnOff——O
Operation when the
doors are unlockedOnOff——O
Operation when you
approach the vehicle
with the electronic key
on your person
OnOff——O
Ambient lights*OnOff——O
Time elapsed before the
outer foot lights turn off
*15 seconds
Off
O—O7.5 seconds
30 seconds
Operation of the outer
foot lights when you
approach the vehicle
with the electronic key
on your person
*
OnOff——O
Operation of the outer
foot lights when the
doors are unlocked
*
OnOff——O
123
FunctionDefault settingCustomized set-
ting
Vehicle speed linked
seat belt reminder
buzzer
OnOff——O
123

5708-2. Customization
HIGHLANDER_HV_U (OM48F12U)
■Vehicle customization
●When the smart key system is off, the entry unlock function cannot be cus-
tomized.
● When the doors remain closed after unlocking the doors and the timer acti-
vated automatic door lock function activates, signals will be generated in
accordance with the operation buzzer volume and operational signal (Emer-
gency flashers) function settings.
■ Changing of the power back door opening angle
The opening angle setting can be changed through operation of either the
power back door switch or the audio system screen.
However, if the power switch is on and the power back door switch is used to
change the opening angle setting, the changed opening angle will not be
reflected on the audio system screen until the power switch is turned off and
then on again.
■ When customizing on the audio system screen
Stop the vehicle in a safe place, apply the parking brake, and shift the shift
lever to P. Also, to prevent 12-volt battery discharge, leave the hybrid system
operating while customizing the features.
WARNING
■ During customization
As the hybrid system needs to be oper ating during customization, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while customizing features.

571
HIGHLANDER_HV_U (OM48F12U)
8
Vehicle specifications
8-3. Initialization
Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the 12-volt battery being reconnected,
or maintenance being performed on the vehicle:
ItemWhen to initializeReference
Power back door
• After reconnecting or chang- ing the battery
• After changing a fuse
P. 134
Message indicating mainte-
nance is required
(U.S.A. only)After the maintenance is per-
formedP. 390
Tire pressure warning sys-
temWhen changing the tire infla-
tion pressure by changing trav-
eling speed or load weight, etc.
P. 418

5728-3. Initialization
HIGHLANDER_HV_U (OM48F12U)

573
For owners
HIGHLANDER_HV_U (OM48F12U)
9
Reporting safety defects for U.S. owners ........................ 574
Seat belt instructions for Canadian owners
(in French) ............................... 575
SRS airbag instructions for Canadian owners
(in French) ............................... 578

574
HIGHLANDER_HV_U (OM48F12U)

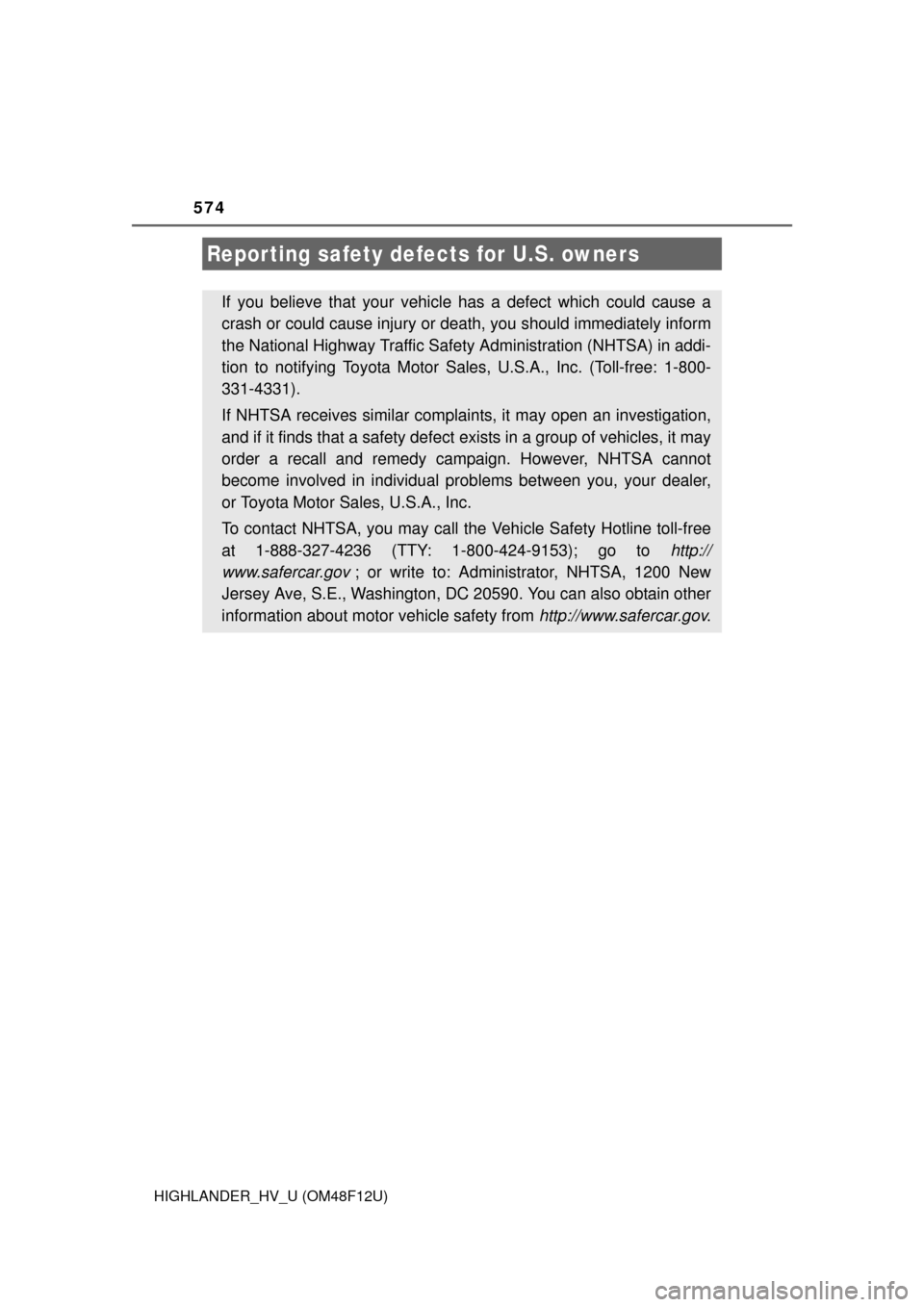

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addi-
tion to notifying Toyota Motor Sale s, U.S.A., Inc. (Toll-free: 1-800-
331-4331).
If NHTSA receives simila r complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual prob lems between you, your dealer,
or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call t he Vehicle Safety Hotline toll-free
at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://
www.safercar.gov
; or write to: Administrator, NHTSA, 1200 New
Jersey Ave, S.E., Washington, DC 20590. You can also obtain other
information about motor vehicle safety from http://www.safercar.gov.

575
HIGHLANDER_HV_U (OM48F12U)
9
For owners

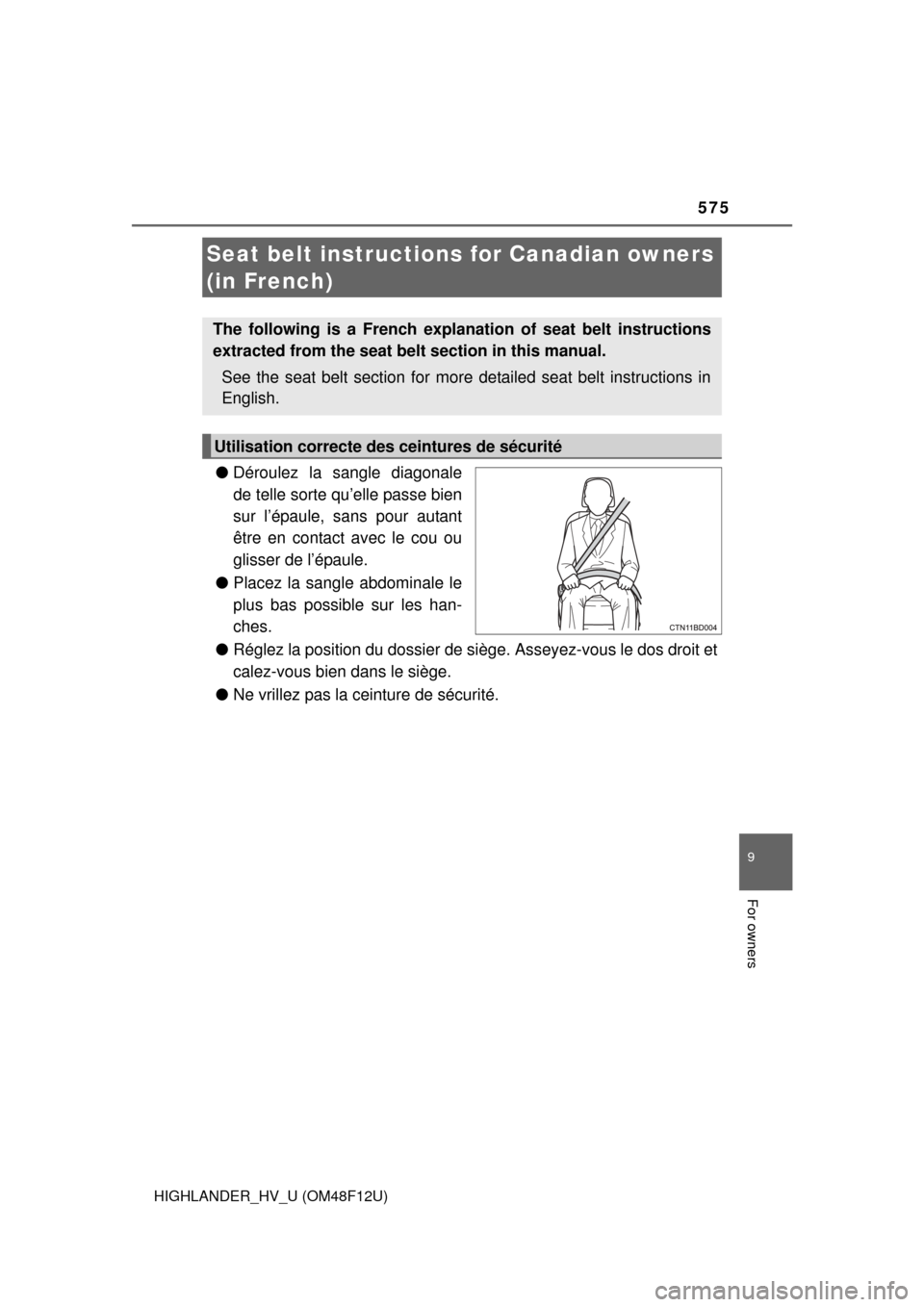

●Déroulez la sangle diagonale
de telle sorte qu’elle passe bien
sur l’épaule, sans pour autant
être en contact avec le cou ou
glisser de l’épaule.
● Placez la sangle abdominale le
plus bas possible sur les han-
ches.
● Réglez la position du dossier de si ège. Asseyez-vous le dos droit et
calez-vous bien dans le siège.
● Ne vrillez pas la ceinture de sécurité.
Seat belt instructions for Canadian owners
(in French)
The following is a French explan ation of seat belt instructions
extracted from the seat be lt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.
Utilisation correcte des ceintures de sécurité

576
HIGHLANDER_HV_U (OM48F12U)
Si la sangle diagonale est proche du cou d’une personne, utilisez le
guide de confort de la ceinture de sécurité.
Sortez le guide de confort de sa
poche.
Glissez la ceinture dans la fente
du guide.
Le cordon élastique doit être der-
rière la ceinture de sécurité.
Attachez la ceinture de sécurité
et placez-la confortablement.
Guide de confort de ceinture de s écurité (siège central de la troi-
sième rangée)
1
2
3
