2016 TOYOTA CAMRY HYBRID Owners Manual

892. Instrument cluster
2
Instrument cluster
CAMRY_HV_U (OM33C35U)
Pressing the button changes the
display change button display as
follows.
nOdometer
Displays the total distance the vehicle has been driven.
nTr i p m e t e r A*/trip meter B*
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
*: Press and hold the display change button to reset.
The brightness of the Instrument panel lights can be adjusted.
Pressing the button will adjust
brightness of the Instrument panel
lights.
Changing the odometer/trip meter display
Instrument panel light control button

902. Instrument cluster
CAMRY_HV_U (OM33C35U)
nThe meters and display illuminate when
The power switch is in ON mode.
n The brightness of the in strument panel lights
When the tail lights are turned on, the meter’s brightness will be reduced
slightly unless the meter brightness level adjustment is set to the brightest
setting.
If the tail lights are turned on when the surroundings are dark, the meter’s
brightness will reduce slightly. Howe ver, when the surroundings are bright,
such as during the daytime, the meter’s brightness will not be reduced even if
the tail lights are turned on.
n Hybrid System Indicator
lBy keeping the indicator needle within Eco area, more Eco-friendly driving
can be achieved.
l Charge area indicates regeneration
* status. Regenerated energy will be
used to charge the battery.
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
n Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even
when vehicle operation and driving conditions are the same.Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
Power area
Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)
1
2
3
4

912. Instrument cluster
2
Instrument cluster
CAMRY_HV_U (OM33C35U)n
Outside temperature display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
lWhen stopped, or driving at low speeds (less than 16 mph [25 km/h])
l When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)
NOTICE
n To prevent damage to the engine and its components
The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( P. 496)

922. Instrument cluster
CAMRY_HV_U (OM33C35U)
The multi-information display presents the driver with a variety of vehi-
cle data.
lMenu icons
Displays the following informa-
tion when an icon is selected.
( P. 93)
Some of the information may be
displayed automatically
depending on the situation.
Drive information
Select to display various drive data. ( P. 94)
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the meter
using the meter control switches.
Dynamic radar cruise control operation guide (if equipped)
Select to display operation procedures of the dynamic radar cruise
control. ( P. 189)
The tab will change to when the vehicle is in constant
speed control mode. ( P. 195)
If activated, the operational status of the LDA (Lane Departure Alert)
system will also be displayed. (If equipped) ( P. 202)

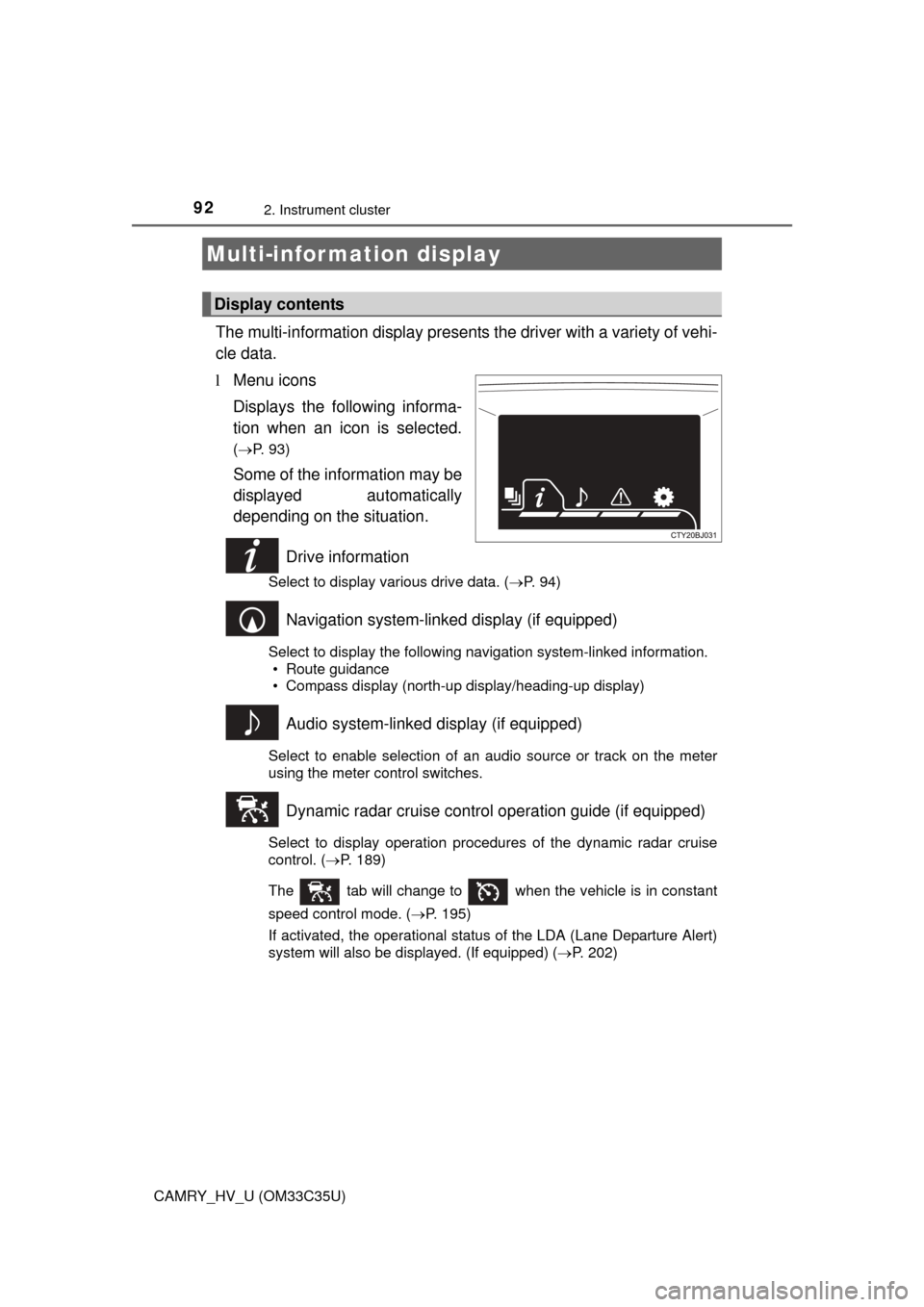

Multi-infor mation display
Display contents

932. Instrument cluster
2
Instrument cluster
CAMRY_HV_U (OM33C35U)
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. (P. 455)
Settings display
Select to change the meter display settings. ( P. 95)
n
Operating the meter control switches
Scroll up/down the screen
and move up/down the cur-
sor
Switch menu
Press: Enters/Sets
Press and hold: Resets
Returns to the previous
screen
1
2
3
4

942. Instrument cluster
CAMRY_HV_U (OM33C35U)
lAverage fuel economy*1, 2/Tank average fuel economy*1/Trip aver-
age fuel economy
*1
Displays the average fuel consum ption since the function was
reset, the vehicle was refueled, and the hybrid system was started,
respectively
Use the displayed average fuel consumption as a reference.
l Current fuel economy*1
Displays the current rate of fuel consumption
l Distance to empty
*1/Trip distance*1/Distance*1, 2
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining, the distance driven after the hybrid
system was started and the distance since the function was reset,
respectively.
• This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the power switch off. If the vehicle is refueled with-
out turning the power switch off, the display may not be updated.
l Trip elapsed time*1/Elapsed time*1, 2
Displays the hybrid system was started and the elapsed time since
the function was reset, respectively
l Trip average speed
*1/Average speed*1, 2
Displays the hybrid system was started and the average vehicle
speed since the function was reset, respectively
l Digital speedometer
*1
lEnergy monitor
P. 9 8
l Tire inflation pressure
*3
P. 4 0 9
Drive information

952. Instrument cluster
2
Instrument cluster
CAMRY_HV_U (OM33C35U)
*1: Can be registered to Drive information 1 through 3.
*2: Resetting procedures:• Select a function to be reset using the meter control switch and then press and hold the center button to reset.
• If there is more than one function that can be reset, check boxes will be
displayed next to the functions.
*3: With a tire inflation pressure display function
n
Changing the settings Select using the meter control switch.
Select an item and then set it with the center button.
nCustomizable items
lLanguage
Select to change the language displayed on the multi-information
display.
l Units
Select to change the unit of measure displayed on the multi-infor-
mation display.
l Drive information 1 through 3
Select to select up to 2 items t hat will be displayed on a Drive
information screen, up to 3 Drive information screens can be set.
l EV indicator light
Select to activate/deactiva te the EV indicator light. (
P. 7 1 )
l Pop-up display
Select to set the following pop-up displays, which may appear in
some situations, on/off.
• Instrument panel brightness adjustment display
• Route guidance display of t he navigation system-linked sys-
tem (if equipped)
• Cruise control operation display (vehicles with dynamic radar cruise control)
• Incoming call display of the hands-free phone system
• Shift position display
l Accent color
Select to change the accent colors on the screen, such as the
cursor color.
Settings display
1
2

962. Instrument cluster
CAMRY_HV_U (OM33C35U)
lSpeed limit display*
Select to set the display of speed limit information stored in the
navigation system (if equipped) to on with the speed limit caution
indicator (yellow) enabled, on with the speed limit caution not
enabled, or off. If enabled, the sp eed limit caution indicator will
come on if the vehicle speed ex ceeds the displayed speed limit.
l Maintenance system (U.S.A.)
Select to reset the message after the required maintenance is
performed. (
P. 385)
l Initialization
Registered or changed meter settings will be deleted or returned
to their default setting.
*: Speed limit display may not be available for some regions.
nSetting display automatic cancelation
In the following situations, a setting display in which the settings can\
be
changed through the meter control switches will automatically be turned off.
lWhen a warning message appears while the setting display is displayed
l When the vehicle begins to move while the setting display is displayed
n
Tire inflation pressure (vehicles with tire pressure warning system)
lIt may take a few minutes to display the tire inflation pressure after the
power switch is turned to ON mode. It may also take a few minutes to
display the tire inflation pressure after inflation pressure has been
adjusted.
l“---” may be displayed if the tire position information cannot be deter-
mined due to unfavorable radio wave conditions.
lTire inflation pressure changes wit h temperature. The displayed values
may also be different from the values measured using a tire pressure
gauge.
n Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
