Page 110 of 291
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
108
NOTE
OKeep call volume down. Otherwise, the other party’s voice
may be audible outside the vehicle and voice echo may
increase. When talking on the phone, speak clearly towards the
microphone.
OThe other party may not hear you clearly when:
‡ <00270055004c0059004c0051004a000300520051000300440051000300580051005300440059004800470003005500520044004700110003000b00300044004e004c0051004a00030048005b0046004800560056004c005900480003005700550044004900
bf0046000300510052004c005600480011000c>
‡ Driving at high speeds.
‡ Driving with a window open.
‡ When air from the ventilator blows directly toward the
microphone.
‡ The sound of the air conditioning fan is loud.
‡ There is a negative effect on sound quality due to the phone
and/or network being used.
REGISTERING/CONNECTING A Bluetooth
PHONE
To use the hands-free system for cellular phones, it is
necessary to register a cellular phone with the system.
: 3
Bluetooth PHONE CONDITION DISPLAY
The condition of the Bluetooth phone appears on the upper
U L J K W V L G H R I W K H V F U H H Q : 3
USING THE PHONE SWITCH/MICROPHONE
XSteering switch
By pressing the phone switch, a call can be received or
ended without taking your hands off the steering wheel.
Volume control switch
”Press the “+” side to increase the volume.
”Press the “-” side to decrease the volume.
Off hook switch
On hook switch
XMicrophone
The microphone is built into the map light slits.
Page 112 of 291
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 0
WHEN SELLING OR DISPOSING OF THE
VEHICLE
A lot of personal data is registered when the hands-free
system is used. When selling or disposing of the vehicle,
L Q L W L D O L ] H W K H G D W D : 3
”The following data in the system can be initialized:
‡ Contact data
‡ Call history data
‡ Speed dial data
‡ Image data
‡ All phone settings
‡ Message settings
NOTE
OOnce initialized, the data and settings will be erased. Pay much
attention when initializing the data.
CALLING ON THE Bluetooth
PHONE
After a Bluetooth phone has been registered, a call can
be made using the hands-free system. There are several
methods by which a call can be made, as described below.
XWithout navigation function
1.Select.
2.Select the desired tab to call from.
Page 115 of 291
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 3
PHONE
4
BY CONTACTS LIST
Calls can be made by using contact data which is
W U D Q V I H U U H G I U R P D U H J L V W H U H G F H O O X O D U S K R Q H : 3
Up to 2500 contacts (maximum of 4 phone numbers and
e-mail addresses per contact) can be registered in the
contact list.
1. ' L V S O D \ W K H S K R Q H W R S V F U H H Q : 3
2.Select the Contacts (Contacts) tab and then select the
desired contact.
3.Select the desired number.
4.Check that the “Call (Call)” screen is displayed.
WHEN THE CONTACT IS EMPTY
QFOR PBAP COMPATIBLE Bluetooth PHONES
When “Automatic Contact/History Transfer (Automatic
Contact/History Transfer)” is set to on, contacts are
W U D Q V I H U U H G D X W R P D W L F D O O \ : 3
QFOR OPP COMPATIBLE Bluetooth PHONES
Contacts can be transferred or added manually.
To transfer, select
Update Contacts from Phone (Update
Contacts from Phone) at the “Contact/Call History Settings
& R Q W D F W & D O O + L V W R U \ 6 H W W L Q J V
Page 116 of 291
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 4
2.Select the Dial Pad (Dial Pad) tab and enter the phone
number.
3.Select or press the switch on the steering
wheel.
4.Check that the “Call (Call)” screen is displayed.
NOTE
ODepending on the type of Bluetooth phone being connected, it
may be necessary to perform additional steps on the phone.
BY OFF HOOK SWITCH
Calls can be made using the latest call history item.
1.Press the switch on the steering wheel to display
the phone top screen.
2.Press the switch on the steering wheel to display
the “Call History (Call History)” screen.
3.Press the switch on the steering wheel to call the
latest history item.
4.Check that the “Call (Call)” screen is displayed.
BY SPLIT SCREEN
1. ' L V S O D \ W K H V S O L W V F U H H Q : 3
2.Select the desired contact.
REGISTERING A NEW CONTACT
1.Select and hold the screen button to add a contact.
2.Select the desired contact.
3.Select the desired number.
Page 117 of 291
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 5
PHONE
4

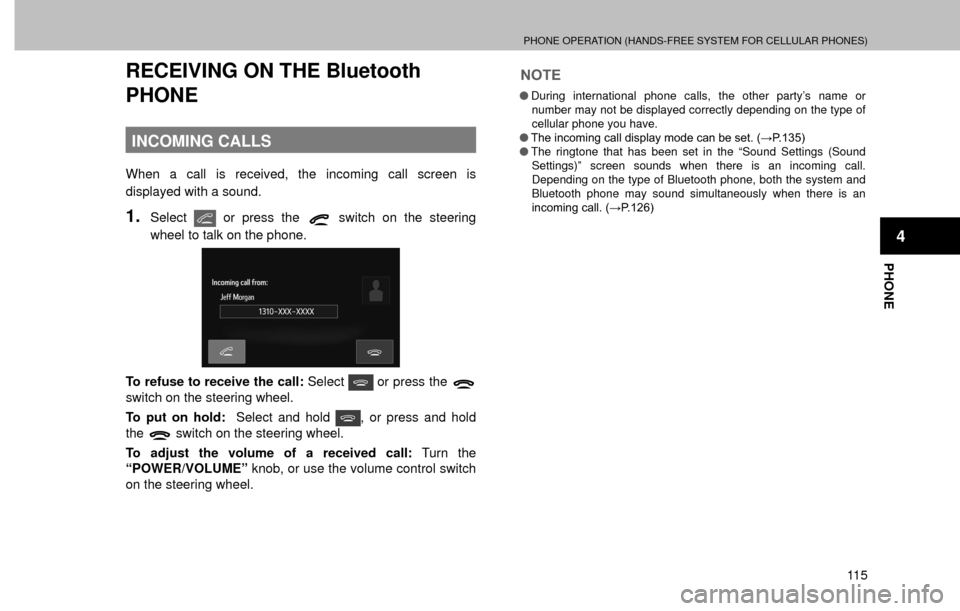

RECEIVING ON THE Bluetooth
PHONE
INCOMING CALLS
When a call is received, the incoming call screen is
displayed with a sound.
1.Select or press the switch on the steering
wheel to talk on the phone.
To refuse to receive the call: Select or press the switch on the steering wheel.
To put on hold: Select and hold
, or press and hold
the switch on the steering wheel.
To adjust the volume of a received call: Turn the
“POWER/VOLUME” knob, or use the volume control switch
on the steering wheel.
NOTE
ODuring international phone calls, the other party’s name or
number may not be displayed correctly depending on the type of
cellular phone you have.
O 7 K H L Q F R P L Q J F D O O G L V S O D \ P R G H F D Q E H V H W : 3
OThe ringtone that has been set in the “Sound Settings (Sound
Settings)” screen sounds when there is an incoming call.
Depending on the type of Bluetooth phone, both the system and
Bluetooth phone may sound simultaneously when there is an
L Q F R P L Q J F D O O : 3
Page 118 of 291
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 6
TALKING ON THE Bluetooth PHONE
While talking on the phone, this screen is displayed. The
operations outlined below can be performed on this screen.
No. Function Page
Select to display the dial pad to send tones. 113
Select to mute your voice to the other party. -
Select to change handset modes between
hands-free and cellular phone.-
Select to adjust your voice volume that the
other party hears from their speaker.11 8
No. Function Page
Select to send tones. This button only appears
when a number that contains a (w) is dialed in
hands-free mode.11 7
Select to hang up the phone. -
Select or to adjust the volume of the
other party’s voice.-
Select to start talking with the other party. 118
NOTE
OWhen cellular phone call is changed to hands-free call, the
hands-free screen will be displayed and its functions can be
operated on the screen.
OChanging between cellular phone call and hands-free call can be
performed by operating the cellular phone directly.
OTransferring methods and operations will be different depending
on the type of cellular phone you have.
OFor the operation of the cellular phone, see the manual that
comes with it.
OTurn the “POWER/VOLUME” knob, or use the volume control
switch on the steering wheel to adjust the volume of the other
party's voice.
Page 121 of 291
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 9
PHONE
4
Bluetooth PHONE MESSAGE
FUNCTION
Received messages can be forwarded from the connected
Bluetooth phone, enabling checking and replying using the
system.
Depending on the type of Bluetooth phone connected,
received messages may not be transferred to the message
inbox.
If the phone does not support the message function, this
function cannot be used.
XWithout navigation function
1.Select.
2.Select.
”The phone top screen can be displayed by pressing
the
switch on the steering wheel.
3.Check that the message inbox screen is displayed.
XWith navigation function
1.Select.
2.SelectPHONE (PHONE).
3.Select.
”The phone top screen can be displayed by pressing
the
switch on the steering wheel.
4.Check that the message inbox screen is displayed.
” : Select to change to phone mode.
Page 129 of 291
SETUP
127
PHONE
4
No. Function
Select to reset all setup items.
“Contact/Call History Settings (Contact/Call
History Settings)” SCREEN
The contact can be transferred from a Bluetooth phone
to the system. The contact also can be added, edited and
deleted.
The call history can be deleted and contact and speed dial
can be changed.
1.Display the “Phone/Message Settings (Phone/Message
6 H W W L Q J V
