Page 178 of 291
OTHER SETTINGS
176
OTHER SETTINGS
GENERAL SETTINGS
Settings are available for keyboard layout, operation
sounds, etc.
1.Select.
2.SelectSETTINGS (SETTINGS).
3.SelectGeneral (General).
4.Select the items to be set.
GENERAL SETTINGS SCREEN
Page 179 of 291
OTHER SETTINGS
177
SETTINGS
7
No. Function
*1 6 H O H F W W R F K D Q J H W K H Y H K L F O H F O R F N V H W W L Q J V : 3
Select to change the language.
*2Select to change the unit for measuring distance.
Select to turn the beep sound on/off.
Select to change the button and screen color.
Select to change the keyboard layout.
Select to turn on/off the setting that returns the display
to the split screen automatically after 20 seconds when
a screen other than the split screen is displayed.
Select to turn the animation function on/off.
6 H O H F W W R F X V W R P L ] H W K H V F U H H Q R I I L P D J H : 3
6 H O H F W W R G H O H W H S H U V R Q D O G D W D : 3
Select to set the connected device when using aha.
Select
USB (USB) when using an iPhone, and then
select
Bluetooth (Bluetooth) when using Android
devices.
No. Function
Select to set the connected device when using
Pandora*3. Select USB (USB) when using an iPhone,
and then select
Bluetooth (Bluetooth) when using
Android devices.
Select to update the Gracenote® database. For details,
contact your SUBARU dealer.
Select to display the software information. Notices
related to third party software used in this product are
enlisted. (This includes instructions for obtaining such
software, where applicable.)
Select to set the back camera delay control on/off.
When set to on, the back camera image displays for
approximately 7 seconds after moving the shift lever/
select lever “R” to any position other than “R”.
The display disappears when the shift lever/select lever
is moved to “P”, or when the vehicle speed reaches
approximately 5 mph (8 km/h) or faster.
Select to reset all setup items.
*1: With navigation function
*2: Excludes Canada models without navigation function.
*3: Pandora is available in the United States, Australia, and New Zealand.
Page 199 of 291
DESTINATION SEARCH
197
NAVIGATION SYSTEM
8
2.Select from the list.
”If there are only a few roads at the intersection, the
list is displayed immediately.
”If the road is a long way off, the keyboard screen is
displayed. Use the keyboard to enter the start of the
intersection name. A list is automatically displayed
when the entered road name matches and can be
displayed on one screen.
”Refer to “HINTS FOR QUICK ADDRESS ENTRY” for
L Q I R U P D W L R Q R Q T X L F N H U V H D U F K L Q J : 3
HINTS FOR QUICK ADDRESS ENTRY
”When entering a city/town name or a street name:
‡ Only characters that can be displayed in the
search results are shown on the keyboard. Other
characters are grayed out.
‡ While entering text, the most likely search result is
D O Z D \ V G L V S O D \ H G L Q W K H W H [ W H Q W U \

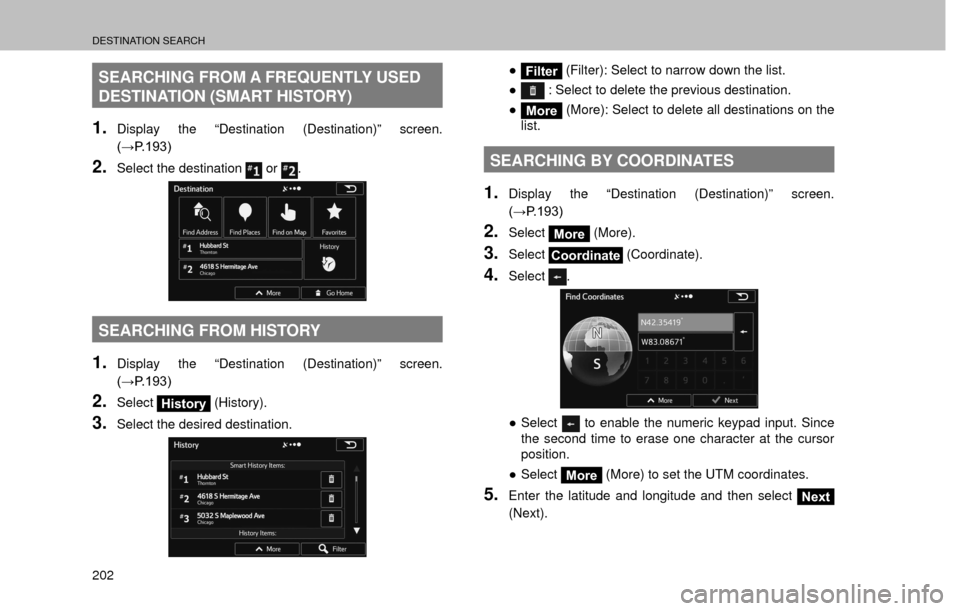

Page 204 of 291
DESTINATION SEARCH
202
SEARCHING FROM A FREQUENTLY USED
DESTINATION (SMART HISTORY)
1.Display the “Destination (Destination)” screen.
: 3
2.Select the destination or .
SEARCHING FROM HISTORY
1.Display the “Destination (Destination)” screen.
: 3
2.SelectHistory (History).
3.Select the desired destination.
”Filter (Filter): Select to narrow down the list.
”
: Select to delete the previous destination.
”
More (More): Select to delete all destinations on the
list.
SEARCHING BY COORDINATES
1.Display the “Destination (Destination)” screen.
: 3
2.SelectMore (More).
3.SelectCoordinate (Coordinate).
4.Select.
”Select to enable the numeric keypad input. Since
the second time to erase one character at the cursor
position.
”Select
More (More) to set the UTM coordinates.
5.Enter the latitude and longitude and then select Next
(Next).
