2016 SUBARU FORESTER bluetooth

QUICK REFERENCE
26
QUICK REFERENCE
“SETTINGS (SETTINGS)” SCREEN
The items shown on the “SETTINGS (SETTINGS)” screen
can be set. Select
and then select SETTINGS
(SETTINGS) to display the “SETTINGS (SETTINGS)”
screen.
No. Function Page
Select to turn the screen off. -
Select to change the selected language,
operation sound, automatic screen
change settings, etc.176
Select to customize the split screen. 43
Select to specify voice settings. 181
Select to specify audio settings. 89
Select to specify phone sound, contacts,
message settings, etc.125
Select to set Bluetooth phones and
Bluetooth audio devices.168
Select to adjust the brightness, contrast,
tone and color of the screens.46

FUNCTION INDEX
31
1
QUICK GUIDE
FUNCTION INDEX
FUNCTION INDEX
XAudio
Function Page
Using the radio 56, 65
Playing an audio CD or MP3/WMA/AAC disc 69
Playing an SD*
1 card 78
Playing a USB memory 71
Playing an iPod
®75
Playing a Bluetooth device 81
Using the aha application 142
Using the AUX port 85
Using the MirrorLink
TM application 139
Using the Pandora
®*2 application 150
Using the steering wheel audio switches 87
Audio system settings 89
*1: With navigation function
*2: Pandora is available in the United States, Australia, and New Zealand.
XMap*
*: With navigation function
Displaying maps Page
Viewing the map screen 184
Displaying the current position 189
Changing the scale 190
Changing the map orientation 190
Displaying the estimated travel/arrival time to the
destination207
'LVSOD\LQJWUDI¿FLQIRUPDWLRQ192
Searching for destinations Page
Searching for the destination 194

FUNCTION INDEX
32 XRoute guidance*
*: With navigation function
Before starting or during route guidance Page
Starting route guide 204
Editing the route 212
Viewing the entire route map 208
Adjusting route guidance volume 181
Deleting the destination 213
XUseful functions
Hands-free system (for cellular phone) Page
Registering/connecting Bluetooth phone 164
Making a call on a Bluetooth phone 110
Receiving a call on the Bluetooth phone 115
Voice recognition system Page
Operating the system with your voice 234

MEDIA OPERATION
83
AUDIO
3
No. Function
Select to enable/disable random playback for the tracks
currently playing on the Bluetooth audio device.
Select to display the playlist screen.
To return to the top screen, select Now Playing (Now
Playing) on the list screen.
Select to display the portable device connection screen.

:3
Displays cover art.
Select to display a track list.
WARNING
ODo not operate the player’s controls or connect to the
Bluetooth audio system while driving.
O<RXU DXGLR XQLW LV

MEDIA OPERATION
84
NOTE
ODepending on the Bluetooth device that is connected to the
system, the music may start playing when selecting while
it is paused. Conversely, the music may pause when selecting
while it is playing.
OIn the following conditions, the system may not function:
‡The Bluetooth device is turned off.
‡The Bluetooth device is not connected.
‡The Bluetooth device has a low battery.
OIt may take time to connect the phone when Bluetooth audio is
being played.
OFor operating the portable player, see the instruction manual that
comes with it.
OIf the Bluetooth device is disconnected due to poor reception
from the Bluetooth network when the ignition switch is turned
to the “ACC” or “ON” position, the system will automatically
reconnect to the portable player.
OIf the Bluetooth device is disconnected on purpose, such as it
was turned off, this does not happen. Reconnect the portable
player manually.
OBluetooth device information is registered when the Bluetooth
device is connected to the Bluetooth audio system. When
selling or disposing of the vehicle, remove the Bluetooth audio
LQIRUPDWLRQIURPWKHV\VWHP
:3
CONNECTING A Bluetooth DEVICE
To use the Bluetooth audio system, it is necessary to
register a Bluetooth device with the system.
XRegistering an additional device
1.SelectSelect Device (Select Device) on the Bluetooth
audio control screen.
2.)RUPRUHLQIRUPDWLRQ
:3
XSelecting a registered device
1.SelectSelect Device (Select Device) on the Bluetooth
audio control screen.
2.)RUPRUHLQIRUPDWLRQ
:3

AUDIO/VISUAL REMOTE CONTROLS
88
Mode Operation Function
Audio CD, MP3/
WMA/AAC
disc, SD*
1,
USB, iPod,
Bluetooth audioPress6HOHFWDWUDFN¿OH
Press and hold Fast forward/rewind
Pandora*
2Press
Track up (“”only)
Press and hold Thumbs up/down
List screen Press Cursor left/right
*1: With navigation function
*2: Pandora is available in the United States, Australia, and New Zealand.
XMute/enter switch
Mode Operation Function
Except list
screenPress Mute/unmute
List screen Press Select cursor entry
XBack switch
Mode Operation Function
AllPressReturn to the previous screen
when
is displayed on
the screen.
Press and holdReturn to the “HOME
(HOME)” screen
XList switch
Mode Operation Function
Audio screen,
Navigation*
screenPress Show list screen
*: With navigation function
X“Source” switch
Mode Operation Function
All Press Change audio modes
NOTE
OIn the aha, Pandora* and STARLINK mode, some operation may
be done on the screen depend on the selected APPS.
*: Pandora is available in the United States, Australia, and New Zealand.

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
106
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
QUICK REFERENCE
The phone top screen can be used to make a phone call. To
display the hands-free operation screen, select
and
then select
PHONE (PHONE), select *, or press
the
switch on the steering wheel.
Several functions are available to operate on each screen
that is displayed by selecting the 4 tabs.
*: Without navigation function
Function Page
Phone
operationRegistering/connecting Bluetooth phone 164
Calling on the Bluetooth phone 110
Receiving on the Bluetooth phone 115
Talking on the Bluetooth phone 116
Message
functionUsing the Bluetooth phone message
function11 9
Setting up
a phonePhone settings 125
Bluetooth settings 168

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
107
PHONE
4

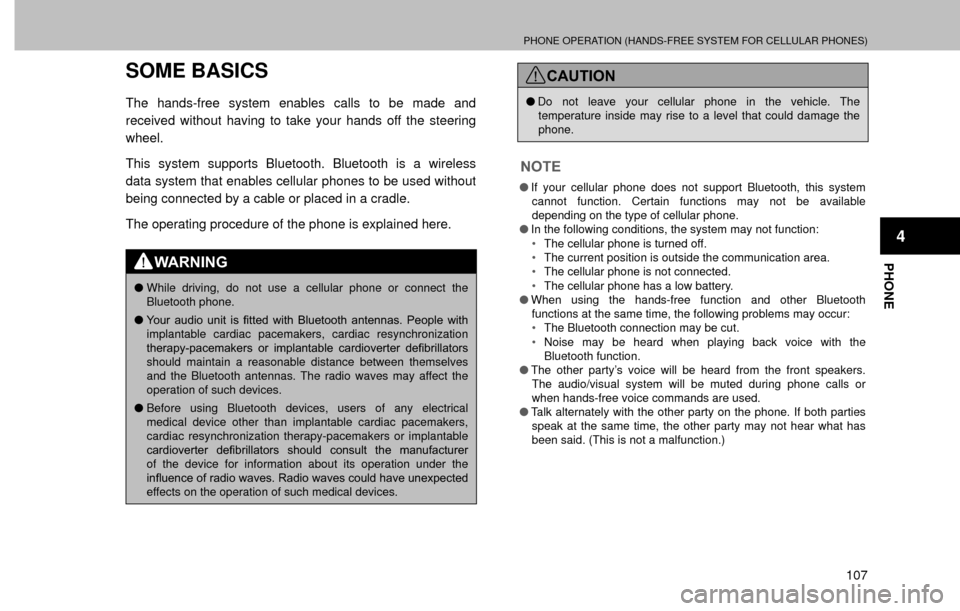

SOME BASICS
The hands-free system enables calls to be made and
received without having to take your hands off the steering
wheel.
This system supports Bluetooth. Bluetooth is a wireless
data system that enables cellular phones to be used without
being connected by a cable or placed in a cradle.
The operating procedure of the phone is explained here.
WARNING
OWhile driving, do not use a cellular phone or connect the
Bluetooth phone.
O<RXU DXGLR XQLW LV
