NIVEAU HUILE MOTEUR : appoint, remplissage (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_4
Engine oil change
engIne OIL LeveL: topping up/filling (2/2)engIne OIL ChAnge
Consult your approved Dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.
Never run the engine in an
enclosed space as exhaust
gases are poisonous.
engine oil change : if you
are changing the oil when
the engine is hot, be careful
not to scald yourself if the
oil overflows.
Filling: take care when
topping up the oil that
no oil drips onto engine
components - risk of fire.
Remember to refit the cap securely
as there is a risk of fire if oil splashes
onto hot engine components.Oil change
S e r v i c e i n t e r v a l : r e f e r t o t h e
Maintenance Service Booklet for your
vehicle.
Approximate capacities including oil
filter (for information).
1.2 16
v engine
: 4.0 litres
1.5 dCi engine : 4.6 litres
engine oil grade
Refer to the Maintenance Service
Booklet for your vehicle.
The engine may be hot
when carrying out opera-
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.

4.7
ENG_UD14325_2
Niveaux / Filtres (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_4
Levels
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of burns.
If you wish to check the disc and drum
wear yourself, you should obtain the
document explaining the checking pro-
cedure from our network or from the
manufacturer’s website.
t opping up
After any operation on the hydraulic cir-
cuit, a specialist must replace the fluid.
Only use fluids approved by the man-
ufacturer’s Technical Department (and
taken from a sealed container).
Replacement interval: refer to the
Maintenance Service Booklet for your
vehicle.
Brake fluid level
The level should be read with the vehi-
cle stationary and on level ground.
This should be checked frequently,
and immediately if you notice even the
slightest loss in braking efficiency.
Level

1
It is normal for the level to drop as
the linings become worn, but it should
never drop below the MI
n line.
LeveLS (1/3)
1
Consult your approved Dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.

4.8
ENG_UD14325_2
Niveaux / Filtres (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_4
Jaune NoirNoir texte
Coolant
Level checking intervals
Check the level regularly (severe
damage is likely to be caused to the
engine if there is insufficient coolant).
If the level needs to be topped up, only
use products approved by our Technical
Department which ensure:
–

protection against freezing,
– anti-corrosion protection of the cool -
ing system.
Consult your approved Dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.
No operations should be
carried out on the cooling
circuit when the engine is
hot.
Risk of burns.
Level
The level should be read with the engine
switched off and on level ground.
The level when cold should be be-
tween the “ M
In ” and “ MAX” marks on
coolant reservoir
1.
Top this level up when cold before the
“MI
n” mark is reached.
Replacement intervals
Refer to the Maintenance Service
Booklet for your vehicle.
LeveLS (2/3)
1
1

JauneNoirNoir texte
4.9
ENG_UD14325_2
Niveaux / Filtres (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_4
LeveLS (3/3)/FIL teRS
Filters
Power-assisted steering
pump (depending on vehicle)
Level: the correct level when cold
should be visible between the “ M In ”
and “MAX” levels on the reservoir 1.
1
Consult your approved Dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
2
Screen wash reservoir
Filling: cap 2.
This reservoir also supplies the head-
light washers (if the vehicle is equipped
with them).
Liquid: water + special windscreen
washer fluid (antifreeze product in
winter).
Jets: to adjust the angle of the jets,
pivot the little ball using a pin.
Filters
The replacement of filter elements
(air filter, passenger compartment
filter, diesel filter, etc.) is scheduled in
the maintenance operations for your
vehicle.
Replacement intervals for filter el-
ements: refer to the Maintenance
Service Booklet for your vehicle.

4.10
ENG_UD14326_1
Batterie (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_4

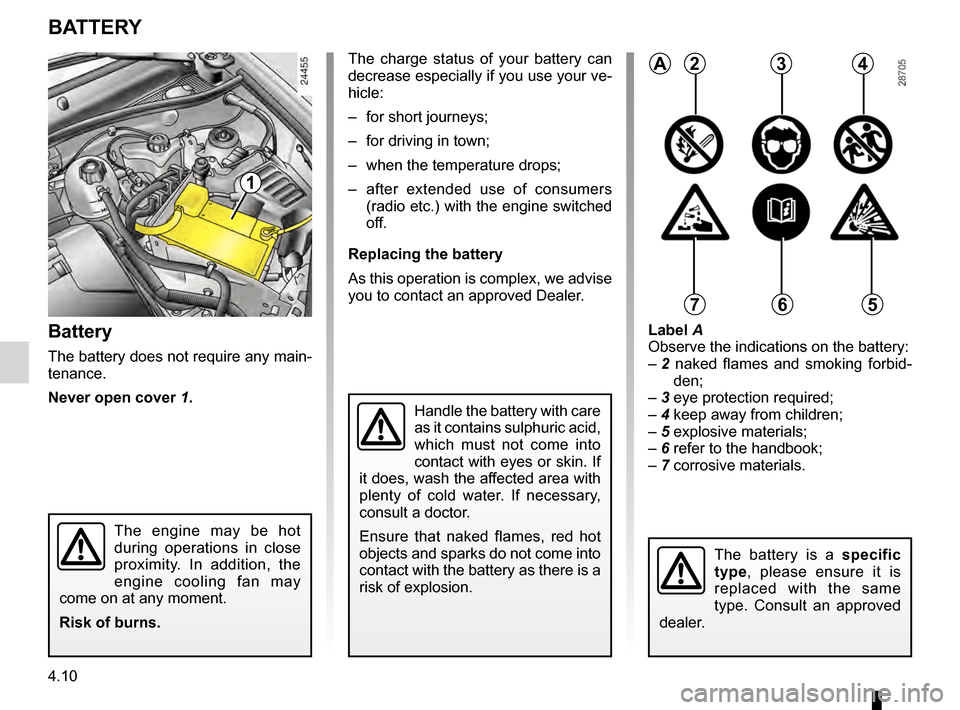

Battery
BA tteR y
1
Battery
The battery does not require any main-
tenance.
n
ever open cover 1.
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of burns.
Label A
Observe the indications on the battery:
– 2 n
aked flames and smoking forbid-
den;
–
3 eye protection required;
–
4 keep away from children;
–
5 explosive materials;
–
6 refer to the handbook;
–
7 corrosive materials.
The charge status of your battery can
decrease especially if you use your ve-
hicle:
–

for short journeys;
– for driving in town;
– when the temperature drops;
– after extended use of consumers
(radio etc.) with the engine switched
off.
Replacing the battery
As this operation is complex, we advise
you to contact an approved Dealer.
2A34
657
Handle the battery with care
as it contains sulphuric acid,
which must not come into
contact with eyes or skin. If
it does, wash the affected area with
plenty of cold water. If necessary,
consult a doctor.
Ensure that naked flames, red hot
objects and sparks do not come into
contact with the battery as there is a
risk of explosion.
The battery is a specific
type , please ensure it is
replaced with the same
type. Consult an approved
dealer.
