Anomalies de fonctionnement (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_5

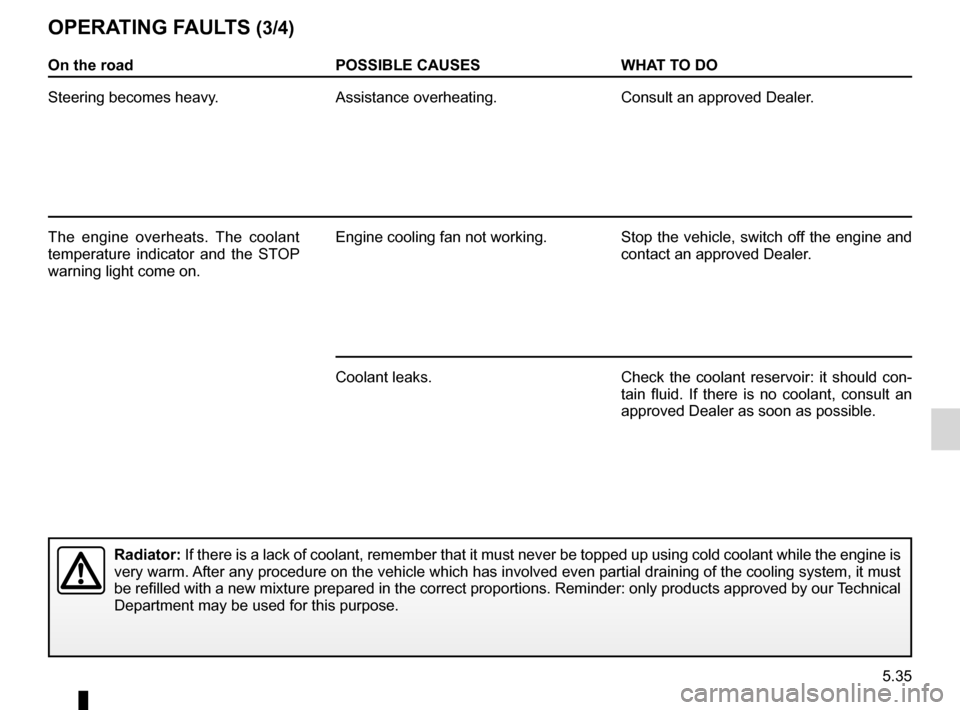

OPErA ting FAults (3/4)
On the road POssiBlE cAusEsWhAt tO DO
Steering becomes heavy. Assistance overheating.Consult an approved Dealer.
The engine overheats. The coolant
temperature indicator and the STOP
warning light come on. Engine cooling fan not working. Stop the vehicle, switch off the engine and
contact an approved Dealer.
Coolant leaks. Check the coolant reservoir: it should con-
tain fluid. If there is no coolant, consult an
approved Dealer as soon as possible.
radiator: If there is a lack of coolant, remember that it must never be topped up using cold coolant while the engine is
very warm. After any procedure on the vehicle which has involved even partial draining of the cooling system, it must
be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved by our Technical
Department may be used for this purpose.

6.1
ENG_UD14023_2
Sommaire 6 (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_6
Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . 6.2
Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . 6.4
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7
Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 6.8
Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9
Anticorrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . 6.15

JauneNoirNoir texte
6.3
ENG_UD7335_1
Plaques d identification (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_6
Vehicle identification plates (2/2)
Quote the details given on engine
plate B on all letters or orders.
B –
engine plate or engine label
(Location varies depending on engine)
1 Engine type.
2 Engine suf
fix.
3 Engine number
.
B
1
23
B
B

engine specifications ............................ (up to the end of the DU)
technical specifications ......................... (up to the end of the DU)
engine technical specifications ................... (up to the end of the DU)
6.4
ENG_UD7336_1
Caractéristiques moteurs (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_6
Engine specifications
engines 1.2 16V1.5 d ci
engine type
(see engine plate) D4FK9K
c

ubic capacity (cc) 1
149 1461
t ype of fuel
o
ctane rating Unleaded fuel
95 or 98* Diesel
The label by the filler neck indicates which types of fuel are authorised.
s

park plugs Only use the spark plugs specified
for your vehicle’s engine.
The type should be marked on a label
affixed inside the engine compartment. If it is not then contact your approved dealer.
Fitting spark plugs which are not to
specification may damage the engine. _
engine specifications
* If not available, unleaded fuel with an octane rating of 91 may be use\
d.

technical specifications ......................... (up to the end of the DU)
towing a caravan .................................. (up to the end of the DU)
towing weights ...................................... (up to the end of the DU)
weights ................................................. (up to the end of the DU)
towing towing a caravan ............................. (up to the end of the DU) 6.5

ENG_UD14432_2
Masses (en kg) (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_6
the weights indicated for a basic vehicle without options: they vary depending on your vehicle’s equipment. contact an
approved
dealer.
Weights
V an versions petroldiesel all-terrain
Maximum permissible all-Up Weight (MMac)
Maximum permissible t otal Weight (MMta)
t otal t rain Weight (MtR) Weights indicated on the identification plate
(refer to the information on the “Vehicle identification plates” in Section 6)
t owing weight braked found by calculating: M
tR - MMac
t owing weight unbraked 495525 520
p

ermissible nose weight 75
Maximum permissible load on roof rack 100 (including the carrying device)
t owing weight (

t owing a caravan, boat, etc.)
– It is important to respect the towing regulations in force in the area, specifically those set out in the Road Traffic Regulations.
Contact an approved Dealer for any modifications to towing equipment.
–

When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded. However the following is
permitted:
–

the rear maximum permissible weight (MMTA) may be exceeded by no more than 15%,
– the MMAC (Maximum permissible all-up weight) may be exceeded by no more than 10% or 100 kg (whichever occurs
first).
In either case, the maximum speed of the towing assembly must not exceed\
48 mph (80 km/h) and the tyre pressure must be in-
creased by 0.2 bar (3 PSI). In all cases, comply with local legislatio\
n.
–

The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%
at an altitude of 1,000 metres and by an additional 10% for each 1,000 m\
etres thereafter.
Weights (in kg) (1/2)

6.6
ENG_UD14432_2
Masses (en kg) (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_6
Weights (in kg) (2/2)
the weights indicated for a basic vehicle without options: they vary depending on your vehicle’s equipment. contact an
approved
dealer.
coMBi versions petrol/dieselall-terrain
Maximum permissible all-Up Weight (MMac)
Maximum permissible t otal Weight (MMta)
t otal t rain Weight (MtR) Weights indicated on the identification plate
(refer to the information on the “Vehicle identification plates” in Section 6)
t owing weight braked found by calculating: M
tR - MMac
t owing weight unbraked 560580
p

ermissible nose weight 75
Maximum permissible load on roof rack 100 (including the carrying device)
t owing weight (

t owing a caravan, boat, etc.)
– It is important to respect the towing regulations in force in the area, specifically those set out in the Road Traffic Regulations.
Contact an approved Dealer for any modifications to towing equipment.
–

When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded. However the following is
permitted:
–

the rear maximum permissible weight (MMTA) may be exceeded by no more than 15%,
– the MMAC (Maximum permissible all-up weight) may be exceeded by no more than 10% or 100 kg (whichever occurs
first).
In either case, the maximum speed of the towing assembly must not exceed 60 mph (100 km/h) and the tyre pressure must be
increased by 0.2 bar (3 PSI). In all cases, comply with local legislat\
ion.
–
The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%
at an altitude of 1,000 metres and by an additional 10% for each 1,000 m\
etres thereafter.
