2016 NISSAN NOTE start

SYSTEMBRC-13
< SYSTEM DESCRIPTION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
Front RH brake caliper
• Brake fluid is conveyed to the pump from the master cylinder through suction valve 1 and is pressurized by
the pump operation. The pressurized brake fluid is supplied to the front RH brake caliper through the ABS IN
valve. For the left caliper, brake fluid pressure is maintained because the pressurization is unnecessary. The
pressurization for the left caliper is cont rolled separately from the right caliper.
Front LH brake caliper• Brake fluid is conveyed to the pump from the master cylinder through suction valve 2 and is pressurized by
the pump operation. The pressurized brake fluid is suppl ied to the front LH brake caliper through the ABS IN
valve. For the right caliper, brake fluid pressure is maintained because the pressurization is unnecessary.
The pressurization for the right caliper is controlled separately from the left caliper.
Rear RH wheel cylinder
• Brake fluid is conveyed to the pump from the master cylinder through suction valve 2 and is pressurized by
the pump operation. The pressurized brake fluid is supplied to the rear RH wheel cylinder through the ABS
IN valve. For the left wheel cylinder, brake fluid pressure is maintained because the pressurization is unnec-
essary. The pressurization for the left wheel cylinder is controlled separately from the right wheel cylinder.
Rear LH wheel cylinder• Brake fluid is conveyed to the pump from the master cylinder through suction valve 1 and is pressurized by
the pump operation. The pressurized brake fluid is s upplied to the rear LH wheel cylinder through the ABS
IN valve. For the right wheel cylinder, brake fluid pressure is maintained because the pressurization is
unnecessary. The pressurization for the right wheel cylinder is controlled separately from the left wheel cylin-
der.
VDC and TCS Functions Start Operating (Pressure Holds)
ABS OUT valve Power supply is not supplie d (close) Power supply is not supplied (close)
Each brake caliper and each wheel cylinder
(fluid pressure) —
Pressure increases
Name
Not activated Pressure increases
JSFIA0677GB
Revision: August 2015 2016 Versa Note

cardiagn.com

SYSTEMBRC-17
< SYSTEM DESCRIPTION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P

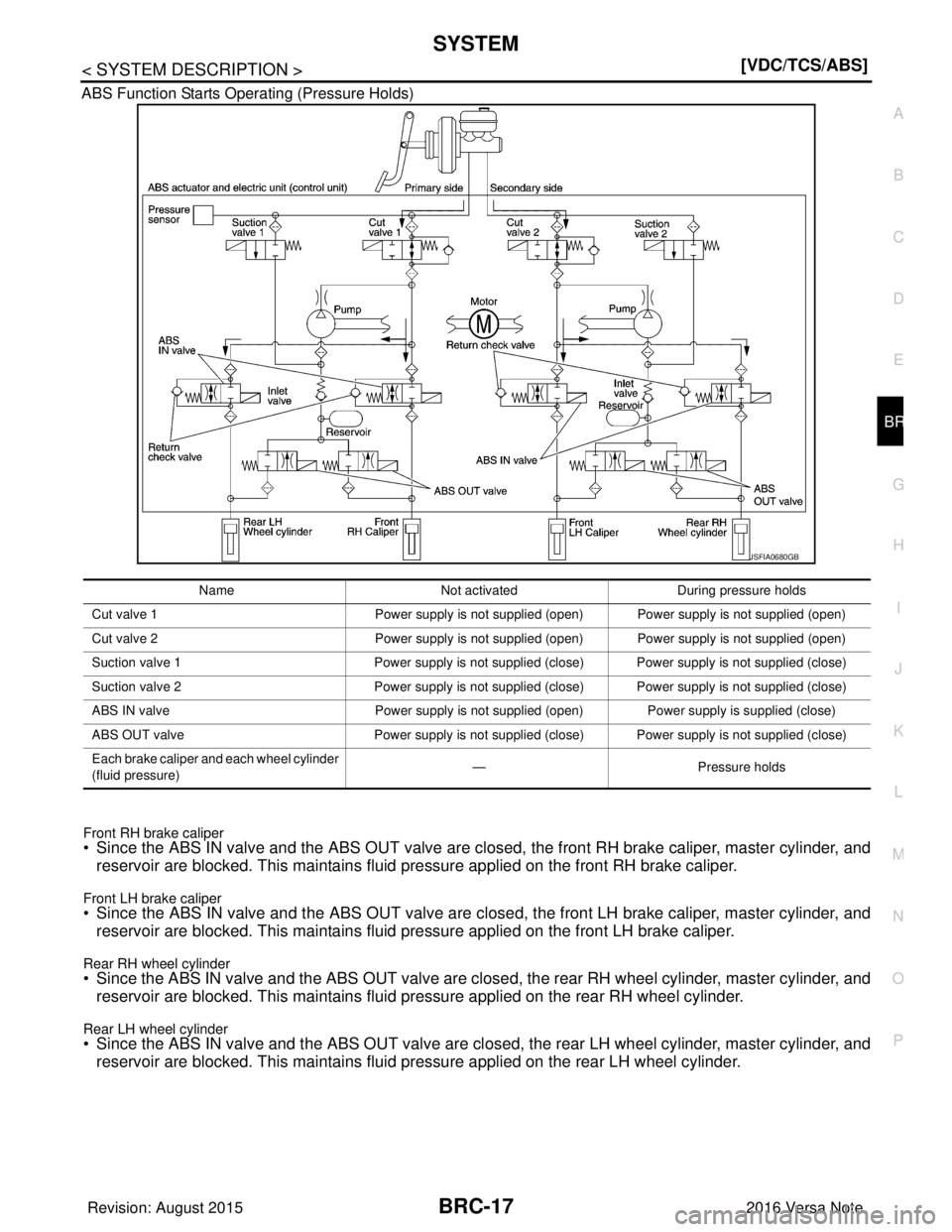

ABS Function Starts Oper
ating (Pressure Holds)
Front RH brake caliper• Since the ABS IN valve and the ABS OUT valve are closed, the front RH brake caliper, master cylinder, and
reservoir are blocked. This maintains fluid pressure applied on the front RH brake caliper.
Front LH brake caliper• Since the ABS IN valve and the ABS OUT valve are cl osed, the front LH brake caliper, master cylinder, and
reservoir are blocked. This maintains fluid pressure applied on the front LH brake caliper.
Rear RH wheel cylinder• Since the ABS IN valve and the ABS OUT valve are cl osed, the rear RH wheel cylinder, master cylinder, and
reservoir are blocked. This maintains fluid pressure applied on the rear RH wheel cylinder.
Rear LH wheel cylinder• Since the ABS IN valve and the ABS OUT valve are cl osed, the rear LH wheel cylinder, master cylinder, and
reservoir are blocked. This maintains fluid pressure applied on the rear LH wheel cylinder.
JSFIA0680GB
Name Not activatedDuring pressure holds
Cut valve 1 Power supply is not supplied (open) Power supply is not supplied (open)
Cut valve 2 Power supply is not supplied (open) Power supply is not supplied (open)
Suction valve 1 Power supply is not supplied (close) Power supply is not supplied (close)
Suction valve 2 Power supply is not supplied (close) Power supply is not supplied (close)
ABS IN valve Power supply is not supplied (open) Po wer supply is supplied (close)
ABS OUT valve Power supply is not supplie d (close) Power supply is not supplied (close)
Each brake caliper and each wheel cylinder
(fluid pressure) —
Pressure holds
Revision: August 2015 2016 Versa Note

cardiagn.com

SYSTEMBRC-21
< SYSTEM DESCRIPTION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O PCONDITIONS FOR INDICATOR LAMP ILLUMINATION
• Turns ON when VDC and TCS functions are switched to non-operational status (OFF) by VDC OFF switch.
• Turns ON when ignition switch turns ON and turns OFF when the system is normal, for bulb check purposes.
CONDITIONS FOR WARNING LAMP ILLUMINATION
Turns ON when ignition switch turns ON and turns OFF when the system is normal, for bulb check purposes.
Component Function
Pump Returns the brake fluid reserved in reservoir to master cylinder by reducing pressure.
Motor Activates the pump according to signals from ABS actuator and electric unit (control unit).
Cut valve 1
Cut valve 2 Shuts off the ordinary brake line from master cylinder.
Suction valve 1
Suction valve 2 Supplies the brake fluid from master cylinder to the pump.
ABS IN valve Switches the fluid pressure line to increase or hold according to signals from control unit.
ABS OUT valve Switches the fluid pressure line to increase, hold or decrease according to signals from control unit.
Return check valve Returns the brake fluid from brake caliper and wheel cylinder to master cylinder by bypassing orifice
of each valve when brake is released.
Reservoir Temporarily reserves the brake fluid drained from brake caliper, so that pressure efficiently decreas-
es when decreasing pressure of brake caliper and wheel cylinder.
Pressure sensor Detects the brake fluid pressure and tr ansmits signal to ABS ac tuator and electric unit (control unit).
Condition (status) VDC OFF indicator lamp SLIP indicator lamp
Ignition switch OFF OFFOFF
For approx. 1 second after the ignition switch
is turned ON ON
ON
Approx. 1 second after ignition switch is
turned ON (when the system is in normal op-
eration) OFF
OFF
When VDC OFF switch is ON (VDC function
and TCS function are OFF) ON
OFF
VDC function is malfunctioning OFFON
TCS function is malfunctioning OFFON
Condition (status)ABS warning lamp Brake warning lamp
Ignition switch OFF OFFOFF
For approx. 1 second after the ignition switch
is turned ON ON
ON
Approx. 1 second after ignition switch is
turned ON (when the system is in normal op-
eration) OFF
OFF
After engine starts OFFOFF
When parking brake operates (parking brake
switch ON) OFF
ON
When brake fluid is less than the specified
level (brake fluid level switch ON) OFF
ON
VDC function is malfunctioning OFFOFF
TCS function is malfunctioning OFFOFF
ABS function is malfunctioning ONOFF
EBD function is malfunctioning ONON
Brake limited slip differential (BLSD) function
is malfunctioning OFF
OFF
Revision: August 2015 2016 Versa Note

cardiagn.com

DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]
BRC-31
< SYSTEM DESCRIPTION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]
CONSULT Function (ABS)INFOID:0000000012430842
APPLICATION ITEMS
CONSULT can display each diagnostic item us ing the following direct diagnostic modes.
ECU IDENTIFICATION
ABS actuator and electric unit (control unit) part number is displayed.
SELF DIAGNOSTIC RESULT
Operation Procedure
1. Before performing the “Self Diagnostic Result”, st art engine and drive vehicle at 30 km/h (19 MPH) or
more for approximately 1 minute.
How To Erase Self Diagnostic Result
1. After erasing DTC memory, start engine and drive vehicle at 30 km/h (19 MPH) or more for approximately 1 minute as the final inspection, and make sure t hat the ABS warning lamp, VDC OFF indicator lamp,
SLIP indicator lamp and brake warning lamp turn OFF.
CAUTION:
If memory cannot be erased, perform applicable diagnosis.
NOTE:
• When the wheel sensor malfunctions, after inspecting the wheel sensor system, the ABS warning lamp,
SLIP indicator lamp and brake warning lamp will not turn OFF even when the system is normal, unless
the vehicle is driven at approximately 30 km/h (19 MPH) or more for approximately 1 minute.
• Brake warning lamp will turn ON in case of parking brake operation (when switch is ON) or of brake fluid
level switch operation (when brake fluid is insufficient).
• VDC OFF switch should not stay in ON position.
Display Item List
Refer to BRC-43, "DTC Index".
DATA MONITOR
Direct Diagnostic Mode Description
ECU Identification The ABS actuator and electric unit (control unit) part number is displayed.
Self Diagnostic Result The ABS actuator and electric unit (control unit) self diagnostic results are displayed.
Data Monitor The ABS actuator and electric unit (control unit) input/output data is displayed in real time.
Active Test The ABS actuator and electric unit (control unit) activates outputs to test components.
Work support The settings for ABS actuator and electric unit (control unit) functions can be changed.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication is displayed.
Item
(Unit) Data monitor item selection
Remarks
ECU INPUT
SIGNALS MAIN
SIGNALS SELECTION
FROM MENU
FR LH SENSOR
(km/h, mph) ×× × Wheel speed (km/h, mph) calculated by front wheel
sensor LH signal is displayed.
FR RH SENSOR
(km/h, mph) ×× × Wheel speed (km/h, mph) calculated by front wheel
sensor RH signal is displayed.
RR LH SENSOR
(km/h, mph) ×× ×
Wheel speed (km/h, mph) calculated by rear wheel
sensor LH signal is displayed.
RR RH SENSOR
(km/h, mph) ×× × Wheel speed (km/h, mph) calculated by rear wheel
sensor RH signal is displayed.
Revision: August 2015
2016 Versa Note

cardiagn.com

DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]
BRC-33
< SYSTEM DESCRIPTION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
× : Applicable
–: Not applicable
ACTIVE TEST MODE
CAUTION:
• Do not perform active test while driving vehicle.
• Make sure to completely bleed air from brake system.
• The active test cannot be performed with the ABS warning lamp, VDC OFF indicator lamp, SLIP indi-
cator lamp or brake warning lamp on.
• ABS warning lamp, VDC OFF indi cator lamp, SLIP indicator lamp and brake warning lamp turn on
during active test.
NOTE:
• When active test is performed while depressing the pedal, the pedal depression amount will change. This is normal.
• “TEST IS STOPPED” is displayed 10 seconds after operation start.
• After “TEST IS STOPPED” is displayed, to perform test again, touch BACK.
Test Item
ABS SOLENOID VALVE• Select “Up”, “Keep” and “Down”. Then use screen monitor to check that solenoid valve operates as shown in
the table below.
SV1
(On/Off) ––
×Suction valve 1(On/Off) status is displayed.
SV2
(On/Off) ––
×Suction valve 2 (On/Off) status is displayed.
ACCEL POS SIG
(%) ×
– ×Throttle valve open/close status judged by CAN com-
munication signal is displayed.
SIDE G-SENSOR
(m/s
2) ×
– ×Transverse acceleration detected by side G-sensor is
displayed.
STR ANGLE SIG
(deg) ×
– ×Steering angle detected by steering angle sensor is
displayed.
PRESS SENSOR
(bar) ×
– ×Brake pressure detected by pressure sensor is dis-
played.
EBD SIGNAL
(On/Off) ––
×EBD operation (On/Off) status is displayed.
ABS SIGNAL
(On/Off) ––
×ABS operation (On/Off) status is displayed.
TCS SIGNAL
(On/Off) ––
×TCS operation (On/Off) status is displayed.
VDC SIGNAL
(On/Off) ––
×VDC operation (On/Off) status is displayed.
EBD FAIL SIG
(On/Off) ––
×EBD fail signal (On/Off) status is displayed.
ABS FAIL SIG
(On/Off) ––
×ABS fail signal (On/Off) status is displayed.
TCS FAIL SIG
(On/Off) ––
×TCS fail signal (On/Off) status is displayed.
VDC FAIL SIG
(On/Off) ––
×VDC fail signal (On/Off) status is displayed.
CRANKING SIG
(On/Off) ––
×The input state of the key SW START position signal
is displayed.
FLUID LEV SW
(On/Off) ×
– ×Brake fluid level switch (On/Off) status is displayed.
Item
(Unit) Data monitor item selection
Remarks
ECU INPUT
SIGNALS MAIN
SIGNALS SELECTION
FROM MENU
Revision: August 2015 2016 Versa Note

cardiagn.com

BRC-54
< BASIC INSPECTION >[VDC/TCS/ABS]
DIAGNOSIS AND REPAIR WORK FLOW
Operating condition, etc.†
Irrelevant
† When engine/traction motor starts † During idling
† D u r i n g d r i v i n g † D u r i n g a c c e l e r a t i o n † A t c o n s t a n t s p e e d d r i v i n g
† During deceleration
† Immediately before stop [Vehicle speed: Approx. km/h (MPH)]
† During cornering (righ t curve or left curve)
† When steering wheel is steered (to right or to left)
Other condi-
tions VDC OFF switch operation
† Yes † No
Use of other functions
(ex. ICC) †
Yes † No ( )
Presence of non-genuine
parts installation †
Yes † No ( )
Memo Interview sheet
Customer
name MR/MSRegistration
number
Initial year
registration
Vehicle type VIN
Storage date Engine/trac-
tion Motor
Mileage
km (Mile)
Revision: August 2015 2016 Versa Note

cardiagn.com

BRC-56
< BASIC INSPECTION >[VDC/TCS/ABS]
INSPECTION AND ADJUSTMENT
>> GO TO 2
2.PERFORM THE NEUTRAL POSITION ADJUST
MENT FOR THE STEERING ANGLE SENSOR
1. On the CONSULT screen, touch “WORK SUPPORT” and “ST ANGLE SENSOR ADJUSTMENT” in order.
2. Touch “START”. CAUTION:
Do not touch steering wheel whil e adjusting steering angle sensor.
3. After approximately 10 seconds, touch “END”. NOTE:
After approximately 60 seconds, it ends automatically.
4. Turn ignition switch OFF, then turn it ON again. CAUTION:
Be sure to perform above operation.
>> GO TO 3
3.CHECK DATA MONITOR
1. Run vehicle with front wheels in straight-ahead position, then stop.
2. Select “DATA MONITOR”. Then make sure “STR ANGLE SIG” is within 0 ±2.5 °.
Is the steering angle within the specified range?
YES >> GO TO 4
NO >> Perform the neutral position adjustment fo r the steering angle sensor again, GO TO 1
4.ERASE THE SELF-DIAGNOSIS MEMORY
Erase the self-diagnosis memory of the ABS ac tuator and electric unit (control unit) and ECM.
• ABS actuator and electric unit (control unit): Refer to BRC-31, "
CONSULT Function (ABS)".
• ECM: Refer to EC-60, "
CONSULT Function".
Are the memories erased?
YES >> Inspection End
NO >> Check the items indicated by the self-diagnosis.
CALIBRATION OF DECEL G SENSOR
CALIBRATION OF DECEL G SENSOR : DescriptionINFOID:0000000012545173
Refer to the table below to determine if calibration of the decel G sensor is required.
×: Required –: Not required
CALIBRATION OF DECEL G SENSOR : Special Repair RequirementINFOID:0000000012545174
CALIBRATION OF DECEL G SENSOR (IF EQUIPPED)
CAUTION:
To calibrate the decel G sensor, make sure to use CONSULT
(Calibration cannot be done without CONSULT)
Situation Calibration of decel G sensor
Removing/Installing ABS actuator and electric unit (control unit) —
Replacing ABS actuator and electric unit (control unit) ×
Removing/Installing steering components —
Replacing steering components —
Removing/Installing suspension components —
Replacing suspension components —
Change tires to new ones —
Tire rotation —
Adjusting wheel alignment —
Removing/Installing yaw rate/side/decel G sensor ×
Replacing yaw rate/side/decel G sensor ×
Revision: August 20152016 Versa Note

cardiagn.com

INSPECTION AND ADJUSTMENTBRC-57
< BASIC INSPECTION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
1.ALIGN THE VEHICLE STATUS
Stop vehicle with front wheels in straight-ahead position.
>> GO TO 2
2.PERFORM CALIBRATION OF DECEL G SENSOR
1. On the CONSULT screen, touch “WORK SUPPORT” and “DECEL G-SEN CALIBRATION” in order.
2. Touch “START”.
3. After approximately 10 seconds, touch “END”. NOTE:
After approximately 60 seconds, it ends automatically.
4. Turn ignition switch OFF, then turn it ON again. CAUTION:
Be sure to perform above operation.
>> GO TO 3
3.CHECK DATA MONITOR
1. Run vehicle with front wheels in straight-ahead position, then stop.
2. Select “DATA MONITOR”. Then make sure “DECEL G SEN” is within ±0.08G.
Is the inspection result normal?
YES >> GO TO 4
NO >> Perform calibration of decel G sensor again, GO TO 1
4.ERASE THE SELF-DIAGNOSIS MEMORY
Erase the self-diagnosis memory of the ABS ac tuator and electric unit (control unit) and ECM.
• ABS actuator and electric unit (control unit): Refer to BRC-31, "
CONSULT Function (ABS)".
• ECM: Refer to EC-60, "
CONSULT Function".
Are the memories erased?
YES >> Inspection End
NO >> Check the items indica ted by the self-diagnosis.
Revision: August 2015 2016 Versa Note

cardiagn.com
