2016 NISSAN MURANO Owners Manual

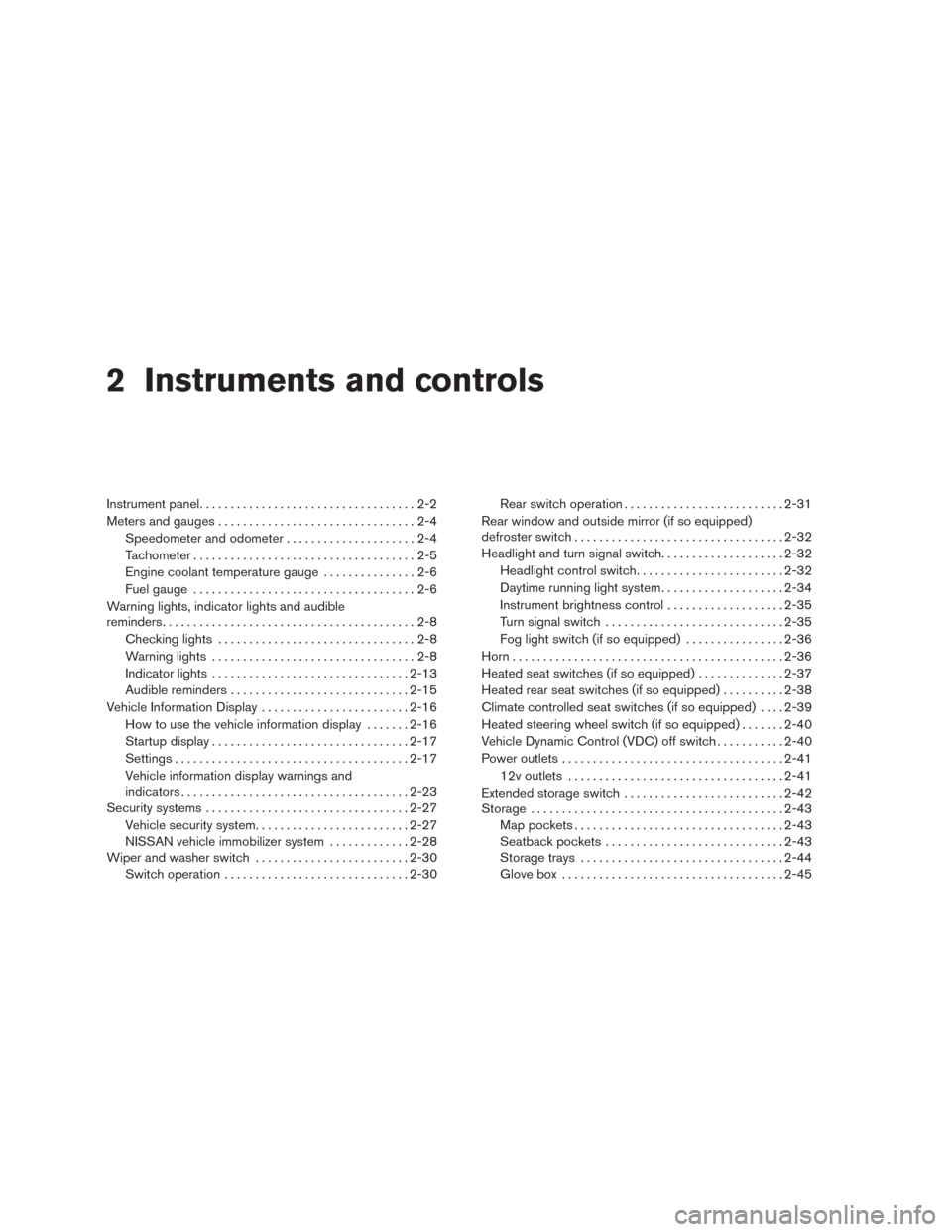

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges................................2-4
Speedometer and odometer.....................2-4
Tachometer....................................2-5
Engine coolant temperature gauge...............2-6
Fuel gauge....................................2-6
Warning lights, indicator lights and audible
reminders.........................................2-8
Checking lights................................2-8
Warning lights.................................2-8
Indicator lights................................2-13
Audible reminders.............................2-15
Vehicle Information Display........................2-16
How to use the vehicle information display.......2-16
Startup display................................2-17
Settings......................................2-17
Vehicle information display warnings and
indicators.....................................2-23
Security systems.................................2-27
Vehicle security system.........................2-27
NISSAN vehicle immobilizer system.............2-28
Wiper and washer switch.........................2-30
Switch operation..............................2-30Rear switch operation..........................2-31
Rear window and outside mirror (if so equipped)
defroster switch..................................2-32
Headlight and turn signal switch....................2-32
Headlight control switch........................2-32
Daytime running light system....................2-34
Instrument brightness control...................2-35
Turn signal switch.............................2-35
Fog light switch (if so equipped)................2-36
Horn............................................2-36
Heated seat switches (if so equipped)..............2-37
Heated rear seat switches (if so equipped)..........2-38
Climate controlled seat switches (if so equipped)....2-39
Heated steering wheel switch (if so equipped).......2-40
Vehicle Dynamic Control (VDC) off switch...........2-40
Power outlets....................................
2-41
12v outlets...................................2-41
Extended storage switch..........................2-42

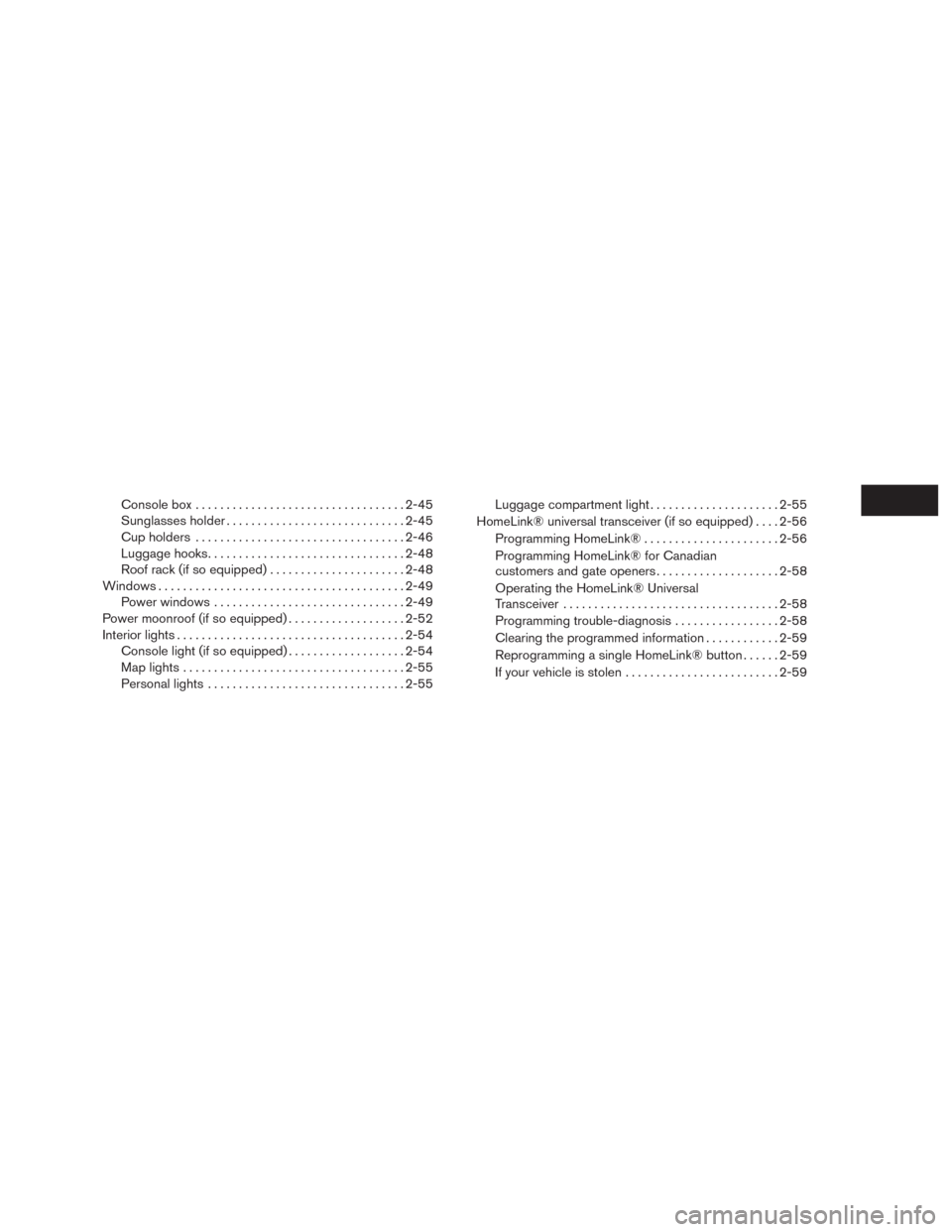

Storage.........................................2-43
Map pockets..................................2-43
Seatback pockets.............................2-43
Storage trays.................................2-44
Glove box....................................2-45

Console box..................................2-45
Sunglasses holder.............................2-45
Cup holders..................................2-46
Luggage hooks................................2-48
Roof rack (if so equipped)......................2-48
Windows........................................2-49
Power windows...............................2-49
Power moonroof (if so equipped)...................2-52
Interior lights.....................................2-54
Console light (if so equipped)...................2-54
Map lights....................................2-55
Personal lights................................2-55Luggage compartment light.....................2-55
HomeLink® universal transceiver (if so equipped)....2-56
Programming HomeLink®......................2-56
Programming HomeLink® for Canadian
customers and gate openers....................2-58
Operating the HomeLink® Universal
Transceiver...................................2-58
Programming trouble-diagnosis.................2-58
Clearing the programmed information............2-59
Reprogramming a single HomeLink® button......2-59
If your vehicle is stolen.........................2-59

1. Vent (P. 4-25)
2. Headlight/fog light (if so equipped)/turn
signal switch (P. 2-32)
3. Supplemental front-impact air bag
(P. 1-47)
4. Meters and gauges (P. 2-4)
Warning and indicator lights (P. 2-8)
Vehicle information display (P. 2-16)
5. Wiper and washer switch (P. 2-30)
Rear window wiper and washer switch
(P. 2-30)
6. Audio system/Center display controls
(P. 4-38)
7. Hazard warning flasher switch (P. 6-2)
8. Center display (P. 4-38)
Navigation display* (if so equipped)
9. Front passenger supplemental air bag
(P. 2-27)
10. Glove box (P. 2-45)
11. Front passenger air bag warning status
light (P. 1-47)
12. Power outlet (P. 2-41)
13. Climate controlled seat switch
(if so equipped) (P. 2-39)
Heated seat switch (if so equipped)
(P. 2-37)
LII2374
INSTRUMENT PANEL
2-2Instruments and controls

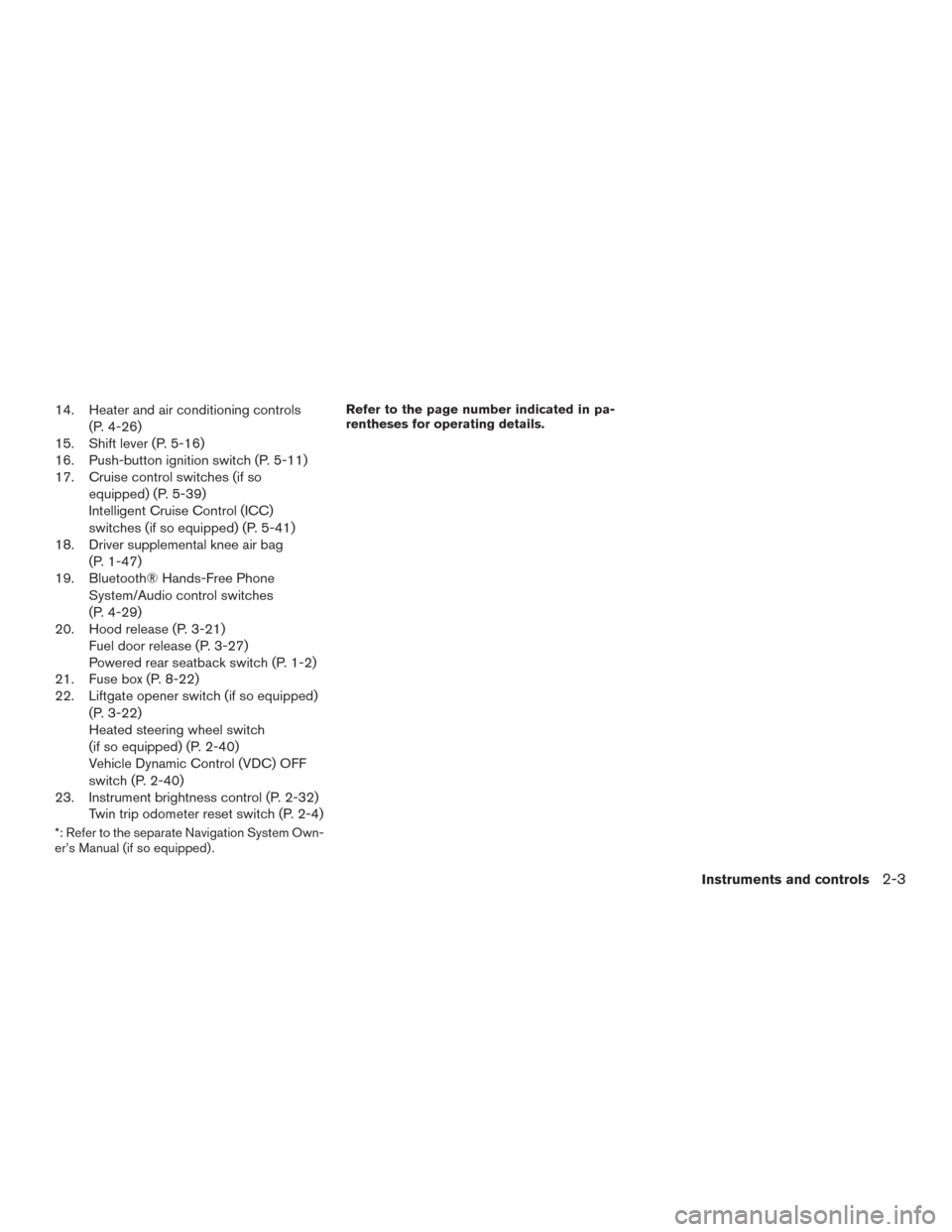

14. Heater and air conditioning controls
(P. 4-26)
15. Shift lever (P. 5-16)
16. Push-button ignition switch (P. 5-11)
17. Cruise control switches (if so
equipped) (P. 5-39)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-41)
18. Driver supplemental knee air bag
(P. 1-47)
19. Bluetooth® Hands-Free Phone
System/Audio control switches
(P. 4-29)
20. Hood release (P. 3-21)
Fuel door release (P. 3-27)
Powered rear seatback switch (P. 1-2)
21. Fuse box (P. 8-22)
22. Liftgate opener switch (if so equipped)
(P. 3-22)
Heated steering wheel switch
(if so equipped) (P. 2-40)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-40)
23. Instrument brightness control (P. 2-32)
Twin trip odometer reset switch (P. 2-4)
*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .Refer to the page number indicated in pa-
rentheses for operating details.
Instruments and controls2-3

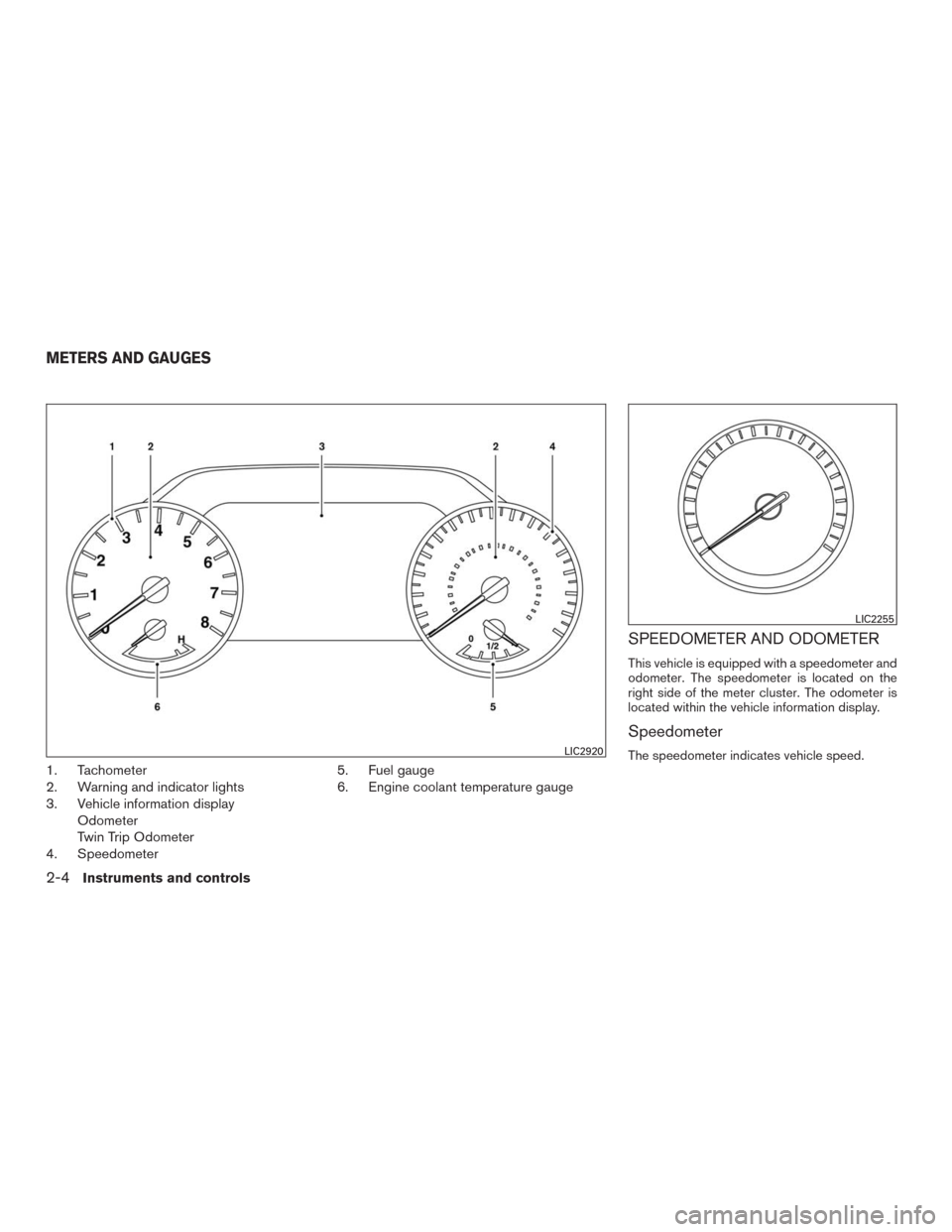

1. Tachometer
2. Warning and indicator lights
3. Vehicle information display
Odometer
Twin Trip Odometer
4. Speedometer5. Fuel gauge
6. Engine coolant temperature gauge
SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedometer and
odometer. The speedometer is located on the
right side of the meter cluster. The odometer is
located within the vehicle information display.
Speedometer
The speedometer indicates vehicle speed.LIC2920
LIC2255
METERS AND GAUGES
2-4Instruments and controls

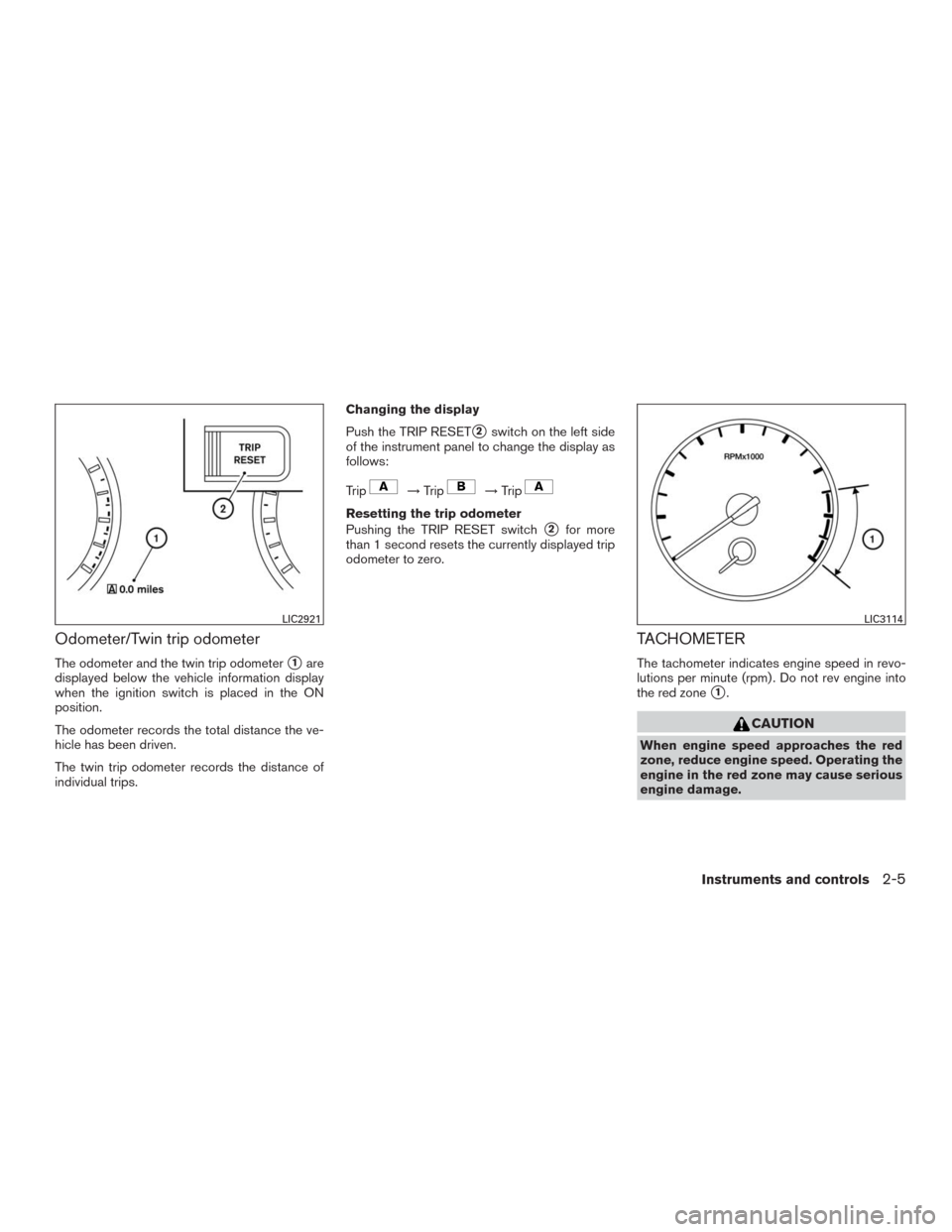

Odometer/Twin trip odometer
The odometer and the twin trip odometer1are
displayed below the vehicle information display
when the ignition switch is placed in the ON
position.
The odometer records the total distance the ve-
hicle has been driven.
The twin trip odometer records the distance of
individual trips.Changing the display
Push the TRIP RESET
2switch on the left side
of the instrument panel to change the display as
follows:
Trip
→Trip→Trip
Resetting the trip odometer
Pushing the TRIP RESET switch
2for more
than 1 second resets the currently displayed trip
odometer to zero.
TACHOMETER
The tachometer indicates engine speed in revo-
lutions per minute (rpm) . Do not rev engine into
the red zone
1.
CAUTION
When engine speed approaches the red
zone, reduce engine speed. Operating the
engine in the red zone may cause serious
engine damage.
LIC2921LIC3114
Instruments and controls2-5

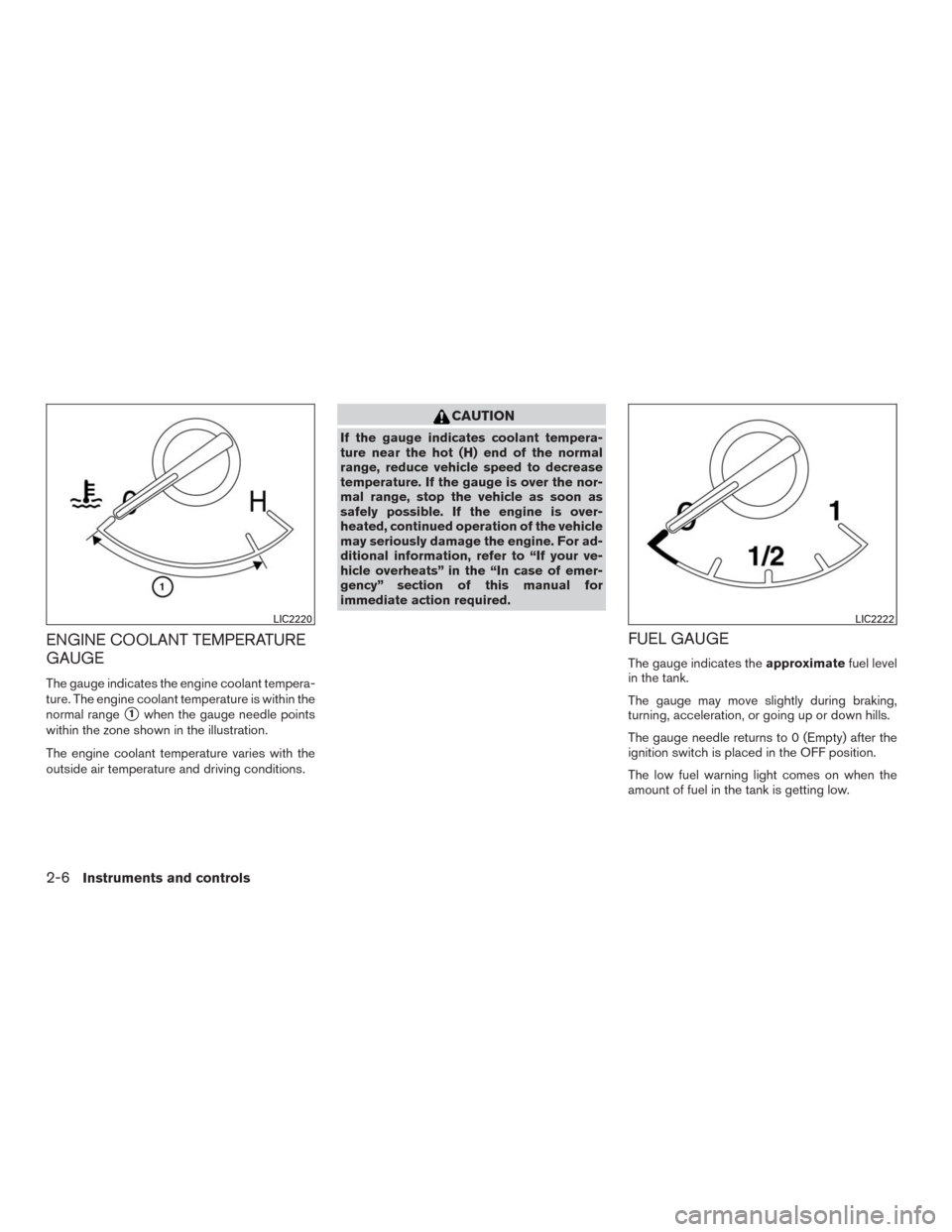

ENGINE COOLANT TEMPERATURE
GAUGE
The gauge indicates the engine coolant tempera-
ture. The engine coolant temperature is within the
normal range
1when the gauge needle points
within the zone shown in the illustration.
The engine coolant temperature varies with the
outside air temperature and driving conditions.
CAUTION
If the gauge indicates coolant tempera-
ture near the hot (H) end of the normal
range, reduce vehicle speed to decrease
temperature. If the gauge is over the nor-
mal range, stop the vehicle as soon as
safely possible. If the engine is over-
heated, continued operation of the vehicle
may seriously damage the engine. For ad-
ditional information, refer to “If your ve-
hicle overheats” in the “In case of emer-
gency” section of this manual for
immediate action required.
FUEL GAUGE
The gauge indicates theapproximatefuel level
in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
The gauge needle returns to 0 (Empty) after the
ignition switch is placed in the OFF position.
The low fuel warning light comes on when the
amount of fuel in the tank is getting low.
LIC2220LIC2222
2-6Instruments and controls

Refill the fuel tank before the gauge regis-
ters 0 (Empty) .
The
indicates that the fuel-filler door is
located on the driver’s side of the vehicle.
CAUTION
●If the vehicle runs out of fuel, theMalfunction Indicator Light (MIL) may
come on. Refuel as soon as possible.
After a few driving trips. the
light
should turn off. If the light remains on
after a few driving trips, have the vehicle
inspected. It is recommended you visit a
NISSAN dealer for this service.
●For additional information, refer to
“Malfunction Indicator Light (MIL)” in
this section.
Instruments and controls2-7
