2016 NISSAN MURANO Owners Manual

VQ35DE engine
1. Engine coolant reservoir (P. 8-8)
2. Drive belt location (P. 8-18)
3. Engine oil dipstick (P. 8-10)
4. Engine oil filler cap (P. 8-10)
5. Brake fluid reservoir (P. 8-14)
6. Air cleaner (P. 8-19)
7. Fuse box (P. 8-22)
8. Fuse/Fusible link box (P. 8-22)
9. Battery (P. 8-16)
10. Radiator cap (P. 8-8)
11. Power steering fluid reservoir (P. 8-14)
12. Windshield-washer fluid reservoir
(P. 8-15)
Refer to the page number indicated in pa-
rentheses for operating details.
LDI2633
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

Warning
lightName Page
or
Anti-lock Braking
System (ABS) warn-
ing light2-9
or
Brake warning light 2-9
Charge warning
light2-9
Engine oil pressure
warning light2-10
Forward Emergency
Braking (FEB) sys-
tem warning light (if
so equipped)2-10
Low tire pressure
warning light2-10
Warning
lightName Page
Master warning light 2-12
Power steering
warning light2-12
Seat belt warning
light and chime2-12
Supplemental air
bag warning light2-13
Indicator
lightName Page
Front fog light indi-
cator light (if so
equipped)2-13
Front passenger air
bag status light2-13
High beam indicator
light (blue)2-13
Indicator
lightName Page
Malfunction Indica-
tor Light (MIL)2-13
Security indicator
light2-14
Side light and head-
light indicator light
(green)2-14
Slip indicator light 2-14
Turn signal/hazard
indicator lights2-15
Vehicle Dynamic
Control (VDC) OFF
indicator light2-15
WARNING AND INDICATOR LIGHTS
Illustrated table of contents0-9

MEMO
0-10Illustrated table of contents

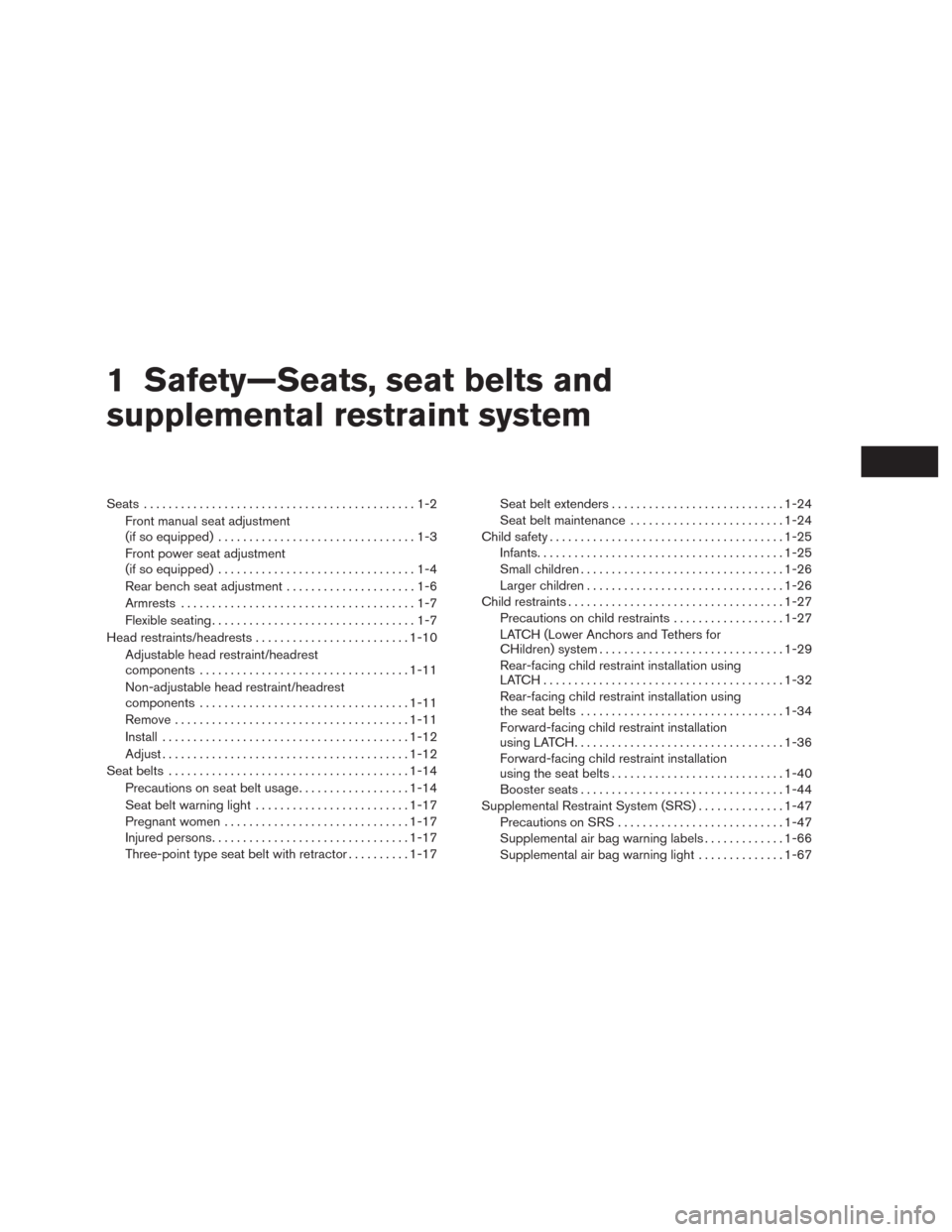

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front manual seat adjustment
(if so equipped)................................1-3
Front power seat adjustment
(if so equipped)................................1-4
Rear bench seat adjustment.....................1-6
Armrests......................................1-7
Flexible seating.................................1-7
Head restraints/headrests.........................1-10
Adjustable head restraint/headrest
components..................................1-11
Non-adjustable head restraint/headrest
components..................................1-11
Remove......................................1-11
Install........................................1-12
Adjust........................................1-12
Seat belts.......................................1-14
Precautions on seat belt usage..................1-14
Seat belt warning light.........................1-17
Pregnant women..............................1-17
Injured persons................................1-17
Three-point type seat belt with retractor..........1-17Seat belt extenders............................1-24
Seat belt maintenance.........................1-24
Child safety......................................1-25
Infants........................................1-25
Small children.................................1-26
Larger children................................1-26
Child restraints...................................1-27
Precautions on child restraints..................1-27
LATCH (Lower Anchors and Tethers for
CHildren) system..............................1-29
Rear-facing child restraint installation using
LATCH.......................................1-32
Rear-facing child restraint installation using
the seat belts.................................1-34
Forward-facing child restraint installation
using LATCH..................................1-36
Forward-facing child restraint installation
using the seat belts............................1-40
Booster seats.................................1-44
Supplemental Restraint System (SRS)..............1-47
Precautions on SRS...........................1-47
Supplemental air bag warning labels.............1-66
Supplemental air bag warning light..............1-67

WARNING
●Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries.●For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and
upright in the seat with both feet on the
floor and adjust the seat properly. For
additional information, refer to “Pre-
cautions on seat belt usage” in this
section.
●After adjustment, gently rock in the seat
to make sure it is securely locked.●Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents.
●To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm
day can quickly become high enough to
cause a significant risk of injury or
death to people and pets.
●Do not adjust the driver’s seat while
driving so full attention may be given to
vehicle operation. The seat may move
suddenly and could cause loss of con-
trol of the vehicle.
●The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

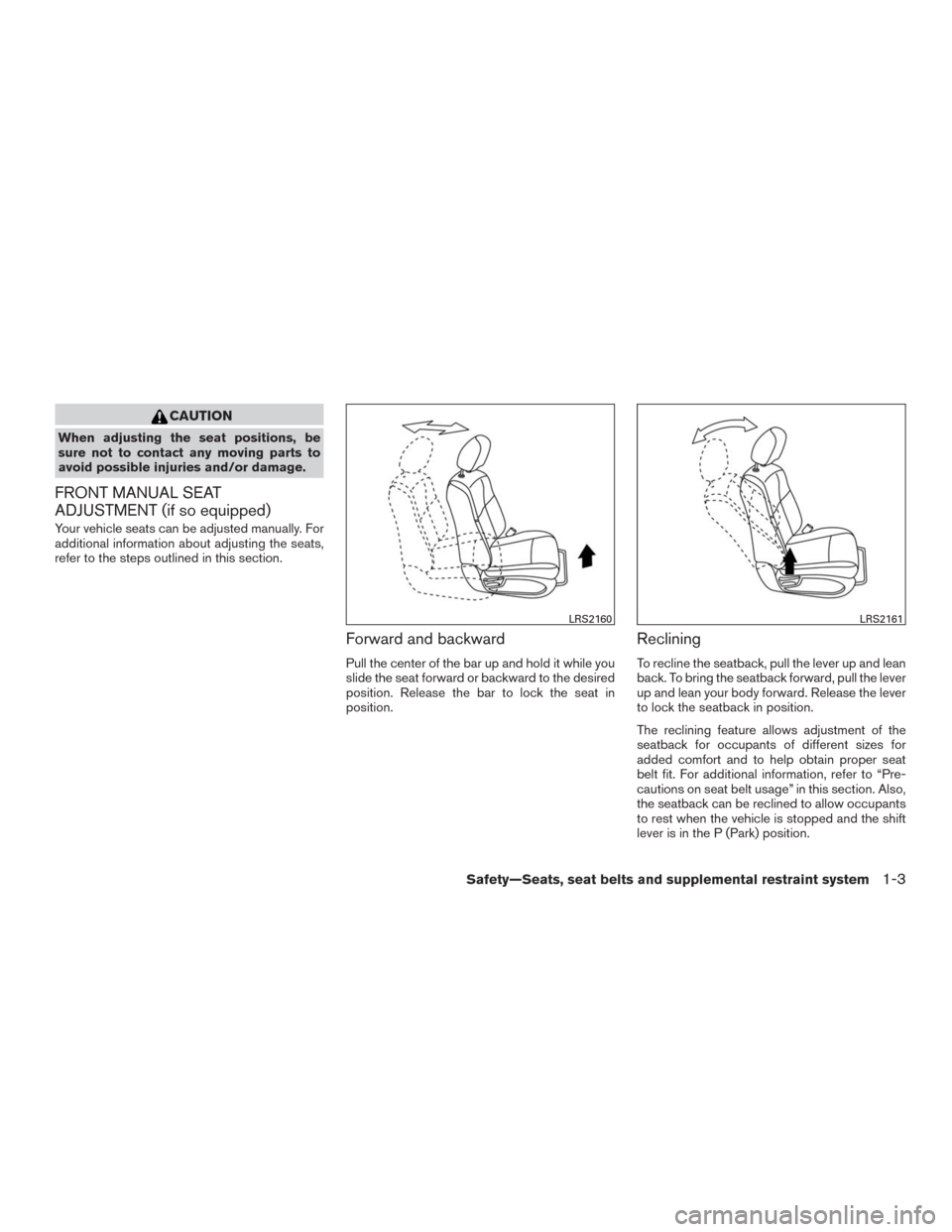

CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL SEAT
ADJUSTMENT (if so equipped)
Your vehicle seats can be adjusted manually. For
additional information about adjusting the seats,
refer to the steps outlined in this section.
Forward and backward
Pull the center of the bar up and hold it while you
slide the seat forward or backward to the desired
position. Release the bar to lock the seat in
position.
Reclining
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, refer to “Pre-
cautions on seat belt usage” in this section. Also,
the seatback can be reclined to allow occupants
to rest when the vehicle is stopped and the shift
lever is in the P (Park) position.
LRS2160LRS2161
Safety—Seats, seat belts and supplemental restraint system1-3

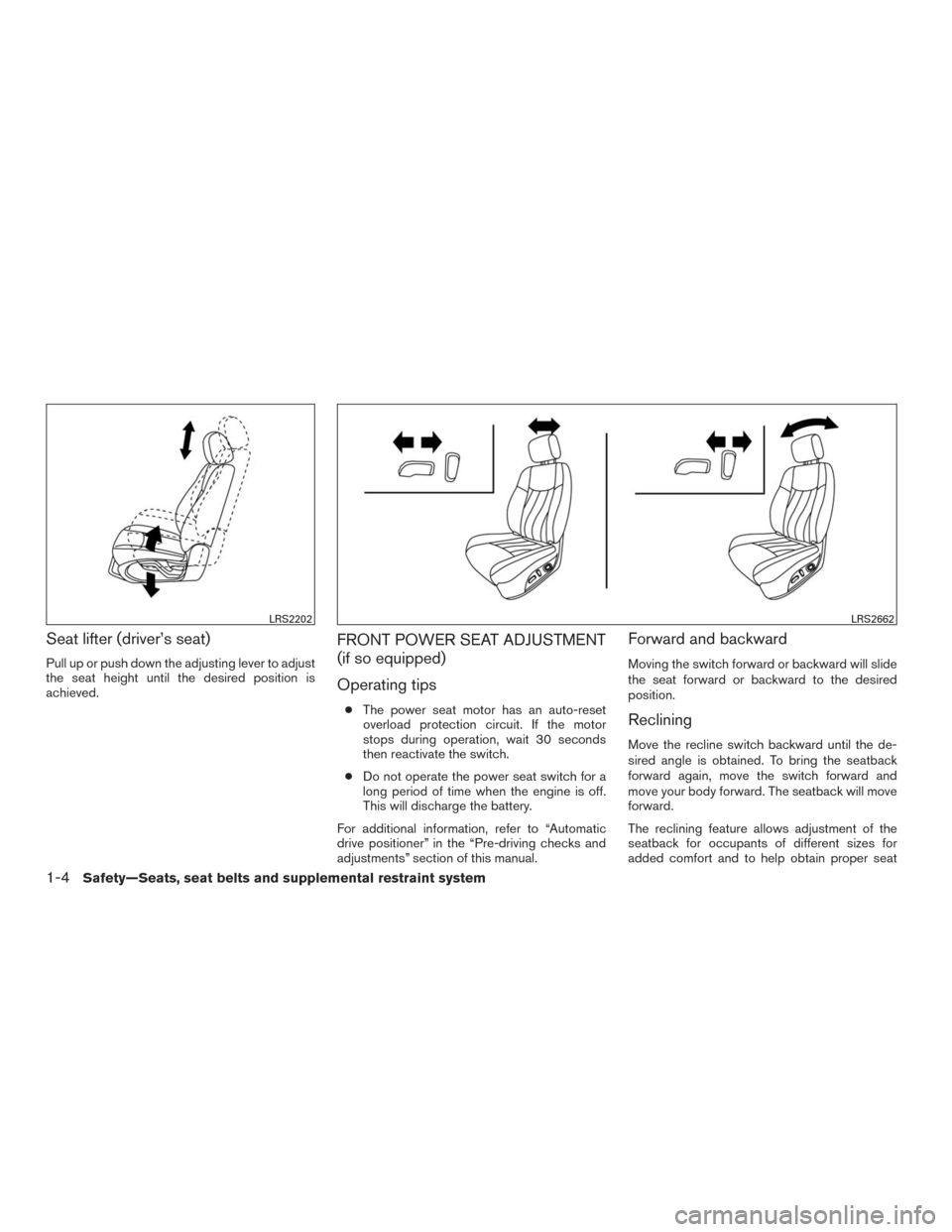

Seat lifter (driver’s seat)
Pull up or push down the adjusting lever to adjust
the seat height until the desired position is
achieved.
FRONT POWER SEAT ADJUSTMENT
(if so equipped)
Operating tips
●The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds
then reactivate the switch.
●Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
For additional information, refer to “Automatic
drive positioner” in the “Pre-driving checks and
adjustments” section of this manual.
Forward and backward
Moving the switch forward or backward will slide
the seat forward or backward to the desired
position.
Reclining
Move the recline switch backward until the de-
sired angle is obtained. To bring the seatback
forward again, move the switch forward and
move your body forward. The seatback will move
forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
LRS2202LRS2662
1-4Safety—Seats, seat belts and supplemental restraint system

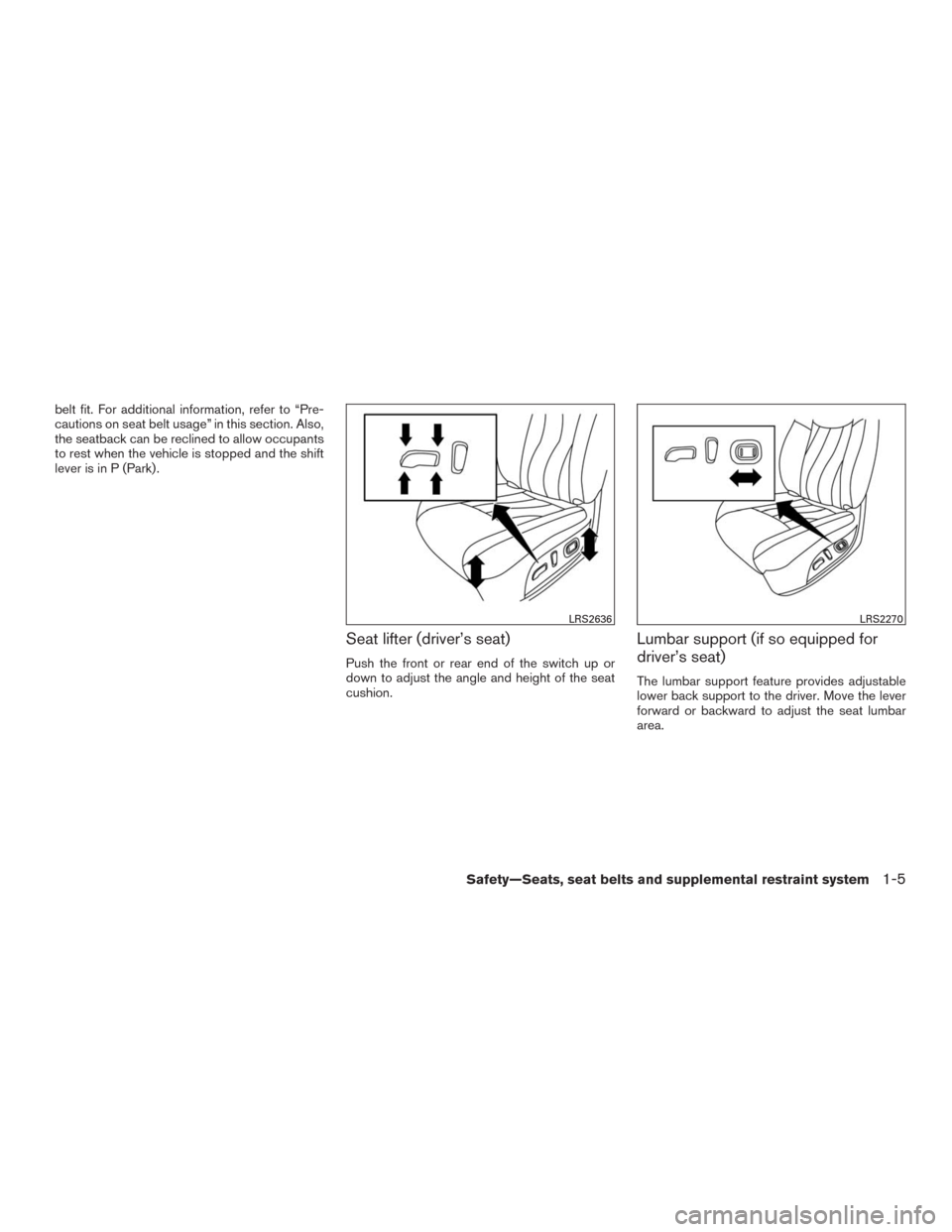

belt fit. For additional information, refer to “Pre-
cautions on seat belt usage” in this section. Also,
the seatback can be reclined to allow occupants
to rest when the vehicle is stopped and the shift
lever is in P (Park) .
Seat lifter (driver’s seat)
Push the front or rear end of the switch up or
down to adjust the angle and height of the seat
cushion.
Lumbar support (if so equipped for
driver’s seat)
The lumbar support feature provides adjustable
lower back support to the driver. Move the lever
forward or backward to adjust the seat lumbar
area.
LRS2636LRS2270
Safety—Seats, seat belts and supplemental restraint system1-5
