2016 NISSAN MURANO Owners Manual

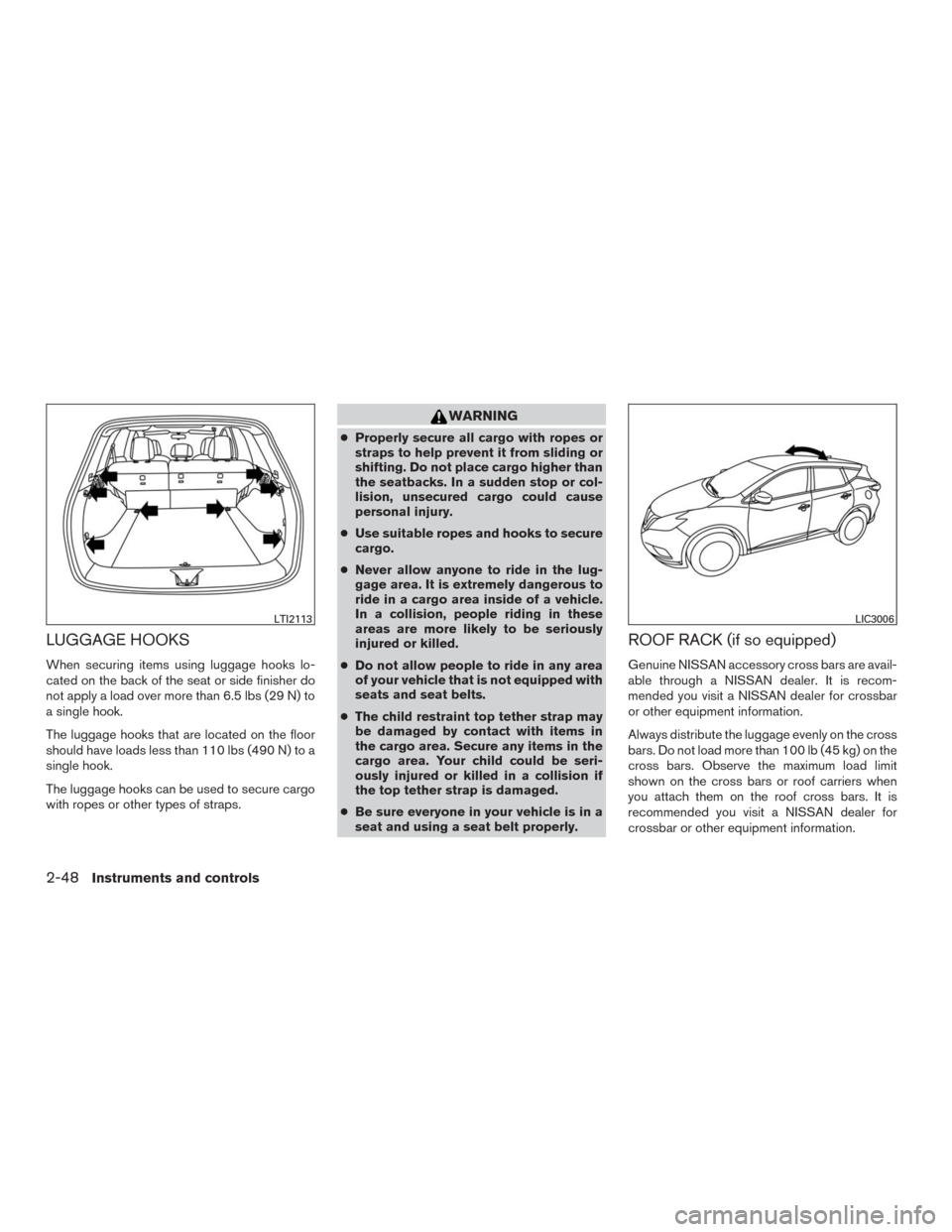

LUGGAGE HOOKS
When securing items using luggage hooks lo-
cated on the back of the seat or side finisher do
not apply a load over more than 6.5 lbs (29 N) to
a single hook.
The luggage hooks that are located on the floor
should have loads less than 110 lbs (490 N) to a
single hook.
The luggage hooks can be used to secure cargo
with ropes or other types of straps.
WARNING
●Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or col-
lision, unsecured cargo could cause
personal injury.
●Use suitable ropes and hooks to secure
cargo.
●Never allow anyone to ride in the lug-
gage area. It is extremely dangerous to
ride in a cargo area inside of a vehicle.
In a collision, people riding in these
areas are more likely to be seriously
injured or killed.
●Do not allow people to ride in any area
of your vehicle that is not equipped with
seats and seat belts.
●The child restraint top tether strap may
be damaged by contact with items in
the cargo area. Secure any items in the
cargo area. Your child could be seri-
ously injured or killed in a collision if
the top tether strap is damaged.
●Be sure everyone in your vehicle is in a
seat and using a seat belt properly.
ROOF RACK (if so equipped)
Genuine NISSAN accessory cross bars are avail-
able through a NISSAN dealer. It is recom-
mended you visit a NISSAN dealer for crossbar
or other equipment information.
Always distribute the luggage evenly on the cross
bars. Do not load more than 100 lb (45 kg) on the
cross bars. Observe the maximum load limit
shown on the cross bars or roof carriers when
you attach them on the roof cross bars. It is
recommended you visit a NISSAN dealer for
crossbar or other equipment information.
LTI2113LIC3006
2-48Instruments and controls

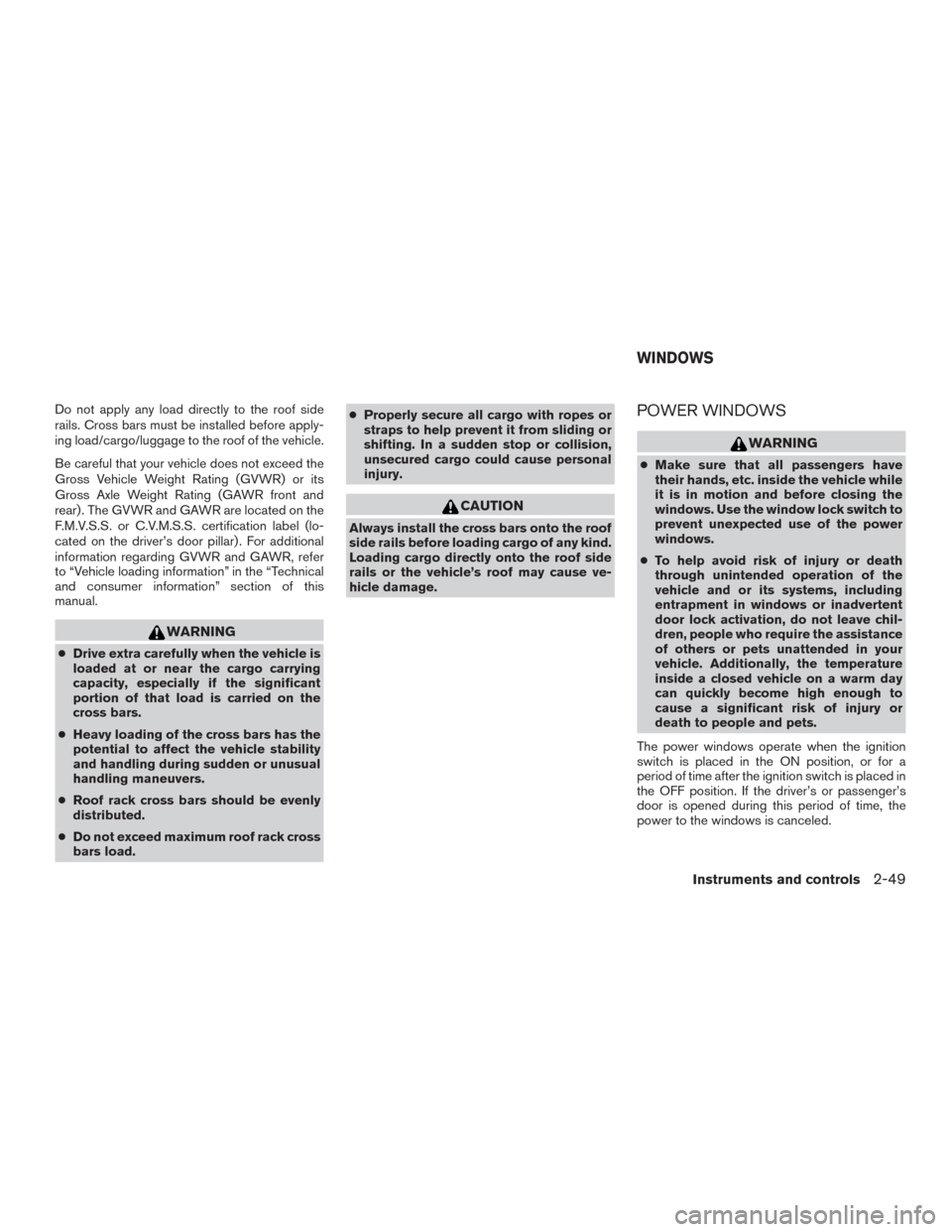

Do not apply any load directly to the roof side
rails. Cross bars must be installed before apply-
ing load/cargo/luggage to the roof of the vehicle.
Be careful that your vehicle does not exceed the
Gross Vehicle Weight Rating (GVWR) or its
Gross Axle Weight Rating (GAWR front and
rear) . The GVWR and GAWR are located on the
F.M.V.S.S. or C.V.M.S.S. certification label (lo-
cated on the driver’s door pillar) . For additional
information regarding GVWR and GAWR, refer
to “Vehicle loading information” in the “Technical
and consumer information” section of this
manual.
WARNING
●Drive extra carefully when the vehicle is
loaded at or near the cargo carrying
capacity, especially if the significant
portion of that load is carried on the
cross bars.
●Heavy loading of the cross bars has the
potential to affect the vehicle stability
and handling during sudden or unusual
handling maneuvers.
●Roof rack cross bars should be evenly
distributed.
●Do not exceed maximum roof rack cross
bars load.●Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision,
unsecured cargo could cause personal
injury.
CAUTION
Always install the cross bars onto the roof
side rails before loading cargo of any kind.
Loading cargo directly onto the roof side
rails or the vehicle’s roof may cause ve-
hicle damage.
POWER WINDOWS
WARNING
●Make sure that all passengers have
their hands, etc. inside the vehicle while
it is in motion and before closing the
windows. Use the window lock switch to
prevent unexpected use of the power
windows.
●To help avoid risk of injury or death
through unintended operation of the
vehicle and or its systems, including
entrapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your
vehicle. Additionally, the temperature
inside a closed vehicle on a warm day
can quickly become high enough to
cause a significant risk of injury or
death to people and pets.
The power windows operate when the ignition
switch is placed in the ON position, or for a
period of time after the ignition switch is placed in
the OFF position. If the driver’s or passenger’s
door is opened during this period of time, the
power to the windows is canceled.
WINDOWS
Instruments and controls2-49

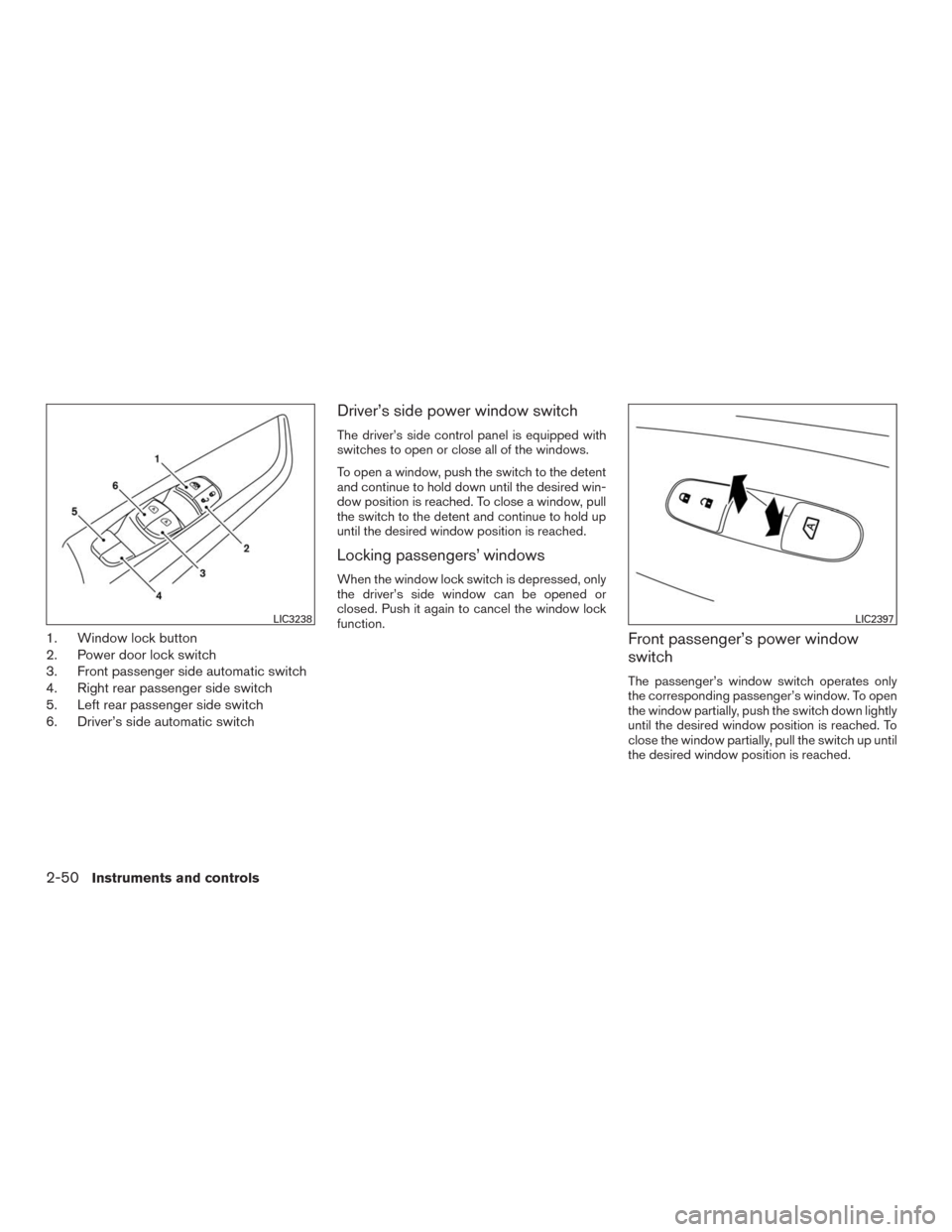

1. Window lock button
2. Power door lock switch
3. Front passenger side automatic switch
4. Right rear passenger side switch
5. Left rear passenger side switch
6. Driver’s side automatic switch
Driver’s side power window switch
The driver’s side control panel is equipped with
switches to open or close all of the windows.
To open a window, push the switch to the detent
and continue to hold down until the desired win-
dow position is reached. To close a window, pull
the switch to the detent and continue to hold up
until the desired window position is reached.
Locking passengers’ windows
When the window lock switch is depressed, only
the driver’s side window can be opened or
closed. Push it again to cancel the window lock
function.
Front passenger’s power window
switch
The passenger’s window switch operates only
the corresponding passenger’s window. To open
the window partially, push the switch down lightly
until the desired window position is reached. To
close the window partially, pull the switch up until
the desired window position is reached.
LIC3238LIC2397
2-50Instruments and controls

Rear power window switch
The rear power window switches open or close
only the corresponding windows. To open the
window, push the switch and hold it down
1.To
close the window, pull the switch up
2.
Automatic operation
To fully open a window, press the window switch
down to the second detent and release it; it need
not be held. The window automatically opens all
the way. To stop the window, lift the switch up
while the window is opening.
To fully close a window, pull the switch up to the
second detent and release it; it need not be held.
To stop the window, press the switch down while
the window is closing.
Auto-reverse function
The auto-reverse function can be activated when
a window is closed by automatic operation.Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the window oc-
curs.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the window.
If the vehicle’s battery is disconnected, replaced,
or jump started, the power window auto-reverse
function may not operate properly. If this occurs,
please contact the dealer to re-initialize the
power window auto-reverse system.
If the control unit detects something caught in a
window equipped with automatic operation, as it
is closing, the window will be immediately low-
ered.
LIC2663LIC0410
Instruments and controls2-51

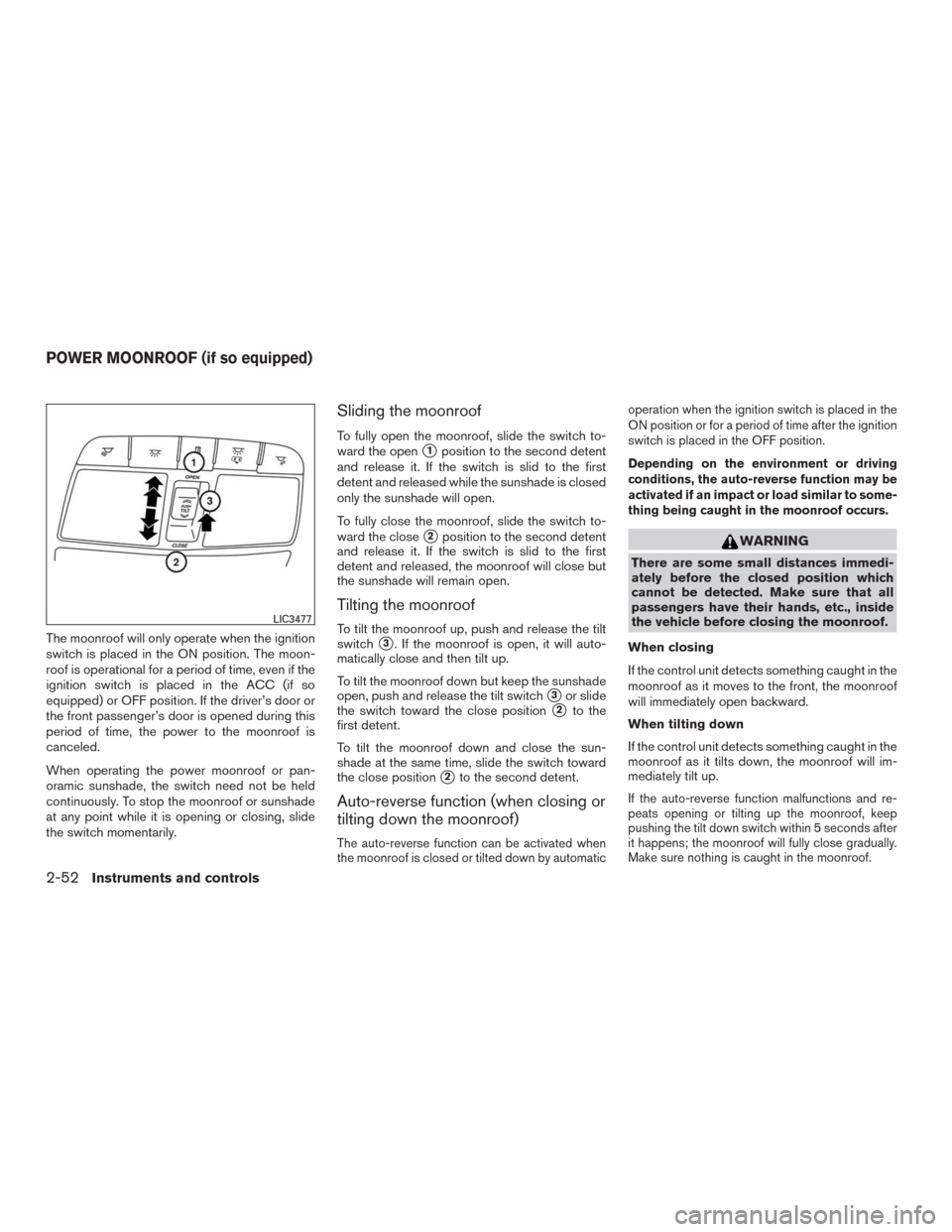

The moonroof will only operate when the ignition
switch is placed in the ON position. The moon-
roof is operational for a period of time, even if the
ignition switch is placed in the ACC (if so
equipped) or OFF position. If the driver’s door or
the front passenger’s door is opened during this
period of time, the power to the moonroof is
canceled.
When operating the power moonroof or pan-
oramic sunshade, the switch need not be held
continuously. To stop the moonroof or sunshade
at any point while it is opening or closing, slide
the switch momentarily.
Sliding the moonroof
To fully open the moonroof, slide the switch to-
ward the open
1position to the second detent
and release it. If the switch is slid to the first
detent and released while the sunshade is closed
only the sunshade will open.
To fully close the moonroof, slide the switch to-
ward the close
2position to the second detent
and release it. If the switch is slid to the first
detent and released, the moonroof will close but
the sunshade will remain open.
Tilting the moonroof
To tilt the moonroof up, push and release the tilt
switch
3. If the moonroof is open, it will auto-
matically close and then tilt up.
To tilt the moonroof down but keep the sunshade
open, push and release the tilt switch
3or slide
the switch toward the close position
2to the
first detent.
To tilt the moonroof down and close the sun-
shade at the same time, slide the switch toward
the close position
2to the second detent.
Auto-reverse function (when closing or
tilting down the moonroof)
The auto-reverse function can be activated when
the moonroof is closed or tilted down by automaticoperation when the ignition switch is placed in the
ON position or for a period of time after the ignition
switch is placed in the OFF position.
Depending on the environment or driving
conditions, the auto-reverse function may be
activated if an impact or load similar to some-
thing being caught in the moonroof occurs.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the moonroof.
When closing
If the control unit detects something caught in the
moonroof as it moves to the front, the moonroof
will immediately open backward.
When tilting down
If the control unit detects something caught in the
moonroof as it tilts down, the moonroof will im-
mediately tilt up.
If the auto-reverse function malfunctions and re-
peats opening or tilting up the moonroof, keep
pushing the tilt down switch within 5 seconds after
it happens; the moonroof will fully close gradually.
Make sure nothing is caught in the moonroof.
LIC3477
POWER MOONROOF (if so equipped)
2-52Instruments and controls

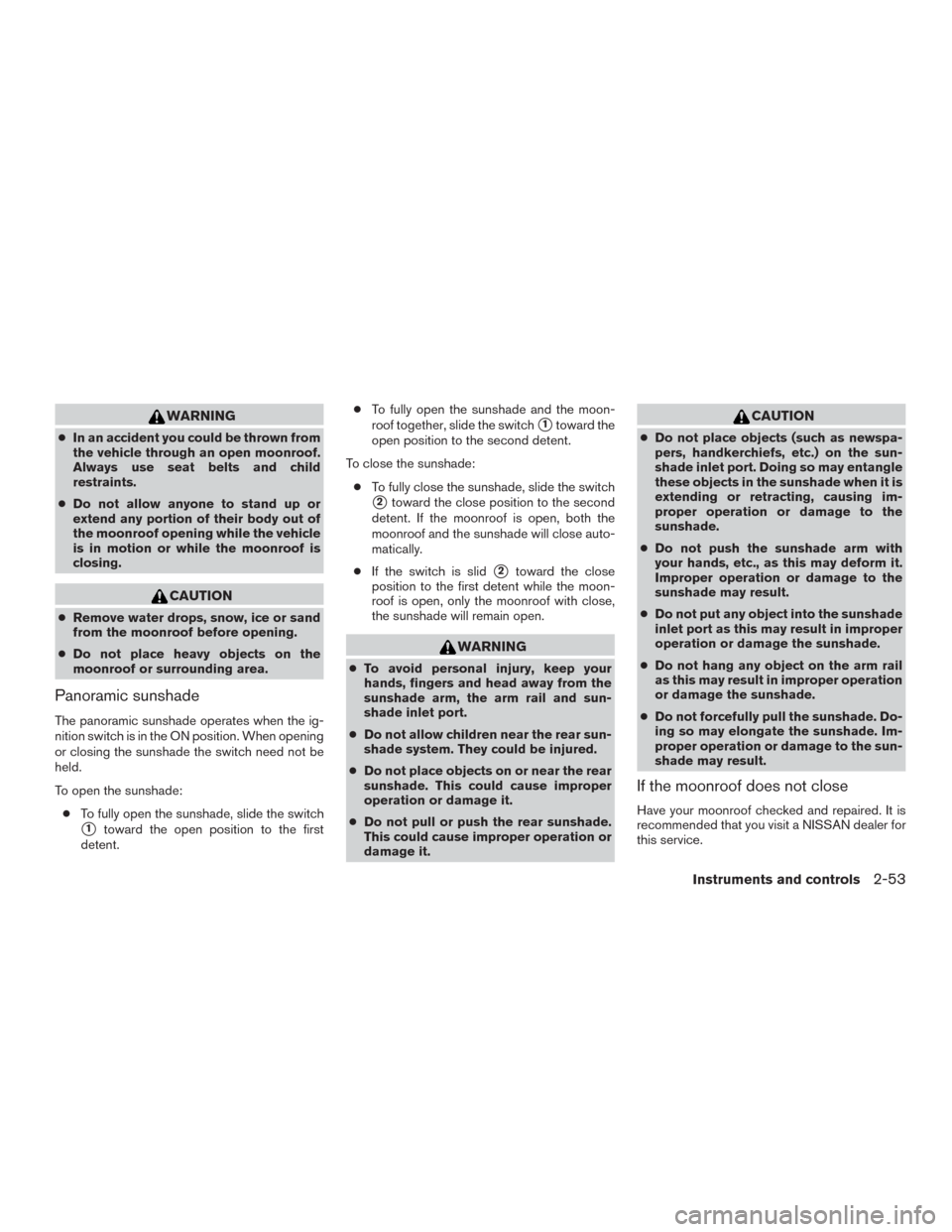

WARNING
●In an accident you could be thrown from
the vehicle through an open moonroof.
Always use seat belts and child
restraints.
●Do not allow anyone to stand up or
extend any portion of their body out of
the moonroof opening while the vehicle
is in motion or while the moonroof is
closing.
CAUTION
●Remove water drops, snow, ice or sand
from the moonroof before opening.
●Do not place heavy objects on the
moonroof or surrounding area.
Panoramic sunshade
The panoramic sunshade operates when the ig-
nition switch is in the ON position. When opening
or closing the sunshade the switch need not be
held.
To open the sunshade:
●To fully open the sunshade, slide the switch
1toward the open position to the first
detent.●To fully open the sunshade and the moon-
roof together, slide the switch
1toward the
open position to the second detent.
To close the sunshade:
●To fully close the sunshade, slide the switch
2toward the close position to the second
detent. If the moonroof is open, both the
moonroof and the sunshade will close auto-
matically.
●If the switch is slid
2toward the close
position to the first detent while the moon-
roof is open, only the moonroof with close,
the sunshade will remain open.
WARNING
●To avoid personal injury, keep your
hands, fingers and head away from the
sunshade arm, the arm rail and sun-
shade inlet port.
●Do not allow children near the rear sun-
shade system. They could be injured.
●Do not place objects on or near the rear
sunshade. This could cause improper
operation or damage it.
●Do not pull or push the rear sunshade.
This could cause improper operation or
damage it.
CAUTION
●Do not place objects (such as newspa-
pers, handkerchiefs, etc.) on the sun-
shade inlet port. Doing so may entangle
these objects in the sunshade when it is
extending or retracting, causing im-
proper operation or damage to the
sunshade.
●Do not push the sunshade arm with
your hands, etc., as this may deform it.
Improper operation or damage to the
sunshade may result.
●Do not put any object into the sunshade
inlet port as this may result in improper
operation or damage the sunshade.
●Do not hang any object on the arm rail
as this may result in improper operation
or damage the sunshade.
●Do not forcefully pull the sunshade. Do-
ing so may elongate the sunshade. Im-
proper operation or damage to the sun-
shade may result.
If the moonroof does not close
Have your moonroof checked and repaired. It is
recommended that you visit a NISSAN dealer for
this service.
Instruments and controls2-53

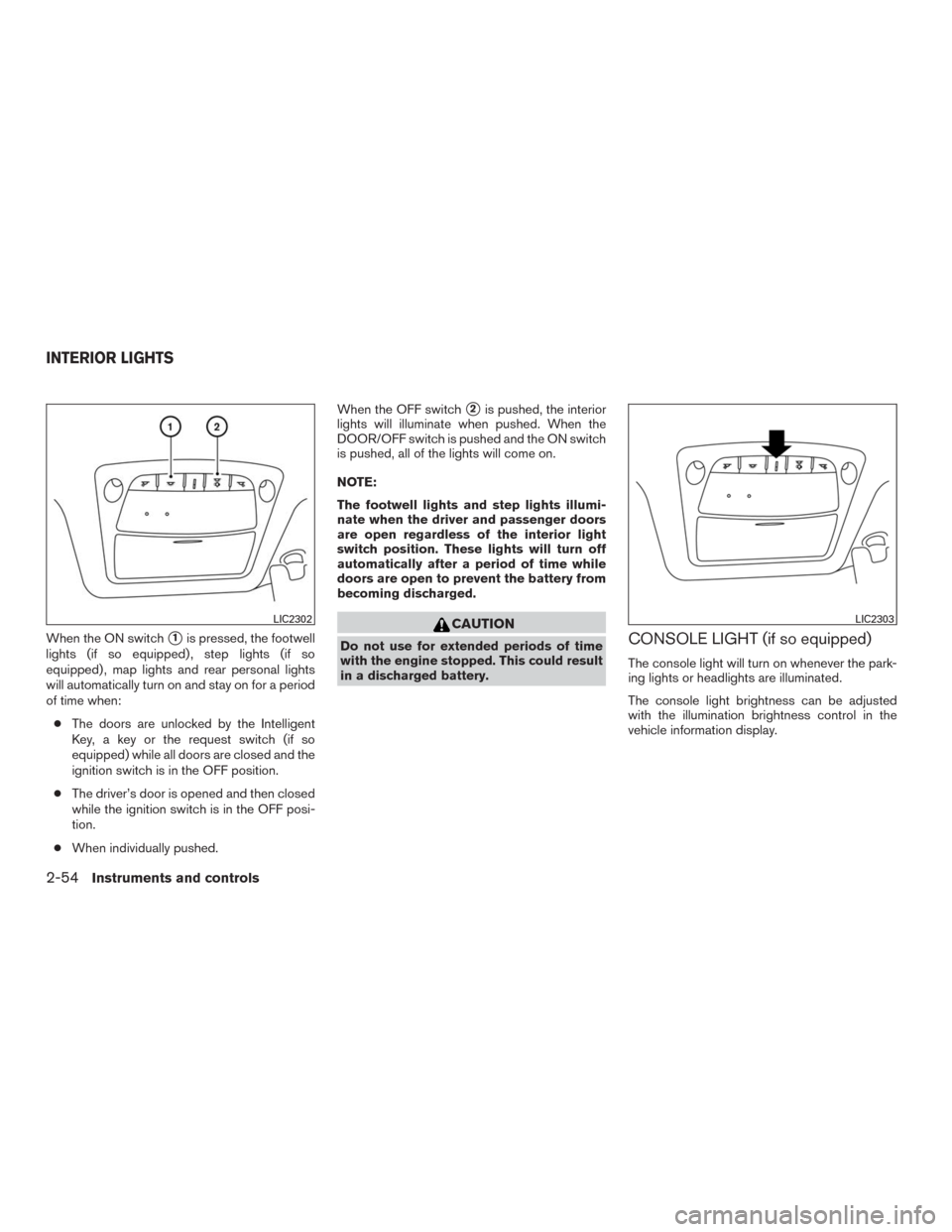

When the ON switch1is pressed, the footwell
lights (if so equipped) , step lights (if so
equipped) , map lights and rear personal lights
will automatically turn on and stay on for a period
of time when:
●The doors are unlocked by the Intelligent
Key, a key or the request switch (if so
equipped) while all doors are closed and the
ignition switch is in the OFF position.
●The driver’s door is opened and then closed
while the ignition switch is in the OFF posi-
tion.
●When individually pushed.When the OFF switch
2is pushed, the interior
lights will illuminate when pushed. When the
DOOR/OFF switch is pushed and the ON switch
is pushed, all of the lights will come on.
NOTE:
The footwell lights and step lights illumi-
nate when the driver and passenger doors
are open regardless of the interior light
switch position. These lights will turn off
automatically after a period of time while
doors are open to prevent the battery from
becoming discharged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.CONSOLE LIGHT (if so equipped)
The console light will turn on whenever the park-
ing lights or headlights are illuminated.
The console light brightness can be adjusted
with the illumination brightness control in the
vehicle information display.
LIC2302LIC2303
INTERIOR LIGHTS
2-54Instruments and controls

MAP LIGHTS
Press the button to turn the map lights on. To turn
them off, press the button again.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.
PERSONAL LIGHTS
To turn the rear personal lights on, push the
switch. To turn them off, push the switch again.
LUGGAGE COMPARTMENT LIGHT
The light illuminates when the rear hatch is
opened. When the rear hatch is closed, the light
will turn off.
The light also illuminates with other interior lights
when the interior light switch is in the DOOR
position. For additional information, refer to “Inte-
rior lights” in this section.The lights will turn off automatically after a period
of time while doors are open to prevent the bat-
tery from becoming discharged.
LIC2304
Rear personal lights
LIC1083
Instruments and controls2-55
