5-2 Removing The Service Plug
DANGER
• Do not remove the service plug without always wearing appropriate Personal
Protective Equipment (PPE) to help protect the responder from serious injury or death
by electrical shock.
• Immediately cover the service plug socket with insulated tape. The high-voltage
battery
retains high-voltage power even when the service plug is removed. To avoid
electric shock, NEVER touch the terminals inside the socket. To avoid unintended reinstallation and risk of electrical shock and severe personal injury
or
death, the service plug should be securely stored away from the vehicle while the vehicle
is in storage.
1. If possible, check the READY indicator status in the instrument cluster. If it is on,
the
high-voltage system is active.
2. Place the shift selector in the Park (P) position.
3.
Push the ignition switch once to turn OFF the high-voltage
system. Then verify whether the READY indicator is off.
If the READY indicator does not turn off, continue to
step 4.
4. If possible, keep the Nissan Intelligent Key® at least 5 meters (16 feet) away from the vehicle.
PR N
D ACC
ENGINESTART
STOP LOCK
(OFF)
ON
AAYIA0137GB
HOLD AAYIA0446ZZ
RAG–33
Page 34 of 36

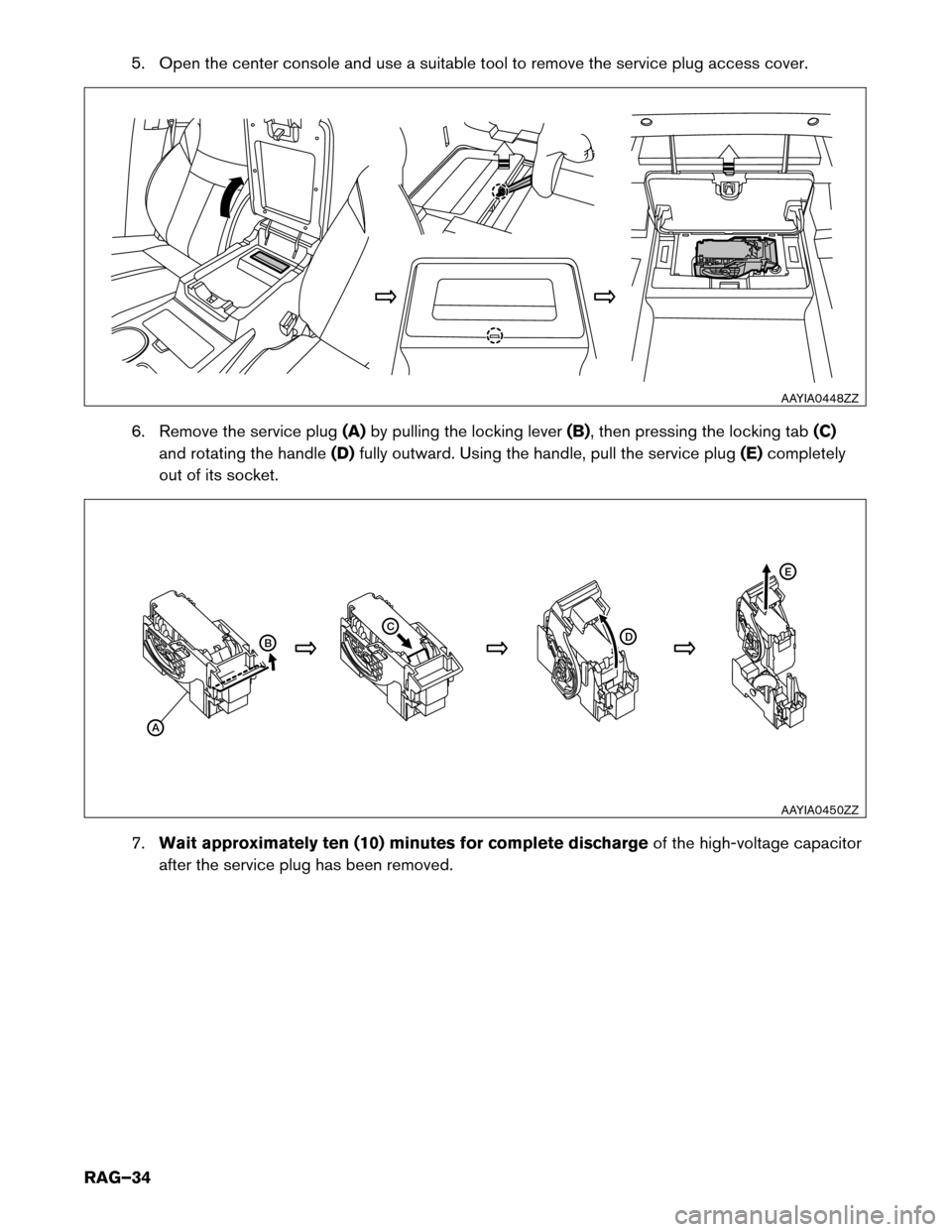

5. Open the center console and use a suitable tool to remove the service plug access cover.
6.
Remove the service plug (A)by pulling the locking lever (B), then pressing the locking tab (C)
and rotating the handle (D)fully outward. Using the handle, pull the service plug (E)completely
out of its socket.
7. Wait approximately ten (10) minutes for complete discharge of the high-voltage capacitor
after the service plug has been removed. AAYIA0448ZZ
A B C
D E
AAYIA0450ZZ
RAG–34
Page 35 of 36

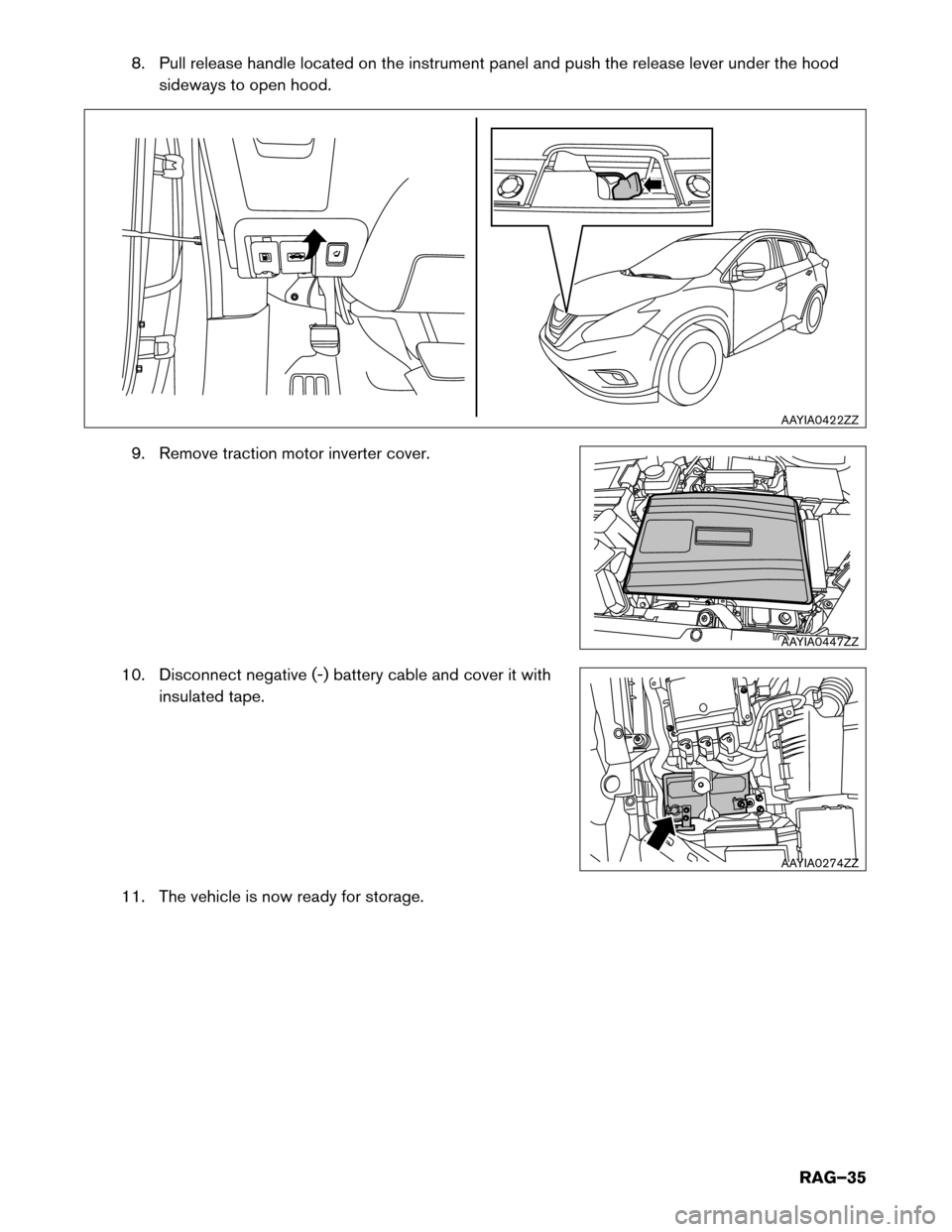

8. Pull release handle located on the instrument panel and push the release lever under the hood
sideways to open hood.
9. Remove traction motor inverter cover.
10. Disconnect negative (-) battery cable and cover it with insulated tape.
11. The vehicle is now ready for storage. AAYIA0422ZZ
AAYIA0447ZZ
AAYIA0274ZZ
RAG–35
Page 36 of 36
© 2016 Nissan North America, Inc.
All
rights reserved.
This document may not be altered without the written permission of Nissan North America, Inc.
Pub. No. RG16EAZ52HU0
