2016 NISSAN MURANO HYBRID Roadside Assistance Guide

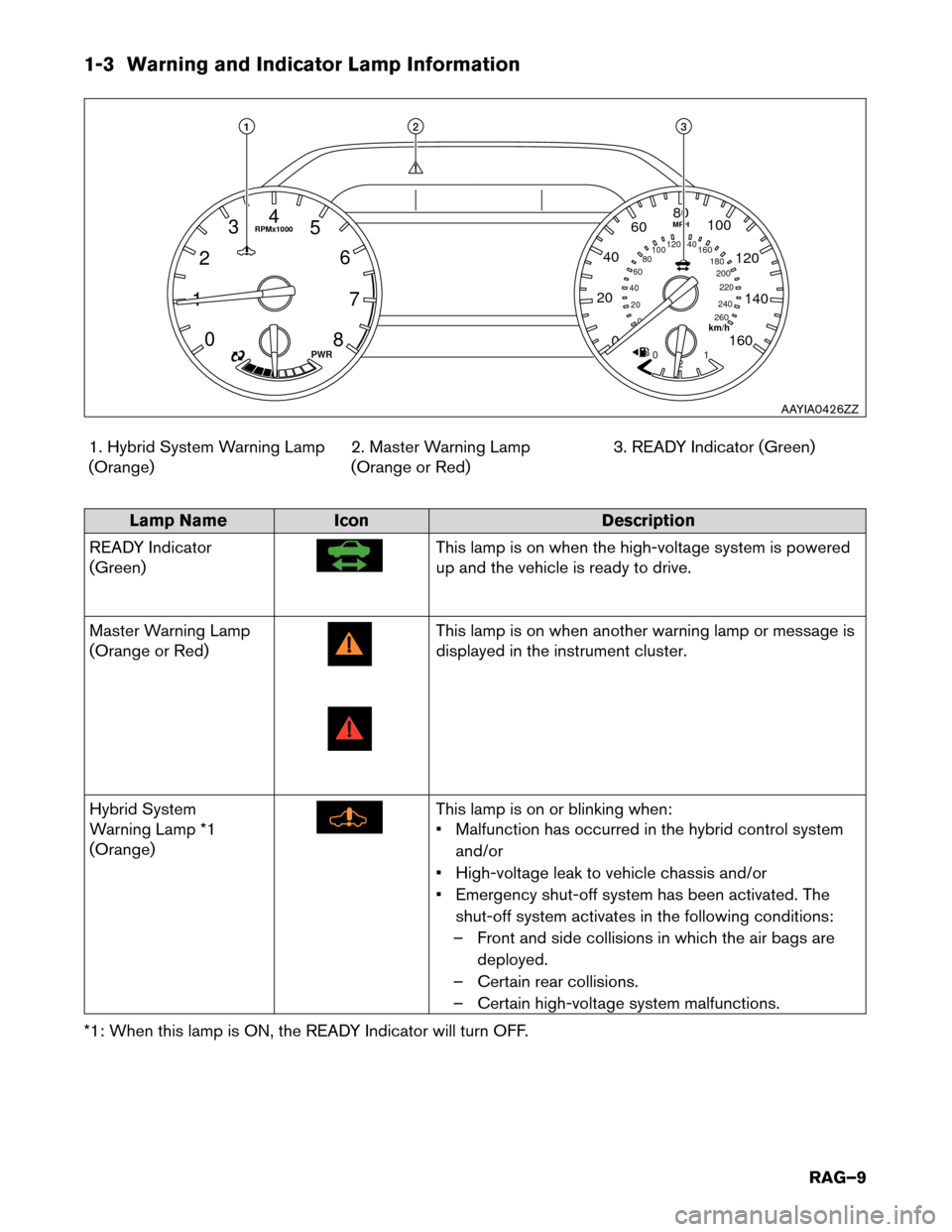

1-3 Warning and Indicator Lamp Information
1. Hybrid System Warning Lamp
(Orange) 2. Master Warning Lamp
(Orange or Red)3. READY Indicator (Green)Lamp Name
Icon Description
READ
Y Indicator
(Green) This lamp is on when the high-voltage system is powered
up

and the vehicle is ready to drive.
Master Warning Lamp
(Orange or Red) This lamp is on when another warning lamp or message is
displayed

in the instrument cluster.
Hybrid System
Warning Lamp *1
(Orange) This lamp is on or blinking when:
•

Malfunction has occurred in the hybrid control system
and/or
• High-voltage leak to vehicle chassis and/or
• Emergency shut-off system has been activated. The shut-off system activates in the following conditions:
– Front and side collisions in which the air bags are deployed.
– Certain rear collisions.
– Certain high-voltage system malfunctions.
*1: When this lamp is ON, the READY Indicator will turn OFF. 1
0
2
3
4
5
6
7
8
PWR km/h
MPH
RPMx1000 20
0 0
0
20
40
60
80
180
200
220
240
260
100

160
120 140
1
2
40
60
80
100
120
140
160 1 2 3
AAYIA0426ZZ
RAG–9

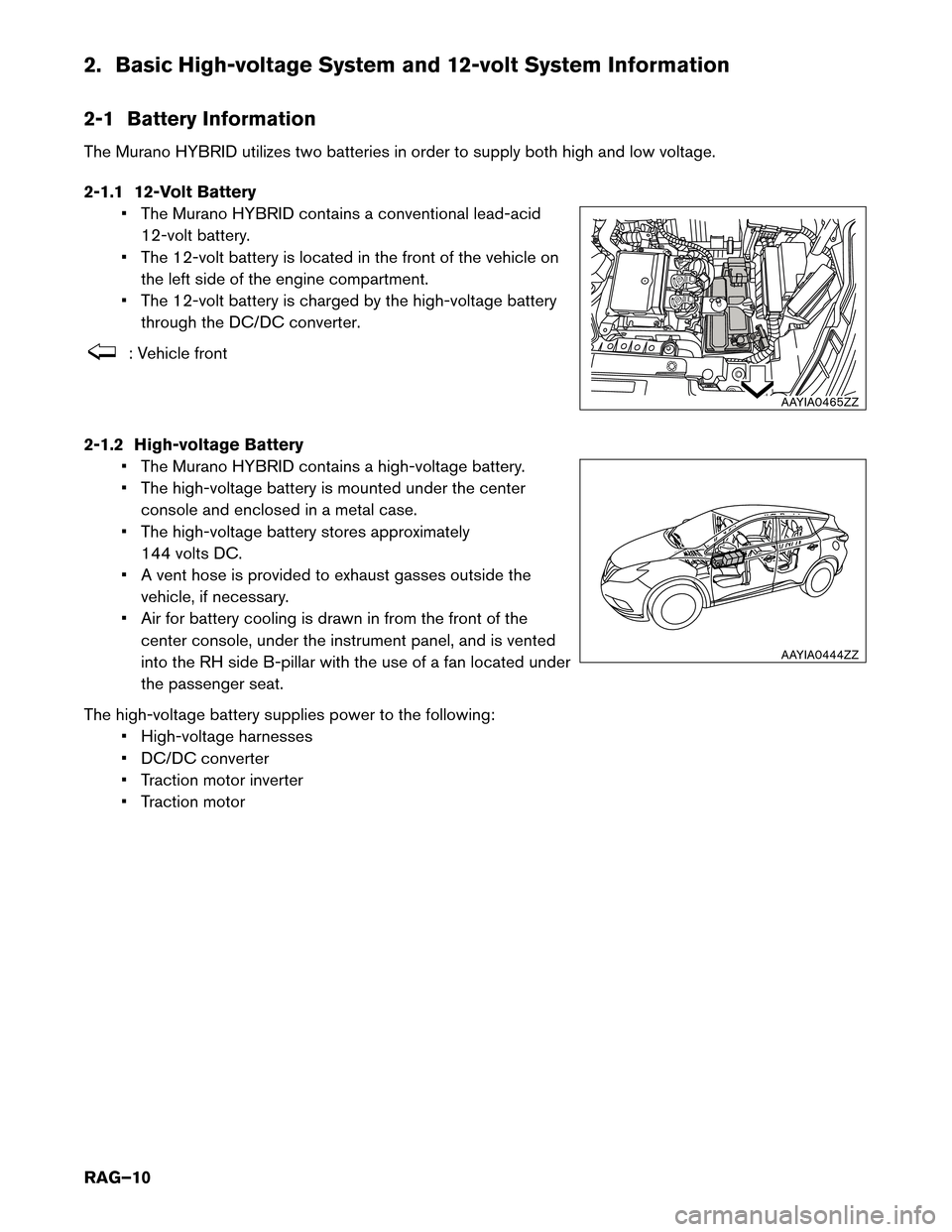

2. Basic High-voltage System and 12-volt System Information
2-1
Battery Information
The Murano HYBRID utilizes two batteries in order to supply both high and low voltage.
2-1.1 12-Volt Battery • The Murano HYBRID contains a conventional lead-acid12-volt battery.
• The 12-volt battery is located in the front of the vehicle on the left side of the engine compartment.
• The 12-volt battery is charged by the high-voltage battery through the DC/DC converter. : Vehicle front
2-1.2
High-voltage Battery
• The Murano HYBRID contains a high-voltage battery.
• The high-voltage battery is mounted under the center console and enclosed in a metal case.
• The high-voltage battery stores approximately 144 volts DC.
• A vent hose is provided to exhaust gasses outside the vehicle, if necessary.
• Air for battery cooling is drawn in from the front of the center console, under the instrument panel, and is vented
into the RH side B-pillar with the use of a fan located under
the passenger seat.
The high-voltage battery supplies power to the following: • High-voltage harnesses
• DC/DC converter
• Traction motor inverter
• Traction motor AAYIA0465ZZ
AAYIA0444ZZ
RAG–10

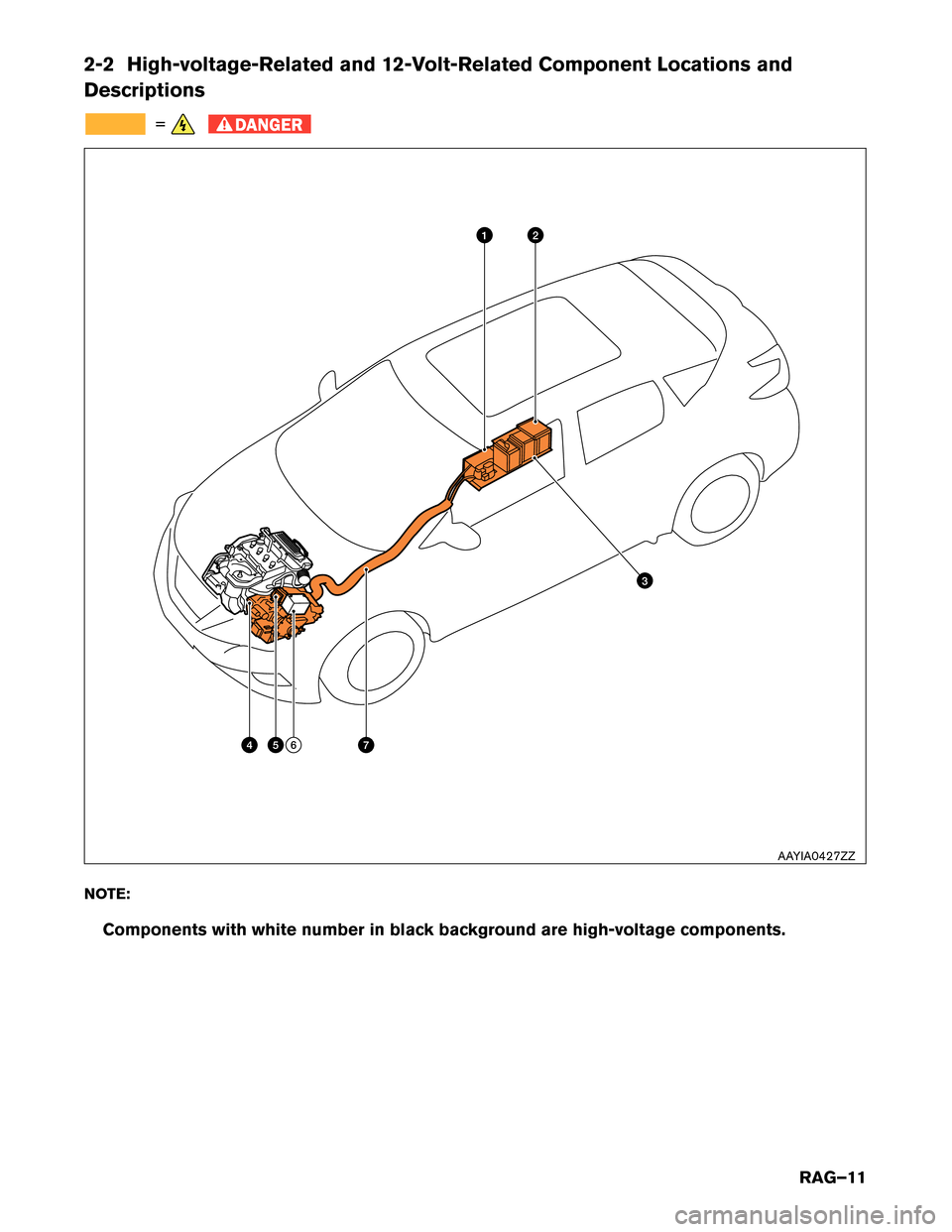

2-2 High-voltage-Related and 12-Volt-Related Component Locations and
Descriptions
=
DANGER
NOTE:
Components with white number in black background are high-voltage components. 5 74 6 2
31
AAYIA0427ZZ
RAG–11

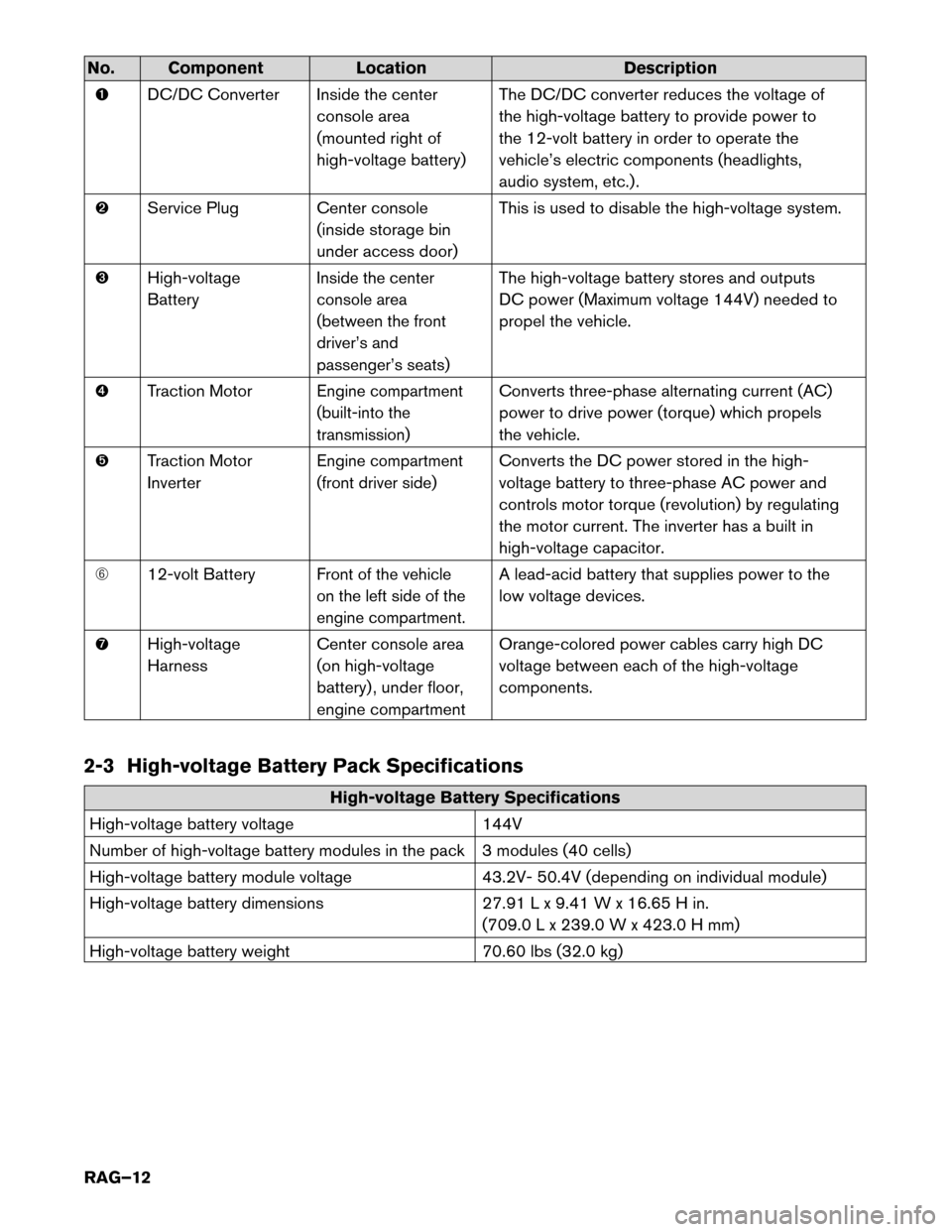

No. Component
LocationDescription
DC/DC
Converter Inside the centerconsole area
(mounted right of
high-voltage battery) The DC/DC converter reduces the voltage of
the high-voltage battery to provide power to
the 12-volt battery in order to operate the
vehicle’s electric components (headlights,
audio system, etc.) .
Service Plug Center console
(inside storage bin
under access door) This is used to disable the high-voltage system.
High-voltage
Battery
Inside the center
console area
(between the front
driver’s and
passenger’s seats)The high-voltage battery stores and outputs
DC power (Maximum voltage 144V) needed to
propel the vehicle.
Traction Motor
Engine compartment
(built-into the
transmission)Converts three-phase alternating current (AC)
power to drive power (torque) which propels
the vehicle.
Traction Motor
Inverter
Engine compartment
(front driver side)Converts the DC power stored in the high-
voltage battery to three-phase AC power and
controls motor torque (revolution) by regulating
the motor current. The inverter has a built in
high-voltage capacitor.
12-volt Battery
Front of the vehicle
on the left side of the
engine compartment.A lead-acid battery that supplies power to the
low voltage devices.
High-voltage
Harness Center console area
(on high-voltage
battery) , under floor,
engine compartment Orange-colored power cables carry high DC
voltage between each of the high-voltage
components.
2-3 High-voltage Battery Pack Specifications High-voltage Battery Specifications
High-voltage

battery voltage 144V
Number of high-voltage battery modules in the pack 3 modules (40 cells)
High-voltage battery module voltage 43.2V- 50.4V (depending on individual module)
High-voltage battery dimensions 27.91 L x 9.41 W x 16.65 H in.
(709.0 L x 239.0 W x 423.0 H mm)
High-voltage battery weight 70.60 lbs (32.0 kg)
RAG–12

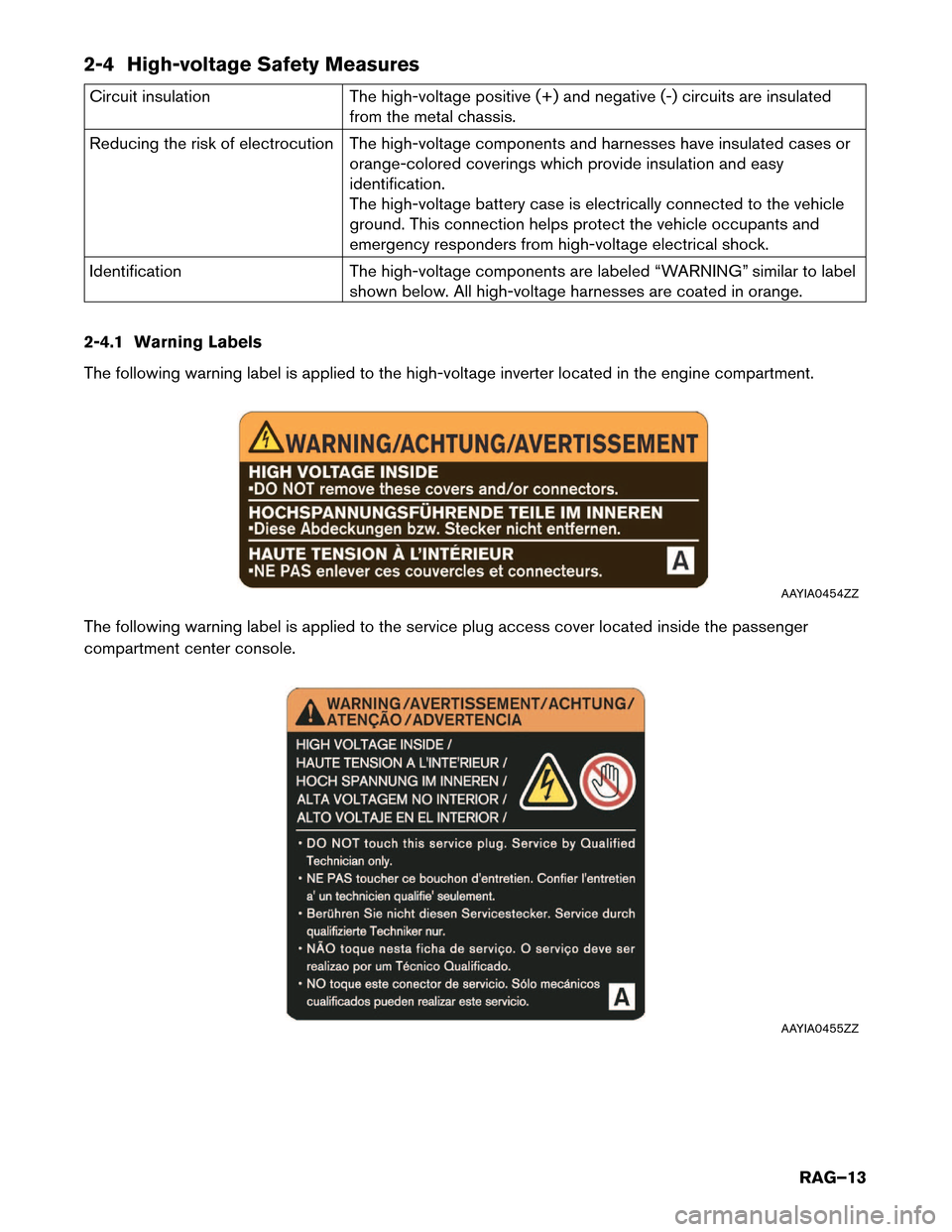

2-4 High-voltage Safety Measures
Circuit insulation
The high-voltage positive (+) and negative (-) circuits are insulated
from the metal chassis.
Reducing the risk of electrocution The high-voltage components and harnesses have insulated cases or orange-colored coverings which provide insulation and easy
identification.
The high-voltage battery case is electrically connected to the vehicle
ground. This connection helps protect the vehicle occupants and
emergency responders from high-voltage electrical shock.
Identification The high-voltage components are labeled “WARNING” similar to label
shown below. All high-voltage harnesses are coated in orange.
2-4.1 Warning Labels
The following warning label is applied to the high-voltage inverter located in the engine compartment.
The following warning label is applied to the service plug access cover located inside the passenger
compartment center console. AAYIA0454ZZ
AAYIA0455ZZ
RAG–13

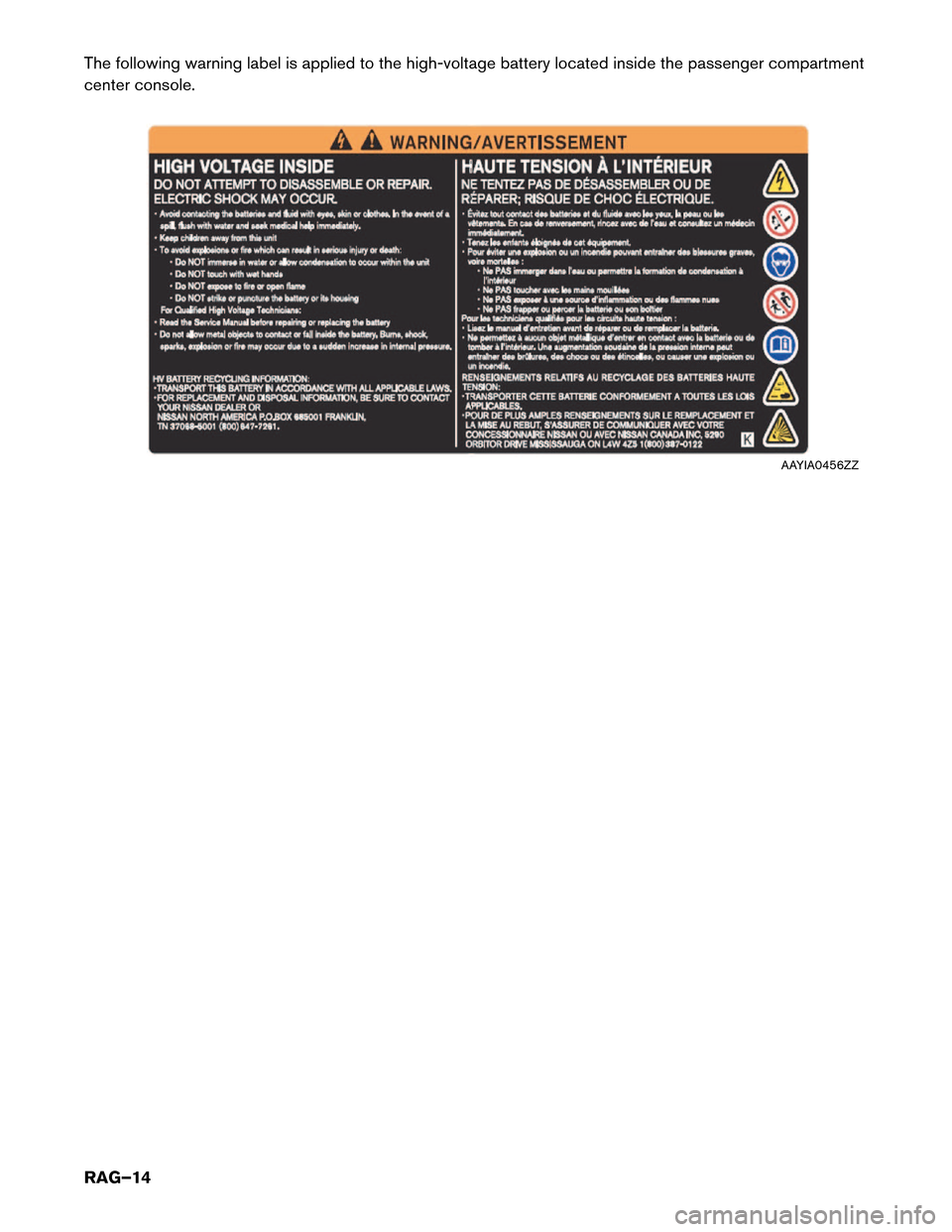

The following warning label is applied to the high-voltage battery located inside the passenger compartment
center
console. AAYIA0456ZZ
RAG–14

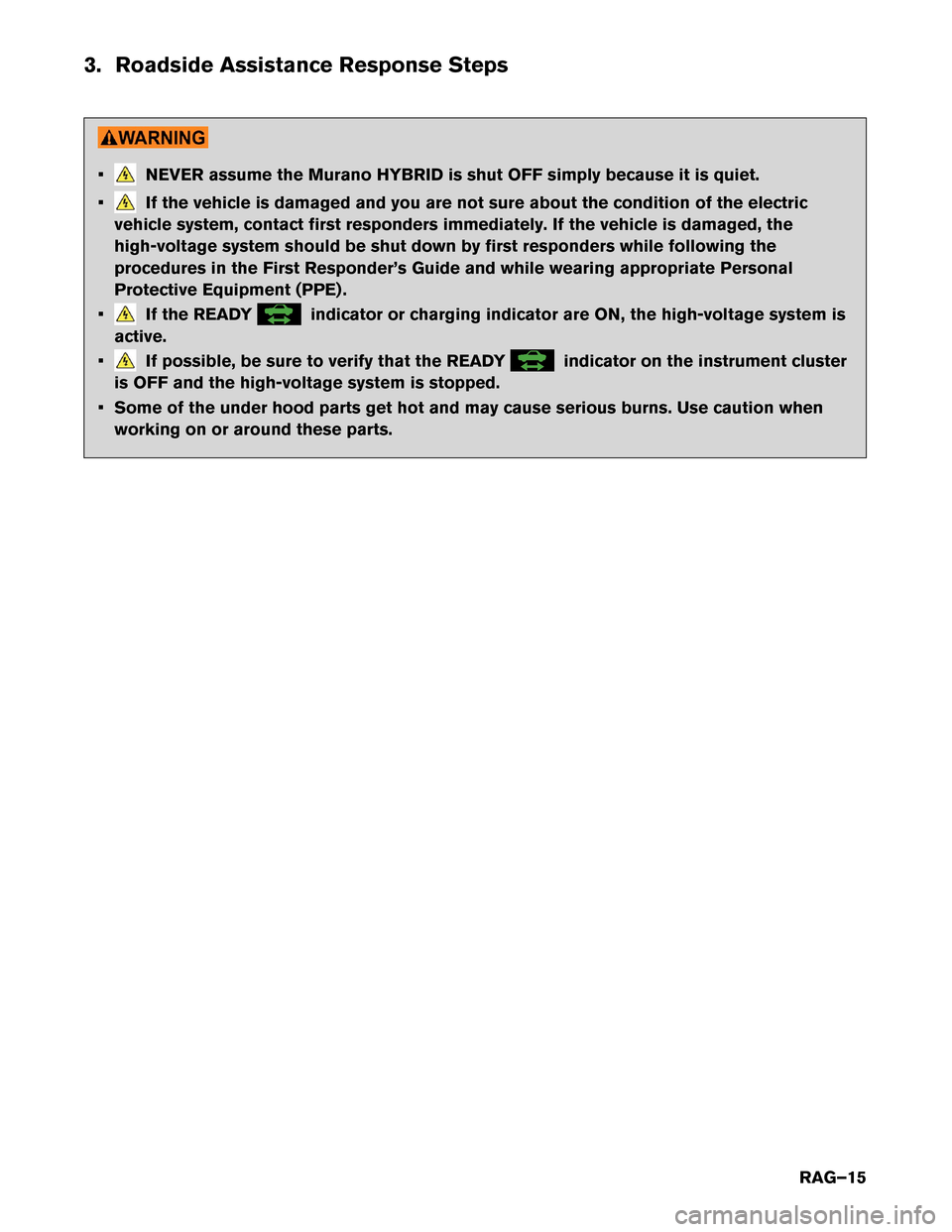

3. Roadside Assistance Response Steps
• NEVER assume the Murano HYBRID is shut OFF simply because it is quiet.
• If the vehicle is damaged and you are not sure about the condition of the electric
vehicle system, contact first responders immediately. If the vehicle is damaged, the
high-voltage system should be shut down by first responders while following the
procedures in the First Responder’s Guide and while wearing appropriate Personal
Protective Equipment (PPE) .
• If the READY indicator or charging indicator are ON, the high-voltage system is
active.
• If possible, be sure to verify that the READY indicator on the instrument cluster
is

OFF and the high-voltage system is stopped.
• Some of the under hood parts get hot and may cause serious burns. Use caution when working on or around these parts.
RAG–15

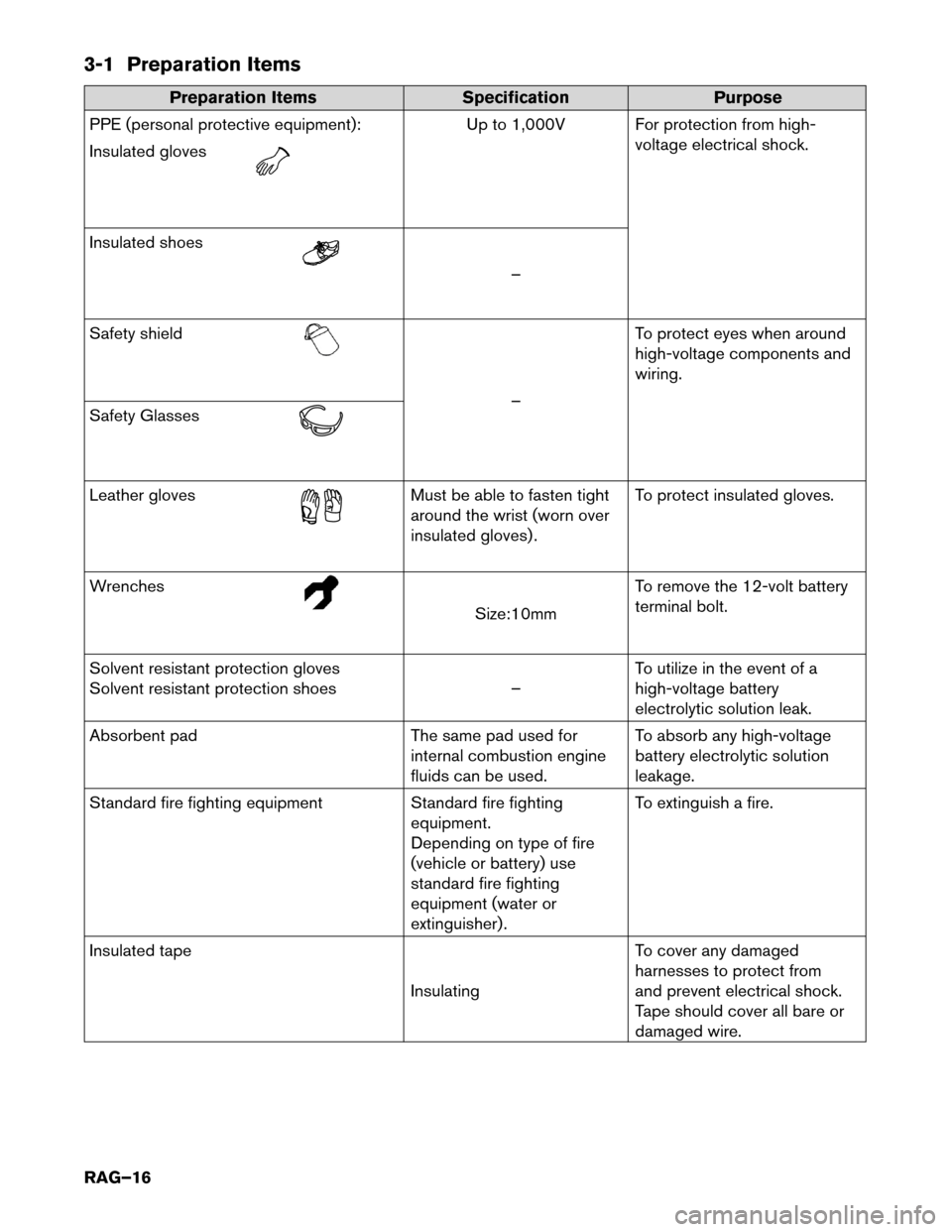

3-1 Preparation Items
Preparation Items
SpecificationPurpose
PPE
(personal protective equipment): Up to 1,000V For protection from high-
voltage electrical shock.
Insulated gloves Insulated shoes
–
Safety

shield –
T
o protect eyes when around
high-voltage components and
wiring.
Safety Glasses Leather gloves Must be able to fasten tight
around

the wrist (worn over
insulated gloves) . To protect insulated gloves.
Wrenches Size:10mm
T
o remove the 12-volt battery
terminal bolt.
Solvent resistant protection gloves
Solvent resistant protection shoes –To utilize in the event of a
high-voltage battery
electrolytic solution leak.
Absorbent pad The same pad used for
internal combustion engine
fluids can be used. To absorb any high-voltage
battery electrolytic solution
leakage.
Standard fire fighting equipment Standard fire fighting
equipment.
Depending on type of fire
(vehicle or battery) use
standard fire fighting
equipment (water or
extinguisher) . To extinguish a fire.
Insulated tape InsulatingTo cover any damaged
harnesses to protect from
and prevent electrical shock.
Tape should cover all bare or
damaged wire.
RAG–16
