2016 NISSAN LEAF Navigation Manual


> (GLW    0RGHO (1-1 (91$01&*. @
INFO:
Depending on the phone device, notification
display setting needs to be turned on on the
phone device.
Displaying received message listENJN1502-95452804-687D-42E4-A40B-91BFF2EC5D60
5GF0048X
1. Touch [Phone] on the Launch Bar.
2. Touch [Text Message].
3. Touch an item on the list to read or reply to the message.
INFO:
Up to 20 messages can be stored in the
message list.
Received message screenENJN1502-C9EDB768-A890-45FB-A50B-C65A60FEEDEE
5GF0047X
Touching [Read] on the new message notifica-
tion screen or selecting a message from the
message list will show the details of the received
message on the display.
Available actions: . [Prev.]:
Touch to read the previous message.
. [Next]:
Touch to read the next message.
. [Play]/[Stop]:
Touch [Play] to have the hands-free phone
system read out the received message.
Touch [Stop] to stop reading.
. [Call]:
If the sender of the message is registered in
the Phonebook, touch this icon to make a call
to the sender. .
[Reply]:
A reply message can be selected from the
template.
ªSending a text messageº (page 7-8)
. [Exit]:
Touch to exit the text messaging screen.
INFO:
. Available keys may vary depending on the
situations.
. If the sender's name and phone number is
registered in the Phonebook, the name of the
sender is displayed when a message is
received.
. The volume of the voice for text message
reading can be adjusted.
ªVolume and Beeps settingsº
(page 1-16)
&RQGLWLRQ
7-7
7. Hands-Free Phone


> (GLW    0RGHO (1-1 (91$01&*. @
Sending a text messageENJN1502-2F6880B3-BAEC-4B6F-91B4-5465323E6184
5GF0049X
1. Touch [Phone] on the Launch Bar.
2. Touch [Text Message].
3. Touch [Create Message].
The following items are available.
Available itemAction
[To] [Quick Dial]
Select a recipient from Quick Dial.
[Phonebook] Select a contact from the Phonebook.
[Call History] Select a contact/phone number from call history.
[Enter Number by Keypad] Enter the phone number of the recipient using the keypad. Touch [OK] to confirm the
address.
[Select Text] [Fixed Text] Touch to display a list of pre-defined text messages.
[Custom Text] Touch to display a list of custom text message templates.
Custom text can be created or edited from the setting menu.
ªPhone and text message assistant settingsº (page 7-9)
[Send] Touch to send the message.
&RQGLWLRQ
7-8
7. Hands-Free Phone


> (GLW    0RGHO (1-1 (91$01&*. @
PHONE AND TEXT MESSAGE ASSISTANT SETTINGSENJN1502-1513E8E2-AF29-4D62-968F-3689E6A05889
Phone settingsENJN1502-120906-113ACEB2-74B1-46EA-92C5-7C0462E956E7Hands-Free Phone System settings can be changed according to the user's preference.
1. Touch [Settings] on the Launch Bar.
2. Touch [Phone].
The following phone setting items are available.
Setting itemAction
[Quick Dial] [Edit] Entries in the Quick Dial can be edited. Touch [Add New] to register a new
entry.
[Delete All] Deletes all of the phone number in the Quick Dial.
[Call History] [Incoming] Items in the calls history can be deleted or be registered in the Quick Dial.
[Outgoing]
[Missed]
[Phonebook] [Download Entire Phonebook] All of the phone numbers that are stored in a phonebook of a cellular phone
that is connected to the vehicle are downloaded at once.
[Download 1 Entry] Each of the phone numbers that are stored in the phonebook of a cellular
phone that is connected to the vehicle is downloaded one by one.
[Downloaded List] The downloaded phonebook data is displayed. The items on the list can be
added to the Quick Dial entries or be deleted from the phonebook.
&RQGLWLRQ
7-9
7. Hands-Free Phone


> (GLW    0RGHO (1-1 (91$01&*. @

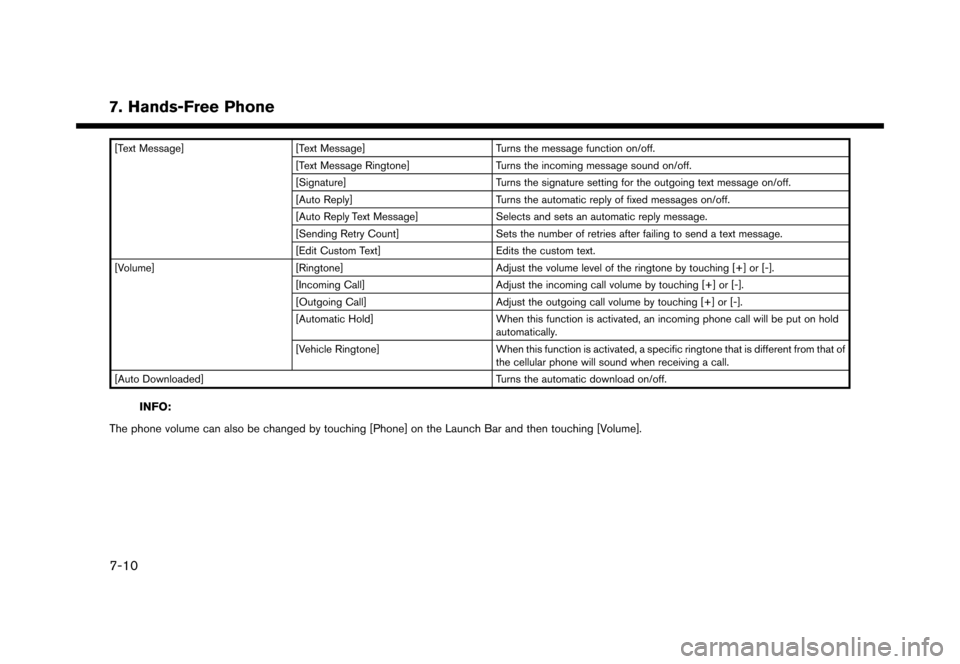

[Text Message][Text Message] Turns the message function on/off.
[Text Message Ringtone] Turns the incoming message sound on/off.
[Signature] Turns the signature setting for the outgoing text message on/off.
[Auto Reply] Turns the automatic reply of fixed messages on/off.
[Auto Reply Text Message] Selects and sets an automatic reply message.
[Sending Retry Count] Sets the number of retries after failing to send a text message.
[Edit Custom Text] Edits the custom text.
[Volume] [Ringtone] Adjust the volume level of the ringtone by touching [+] or [-].
[Incoming Call] Adjust the incoming call volume by touching [+] or [-].
[Outgoing Call] Adjust the outgoing call volume by touching [+] or [-].
[Automatic Hold] When this function is activated, an incoming phone call will be put on hold
automatically.
[Vehicle Ringtone] When this function is activated, a specific ringtone that is different from that of
the cellular phone will sound when receiving a call.
[Auto Downloaded] Turns the automatic download on/off.
INFO:
The phone volume can also be changed by touching [Phone] on the Launch Bar and then touching [Volume].
&RQGLWLRQ
7-10
7. Hands-Free Phone


> (GLW    0RGHO (1-1 (91$01&*. @
PhonebookENJN1502-120906-03CA7EF1-BE5A-4519-9A4C-1E8BBB8D9AD5
5GF0050X
Phonebook information in cellular phones can be
downloaded to be used for making calls and
sending text messages.
ªPhone settingsº (page 7-9)
Quick DialENJN1502-0FB27751-B822-433A-977A-435B2430D290
5GF0051X
Up to 5 Quick Dial entries can be registered.
Quick Dial entries can be used to make a call or
to send text messages.Registration:
1. Touch [Phone] on the Launch Bar.
2. Touch [Quick Dial].
3. Touch [Add New] to register a phone number
to the Quick Dial list.
4. Select a method for registration.
Available methods:
.[Copy from Call History]:A phone number can be selected from
[Incoming], [Outgoing], or [Missed] call
history lists.
.[Copy from Phonebook]:A phone number can be selected from the
Phonebook.
.[Enter Number by Keypad]:A phone number can be entered manually
using keypad.
INFO:
Available methods may vary depending on
conditions.
5. The registration screen is displayed. Enter and edit the entry information as necessary.
6. Touch [OK] to save the entry.
INFO:
Quick Dial entries can also be registered by
touching [Settings] on the Launch Bar and
then selecting [Phone].
ªPhone settingsº (page 7-9)
Voice Tag:
A custom voice tag can be recorded for each of
the items registered in the Quick Dial and be
used to dial the number by speaking it.
5GF0052X
On the Quick Dial registration screen, select
[VoiceTag].
Available
Items Action
[Play] Play the recorded voice tag.
[Store] Touch to record a voice tag for the phone number.
[Restore] Touch to rerecord the voice tag.
[Delete] Touch to delete the voice tag.
&RQGLWLRQ
7-11
7. Hands-Free Phone


> (GLW    0RGHO (1-1 (91$01&*. @
BLUETOOTH


> (GLW    0RGHO (1-1 (91$01&*. @

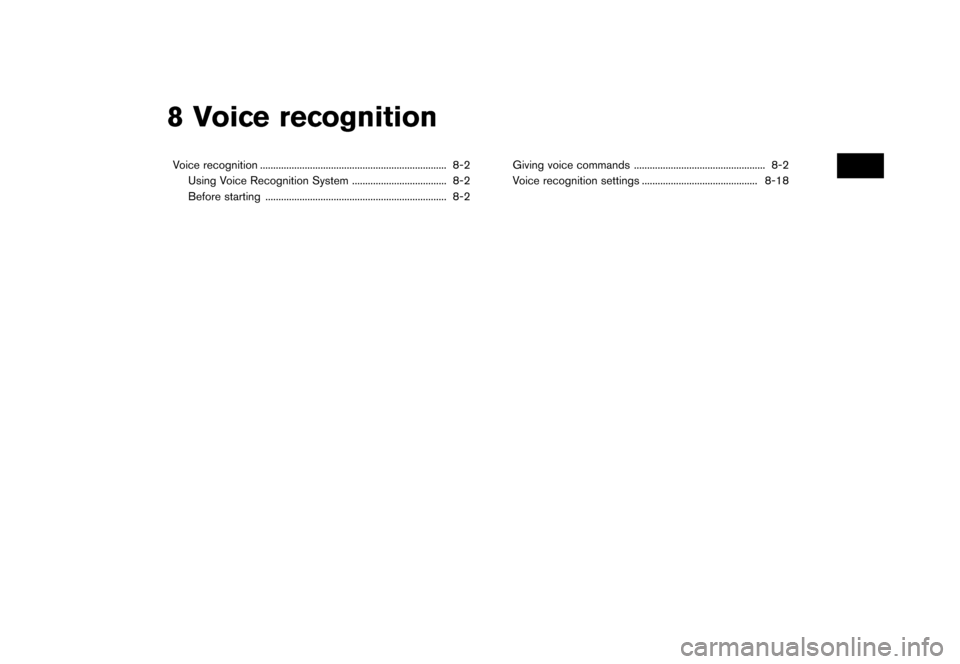

8 Voice recognition
Voice recognition...
....................................................................... 8-2
Using Voice Recognition System ...
.................................... 8-2
Before starting ...
..................................................................... 8-2 Giving voice commands
...
.................................................. 8-2
Voice recognition settings ...
............................................ 8-18
&RQGLWLRQ


> (GLW    0RGHO (1-1 (91$01&*. @
VOICE RECOGNITIONENJN1502-120906-FAF38580-C669-4F26-B8D0-7EC58692FC6D
USING VOICE RECOGNITION SYS-
TEM
ENJN1502-120906-1C8F749E-4AF3-47FE-9FE0-7B0B8B8AF458
InitializationENJN1502-120906-60C8EC21-9C96-4FBC-A946-5937BAB414ECWhen the power switch is pushed to the ON
position, Voice Recognition is initialized. When
the initialization is complete, the system is ready
to accept voice commands. If<
>on the
steering wheel is pushed before the initialization
completes, the display will show a message to
wait until the system is ready.
BEFORE STARTINGENJN1502-120906-17B90F0D-2C92-4147-8CBB-60019E6215D6To get the best recognition performance from
Voice Recognition, observe the following items.
. The interior of the vehicle should be as quiet
as possible. Close the windows to eliminate
the surrounding noises (traffic noise, vibra-
tion sounds, etc.) , which may prevent the
system from correctly recognizing the voice
commands.
. Wait until the tone sounds before speaking a
command.
. Speak in a natural conversational voice
without pausing between words. .
The system cannot recognize voice com-
mands spoken from passenger seats.
GIVING VOICE COMMANDSENJN1502-120906-B79272C7-32FE-481D-B7B3-A50FF427C81A1. Push <>located on the steering wheel.
5GE0031X
2. A list of commands appears on the screen,
and the system provides the voice menu
prompt.
Available category commands are displayed
on the left side of the screen. Speak or touch
a category command from the category
command list.
INFO:
.Some of the commands for each categoryare shown on the right side of the screen
and they can also be spoken without
selecting a category.
.After executing the category command,only the commands related to the se-
lected category can be recognized.
ªCommand listº (page 8-6)
3. After the tone sounds and the icon on the screen changes from
to, speak a
command. You can also select a command
by directly touching the screen or by tilting
<
>/<> up or down and pushing
on the steering wheel.
INFO:
The Voice Recognition system will pause its
operation when no command is given after
three prompts. To resume the operation,
push <
>on the steering wheel.
4. Continue to follow the voice menu prompts and speak the voice commands after the
tone sounds until the preferred operation is
executed.
INFO:
To cancel a voice command, push and hold
<
> on the steering wheel.
&RQGLWLRQ
8-2
8. Voice recognition
