2016 NISSAN GT-R Display


> (GLW    0RGHO 5' @
1. Headlight and turn signal switch (P.2-50)
2. Paddle shifters (P.5-15)
3. Steering-wheel-mounted controls (left side)*
4. Meters and gauges (P.2-5)
5. Steering-wheel-mounted controls (right side)Ð MRK (Mark) switch*
Ð Cruise control (P.5-34) 6. Wiper and washer switch (P.2-48)
7.
VDC, transmission and suspension set up
switches (P.5-25)
8. Trunk lid release switch (P.3-19)
9. Hood release handle (P.3-17)
10. Intelligent Key port (P.5-12) 11. Horn (P.2-54)
12. Tilting/telescopic steering wheel lever (P.3-25)
13. Push-button ignition switch (P.5-10)
14. Parking brake (P.5-33, P.5-46)
15. Shift lever (P.5-15)
*: Refer to the separate Multi Function Display
Owner's Manual.
Illustrated table of contents0-7
COCKPIT


> (GLW    0RGHO 5' @

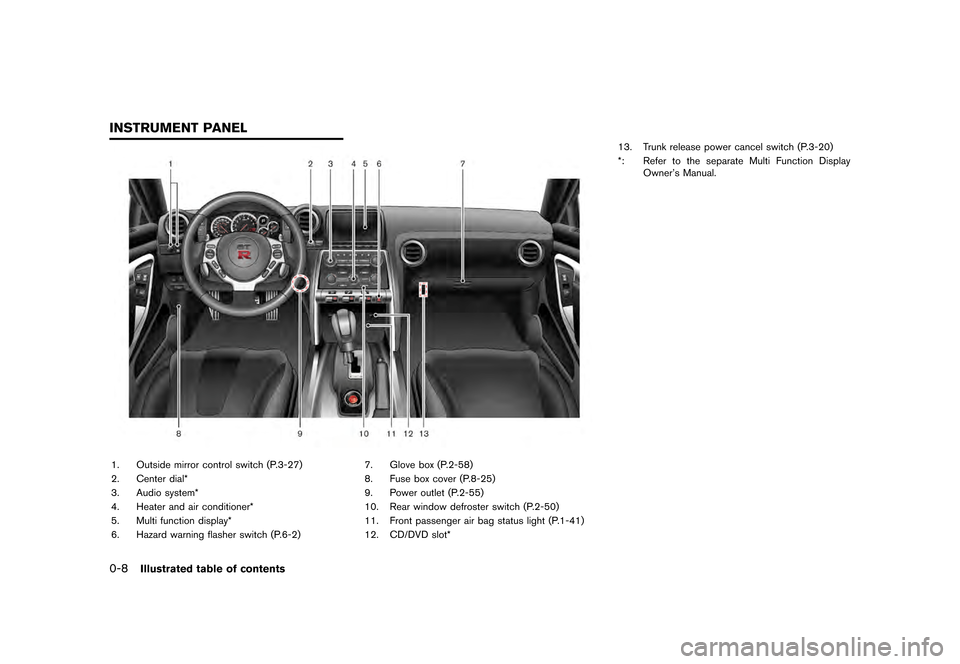

0-8Illustrated table of contents
1. Outside mirror control switch (P.3-27)
2. Center dial*
3. Audio system*
4. Heater and air conditioner*
5. Multi function display*
6. Hazard warning flasher switch (P.6-2)7. Glove box (P.2-58)
8. Fuse box cover (P.8-25)
9. Power outlet (P.2-55)
10. Rear window defroster switch (P.2-50)
11. Front passenger air bag status light (P.1-41)
12. CD/DVD slot*13. Trunk release power cancel switch (P.3-20)
*: Refer to the separate Multi Function Display
Owner's Manual.
INSTRUMENT PANEL


> (GLW    0RGHO 5' @
1. Trip A/B reset switch (P.2-6)
2. Speedometer (P.2-6)
3. Tachometer (P.2-7)/Upshift indicator (P.2-9)
4. Transmission position indicator (P.2-9)
5. Engine coolant temperature gauge (P.2-7)
6. ENTER switch (P.2-15)7. Instrument brightness control switch (P.2-11)
8. Vehicle information display (P.2-12)
9. Odometer/twin trip odometer (P.2-6)
10. Fuel gauge (P.2-8)
11. NEXT switch (P.2-15)
NOTE:
.
Meters and gauges will illuminate
when the ignition switch is pushed to
the ON position.
. The needle indicators may move
slightly after the ignition switch is
pushed to the OFF position. This does
not indicate that there is a malfunction.
Illustrated table of contents0-9
METERS AND GAUGES


> (GLW    0RGHO 5' @

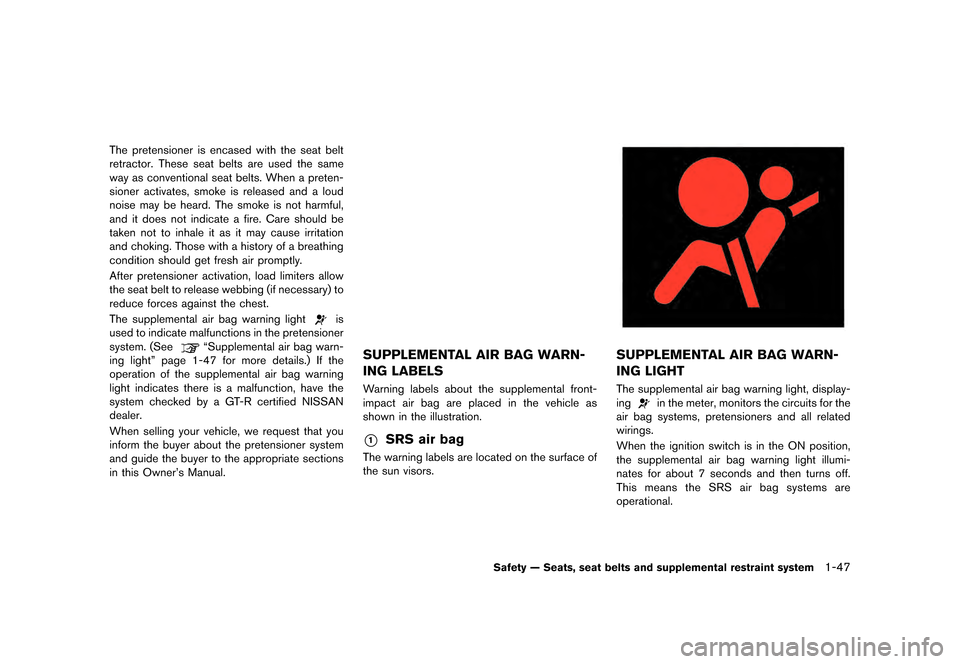

The pretensioner is encased with the seat belt
retractor. These seat belts are used the same
way as conventional seat belts. When a preten-
sioner activates, smoke is released and a loud
noise may be heard. The smoke is not harmful,
and it does not indicate a fire. Care should be
taken not to inhale it as it may cause irritation
and choking. Those with a history of a breathing
condition should get fresh air promptly.
After pretensioner activation, load limiters allow
the seat belt to release webbing (if necessary) to
reduce forces against the chest.
The supplemental air bag warning light
is
used to indicate malfunctions in the pretensioner
system. (See
ªSupplemental air bag warn-
ing lightº page 1-47 for more details.) If the
operation of the supplemental air bag warning
light indicates there is a malfunction, have the
system checked by a GT-R certified NISSAN
dealer.
When selling your vehicle, we request that you
inform the buyer about the pretensioner system
and guide the buyer to the appropriate sections
in this Owner's Manual.SUPPLEMENTAL AIR BAG WARN-
ING LABELS
Warning labels about the supplemental front-
impact air bag are placed in the vehicle as
shown in the illustration.
*1SRS air bag
The warning labels are located on the surface of
the sun visors.
SUPPLEMENTAL AIR BAG WARN-
ING LIGHT
The supplemental air bag warning light, display-
ing
in the meter, monitors the circuits for the
air bag systems, pretensioners and all related
wirings.
When the ignition switch is in the ON position,
the supplemental air bag warning light illumi-
nates for about 7 seconds and then turns off.
This means the SRS air bag systems are
operational.
Safety Ð Seats, seat belts and supplemental restraint system1-47


> (GLW    0RGHO 5' @
2 Instruments and controls
Cockpit........................................................................\
............... 2-3
Instrument panel ....................................................................... 2-4
Meters and gauges .................................................................. 2-5
Speedometer ....................................................................... 2-6
Odometer/twin trip odometer ......................................... 2-6
Tachometer ........................................................................\
.. 2-7
Engine coolant temperature gauge ............................... 2-7
Fuel gauge ........................................................................\
... 2-8
Transmission position indicator ...................................... 2-9
Upshift indicator ................................................................. 2-9
Instrument brightness control ...................................... 2-11
Vehicle information display ................................................. 2-12 Engine oil level display ................................................... 2-12
Transmission system check display ............................ 2-14
Drive computer ...................................................................... 2-15 Current fuel consumption ............................................. 2-15
Vehicle speed ................................................................... 2-16
Cruise control ................................................................... 2-16
Average fuel consumption and speed ....................... 2-16
Elapsed time and trip odometer .................................. 2-17
Distance to empty ........................................................... 2-17
Outside air temperature ................................................ 2-18
Setting (drive computer) ............................................... 2-19
Warning (drive computer) ............................................. 2-23 Warning lights, indicator lights and
audible reminders ................................................................. 2-25
Checking bulbs ............................................................. 2-25
Warning lights ................................................................ 2-25
Indicator lights ............................................................... 2-31
Audible reminders ......................................................... 2-32
Warning display .................................................................... 2-33 Engine oil low pressure warning ............................... 2-34
Engine system warning ............................................... 2-34
Shift lever position warning ........................................ 2-35
Reverse warning ............................................................ 2-35
Transmission system warning .................................... 2-35
Transmission oil high temperature warning ............ 2-36
Transmission clutch high temperature warning ..... 2-36
Parking brake release warning .................................. 2-36
Low brake fluid warning .............................................. 2-37
Anti-lock Braking System (ABS) warning .............. 2-37
Vehicle Dynamic Control (VDC)
system warning .............................................................. 2-37
AWD clutch high temperature warning ................... 2-38
Front/rear tire size discrepancy warning ................. 2-38
AWD system warning .................................................. 2-39
Low tire pressure warning .......................................... 2-39
Run-flat tire warning ..................................................... 2-39


> (GLW    0RGHO 5' @
Tire Pressure Monitoring System
(TPMS) warning............................................................... 2-40
Cruise control system warning .................................... 2-40
Low fuel warning ............................................................. 2-40
Door/trunk open warning .............................................. 2-41
Headlight system warning ............................................. 2-41
Low washer fluid warning ............................................. 2-42
No key warning ................................................................ 2-42
Operation displays ................................................................ 2-43 Engine start operation indicator .................................. 2-43
Shift ªPº warning ............................................................. 2-43
ªPUSHº warning .............................................................. 2-44
Steering lock release malfunction indicator ............. 2-44
Intelligent Key insertion indicator ................................ 2-44
Intelligent Key removal indicator .................................. 2-45
Intelligent Key battery discharge indicator ................ 2-45
Security systems ................................................................... 2-45 Vehicle security system ................................................. 2-45
NISSAN Vehicle Immobilizer System ......................... 2-47
Wiper and washer switch ................................................... 2-48 Using the wipers ............................................................. 2-49
Using the washer ............................................................ 2-49
Rear window defroster switch ........................................... 2-50
Headlight and turn signal switch ...................................... 2-50
Headlight switch .............................................................. 2-50
Turn signal switch ........................................................... 2-53 Horn ........................................................................\
................. 2-54
Heated seats ........................................................................\
. 2-54
Turning on the heaters ................................................. 2-54
Turning off the heaters ................................................. 2-54
Power outlets ........................................................................\
2-55
Storage ........................................................................\
........... 2-56 Cup holders .................................................................... 2-56
Sunglasses holder ........................................................ 2-57
Door pocket .................................................................... 2-58
Glove box ........................................................................\
2-58
Console box ................................................................... 2-59
Coat hooks ..................................................................... 2-59
Windows ........................................................................\
........ 2-60 Power windows ............................................................. 2-60
Interior lights ........................................................................\
.. 2-62 Map lights ....................................................................... 2-62
Interior light control switch ......................................... 2-63
Vanity mirror lights ................................................................ 2-64
HomeLink


> (GLW    0RGHO 5' @
1. Headlight and turn signal switch (P.2-50)
2. Paddle shifters (P.5-15)
3. Steering-wheel-mounted controls (left side)*
4. Meters and gauges (P.2-5)
5. Steering-wheel-mounted controls (right side)Ð MRK (Mark) switch*
Ð Cruise control (P.5-34) 6. Wiper and washer switch (P.2-48)
7.
VDC, transmission and suspension set up
switches (P.5-25)
8. Trunk lid release switch (P.3-19)
9. Hood release handle (P.3-17)
10. Intelligent Key port (P.5-12) 11. Horn (P.2-54)
12. Tilting/telescopic steering wheel lever (P.3-25)
13. Push-button ignition switch (P.5-10)
14. Parking brake (P.5-33, P.5-46)
15. Shift lever (P.5-15)
*: Refer to the separate Multi Function Display
Owner's Manual.
Instruments and controls2-3
COCKPIT


> (GLW    0RGHO 5' @
2-4Instruments and controls
1. Outside mirror control switch (P.3-27)
2. Center dial*
3. Audio system*
4. Heater and air conditioner*
5. Multi function display*
6. Hazard warning flasher switch (P.6-2)7. Glove box (P.2-58)
8. Fuse box cover (P.8-25)
9. Power outlet (P.2-55)
10. Rear window defroster switch (P.2-50)
11. Front passenger air bag status light (P.1-41)
12. CD/DVD slot*13. Trunk release power cancel switch (P.3-20)
*: Refer to the separate Multi Function Display
Owner's Manual.
INSTRUMENT PANEL
