2016 NISSAN GT-R seats


GT-R OverviewGTR
Illustrated table of contents0
Safety Ð Seats, seat belts and supplemental restraint system
Instruments and controls
Pre-driving checks and adjustments
Display screen, heater, air conditioner and audio systems
Starting and driving
In case of emergency
Appearance and care
Maintenance and do-it-yourself
Technical and consumer information
1
2
3
4
5
6
7
8
9
Table of
Contents
Index10
> (GLW    0RGHO 5' @&RQGLWLRQ


> (GLW    0RGHO 5' @
0 Illustrated table of contents
Seats, seat belts and Supplemental Restraint
System (SRS)........................................................................\
... 0-2
Front ........................................................................\
.............. 0-2
Rear ........................................................................\
............... 0-3
Exterior front ........................................................................\
...... 0-4
Exterior rear ........................................................................\
....... 0-5 Passenger compartment ........................................................ 0-6
Cockpit ........................................................................\
............... 0-7
Instrument panel ...................................................................... 0-8
Meters and gauges ................................................................. 0-9
Engine compartment ........................................................... 0-10
Warning and indicator lights ............................................. 0-11


> (GLW    0RGHO 5' @
0-2Illustrated table of contents
FRONT
1. Seat belt (Page 1-6)
2. Rear seat walk-in lever (P.1-5)
3. Roof-mounted curtain side-impact supplementalair bag system (P.1-34)
4. Supplemental front-impact air bags (P.1-34)
5. Seat belt pretensioner (P.1-46)
6. Front seat-mounted side-impact supplemental air bag system (P.1-34)
7. Occupant classification sensor (pattern sensor) (P.1-40)
8. Front seats (P.1-3)
SEATS, SEAT BELTS AND
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)


> (GLW    0RGHO 5' @

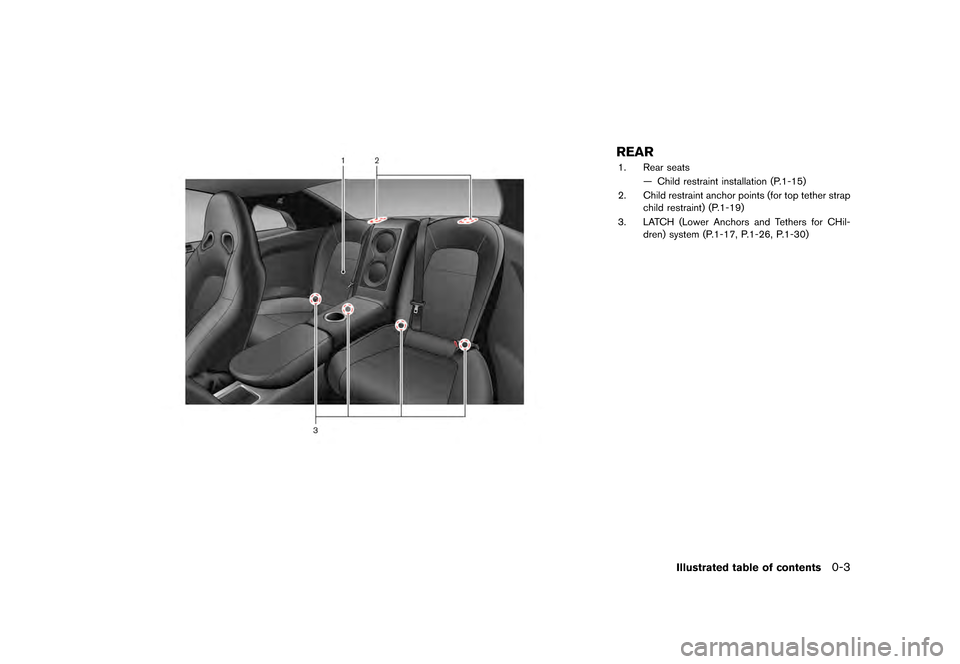

REAR
1. Rear seatsÐ Child restraint installation (P.1-15)
2. Child restraint anchor points (for top tether strap child restraint) (P.1-19)
3. LATCH (Lower Anchors and Tethers for CHil- dren) system (P.1-17, P.1-26, P.1-30)
Illustrated table of contents0-3


> (GLW    0RGHO 5' @
1 Safety Ð Seats, seat belts and supple-mental restraint system
Seats ........................................................................\
................... 1-2
Front seats ........................................................................\
... 1-3
Head restraints/headrests ...................................................... 1-5
Seat belts ........................................................................\
........... 1-6 Precautions on seat belt usage ...................................... 1-6
Pregnant women ................................................................ 1-9
Injured persons ................................................................... 1-9
Three-point type seat belt with retractor ..................... 1-9
Seat belt extenders ......................................................... 1-12
Seat belt maintenance ................................................... 1-13
Child safety ........................................................................\
..... 1-13 Infants ........................................................................\
......... 1-14
Small children ................................................................... 1-14
Larger children ................................................................. 1-14
Child restraints ....................................................................... 1-15 Precautions on child restraints .................................... 1-15
Lower Anchors and Tethers for CHildren
System (LATCH) ............................................................. 1-17 Rear-facing child restraint installation
using LATCH .................................................................. 1-19
Rear-facing child restraint installation using the
seat belts ........................................................................\
. 1-21
Forward-facing child restraint installation
using LATCH .................................................................. 1-24
Forward-facing child restraint installation using the
seat belts ........................................................................\
. 1-26
Booster seats ................................................................. 1-30
Supplemental restraint system .......................................... 1-34
Precautions on supplemental restraint system ...... 1-34
NISSAN Advanced Air Bag System
(front seats) .................................................................... 1-40
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems ................................... 1-45
Seat belts with pretensioners (front seats) ............ 1-46
Supplemental air bag warning labels ...................... 1-47
Supplemental air bag warning light ......................... 1-47
Repair and replacement procedure ......................... 1-48


> (GLW    0RGHO 5' @
1-2Safety Ð Seats, seat belts and supplemental restraint system
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back in the seat with both feet
on the floor and adjust the seat
properly. (ªPrecautions on seat
belt usageº page 1-6)
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents. .
The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits with their back
straight up and contacting the seat.
If the seatback is reclined, the risk
of sliding under the lap belt and
being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries or damage.
NOTICE
Make sure the front seatback does not
contact the rear seat when reclining the
seat. When the front seat is reclined to
the rearmost position, it may contact
the rear seat. This may cause an
indentation in the seatback.
SEATS


> (GLW    0RGHO 5' @
FRONT SEATS
Front power seat adjustment
Operating tips
.The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
. Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
Safety Ð Seats, seat belts and supplemental restraint system1-3


> (GLW    0RGHO 5' @
1-4Safety Ð Seats, seat belts and supplemental restraint system
Seat AdjustmentSwitch OperationLocation
Forward and backward
*AMove the switch*Aforward or backward until the desired seat position is obtained.
Driver's and front
passenger's seats
Reclining
*ATurn the switch*Aforward and backward until the desired seatback angle is
obtained.
The reclining feature allows adjustment of the seatback for occupants of different sizes
for added comfort and to help obtain proper seat belt fit. (
ªPrecautions on seat
belt usageº page 1-6)
Also, the seatback can be reclined to allow occupants to rest when the vehicle is
stopped and the transmission is in the
&Pposition with the parking brake fully applied.
Seat lifter (front)
*BPush the switch up or down*Bto raise or lower the front portion of the seat.
Driver's seat
Seat lifter (rear)
*AMove the switch*Aup or down to raise or lower the rear portion of the seat.
