1. Trip A/B reset switch (P.2-6)
2. Speedometer (P.2-6)
3. Tachometer (P.2-7)/Upshift indicator (P.2-9)
4. Transmission position indicator (P.2-9)
5. Engine coolant temperature gauge (P.2-7)
6. ENTER switch (P.2-15)7. Instrument brightness control switch (P.2-11)
8. Vehicle information display (P.2-12)
9. Odometer/twin trip odometer (P.2-6)
10. Fuel gauge (P.2-8)
11. NEXT switch (P.2-15)
NOTE:
.
Meters and gauges will illuminate
when the ignition switch is pushed to
the ON position.
. The needle indicators may move
slightly after the ignition switch is
pushed to the OFF position. This does
not indicate that there is a malfunction.
Instruments and controls2-5
METERS AND GAUGES


> (GLW    0RGHO 5' @
2-6Instruments and controls
SPEEDOMETER
The speedometer indicates the vehicle speed.
CAUTION
.For cleaning, use a soft cloth, dam-
pened with water. Never use a rough
cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel
with a chemical cleaning agent.
They will scratch or cause discolora-
tion to the lens.
. Do not spray any liquid such as
water on the meter lens. Spraying liquid may cause the system to
malfunction.
ODOMETER/TWIN TRIP OD-
OMETER
The odometer*1indicates the total distance
that the vehicle has been driven.
The twin trip odometer
*2indicates the
distance of individual trips.
Changing the display
Push the TRIP A/B RESET switch to change
between trips
&Aand&B.
Resetting the trip odometer
To reset a trip, display the trip that you want to
reset to zero, then push and hold the TRIP A/B


> (GLW    0RGHO 5' @
2-8Instruments and controls
NOTICE
If the gauge indicates engine coolant
temperature near the hot (H) end of the
normal range, reduce vehicle speed to
decrease temperature. If gauge is over
the normal range, stop the vehicle as
soon as safely possible. If the engine is
overheated, continued operation of the
vehicle may seriously damage the en-
gine. (
ªIf your vehicle overheatsº
page 6-8)
FUEL GAUGE
The gauge indicates the approximatefuel level
in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
The gauge needle returns to E (Empty) after the
ignition switch is pushed to the LOCK position.
Refill the fuel tank before the gauge
registers ªEº (Empty) .
The low fuel warning will be indicated on the
vehicle information display when the fuel tank is
getting low. Refuel as soon as it is convenient,
preferably before the gauge reaches ªEº. There
will be a small reserve of fuel in the tank when the fuel gauge needle reaches ªEº. (
ªLow
fuel warningº page 2-40)
The
indicates that the fuel-filler door is
located on the passenger's side of the vehicle.
(
ªFuel-filler doorº page 3-23)
NOTE:
If the vehicle runs out of fuel, the
Malfunction Indicator Light (MIL) may
come on. Refuel as soon as possible. After
a few driving trips, the
light should
turn off. If the light remains on after a few
driving trips, have the vehicle inspected by
a GT-R certified NISSAN dealer.
(
ªMalfunction Indicator Light (MIL)º
page 2-31)


> (GLW    0RGHO 5' @

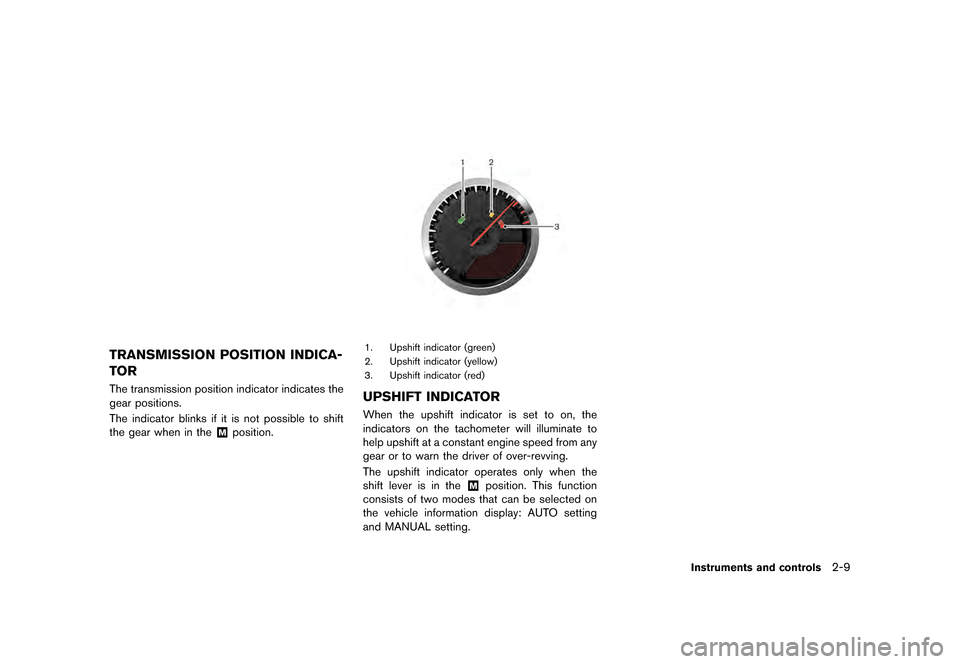

TRANSMISSION POSITION INDICA-
TOR
The transmission position indicator indicates the
gear positions.
The indicator blinks if it is not possible to shift
the gear when in the
&Mposition.
1. Upshift indicator (green)
2. Upshift indicator (yellow)
3. Upshift indicator (red)
UPSHIFT INDICATOR
When the upshift indicator is set to on, the
indicators on the tachometer will illuminate to
help upshift at a constant engine speed from any
gear or to warn the driver of over-revving.
The upshift indicator operates only when the
shift lever is in the
&Mposition. This function
consists of two modes that can be selected on
the vehicle information display: AUTO setting
and MANUAL setting.
Instruments and controls2-9


> (GLW    0RGHO 5' @
2-10Instruments and controls

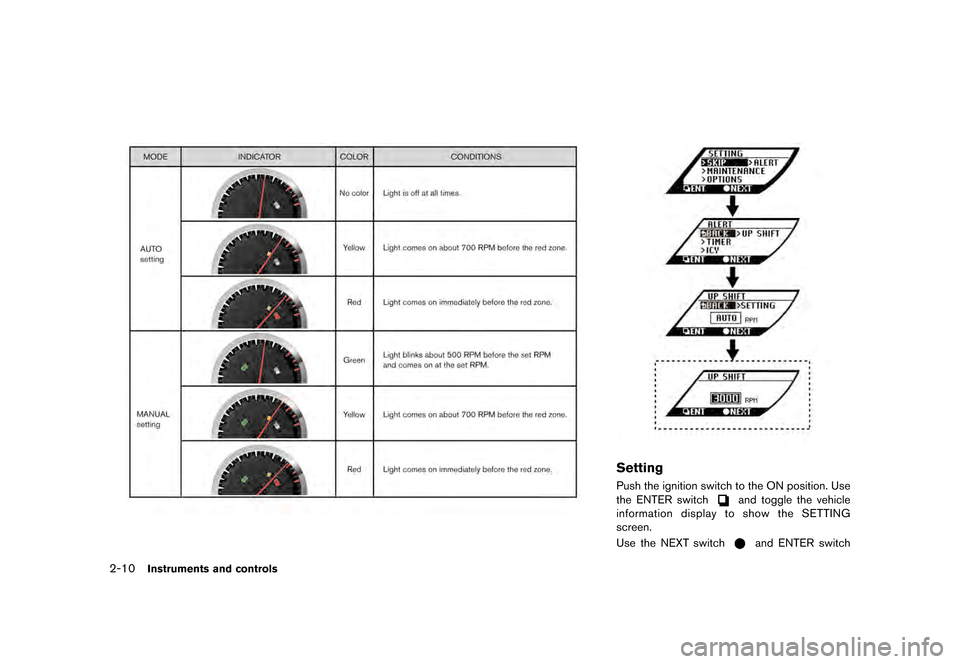

Setting
Push the ignition switch to the ON position. Use
the ENTER switch
and toggle the vehicle
information display to show the SETTING
screen.
Use the NEXT switch
and ENTER switch


> (GLW    0RGHO 5' @

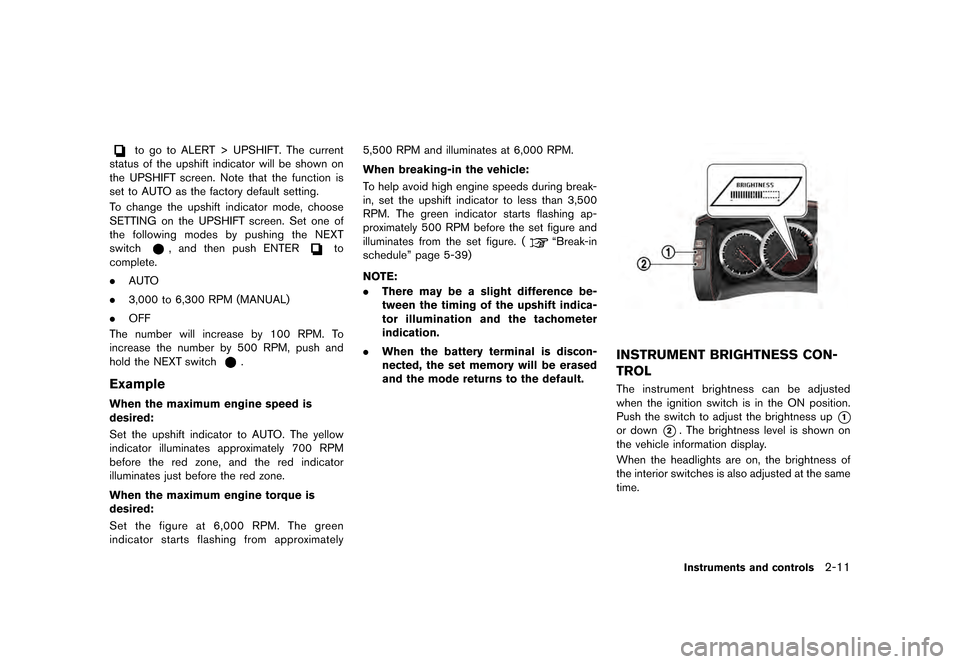

to go to ALERT > UPSHIFT. The current
status of the upshift indicator will be shown on
the UPSHIFT screen. Note that the function is
set to AUTO as the factory default setting.
To change the upshift indicator mode, choose
SETTING on the UPSHIFT screen. Set one of
the following modes by pushing the NEXT
switch
, and then push ENTERto
complete.
. AUTO
. 3,000 to 6,300 RPM (MANUAL)
. OFF
The number will increase by 100 RPM. To
increase the number by 500 RPM, push and
hold the NEXT switch
.
Example
When the maximum engine speed is
desired:
Set the upshift indicator to AUTO. The yellow
indicator illuminates approximately 700 RPM
before the red zone, and the red indicator
illuminates just before the red zone.
When the maximum engine torque is
desired:
Set the figure at 6,000 RPM. The green
indicator starts flashing from approximately 5,500 RPM and illuminates at 6,000 RPM.
When breaking-in the vehicle:
To help avoid high engine speeds during break-
in, set the upshift indicator to less than 3,500
RPM. The green indicator starts flashing ap-
proximately 500 RPM before the set figure and
illuminates from the set figure. (
ªBreak-in
scheduleº page 5-39)
NOTE:
. There may be a slight difference be-
tween the timing of the upshift indica-
tor illumination and the tachometer
indication.
. When the battery terminal is discon-
nected, the set memory will be erased
and the mode returns to the default.
INSTRUMENT BRIGHTNESS CON-
TROL
The instrument brightness can be adjusted
when the ignition switch is in the ON position.
Push the switch to adjust the brightness up
*1
or down*2. The brightness level is shown on
the vehicle information display.
When the headlights are on, the brightness of
the interior switches is also adjusted at the same
time.
Instruments and controls2-11


> (GLW    0RGHO 5' @
2-12Instruments and controls

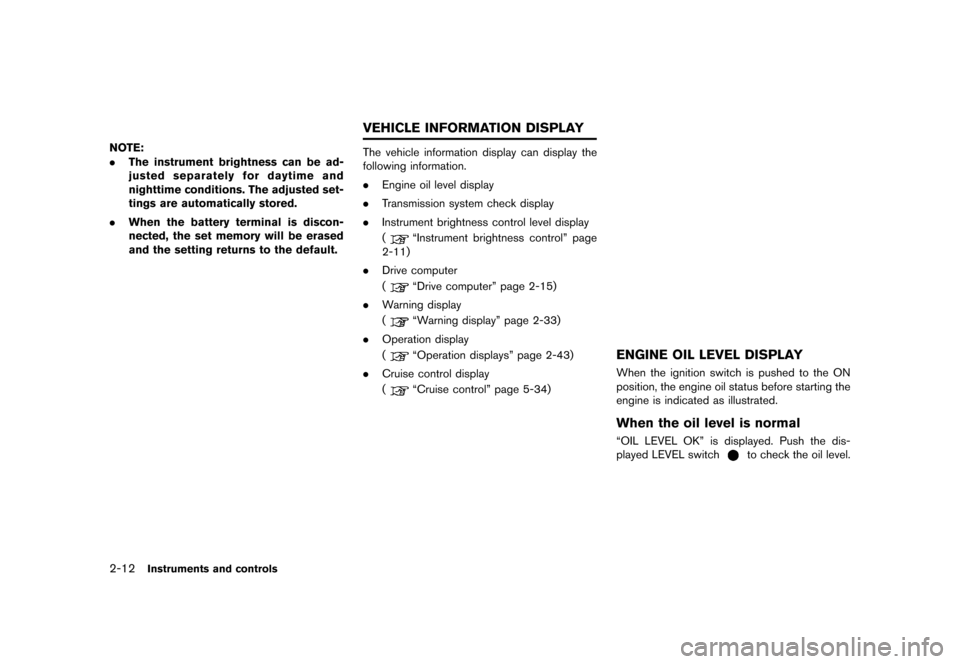

NOTE:
.The instrument brightness can be ad-
justed separately for daytime and
nighttime conditions. The adjusted set-
tings are automatically stored.
. When the battery terminal is discon-
nected, the set memory will be erased
and the setting returns to the default.The vehicle information display can display the
following information.
.Engine oil level display
. Transmission system check display
. Instrument brightness control level display
(
ªInstrument brightness controlº page
2-11)
. Drive computer
(
ªDrive computerº page 2-15)
. Warning display
(
ªWarning displayº page 2-33)
. Operation display
(
ªOperation displaysº page 2-43)
. Cruise control display
(
ªCruise controlº page 5-34)
ENGINE OIL LEVEL DISPLAY
When the ignition switch is pushed to the ON
position, the engine oil status before starting the
engine is indicated as illustrated.
When the oil level is normal
ªOIL LEVEL OKº is displayed. Push the dis-
played LEVEL switch
to check the oil level.
VEHICLE INFORMATION DISPLAY


> (GLW    0RGHO 5' @
NOTE:
The engine oil level can be displayed after
the ªOIL LEVEL OKº display turns off or
while the engine is started and running.
(
ªMaintenanceº page 2-20)
When the oil level is low
If the message shown above is displayed, the
engine oil level is low.
Warm up the engine in a level location. After at
least 5 minutes have passed since engine stop,
use the engine oil dipstick to check the oil level.
(
ªEngine oilº page 8-13)
If the oil level is low, have additional engine oil
added, or the oil changed, at a GT-R certified
NISSAN dealer.
NOTICE
If the vehicle is in a location that is not
level, accurate measurement of the oil
level may not be possible. If ªOIL LEVEL
LOW º is displayed, but the level shown
by the oil dipstick is normal, move the
vehicle to a level location and stop the
engine. After at least 5 minutes have
passed, open the driver's door and push
the ignition switch back to ON. If the
ªOIL LEVEL LOWº message appears
again, have engine oil added or the oil
changed.
Instruments and controls2-13
