2016 NISSAN GT-R Multi Function Display Owners Manual


> (GLW    0RGHO 51 @
4. Highlight [Speaker Adaptation] and push.
5. Highlight the user whose voice is memorizedby the system, and push .
6. Highlight [Start Speaker Adaptation Learn-
ing] and push .
7. Highlight the voice command category to be
learned by the system, and push .
The voice command category list is dis-
played.
8. Highlight the voice command to be learned by the system, and push . The
voice recognition system starts.
9. The system announces, ªPlease say a
commandº.
10. After the tone sounds and the icon on the screen changes from [
] to [], speak a
command.
11. When the system has recognized the voice command, the voice of the user is learned.
Push once to return to the
previous screen.
Voice recognition8-23
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
8-24Voice recognition
INFO:
With [Continuous Learning] set to on, the
system does not go back to the command
list screen, allowing to continue voice
command learning by the system.
12. If the system has learned the command correctly, ªNoneº will change to ªStoredº.
Editing registered items
It is possible to edit user names and select
learning function settings.
1. Push .
2. Highlight [Others] and push .
3. Highlight [Voice Recognition] and push
.
4. Highlight [Speaker Adaptation] and push
.
5.Highlight a user to edit, and push
.
6. Highlight [Setting] and push .
7.Highlight an item to edit, and push
.
Setting items
.[Edit User Name]:
Edit the user name.
.[Delete Voice Data]:Reset the user voice that the voice
recognition system has learned.
.[Continuous Learning]:Have the system learn the voice com-
mands of the user in succession, without
selecting commands one by one.
VOICE COMMAND EXAMPLES
To use the voice recognition function, speaking
one command is sometimes sufficient, but at
other times it is necessary to speak two or more
commands. As examples, some additional basic
operations by voice commands are described
here.
Example 1: Switching map to 2D
(Plan View) mode
1. Push <>located on the steering wheel.
2. The system announces, ªPlease say a
commandº.
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @

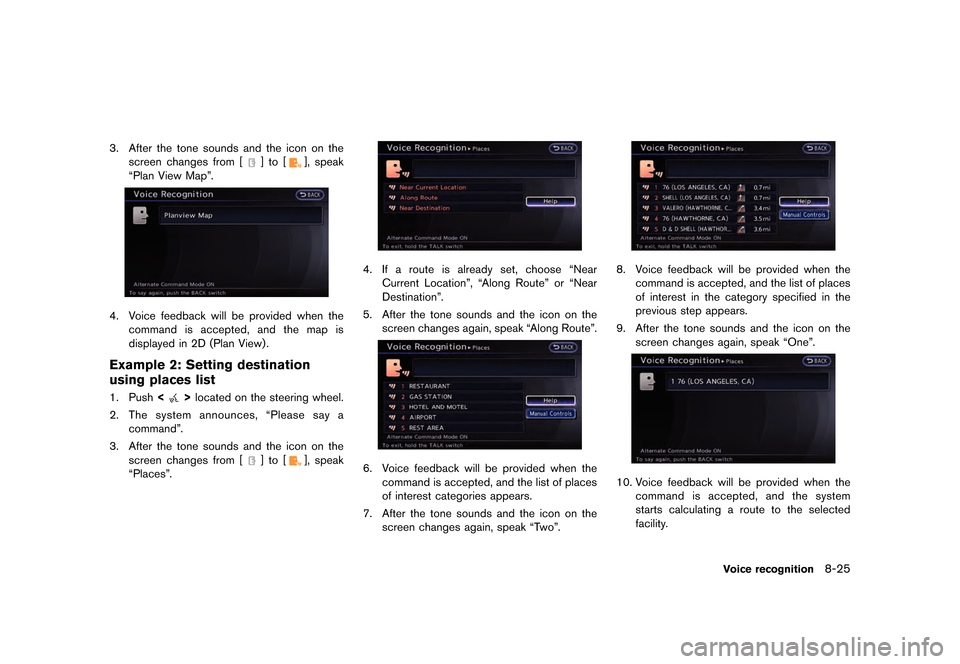

3. After the tone sounds and the icon on thescreen changes from [
] to [], speak
ªPlan View Mapº.
4. Voice feedback will be provided when the command is accepted, and the map is
displayed in 2D (Plan View) .
Example 2: Setting destination
using places list
1. Push <>located on the steering wheel.
2. The system announces, ªPlease say a
commandº.
3. After the tone sounds and the icon on the screen changes from [
] to [], speak
ªPlacesº.
4. If a route is already set, choose ªNear
Current Locationº, ªAlong Routeº or ªNear
Destinationº.
5. After the tone sounds and the icon on the screen changes again, speak ªAlong Routeº.
6. Voice feedback will be provided when thecommand is accepted, and the list of places
of interest categories appears.
7. After the tone sounds and the icon on the screen changes again, speak ªTwoº.
8. Voice feedback will be provided when thecommand is accepted, and the list of places
of interest in the category specified in the
previous step appears.
9. After the tone sounds and the icon on the screen changes again, speak ªOneº.
10. Voice feedback will be provided when thecommand is accepted, and the system
starts calculating a route to the selected
facility.
Voice recognition8-25
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
8-26Voice recognition

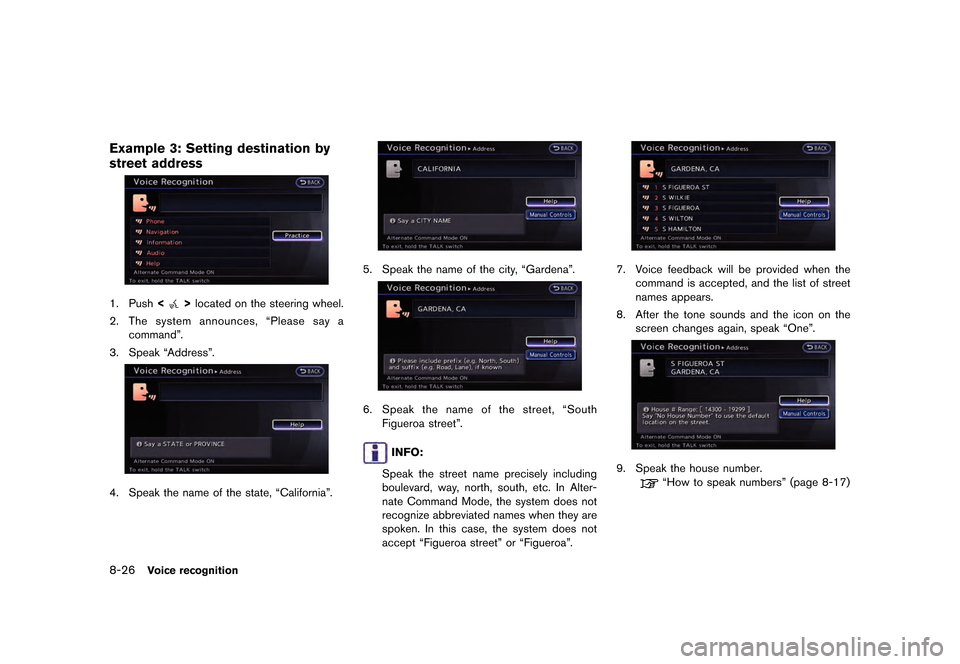

Example 3: Setting destination by
street address
1. Push<>located on the steering wheel.
2. The system announces, ªPlease say a
commandº.
3. Speak ªAddressº.
4. Speak the name of the state, ªCaliforniaº.
5. Speak the name of the city, ªGardenaº.
6. Speak the name of the street, ªSouth
Figueroa streetº.
INFO:
Speak the street name precisely including
boulevard, way, north, south, etc. In Alter-
nate Command Mode, the system does not
recognize abbreviated names when they are
spoken. In this case, the system does not
accept ªFigueroa streetº or ªFigueroaº.
7. Voice feedback will be provided when the command is accepted, and the list of street
names appears.
8. After the tone sounds and the icon on the screen changes again, speak ªOneº.
9. Speak the house number.
ªHow to speak numbersº (page 8-17)
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @

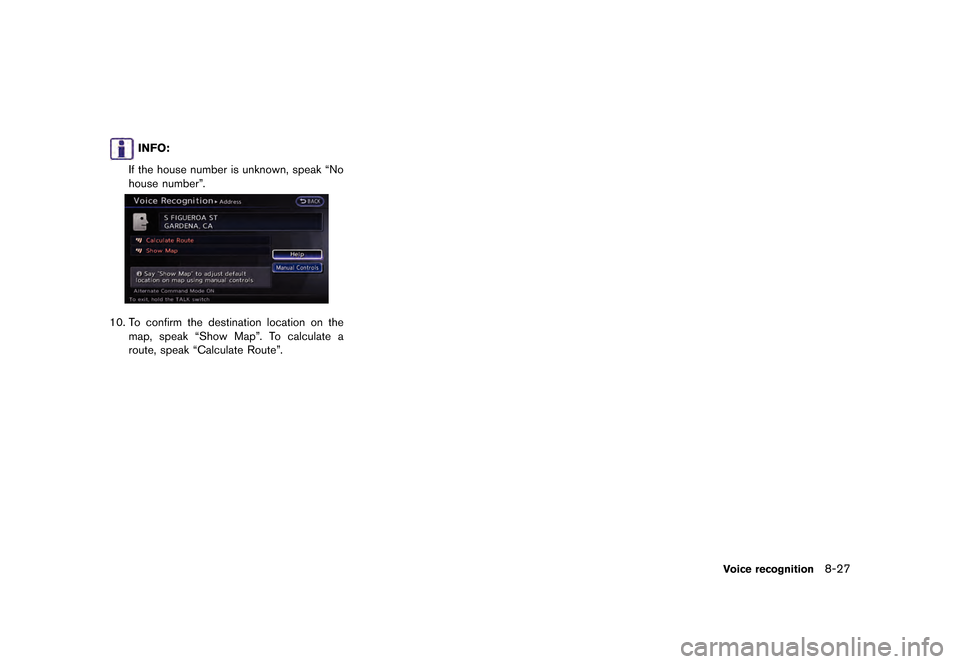

INFO:
If the house number is unknown, speak ªNo
house numberº.
10. To confirm the destination location on the map, speak ªShow Mapº. To calculate a
route, speak ªCalculate Routeº.
Voice recognition8-27
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
8-28Voice recognition

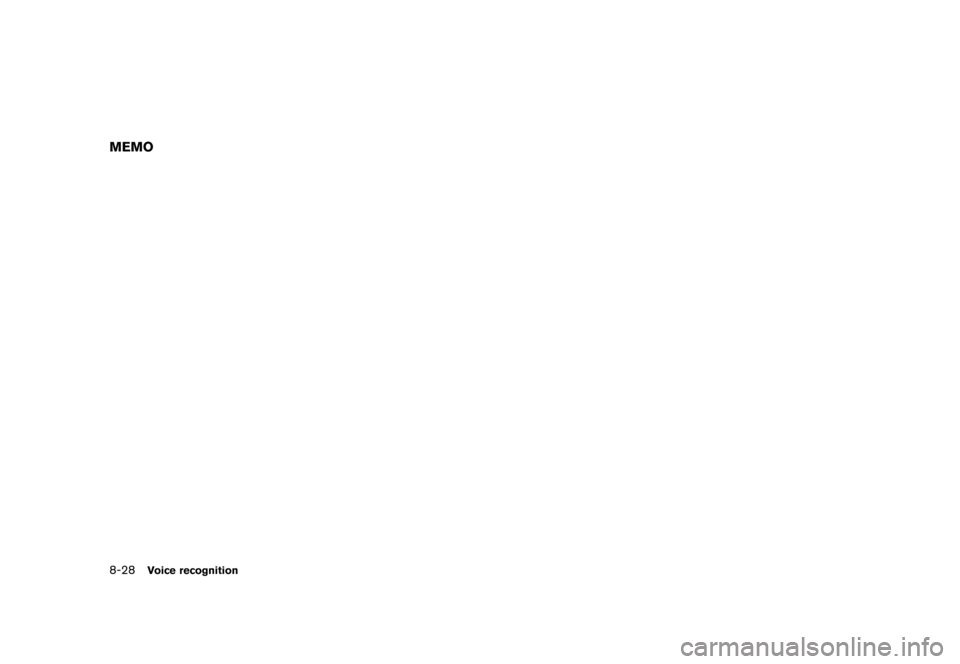

MEMO
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @

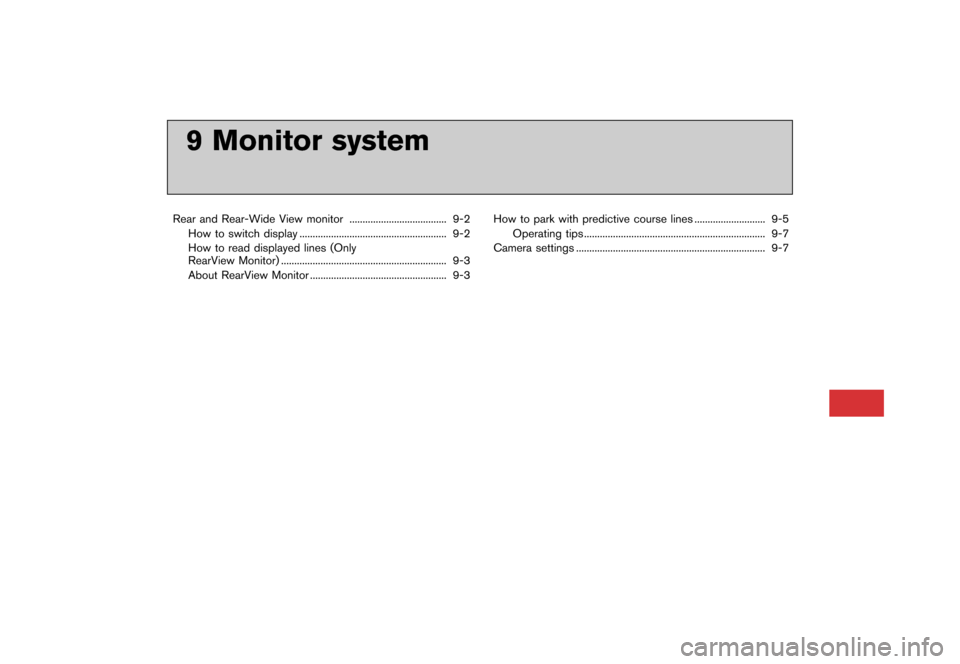

9 Monitor system
Rear and Rear-Wide View monitor..................................... 9-2
How to switch display ........................................................ 9-2
How to read displayed lines (Only
RearView Monitor) ............................................................... 9-3
About RearView Monitor .................................................... 9-3 How to park with predictive course lines ........................... 9-5
Operating tips ..................................................................... 9-7
Camera settings ........................................................................\
9-7
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
9-2Monitor system
When the shift lever is shifted into the ªRº
(Reverse) position, the monitor display shows
the view to the rear of the vehicle.
When touching the ªViewº key on the screen,
the view on the screen will change to the
rearview screen. When the ªViewº key is pushed
again, the rear-wide view is displayed.
The rear-wide view screen and/or rear view
screen switches to another screen when the
shift lever is moved out of the ªRº (Reverse)
position.
The system is designed as an aid to the
driver in detecting large stationary objects
to help avoid damaging the vehicle. The
system will not detect small objects below
the bumper and may not detect objects
close to the bumper or on the ground.
WARNING
Failure to follow the warnings and
instructions for proper use of the Rear-
View Monitor could result in serious
injury or death.
.The RearView Monitor is a conve-
nience but it is not a substitute for
proper backing up. Always turn and
check that it is safe to do so before backing up. Always back up slowly.
. The system cannot completely elim-
inate blind spots and may not show
every object.
. Underneath the bumper and the
corner areas of the bumper cannot
be viewed on the RearView Monitor
because of its monitoring range
limitation. The system will not show
small objects below the bumper,
and may not show objects close to
the bumper or on the ground.
. Objects viewed in the RearView
Monitor differ from actual distance
because a wide-angle lens is used.
. Objects in the RearView Monitor
will appear visually opposite than
when viewed in the rearview and
outside mirrors.
. Make sure that the trunk is securely
closed when backing up.
CAUTION
Do not scratch the lens when cleaning
dirt or snow from the front of the
camera.
HOW TO SWITCH DISPLAY
When the shift lever is moved into the ªRº
(Reverse) position while another screen is
displayed, RearView Monitor operates and the
rear-wide view is displayed. When touching the
ªViewº key on the screen, the view on the screen
will change to the rear view screen. When the
ªViewº key is touched again, the rear-wide view
is displayed. The rear-wide view screen and/or
rear view screen switches to another screen
when the shift lever is moved out of the ªRº
(Reverse) position.
The predictive course lines and the guid-
ing lines are not displayed on the rear-
wide view.
REAR AND REAR-WIDE VIEW
MONITOR
