2016 NISSAN GT-R Multi Function Display Owners Manual


> (GLW    0RGHO 51 @

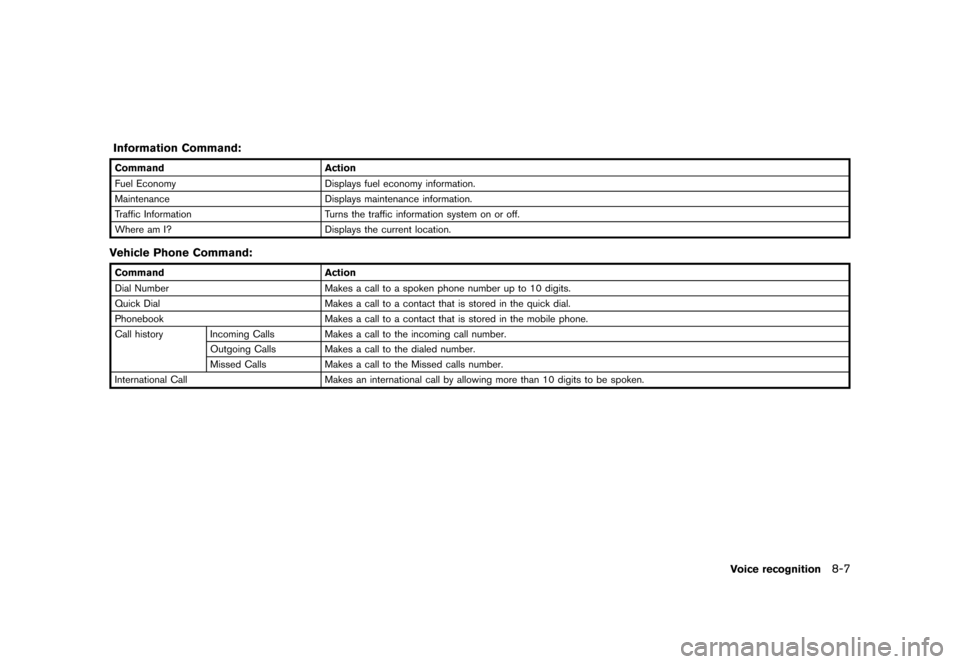

Information Command:
CommandAction
Fuel Economy Displays fuel economy information.
Maintenance Displays maintenance information.
Traffic Information Turns the traffic information system on or off.
Where am I? Displays the current location.
Vehicle Phone Command:
CommandAction
Dial Number Makes a call to a spoken phone number up to 10 digits.
Quick Dial Makes a call to a contact that is stored in the quick dial.
Phonebook Makes a call to a contact that is stored in the mobile phone.
Call history Incoming Calls Makes a call to the incoming call number. Outgoing Calls Makes a call to the dialed number.
Missed Calls Makes a call to the Missed calls number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
Voice recognition8-7
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
8-8Voice recognition

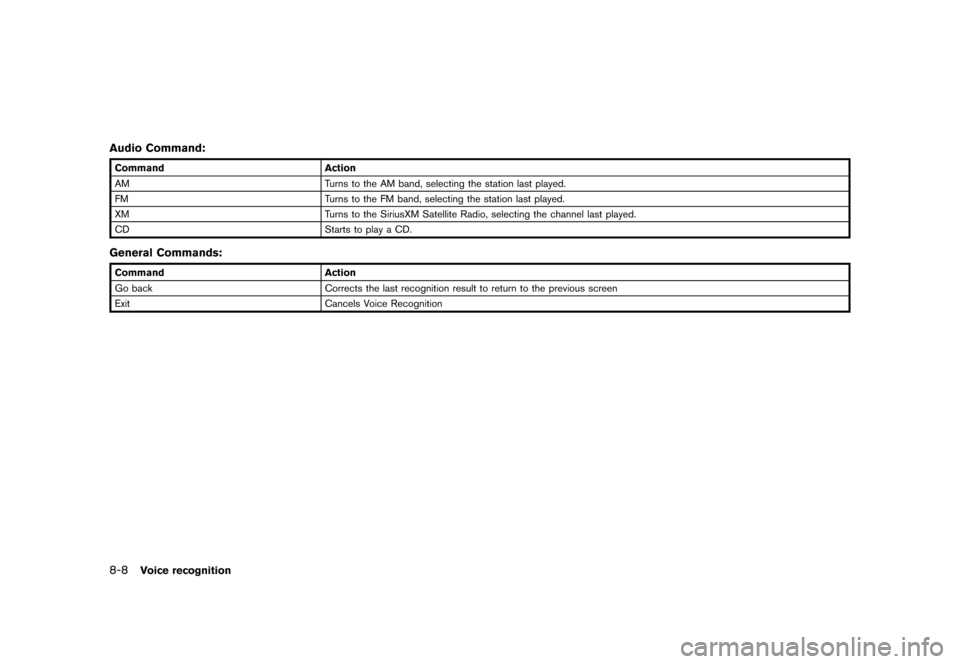

Audio Command:
CommandAction
AM Turns to the AM band, selecting the station last played.
FM Turns to the FM band, selecting the station last played.
XM Turns to the SiriusXM Satellite Radio, selecting the channel last played.
CD Starts to play a CD.
General Commands:
CommandAction
Go back Corrects the last recognition result to return to the previous screen
Exit Cancels Voice Recognition
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @

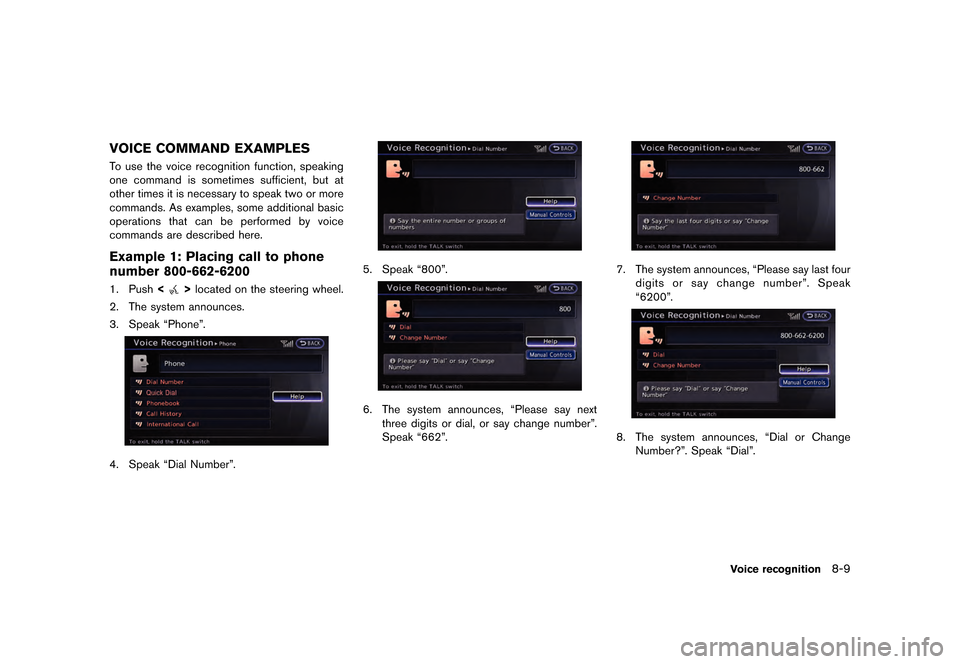

VOICE COMMAND EXAMPLES
To use the voice recognition function, speaking
one command is sometimes sufficient, but at
other times it is necessary to speak two or more
commands. As examples, some additional basic
operations that can be performed by voice
commands are described here.
Example 1: Placing call to phone
number 800-662-6200
1. Push<>located on the steering wheel.
2. The system announces.
3. Speak ªPhoneº.
4. Speak ªDial Numberº.
5. Speak ª800º.
6. The system announces, ªPlease say next three digits or dial, or say change numberº.
Speak ª662º.
7. The system announces, ªPlease say last fourdigits or say change numberº. Speak
ª6200º.
8. The system announces, ªDial or ChangeNumber?º. Speak ªDialº.
Voice recognition8-9
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
8-10Voice recognition

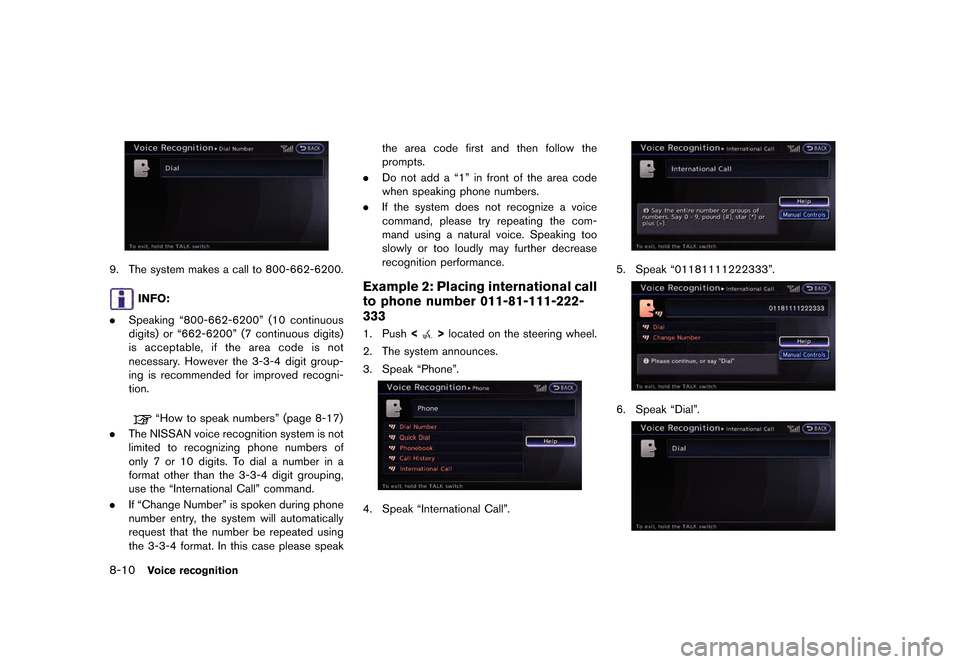

9. The system makes a call to 800-662-6200.
INFO:
. Speaking ª800-662-6200º (10 continuous
digits) or ª662-6200º (7 continuous digits)
is acceptable, if the area code is not
necessary. However the 3-3-4 digit group-
ing is recommended for improved recogni-
tion.
ªHow to speak numbersº (page 8-17)
. The NISSAN voice recognition system is not
limited to recognizing phone numbers of
only 7 or 10 digits. To dial a number in a
format other than the 3-3-4 digit grouping,
use the ªInternational Callº command.
. If ªChange Numberº is spoken during phone
number entry, the system will automatically
request that the number be repeated using
the 3-3-4 format. In this case please speak the area code first and then follow the
prompts.
. Do not add a ª1º in front of the area code
when speaking phone numbers.
. If the system does not recognize a voice
command, please try repeating the com-
mand using a natural voice. Speaking too
slowly or too loudly may further decrease
recognition performance.
Example 2: Placing international call
to phone number 011-81-111-222-
333
1. Push <>located on the steering wheel.
2. The system announces.
3. Speak ªPhoneº.
4. Speak ªInternational Callº.
5. Speak ª01181111222333º.
6. Speak ªDialº.
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @

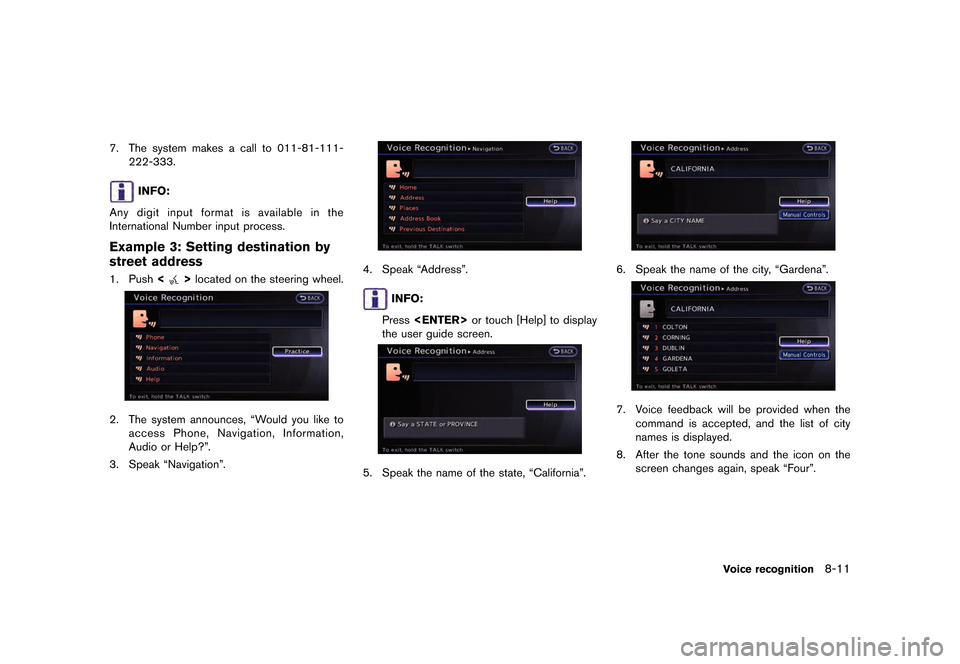

7. The system makes a call to 011-81-111-222-333.
INFO:
Any digit input format is available in the
International Number input process.
Example 3: Setting destination by
street address
1. Push <>located on the steering wheel.
2. The system announces, ªWould you like to
access Phone, Navigation, Information,
Audio or Help?º.
3. Speak ªNavigationº.
4. Speak ªAddressº.
INFO:
Press or touch [Help] to display
the user guide screen.
5. Speak the name of the state, ªCaliforniaº.
6. Speak the name of the city, ªGardenaº.
7. Voice feedback will be provided when the
command is accepted, and the list of city
names is displayed.
8. After the tone sounds and the icon on the screen changes again, speak ªFourº.
Voice recognition8-11
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
8-12Voice recognition

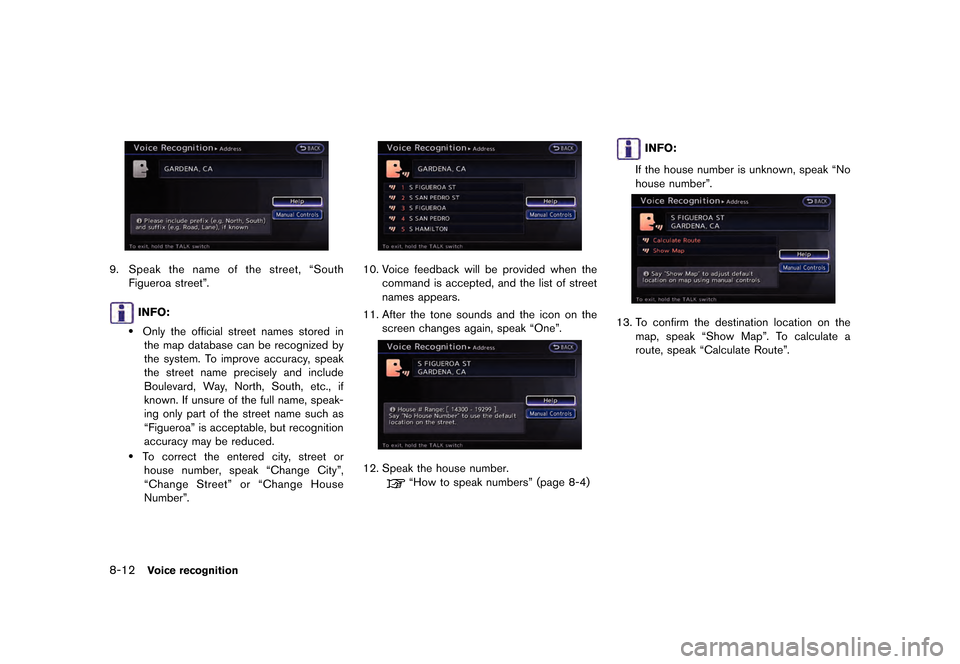

9.Speak the name of the street, ªSouth
Figueroa streetº.
INFO:
.Only the official street names stored in
the map database can be recognized by
the system. To improve accuracy, speak
the street name precisely and include
Boulevard, Way, North, South, etc., if
known. If unsure of the full name, speak-
ing only part of the street name such as
ªFigueroaº is acceptable, but recognition
accuracy may be reduced.
.To correct the entered city, street or
house number, speak ªChange Cityº,
ªChange Streetº or ªChange House
Numberº.
10. Voice feedback will be provided when the command is accepted, and the list of street
names appears.
11. After the tone sounds and the icon on the screen changes again, speak ªOneº.
12. Speak the house number.
ªHow to speak numbersº (page 8-4)
INFO:
If the house number is unknown, speak ªNo
house numberº.
13. To confirm the destination location on the map, speak ªShow Mapº. To calculate a
route, speak ªCalculate Routeº.
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
The following section is applicable when Alter-
nate Command Mode is active.
ªSetting alternate command modeº
(page 8-22)
When Alternate Command Mode is active, an
expanded list of commands can be used after
pushing <
>. In this mode, available com-
mands are not fully shown on the display or
prompted. Review the expanded command list,
available when this mode is active. See exam-
ples of Alternate Command Mode screens.
Otherwise, it is recommended that Alternate
Command Mode be turned OFF and Standard
Mode be used for the best recognition perfor-
mance.
ªConfirming voice commandsº
(page 8-13)
DISPLAYING HOW TO OPERATE
VOICE RECOGNITION SYSTEM
When operating the voice recognition system
for the first time or if help is preferred to use the
system, the Command List (available only in
Alternate Command Mode) or the User Guide
are available.
Basic operation
1. Push .
2. Highlight [Others] and push .
3. Highlight [Voice Recognition] and push
.
4. Highlight the preferred item and push
. Available items
.
[Command List]:
A list of voice commands that the system
can accept is displayed.
. [User Guide]:
A simplified operation manual of the voice
recognition system can be displayed and
how to use the voice commands can be
confirmed.
INFO:
The Command List feature is only available when
Alternate Command Mode is active.
Confirming voice commands
When controlling the system by voice com-
mands for the first time or if an appropriate voice
command is unknown, confirm using the voice
command lists.
The following information describes how to
display the navigation command list and the
help list. For information about the operations of
other functions, refer to the vehicle Owner's
Manual.
Voice recognition8-13
ALTERNATE COMMAND MODE
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
8-14Voice recognition
Example: Displaying the navigation com-
mand list:
1. Push.
2. Highlight [Others] and push .
3. Highlight [Voice Recognition] and push
.
4.Highlight [Command List] and push
.
5.Highlight the preferred item and push
.
Available items
.Phone Commands
.Navigation Commands
.Information Commands
.Audio Commands
.Help Commands
6. To confirm the list, scroll the screen using
the center dial.
7. Push to return to the previous
screen.
CONFIRMING HOW TO USE VOICE
COMMANDS
It is possible to confirm how to use voice
commands by accessing a simplified User
Guide, which contains basic instructions and
tutorials for several voice commands.
Basic operation
1. Push .
2. Highlight [Others] and push .
3. Highlight [Voice Recognition] and push
.
4. Highlight [User Guide] and push
.
5. Highlight the preferred item and push
.
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK
