2016 NISSAN GT-R Multi Function Display Owners Manual


> (GLW    0RGHO 51 @

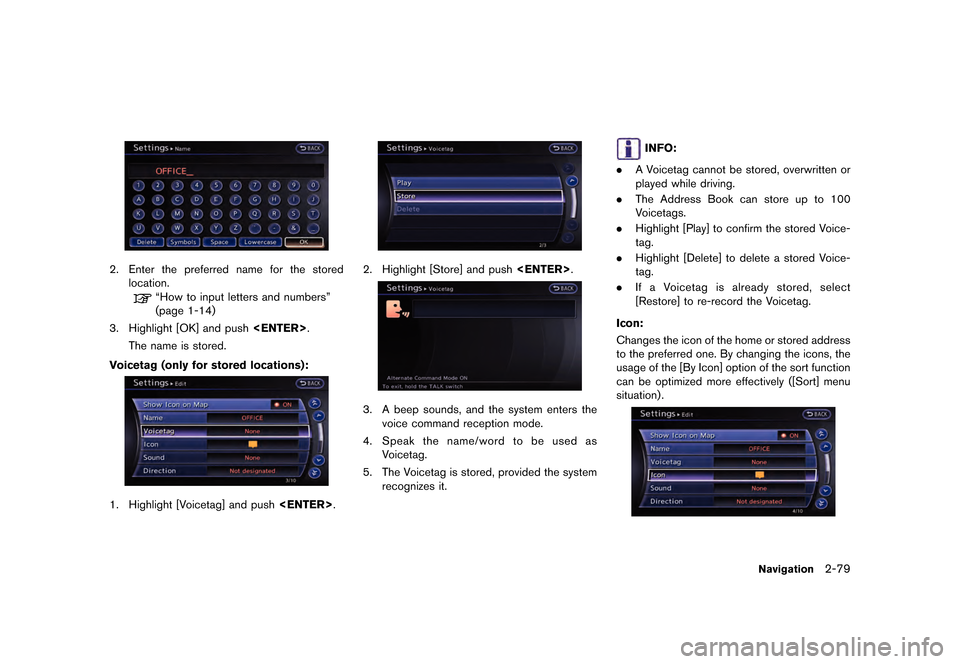

2. Enter the preferred name for the storedlocation.
ªHow to input letters and numbersº
(page 1-14)
3. Highlight [OK] and push .
The name is stored.
Voicetag (only for stored locations):
1. Highlight [Voicetag] and push .
2. Highlight [Store] and push.
3. A beep sounds, and the system enters the
voice command reception mode.
4. Speak the name/word to be used as
Voicetag.
5. The Voicetag is stored, provided the system recognizes it.
INFO:
. A Voicetag cannot be stored, overwritten or
played while driving.
. The Address Book can store up to 100
Voicetags.
. Highlight [Play] to confirm the stored Voice-
tag.
. Highlight [Delete] to delete a stored Voice-
tag.
. If a Voicetag is already stored, select
[Restore] to re-record the Voicetag.
Icon:
Changes the icon of the home or stored address
to the preferred one. By changing the icons, the
usage of the [By Icon] option of the sort function
can be optimized more effectively ([Sort] menu
situation) .
Navigation2-79
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
2-80Navigation

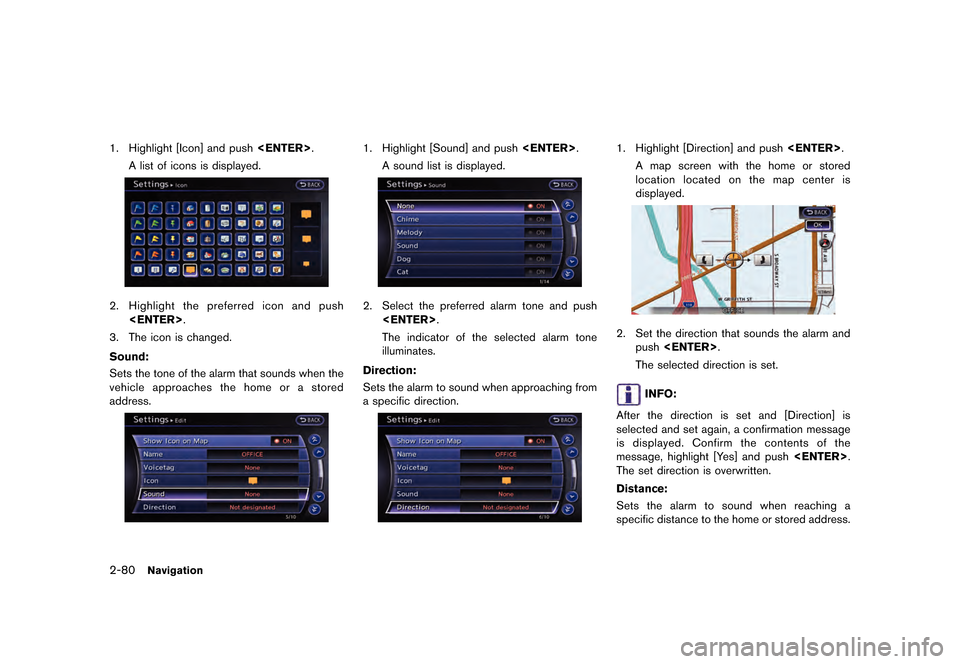

1. Highlight [Icon] and push.
A list of icons is displayed.
2. Highlight the preferred icon and push
.
3. The icon is changed.
Sound:
Sets the tone of the alarm that sounds when the
vehicle approaches the home or a stored
address.
1. Highlight [Sound] and push .
A sound list is displayed.
2. Select the preferred alarm tone and push .
The indicator of the selected alarm tone
illuminates.
Direction:
Sets the alarm to sound when approaching from
a specific direction.
1. Highlight [Direction] and push .
A map screen with the home or stored
location located on the map center is
displayed.
2. Set the direction that sounds the alarm and push .
The selected direction is set.
INFO:
After the direction is set and [Direction] is
selected and set again, a confirmation message
is displayed. Confirm the contents of the
message, highlight [Yes] and push .
The set direction is overwritten.
Distance:
Sets the alarm to sound when reaching a
specific distance to the home or stored address.
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @

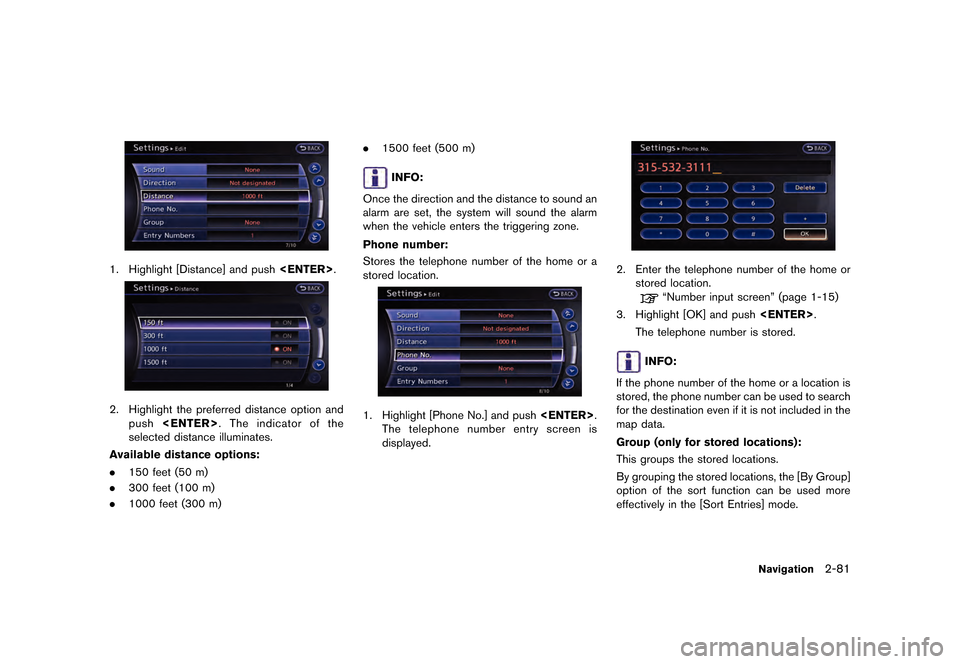

1. Highlight [Distance] and push.
2. Highlight the preferred distance option and
push . The indicator of the
selected distance illuminates.
Available distance options:
. 150 feet (50 m)
. 300 feet (100 m)
. 1000 feet (300 m) .
1500 feet (500 m)
INFO:
Once the direction and the distance to sound an
alarm are set, the system will sound the alarm
when the vehicle enters the triggering zone.
Phone number:
Stores the telephone number of the home or a
stored location.
1. Highlight [Phone No.] and push .
The telephone number entry screen is
displayed.
2. Enter the telephone number of the home or stored location.
ªNumber input screenº (page 1-15)
3. Highlight [OK] and push .
The telephone number is stored.
INFO:
If the phone number of the home or a location is
stored, the phone number can be used to search
for the destination even if it is not included in the
map data.
Group (only for stored locations):
This groups the stored locations.
By grouping the stored locations, the [By Group]
option of the sort function can be used more
effectively in the [Sort Entries] mode.
Navigation2-81
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
2-82Navigation

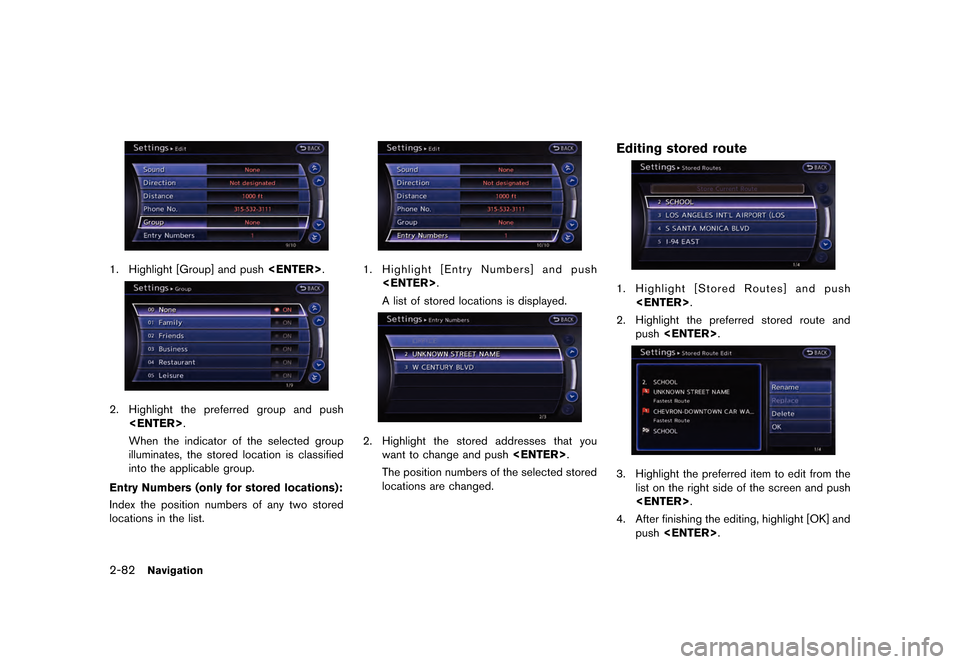

1. Highlight [Group] and push.
2.Highlight the preferred group and push
.
When the indicator of the selected group
illuminates, the stored location is classified
into the applicable group.
Entry Numbers (only for stored locations):
Index the position numbers of any two stored
locations in the list.
1. Highlight [Entry Numbers] and push
.
A list of stored locations is displayed.
2.Highlight the stored addresses that you
want to change and push .
The position numbers of the selected stored
locations are changed.
Editing stored route
1. Highlight [Stored Routes] and push
.
2. Highlight the preferred stored route and push .
3. Highlight the preferred item to edit from the
list on the right side of the screen and push
.
4. After finishing the editing, highlight [OK] and push .
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @

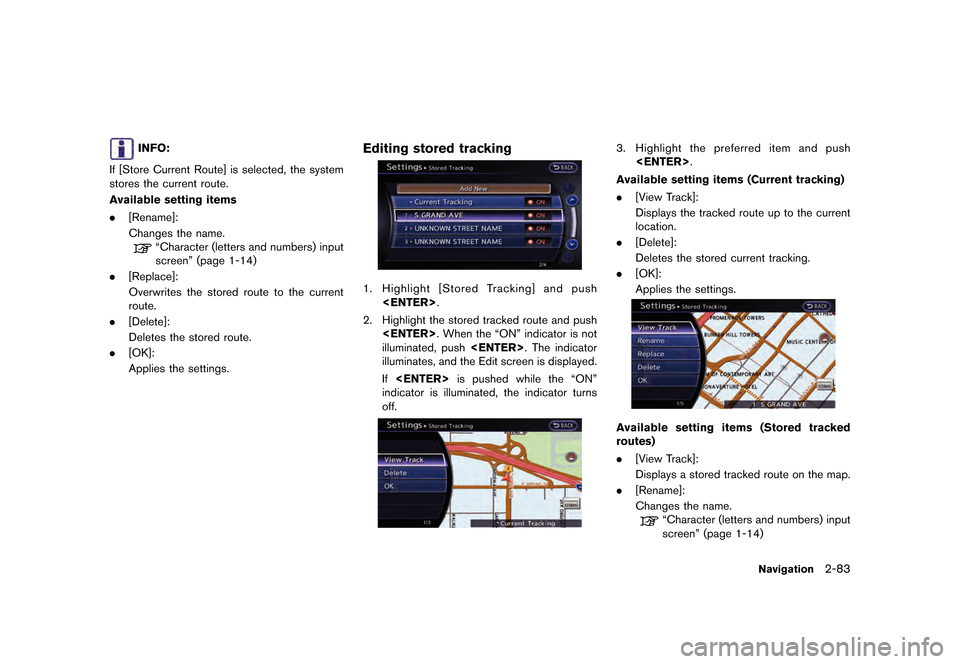

INFO:
If [Store Current Route] is selected, the system
stores the current route.
Available setting items
. [Rename]:
Changes the name.
ªCharacter (letters and numbers) input
screenº (page 1-14)
. [Replace]:
Overwrites the stored route to the current
route.
. [Delete]:
Deletes the stored route.
. [OK]:
Applies the settings.
Editing stored tracking
1.Highlight [Stored Tracking] and push
.
2. Highlight the stored tracked route and push . When the ªONº indicator is not
illuminated, push . The indicator
illuminates, and the Edit screen is displayed.
If is pushed while the ªONº
indicator is illuminated, the indicator turns
off.
3. Highlight the preferred item and push
.
Available setting items (Current tracking)
. [View Track]:
Displays the tracked route up to the current
location.
. [Delete]:
Deletes the stored current tracking.
. [OK]:
Applies the settings.
Available setting items (Stored tracked
routes)
.[View Track]:
Displays a stored tracked route on the map.
. [Rename]:
Changes the name.
ªCharacter (letters and numbers) input
screenº (page 1-14)
Navigation2-83
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
2-84Navigation

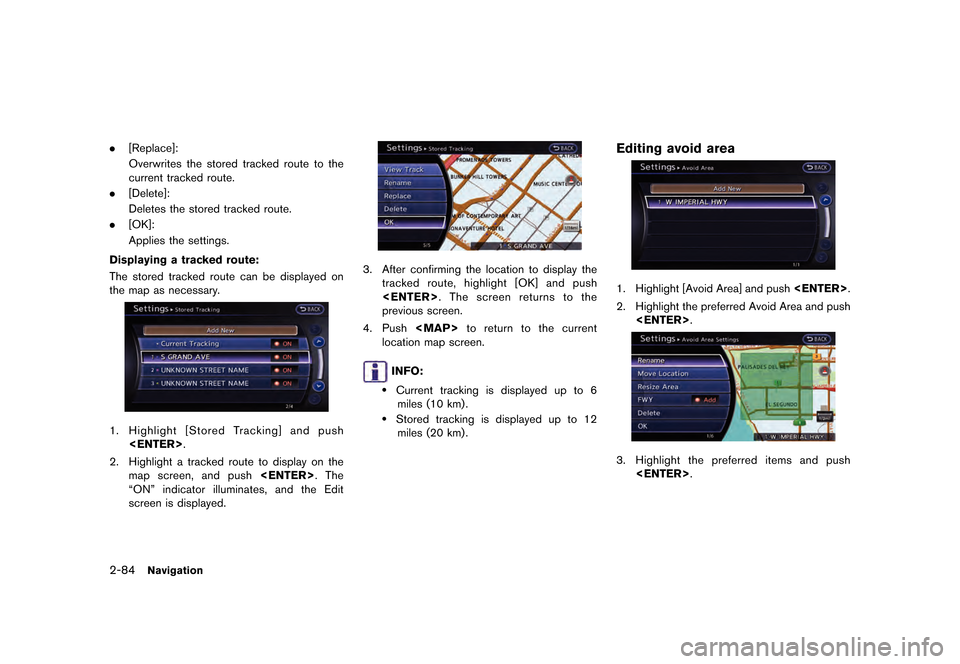

.[Replace]:
Overwrites the stored tracked route to the
current tracked route.
. [Delete]:
Deletes the stored tracked route.
. [OK]:
Applies the settings.
Displaying a tracked route:
The stored tracked route can be displayed on
the map as necessary.
1. Highlight [Stored Tracking] and push
.
2. Highlight a tracked route to display on the map screen, and push . The
ªONº indicator illuminates, and the Edit
screen is displayed.
3. After confirming the location to display the tracked route, highlight [OK] and push
. The screen returns to the
previous screen.
4. Push


> (GLW    0RGHO 51 @

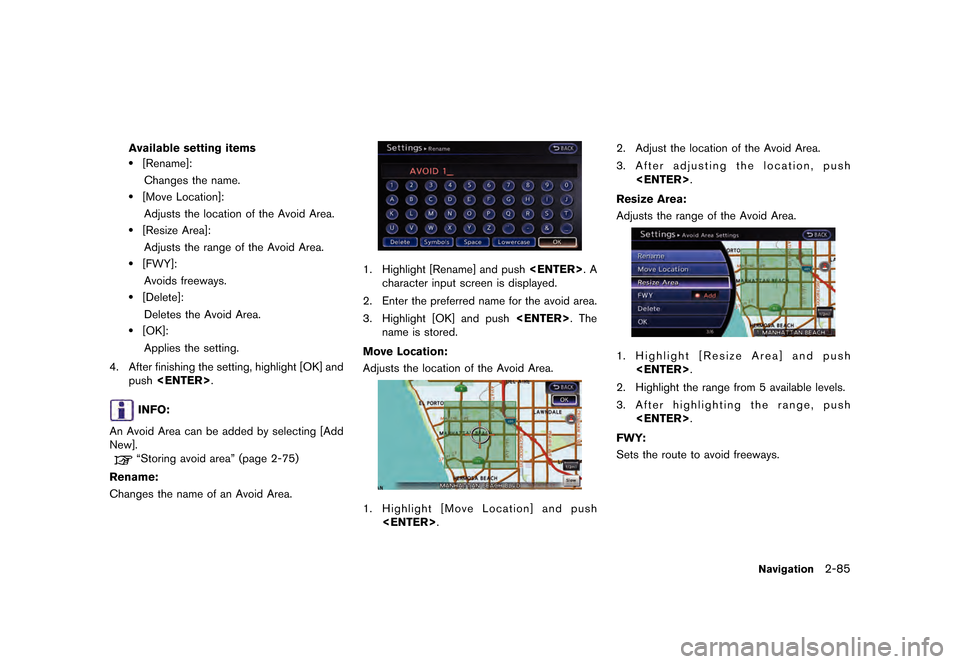

Available setting items.[Rename]:Changes the name.
.[Move Location]:
Adjusts the location of the Avoid Area.
.[Resize Area]:Adjusts the range of the Avoid Area.
.[FWY]:Avoids freeways.
.[Delete]:Deletes the Avoid Area.
.[OK]:Applies the setting.
4. After finishing the setting, highlight [OK] and push .
INFO:
An Avoid Area can be added by selecting [Add
New].
ªStoring avoid areaº (page 2-75)
Rename:
Changes the name of an Avoid Area.
1. Highlight [Rename] and push . A
character input screen is displayed.
2. Enter the preferred name for the avoid area.
3. Highlight [OK] and push . The
name is stored.
Move Location:
Adjusts the location of the Avoid Area.
1. Highlight [Move Location] and push
. 2. Adjust the location of the Avoid Area.
3.
After adjusting the location, push
.
Resize Area:
Adjusts the range of the Avoid Area.
1. Highlight [Resize Area] and push
.
2. Highlight the range from 5 available levels.
3. After highlighting the range, push
.
FWY:
Sets the route to avoid freeways.
Navigation2-85
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
2-86Navigation

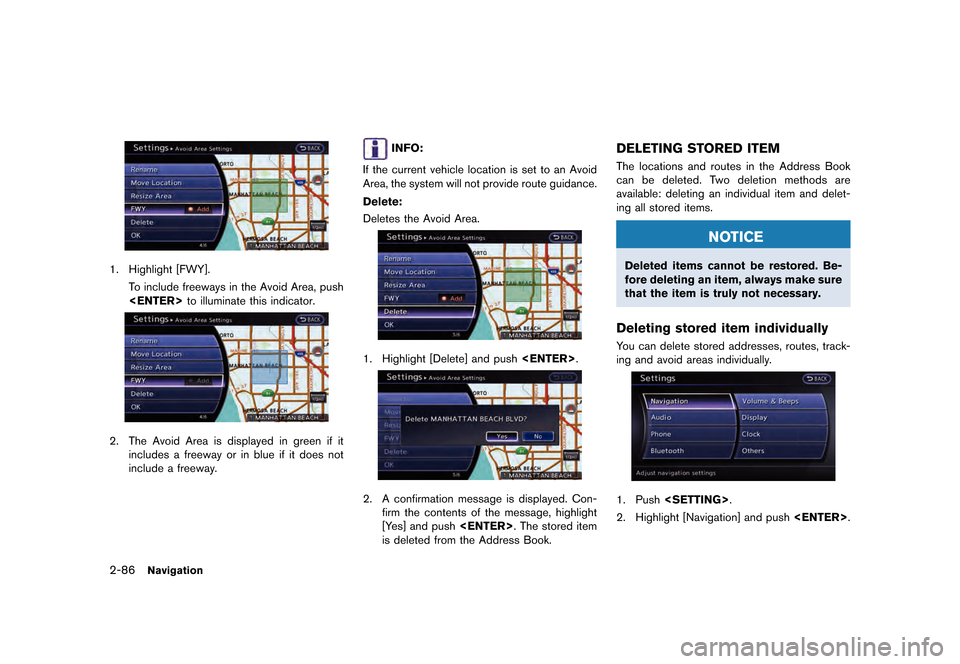

1. Highlight [FWY].To include freeways in the Avoid Area, push
to illuminate this indicator.
2. The Avoid Area is displayed in green if it
includes a freeway or in blue if it does not
include a freeway.
INFO:
If the current vehicle location is set to an Avoid
Area, the system will not provide route guidance.
Delete:
Deletes the Avoid Area.
1. Highlight [Delete] and push .
2. A confirmation message is displayed. Con-
firm the contents of the message, highlight
[Yes] and push . The stored item
is deleted from the Address Book.
DELETING STORED ITEM
The locations and routes in the Address Book
can be deleted. Two deletion methods are
available: deleting an individual item and delet-
ing all stored items.
NOTICE
Deleted items cannot be restored. Be-
fore deleting an item, always make sure
that the item is truly not necessary.
Deleting stored item individually
You can delete stored addresses, routes, track-
ing and avoid areas individually.
1. Push .
2. Highlight [Navigation] and push .
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK
