2016 NISSAN GT-R Multi Function Display Owners Manual


> (GLW    0RGHO 51 @

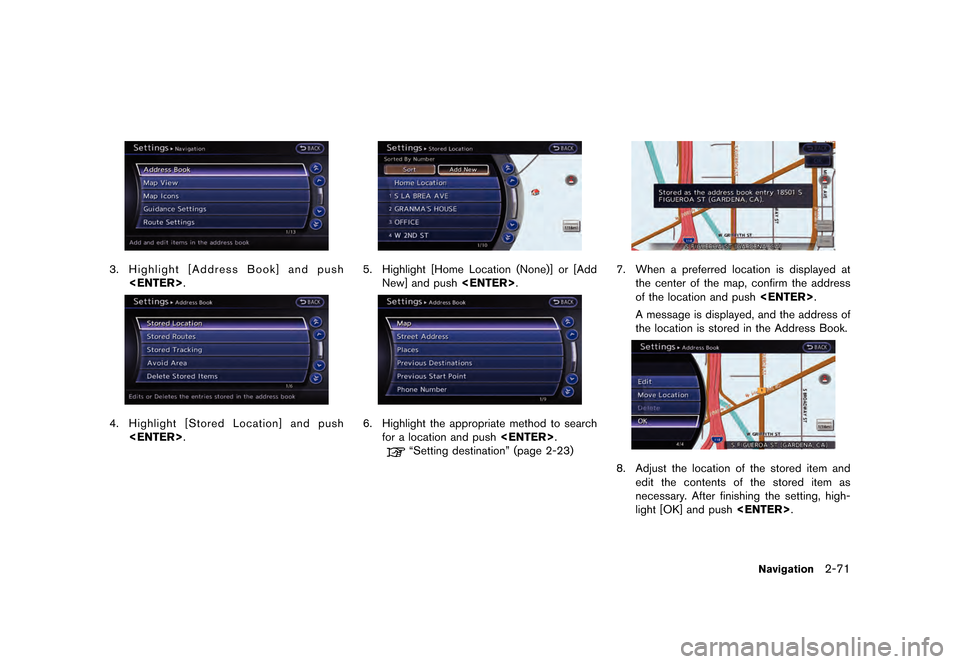

3.Highlight [Address Book] and push
.
4.Highlight [Stored Location] and push
.
5. Highlight [Home Location (None)] or [Add
New] and push .
6. Highlight the appropriate method to search
for a location and push .
ªSetting destinationº (page 2-23)
7. When a preferred location is displayed at
the center of the map, confirm the address
of the location and push .
A message is displayed, and the address of
the location is stored in the Address Book.
8. Adjust the location of the stored item and edit the contents of the stored item as
necessary. After finishing the setting, high-
light [OK] and push .
Navigation2-71
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @

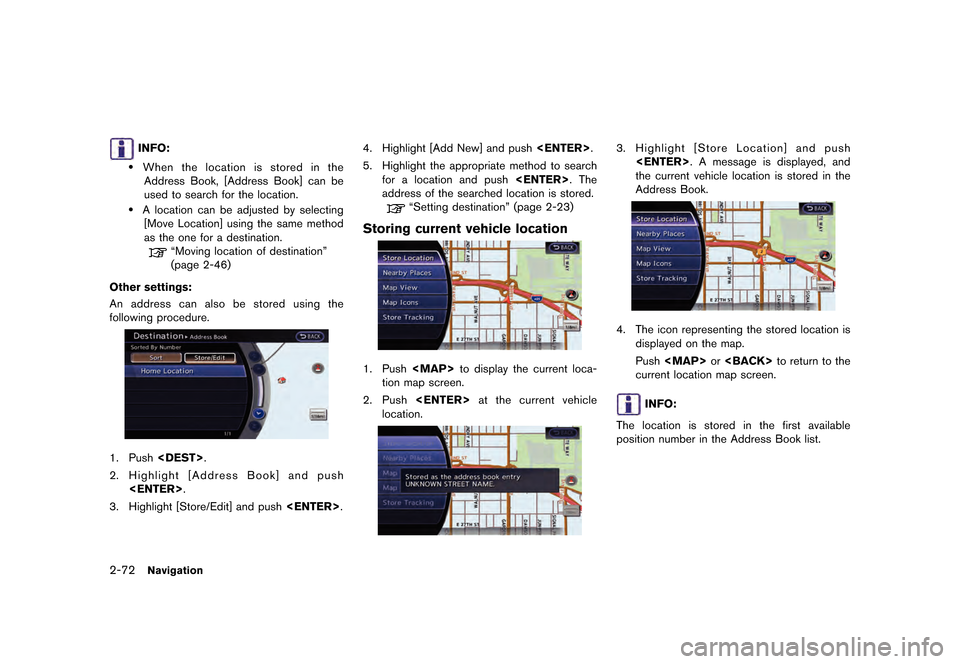

2-72Navigation
INFO:
.When the location is stored in theAddress Book, [Address Book] can be
used to search for the location.
.A location can be adjusted by selecting [Move Location] using the same method
as the one for a destination.
ªMoving location of destinationº
(page 2-46)
Other settings:
An address can also be stored using the
following procedure.
1. Push .
2. Highlight [Address Book] and push
.
3. Highlight [Store/Edit] and push .4. Highlight [Add New] and push
.
5. Highlight the appropriate method to search for a location and push . The
address of the searched location is stored.
ªSetting destinationº (page 2-23)
Storing current vehicle location
1. Push


> (GLW    0RGHO 51 @

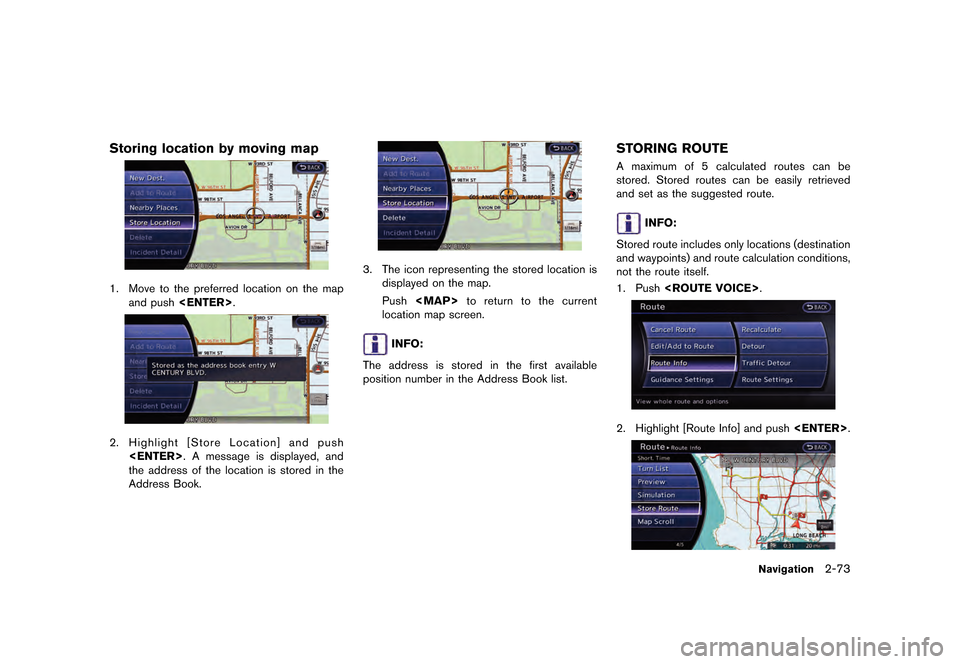

Storing location by moving map
1. Move to the preferred location on the mapand push .
2.Highlight [Store Location] and push
. A message is displayed, and
the address of the location is stored in the
Address Book.
3. The icon representing the stored location is
displayed on the map.
Push


> (GLW    0RGHO 51 @

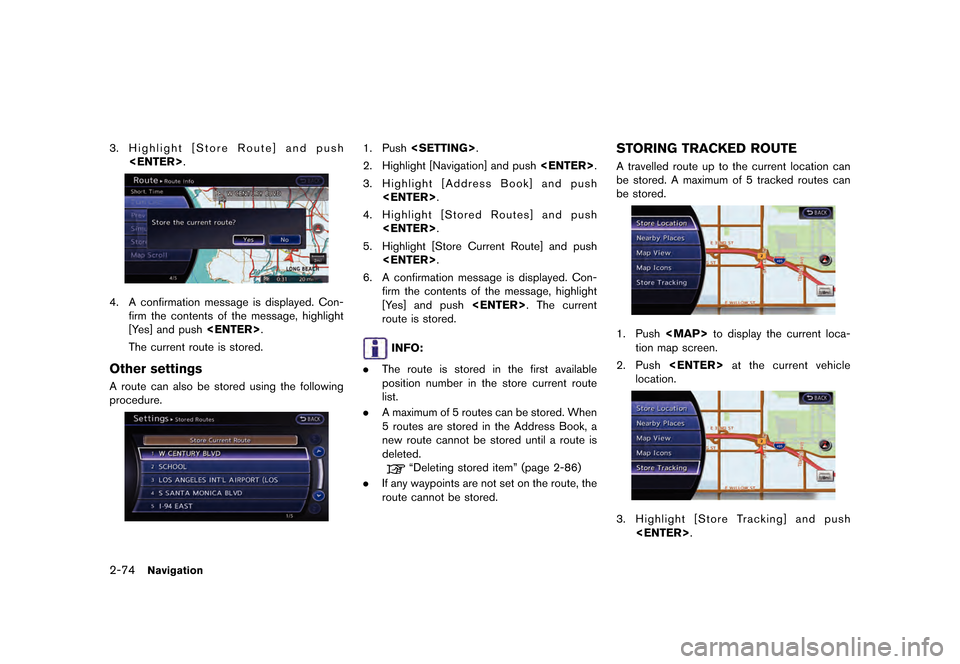

2-74Navigation
3.Highlight [Store Route] and push
.
4. A confirmation message is displayed. Con-
firm the contents of the message, highlight
[Yes] and push .
The current route is stored.
Other settings
A route can also be stored using the following
procedure.
1. Push .
2. Highlight [Navigation] and push .
3. Highlight [Address Book] and push
.
4. Highlight [Stored Routes] and push
.
5. Highlight [Store Current Route] and push .
6. A confirmation message is displayed. Con- firm the contents of the message, highlight
[Yes] and push . The current
route is stored.
INFO:
. The route is stored in the first available
position number in the store current route
list.
. A maximum of 5 routes can be stored. When
5 routes are stored in the Address Book, a
new route cannot be stored until a route is
deleted.
ªDeleting stored itemº (page 2-86)
. If any waypoints are not set on the route, the
route cannot be stored.

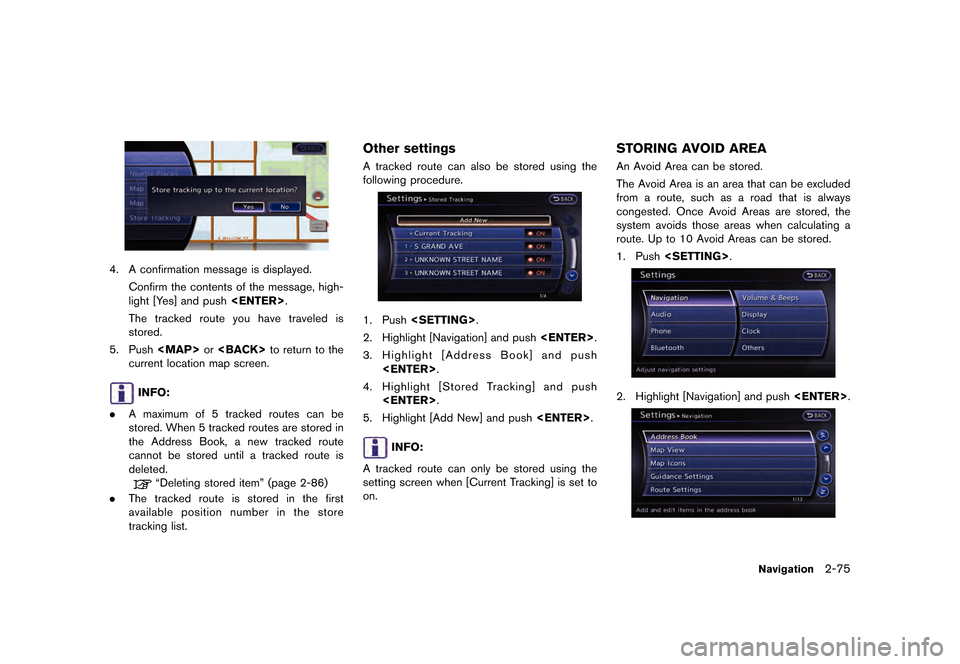

STORING TRACKED ROUTE
A travelled route up to the current location can
be stored. A maximum of 5 tracked routes can
be stored.
1. Push


> (GLW    0RGHO 51 @
4. A confirmation message is displayed.Confirm the contents of the message, high-
light [Yes] and push .
The tracked route you have traveled is
stored.
5. Push


> (GLW    0RGHO 51 @

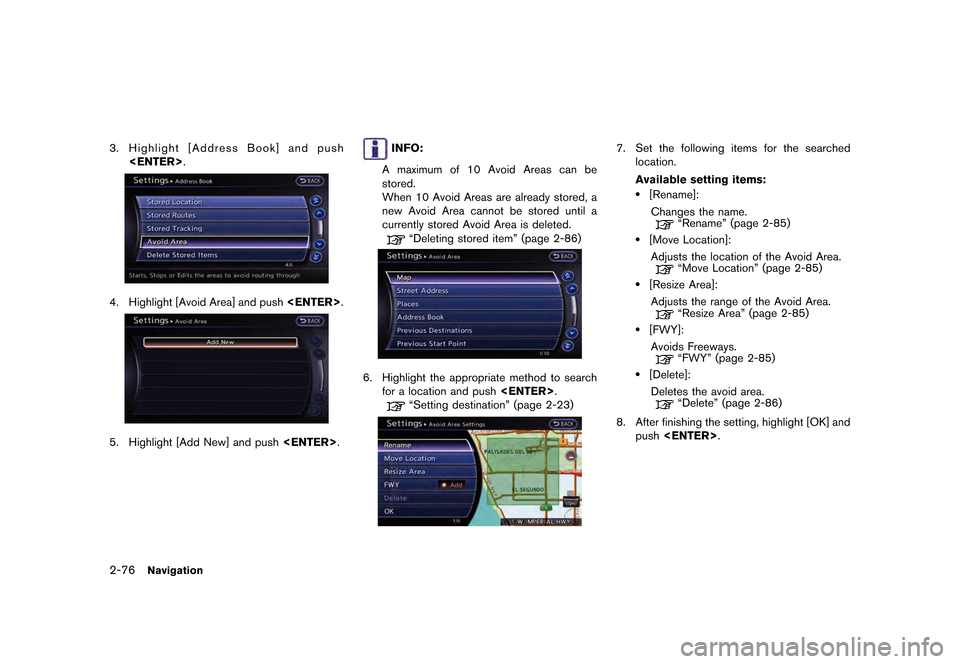

2-76Navigation
3.Highlight [Address Book] and push
.
4. Highlight [Avoid Area] and push .
5. Highlight [Add New] and push.
INFO:
A maximum of 10 Avoid Areas can be
stored.
When 10 Avoid Areas are already stored, a
new Avoid Area cannot be stored until a
currently stored Avoid Area is deleted.
ªDeleting stored itemº (page 2-86)
6. Highlight the appropriate method to search for a location and push .
ªSetting destinationº (page 2-23)
7. Set the following items for the searched
location.
Available setting items:
.[Rename]:
Changes the name.
ªRenameº (page 2-85)
.[Move Location]:Adjusts the location of the Avoid Area.
ªMove Locationº (page 2-85)
.[Resize Area]:Adjusts the range of the Avoid Area.
ªResize Areaº (page 2-85)
.[FWY]:Avoids Freeways.
ªFWYº (page 2-85)
.[Delete]:Deletes the avoid area.
ªDeleteº (page 2-86)
8. After finishing the setting, highlight [OK] and push .
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @

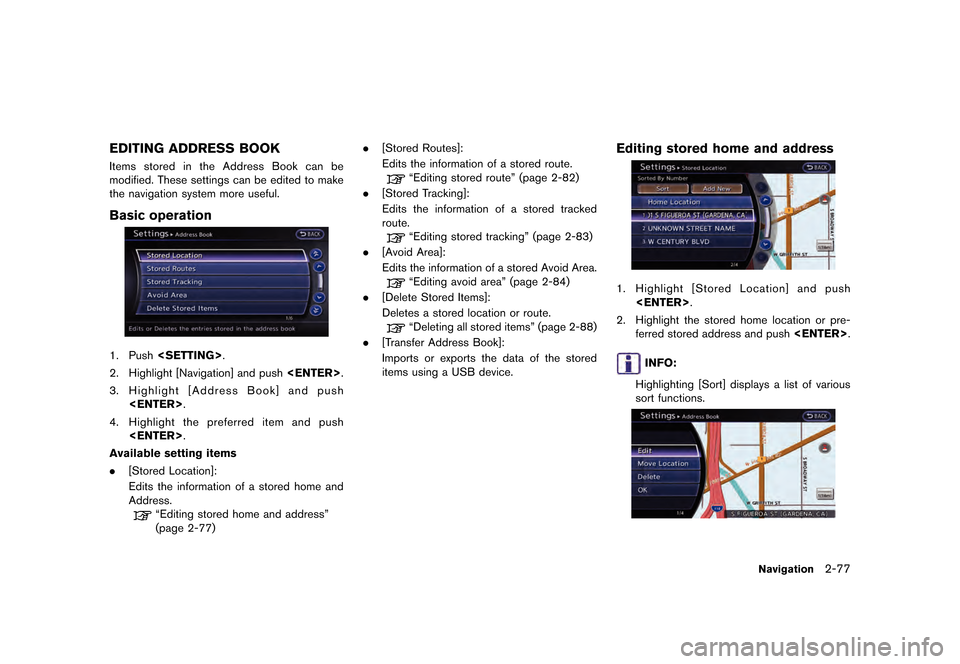

EDITING ADDRESS BOOK
Items stored in the Address Book can be
modified. These settings can be edited to make
the navigation system more useful.
Basic operation
1. Push.
2. Highlight [Navigation] and push .
3. Highlight [Address Book] and push
.
4. Highlight the preferred item and push
.
Available setting items
. [Stored Location]:
Edits the information of a stored home and
Address.
ªEditing stored home and addressº
(page 2-77) .
[Stored Routes]:
Edits the information of a stored route.
ªEditing stored routeº (page 2-82)
. [Stored Tracking]:
Edits the information of a stored tracked
route.
ªEditing stored trackingº (page 2-83)
. [Avoid Area]:
Edits the information of a stored Avoid Area.
ªEditing avoid areaº (page 2-84)
. [Delete Stored Items]:
Deletes a stored location or route.
ªDeleting all stored itemsº (page 2-88)
. [Transfer Address Book]:
Imports or exports the data of the stored
items using a USB device.
Editing stored home and address
1.Highlight [Stored Location] and push
.
2. Highlight the stored home location or pre- ferred stored address and push .
INFO:
Highlighting [Sort] displays a list of various
sort functions.
Navigation2-77
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @

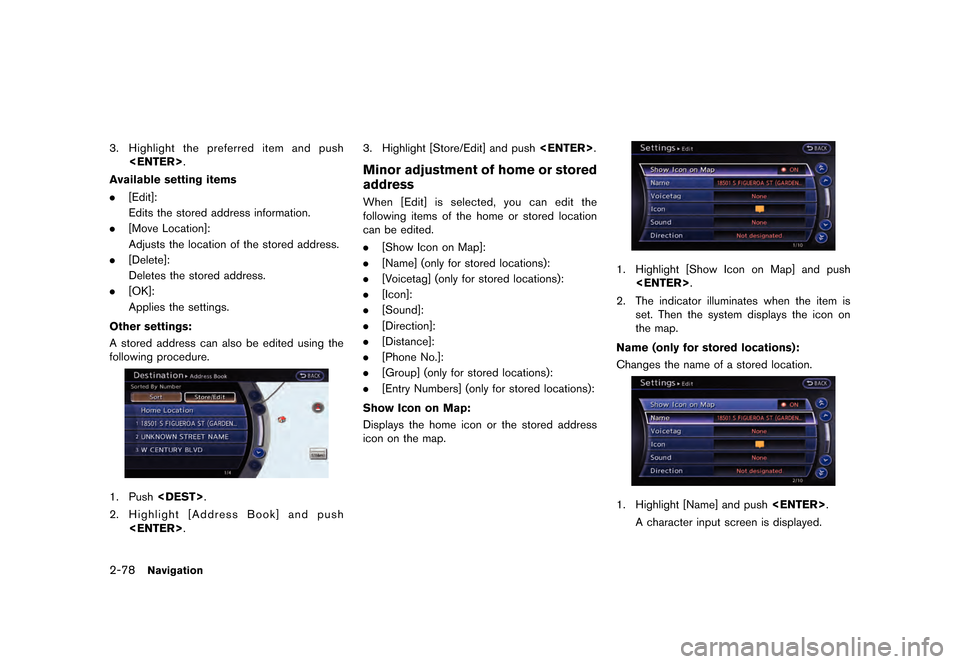

2-78Navigation
3.Highlight the preferred item and push
.
Available setting items
. [Edit]:
Edits the stored address information.
. [Move Location]:
Adjusts the location of the stored address.
. [Delete]:
Deletes the stored address.
. [OK]:
Applies the settings.
Other settings:
A stored address can also be edited using the
following procedure.
1. Push .
2. Highlight [Address Book] and push
. 3. Highlight [Store/Edit] and push
.
Minor adjustment of home or stored
address
When [Edit] is selected, you can edit the
following items of the home or stored location
can be edited.
.[Show Icon on Map]:
. [Name] (only for stored locations):
. [Voicetag] (only for stored locations):
. [Icon]:
. [Sound]:
. [Direction]:
. [Distance]:
. [Phone No.]:
. [Group] (only for stored locations):
. [Entry Numbers] (only for stored locations):
Show Icon on Map:
Displays the home icon or the stored address
icon on the map.
1. Highlight [Show Icon on Map] and push .
2. The indicator illuminates when the item is set. Then the system displays the icon on
the map.
Name (only for stored locations):
Changes the name of a stored location.
1. Highlight [Name] and push .
A character input screen is displayed.
