2016 MERCEDES-BENZ GLA Owners Manual

X

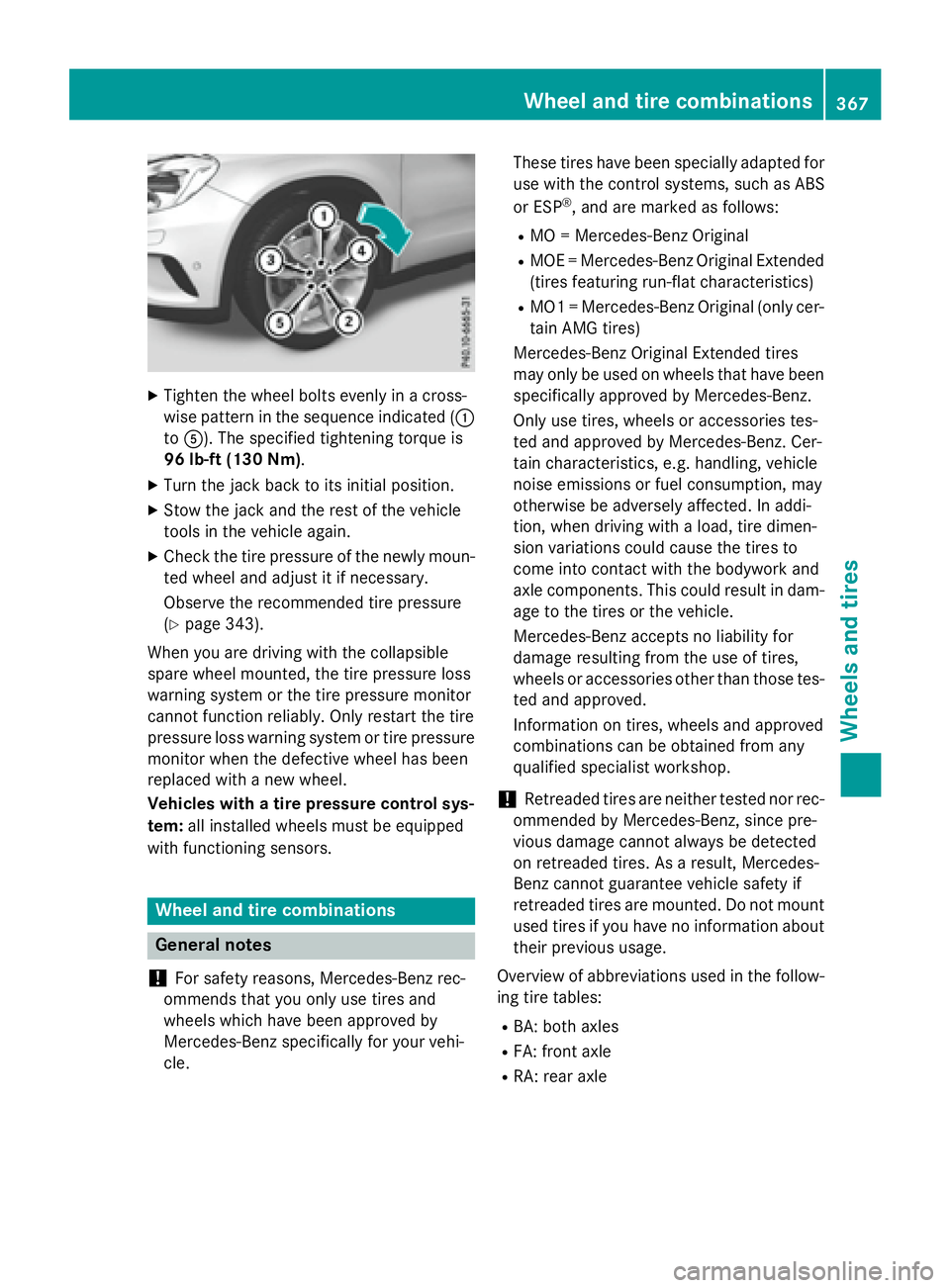

Tighten the wheel bolts evenly in a cross-
wise pattern in the sequence indicated ( C
to

The recommended pressures for various
operating conditions can be found: R
on the Tire and Loading Information placard
on the B-pillar on the driver's side R
in the tire pressure table in the fuel filler flap
Observe the notes on recommended tire
pressures under various operating conditions
( Y
page 343).
Check tire pressures regularly, and only when
the tires are cold. Comply with the mainte-
nance recommendations of the tire manufac-
turer in the vehicle document wallet.
Notes on the vehicle equipment – always
equip the vehicle with: R
with tires of the same size on a given axle
(left and right) R
the same type of tires at a given time (sum-
mer tires, winter tires, MOExtended tires)
Exception: it is permissible to install a dif-
ferent type or make in the event of a flat
tire. Observe the "MOExtended tires (tires
with run-flat characteristics" section
( Y
page 323).
Vehicles equipped with MOExtended tires are
not equipped with a TIREFIT kit at the factory.
It is therefore recommended that you addi-
tionally equip your vehicle with a TIREFIT kit if
you mount tires that do not feature run-flat
properties, e.g. winter tires. A TIREFIT kit may
be obtained from a qualified specialist work-
shop.
i Not all wheel and tire combinations are
available at the factory for all countries.
i The following pages contain information
on approved wheel rims and tire sizes for
equipping your vehicle with winter tires.
Winter tires are not available at the factory
as standard equipment or optional extras.
If you want to equip your vehicle with
approved winter tires, it may be necessary
to obtain wheel rims in the corresponding
size. The size of the approved winter tires
may differ from the standard tires. This is
dependent on the model and the equip-
ment installed at the factory. The tires and wheel rims, as well as further
information, can be obtained at a qualified
specialist workshop.368
Wheel and tire combinations

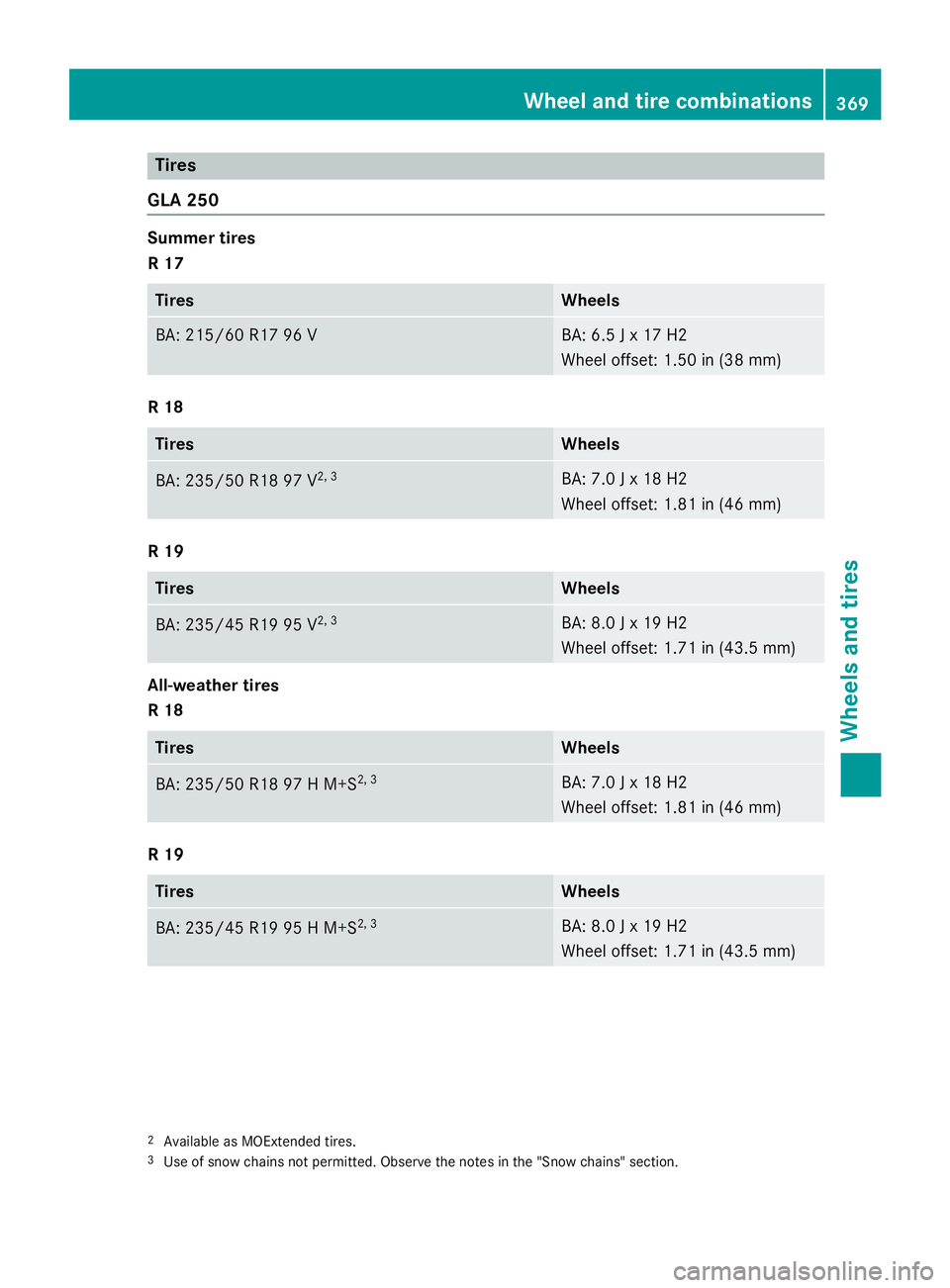

Wheels and tires

Tires
GLA 250 Summer tires
R 17
Tires Wheels
BA: 215/60 R1 7 96 V BA: 6.5 J x 17 H2
Wheel offset: 1.50 in (38 mm)
R 18
Tires Wheels
BA: 235/50 R18 97 V 2, 3
BA: 7.0 J x 18 H2
Wheel offset: 1.81 in (46 mm)
R 19
Tires Wheels
BA: 235/45 R19 95 V 2, 3
BA: 8.0 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
All-weather tires
R 18
Tires Wheels
BA: 235/50 R18 97 H M+S 2, 3
BA: 7.0 J x 18 H2
Wheel offset: 1.81 in (46 mm)
R 19
Tires Wheels
BA: 235/45 R19 95 H M+S 2, 3
BA: 8.0 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
2
Available as MOExtended tires. 3
Use of snow chains not permitted. Observe the notes in the "Snow chains" section. Wheel and tire combinations 369
Wheels and tires Z

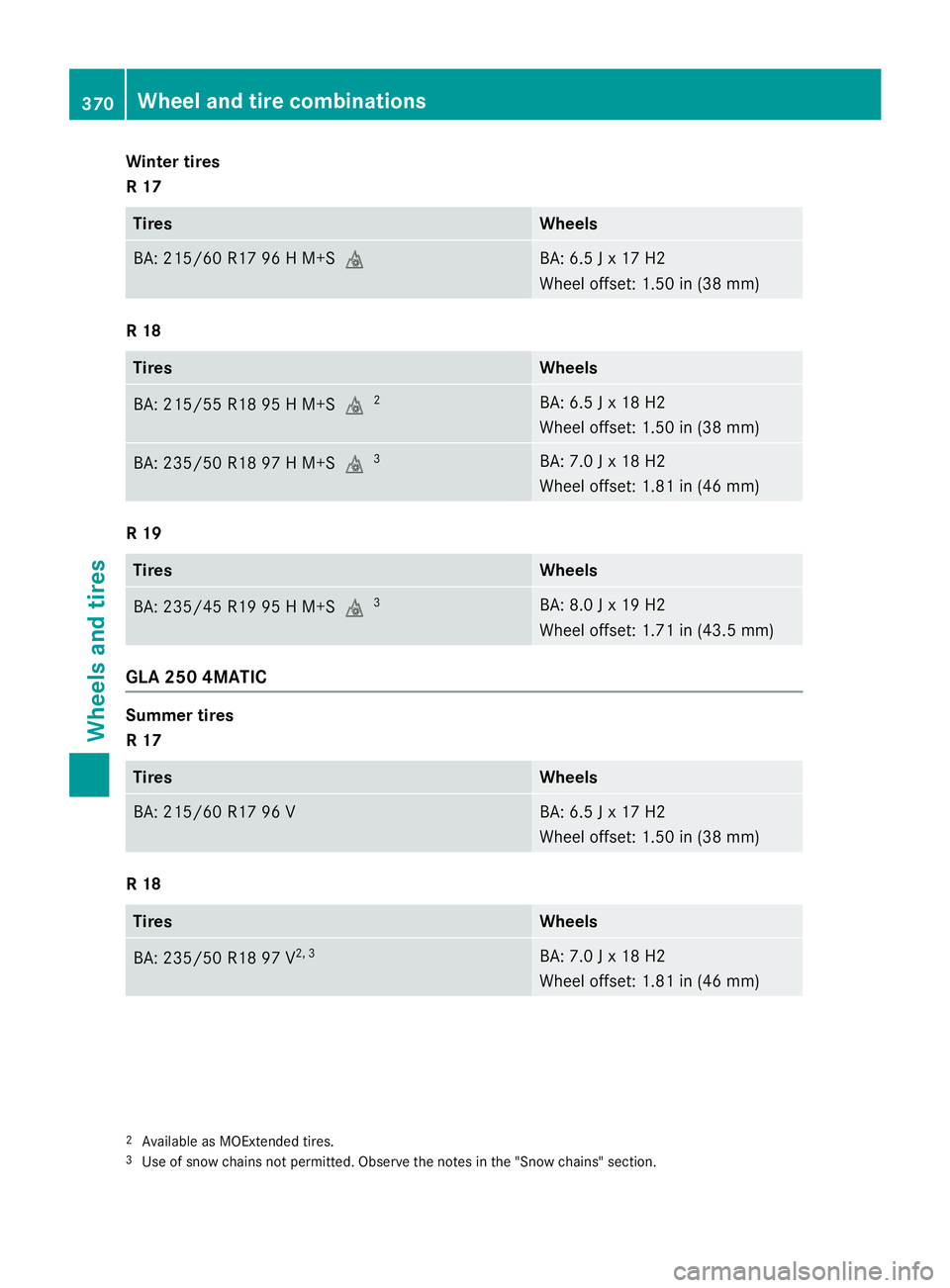

Winter tires
R 17
Tires Wheels
BA: 215/60 R17 96 H M+S M BA: 6.5 J x 17 H2
Wheel offset: 1.50 in (38 mm)
R 18
Tires Wheels
BA: 215/55 R18 95 H M+S M 2
BA: 6.5 J x 18 H2
Wheel offset: 1.50 in (38 mm)
BA: 235/50 R18 97 H M+S M 3
BA: 7.0 J x 18 H2
Wheel offset: 1.81 in (46 mm)
R 19
Tires Wheels
BA: 235/45 R19 95 H M+S M 3
BA: 8.0 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
GLA 250 4MATIC
Summer tires
R 17
Tires Wheels
BA: 215/60 R17 96 V BA: 6.5 J x 17 H2
Wheel offset: 1.50 in (38 mm)
R 18
Tires Wheels
BA: 235/50 R18 97 V 2, 3
BA: 7.0 J x 18 H2
Wheel offset: 1.81 in (46 mm)
2
Available as MOExtended tires. 3
Use of snow chains not permitted. Observe the notes in the "Snow chains" section.370
Wheel and tire combinations
Wheels and tires

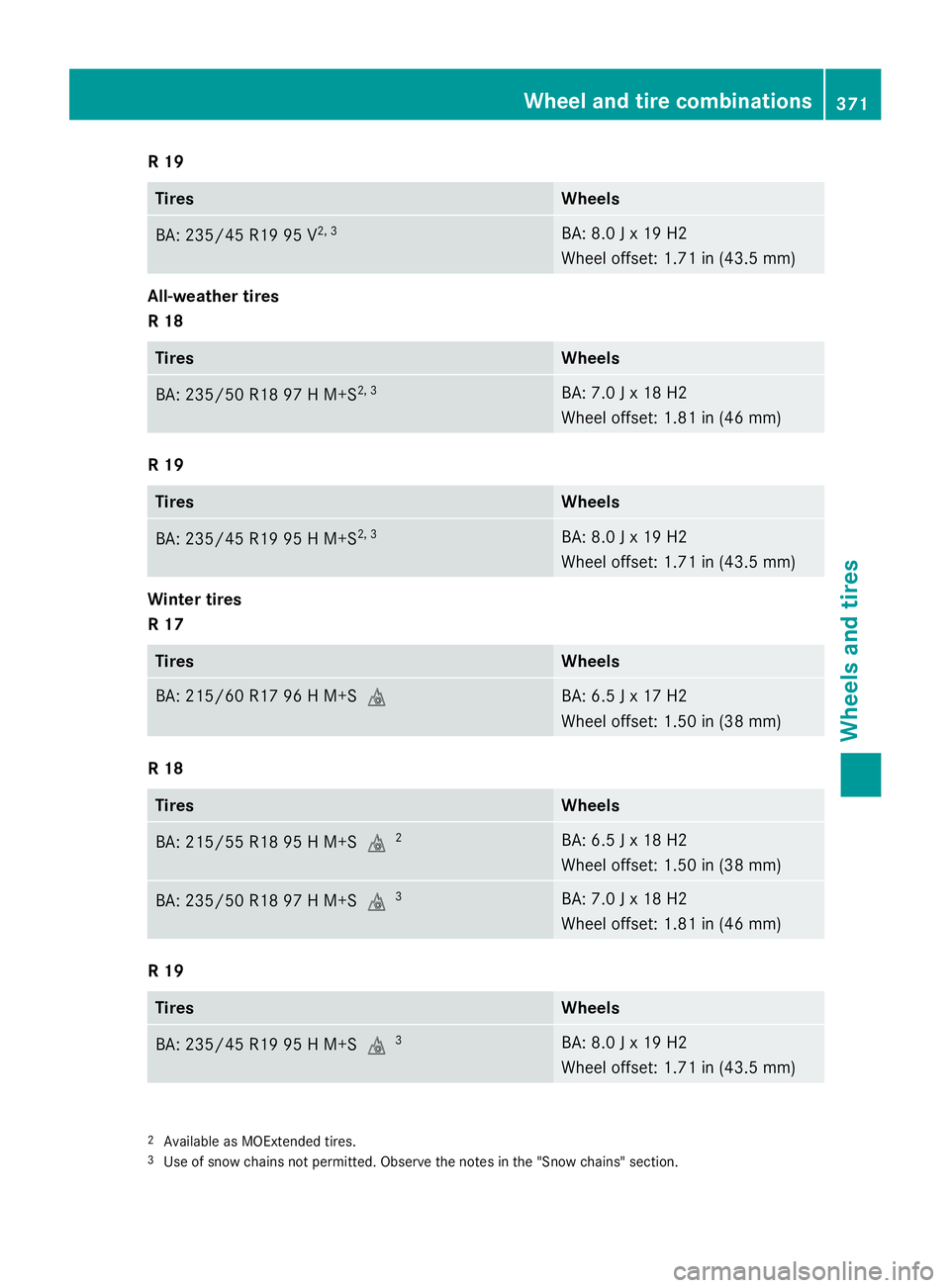

R 19
Tires Wheels
BA: 235/45 R19 95 V 2, 3
BA: 8.0 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
All-weather tires
R 18
Tires Wheels
BA: 235/50 R18 97 H M+S 2, 3
BA: 7.0 J x 18 H2
Wheel offset: 1.81 in (46 mm)
R 19
Tires Wheels
BA: 235/45 R19 95 H M+S 2, 3
BA: 8.0 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
Winter tires
R 17
Tires Wheels
BA: 215/60 R17 96 H M+S M BA: 6.5 J x 17 H2
Wheel offset: 1.50 in (38 mm)
R 18
Tires Wheels
BA: 215/55 R18 95 H M+S M 2
BA: 6.5 J x 18 H2
Wheel offset: 1.50 in (38 mm)
BA: 235/50 R18 97 H M+S M 3
BA: 7.0 J x 18 H2
Wheel offset: 1.81 in (46 mm)
R 19
Tires Wheels
BA: 235/45 R19 95 H M+S M 3
BA: 8.0 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
2
Available as MOExtended tires. 3
Use of snow chains not permitted. Observe the notes in the "Snow chains" section. Wheel and tire combinations 371
Wheels and tires Z

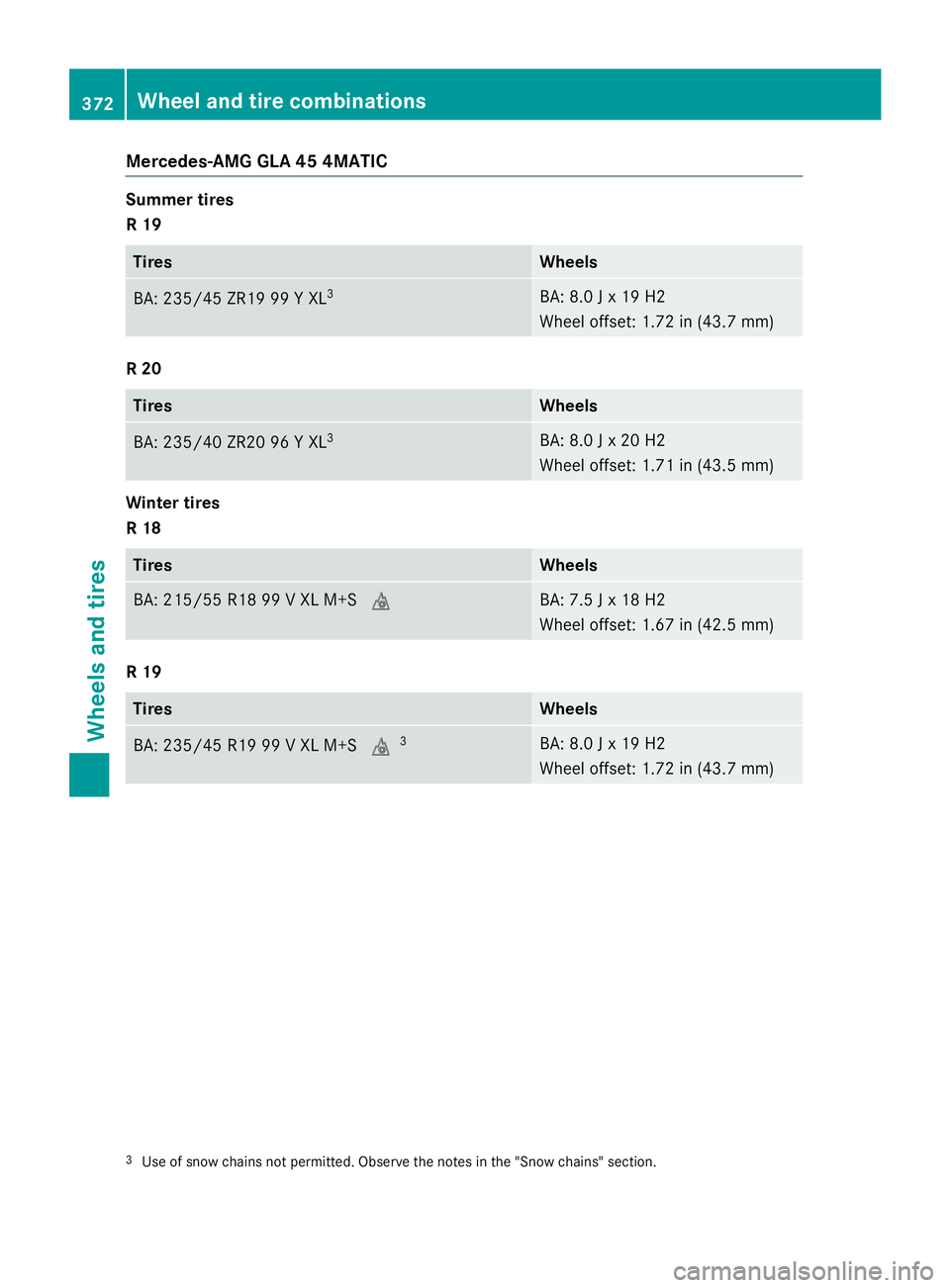

Mercedes-AMG GLA 45 4MATIC Summer tires
R 19
Tires Wheels
BA: 235/45 ZR19 99 Y XL 3
BA: 8.0 J x 19 H2
Wheel offset: 1.72 in (43.7 mm)
R 20
Tires Wheels
BA: 235/40 ZR20 96 Y XL 3
BA: 8.0 J x 20 H2
Wheel offset: 1.71 in (43.5 mm)
Winter tires
R 18
Tires Wheels
BA: 215/55 R18 99 V XL M+S M BA: 7.5 J x 18 H2
Wheel offset: 1.67 in (42.5 mm)
R 19
Tires Wheels
BA: 235/45 R19 99 V XL M+S M 3
BA: 8.0 J x 19 H2
Wheel offset: 1.72 in (43.7 mm)
3
Use of snow chains not permitted. Observe the notes in the "Snow chains" section.372
Wheel and tire combinations
Wheels and tires

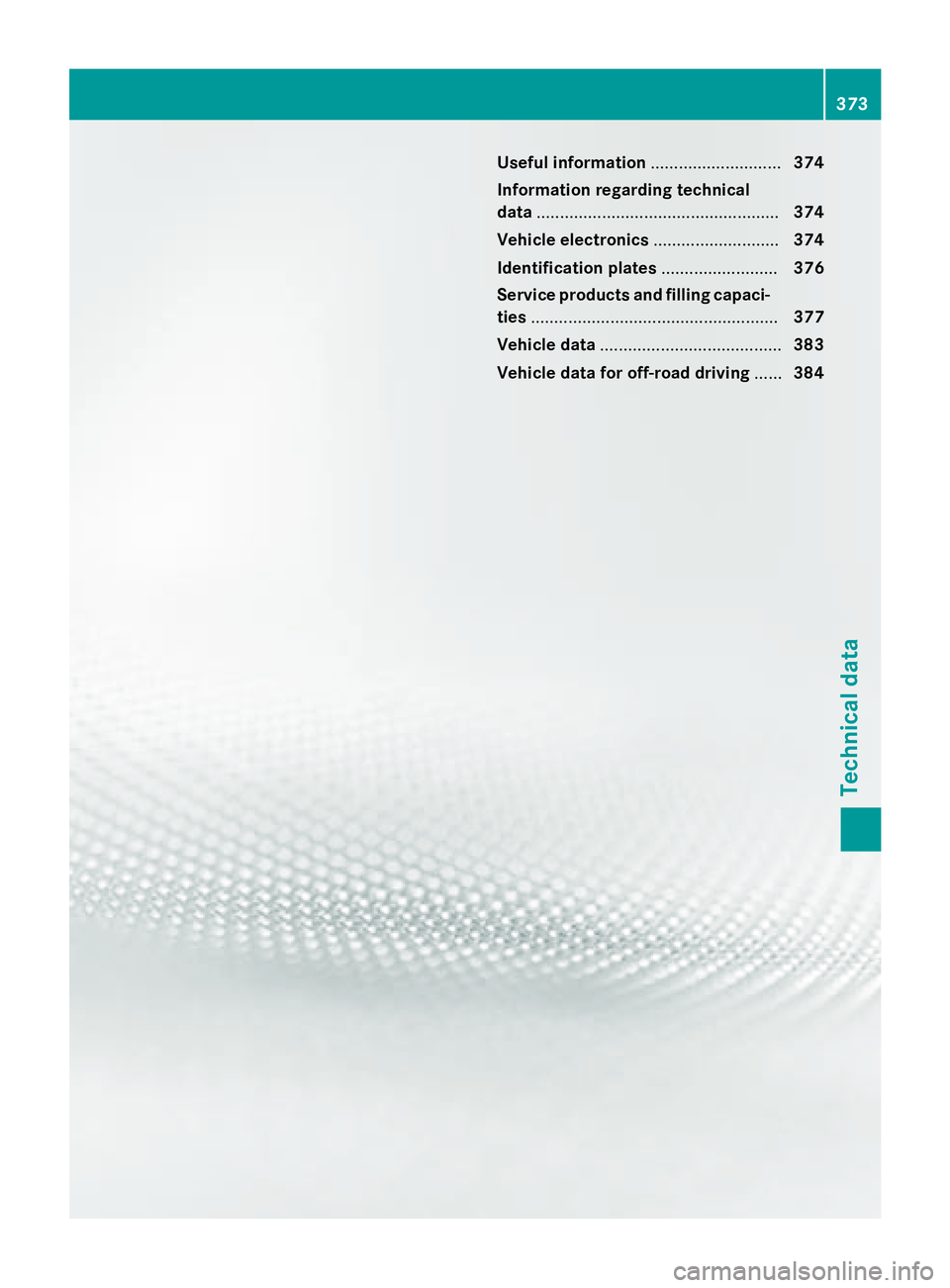

Useful information ............................ 374
Information regarding technical
data .................................................... 374
Vehicle electronics ........................... 374
Identification plates ......................... 376
Service products and filling capaci-
ties ..................................................... 377
Vehicle data ....................................... 383
Vehicle data for off-road driving ...... 384 373
Technical data

Useful information
i This Operator's Manual describes all
models and all standard and optional equip-
ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
i Read the information on qualified special-
ist workshops ( Y
page 25).
Information regarding technical data
i The data stated here specifically refers to
a vehicle with standard equipment. Consult
an authorized Mercedes-Benz Center for
the data for all vehicle variants and trim
levels.
Vehicle electronics
Retrofitting two-way radios and
mobile phones (RF transmitters)
G WARNING
The electromagnetic radiation from modified
or incorrectly retrofitted RF-transmitters can
interfere with the vehicle electronics. This can
compromise the operational safety of the
vehicle. There is a risk of an accident.
You should have all work to electrical and
electronic equipment carried out at a qualified
specialist workshop. G WARNING
The electromagnetic radiation from incor-
rectly operated RF transmitters can interfere
with the vehicle electronics, for example: R
if the RF transmitter is not connected with
an exterior antenna R
the exterior antenna has been installed
incorrectly or is not a low-reflection type
This can compromise the operational safety
of the vehicle. There is a risk of an accident.
Have the low-reflection exterior antenna
mounted at a qualified specialist workshop.
When operating RF transmitters in the vehi-
cle, always connect them with the low-reflec-
tion exterior antenna.
! The operating permit may be invalidated if
the instructions for installation and use of
RF transmitters are not observed.
In particular, the following conditions must
be complied with: R
only approved wavebands may be used. R
compliance with the maximum permissi-
ble output in these wavebands is
required. R
only approved antenna positions may be
used.
Excessive levels of electromagnetic radiation
may cause damage to your health and the
health of others. Using an exterior antenna
takes into account current scientific discus-
sions relating to the possible health hazards
that may result from electromagnetic fields.374
Vehicle electronics
Technical data
