2016 MERCEDES-BENZ GLA Owners Manual

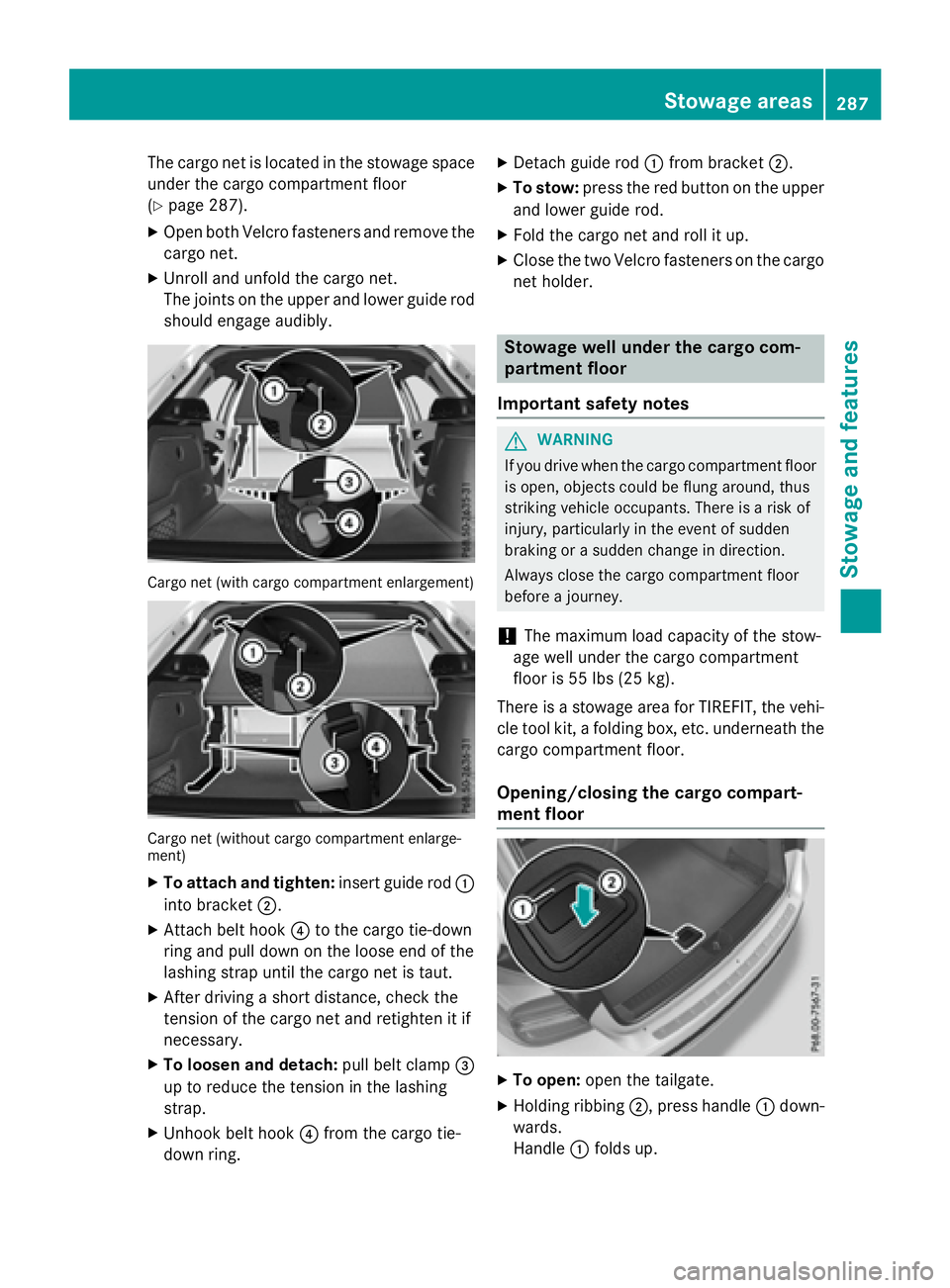

The cargo net is located in the stowage space
under the cargo compartment floor
( Y
page 287). X
Open both Velcro fasteners and remove the
cargo net. X
Unroll and unfold the cargo net.
The joints on the upper and lower guide rod
should engage audibly.
Cargo net (with cargo compartment enlargement)
Cargo net (without cargo compartment enlarge-
ment) X
To attach and tighten: insert guide rod C
into bracket D .X
Attach belt hook

X

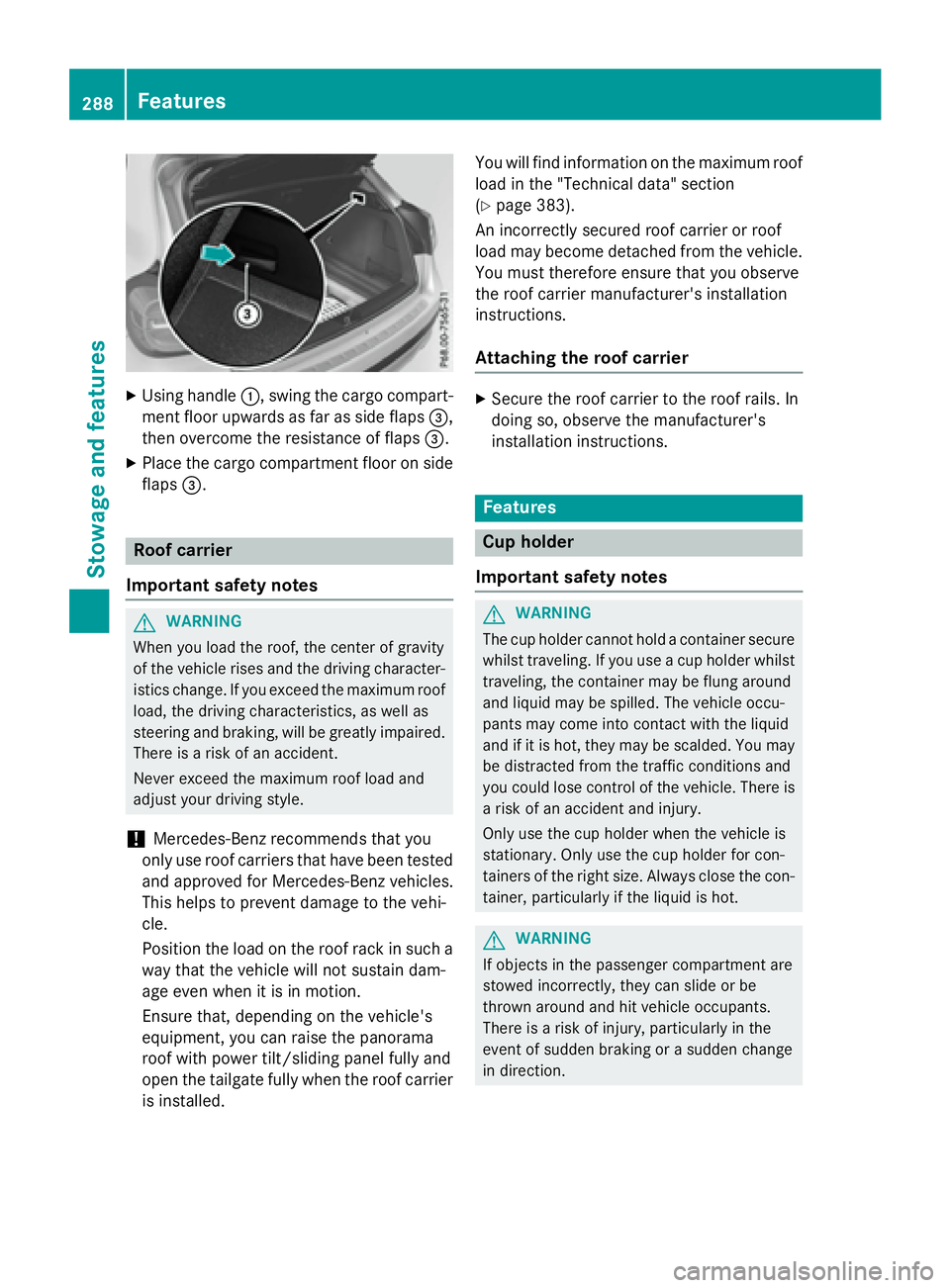

Using handle C , swing the cargo compart-
ment floor upwards as far as side flaps

R
Always stow objects so that they cannot be
thrown around in such situations. R
Always make sure that objects do not pro-
trude from stowage spaces, parcel nets or
stowage nets. R
Close the lockable stowage spaces before
starting a journey. R
Stow and secure objects that are heavy,
hard, pointed, sharp-edged, fragile or too
large in the cargo compartment.
! Only use the cup holders for containers of
the right size and which have lids. The
drinks could otherwise spill.
Observe the loading guidelines ( Y
page 280).
The stowage compartments in the doors pro-
vide space for bottles: R
front: capacity up to 34 fl. oz. (1.0 l)R
rear: capacity up to 17 fl. oz. (0.5 l)
Cup holder in the front-compartment
center console
The cup holder and the rubber mat under-
neath can be removed for cleaning. Clean
them with clean, lukewarm water only. X
To remove: carefully pull in upper sections
of cup holder C on the driver's and front-
passenger sides until they release. X
Lift the cup holder upwards D until it can
be removed. X
To install: insert cup holder into lateral
curved sections D in the stowage com-
partment. Insert the cup holder so that the
wedge of the upper section of cup
holder C faces forwards. X
Press the cup holder downwards until it
engages on the right and left-hand sides.
Cup holder in the rear seat armrest
! Do not sit on or support your body weight
on the rear seat armrest when it is folded
down, as you could otherwise damage it.
! Close the cup holder before folding the
rear seat armrest up. Otherwise, the cup
holder could be damaged.
X
Fold down the rear seat armrest. X
To open: press the front of cup holder C
or D .
Cup holder C or D extends automatically. X
To close: slide cup holder C or D back
until it engages. Features 289
Stowage and features Z

Sun visors
Overview
G WARNING
If the mirror cover of the vanity mirror is folded
up when the vehicle is in motion, you could be
blinded by incident light. There is a risk of an
accident.
Always keep the mirror cover folded down
while driving.
C
Mirror lightD
Bracket

Cigarette lighter
G WARNING
You can burn yourself if you touch the hot
heating element or the socket of the cigarette
lighter.
In addition, flammable materials can ignite if: R
the hot cigarette lighter falls R
a child holds the hot cigarette lighter to
objects, for example
There is a risk of fire and injury.
Always hold the cigarette lighter by the knob.
Always make sure that the cigarette lighter is
out of reach of children. Never leave children
unsupervised in the vehicle.
Your attention must always be focused on the
traffic conditions. Only use the cigarette
lighter when road and traffic conditions per-
mit.
X
Turn the SmartKey to position 2 in the igni-
tion lock ( Y
page 149).X
Vehicles with a stowage compartment
cover: press the lower section of cover C .
The stowage compartment opens. X
Press in cigarette lighter D .
Cigarette lighter D will pop out automati-
cally when the heating element is red-hot. 12 V sockets
General notes X
Turn the SmartKey to position 1 in the igni-
tion lock ( Y
page 149).
The sockets can be used for accessories with
a maximum draw of 180 W (15 A). Accesso-
rie s include suc h item s as charger s fo r mobile
phones.
If you use th e sockets fo r lon g period s whe n
th e engin e is switched off, th e battery may
discharge.
An emergency cut-out ensures that th e on -
boar d voltage doe s no t drop to o low. If th e on -
boar d voltage is to o low, th e power to th e
sockets is automatically cut . Thi s ensures
that ther e is sufficien t power to start th e
engine.
Socket in th e front-co mpartment center
console
X
Vehicles with a stowage compartment
cover: press the lower section of cover C .
The stowage compartment opens. X
Lift up the cover of socket D .Features 291
Sto wag e an d features Z

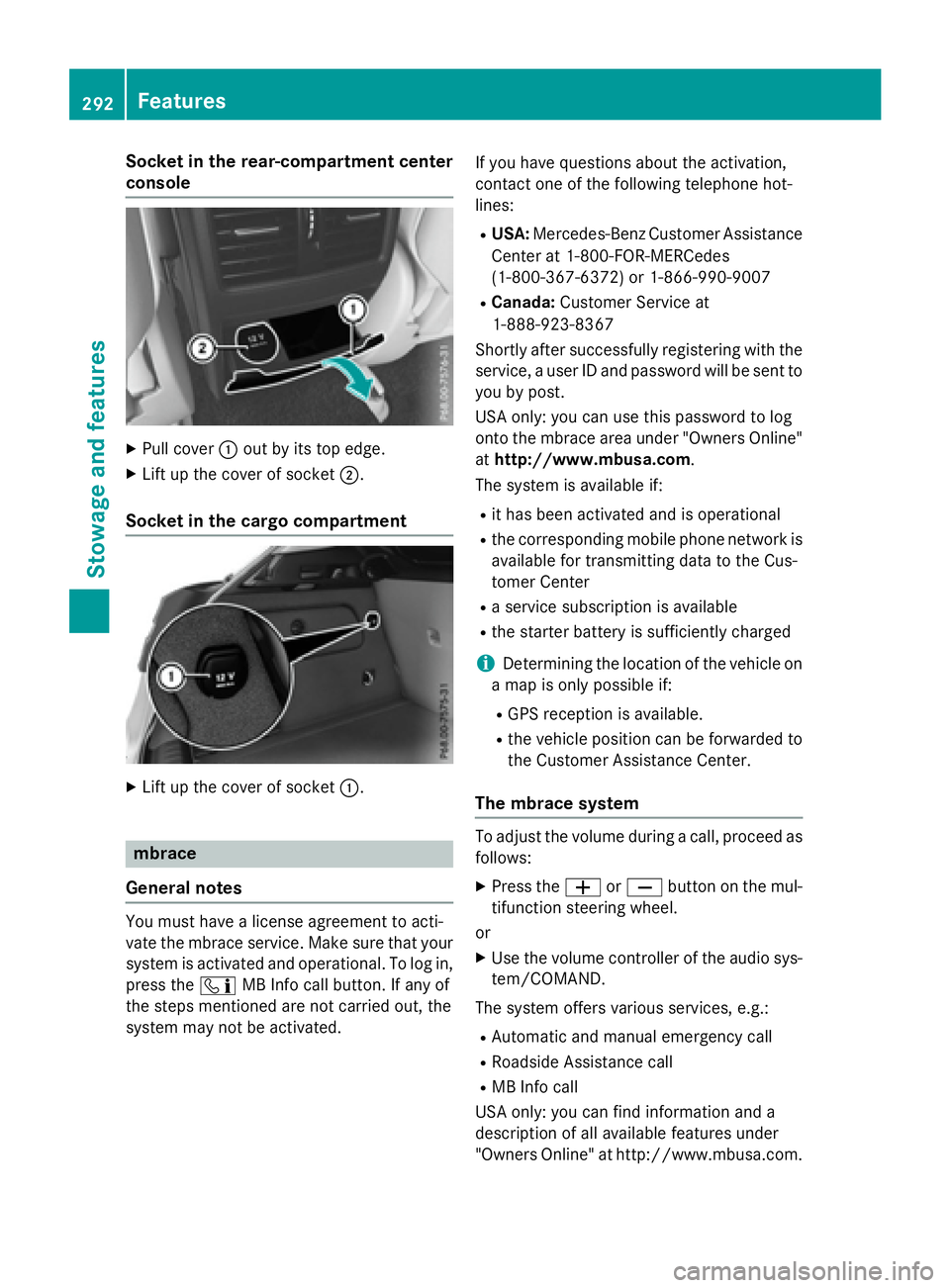

Socket in the rear-compartment center
console X
Pull cover C out by its top edge.X
Lift up the cover of socket D .
Socket in the cargo compartment
X
Lift up the cover of socket C .
mbrace
General notes
You must have a license agreement to acti-
vate the mbrace service. Make sure that your
system is activated and operational. To log in,
press the

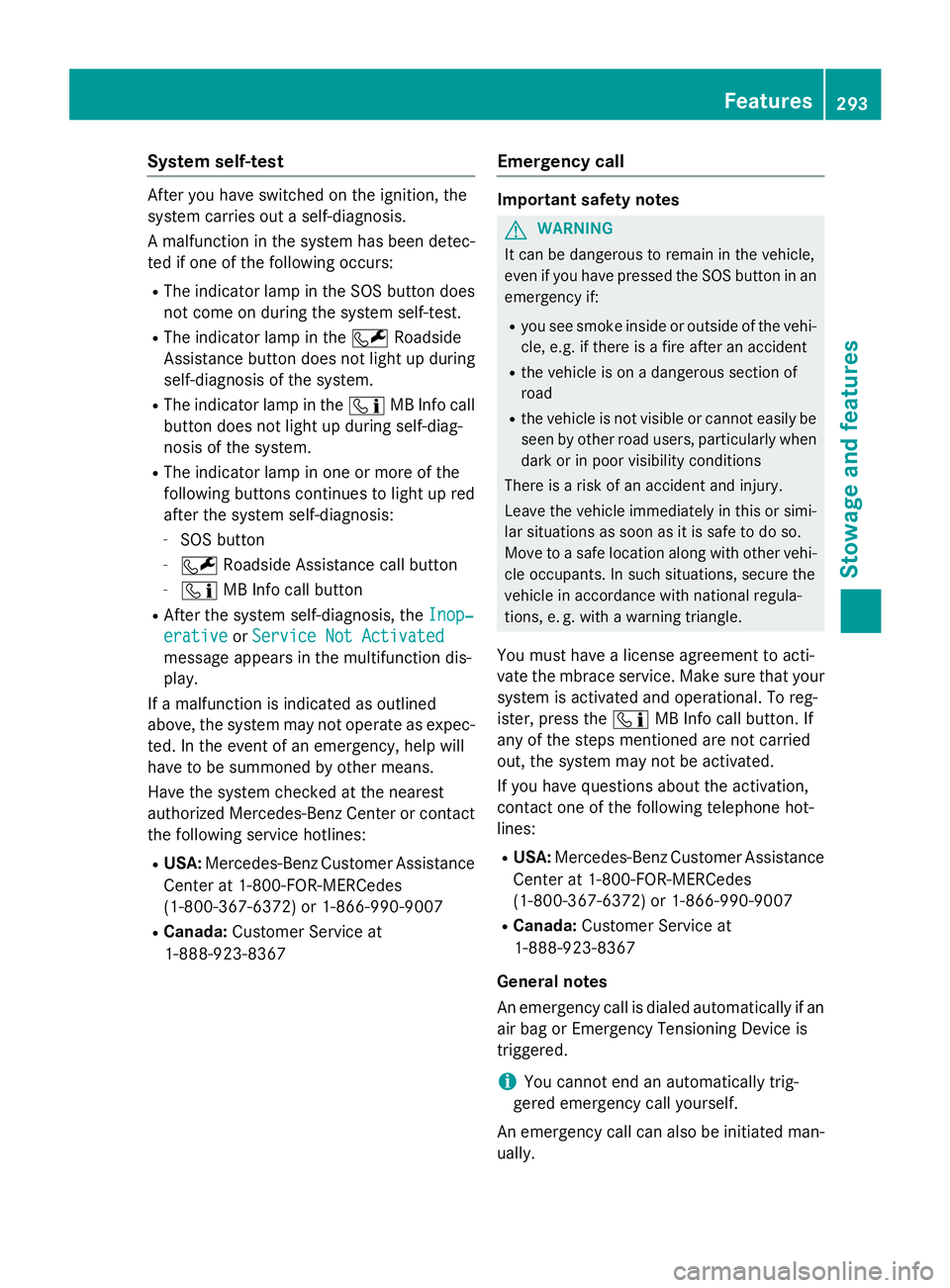

System self-test After you have switched on the ignition, the
system carries out a self-diagnosis.
A malfunction in the system has been detec-
ted if one of the following occurs: R
The indicator lamp in the SOS button does
not come on during the system self-test. R
The indicator lamp in the R Roadside
Assistance button does not light up during
self-diagnosis of the system. R
The indicator lamp in the

As soon as the emergency call has been ini-
tiated, the indicator lamp in the SOS button
flashes. The multifunction display shows the
Connecting Call message.
The audio output is muted.
Once the connection has been made, the
Call Connected
message appears in the
multifunction display.
All important information on the emergency is
transmitted, for example: R
current location of the vehicle (as deter-
mined by the GPS system) R
vehicle identification number R
information on the severity of the accident
Shortly after the emergency call has been ini-
tiated, a voice connection is automatically
established between the Customer Assis-
tance Center and the vehicle occupants. R
If the vehicle occupants respond, the
Mercedes-Benz Customer Assistance Cen-
ter attempts to get more information on the
emergency. R
If there is no response from the vehicle
occupants, an ambulance is immediately
sent to the vehicle.
If no voice connection can be established to
the Mercedes-Benz Customer Assistance
Center, the system has been unable to initiate
an emergency call.
This can occur, for example, if the relevant
mobile phone network is not available. The
indicator lamp in the SOS button flashes con-
tinuously.
The Call Failed message appears in the
multifunction display and must be confirmed.
In this case, summon assistance by other
means. Making an emergency call X
To initiate an emergency call manually:
press cover C briefly to open. X
Press SOS button D briefly.
The indicator lamp in SOS button D
flashes until the emergency call is conclu-
ded. X
Wait for a voice connection to the
Mercedes-Benz Customer Assistance Cen-
ter. X
After the emergency call, close cover C .
i If the mobile phone network is unavaila-
ble, mbrace will not be able to make the
emergency call. If you leave the vehicle
immediately after pressing the SOS button,
you will not know whether mbrace placed
the emergency call. In this case, always
summon assistance by other means.
Roadside Assistance button
X
Press Roadside Assistance button C .
This initiates a call to the Mercedes-Benz
Customer Assistance Center.294
Features
Sto wag e an d features
