2016 MERCEDES-BENZ GLA Owners Manual

Opening and closing manually
Opening X
Press the 6 button on the key.X
Pull handle C .X
Raise the tailgate.
Closing
X
Pull the tailgate down using handle C .X
Allow the tailgate to drop into the lock. X
Lock the vehicle if necessary with the 7
button on the SmartKey or with KEYLESS-
GO.
Opening/closing automatically from
outside
Important safety notes
G WARNING
Parts of the body could become trapped dur-
ing automatic closing of the tailgate. More-
over, people, e.g. children, may be standing in the closing area or may enter the closing area
during the closing process. There is a risk of
injury.
Make sure that nobody is in the vicinity of the
closing area during the closing process.
Use one of the following options to stop the
closing process: R
press the T button on the SmartKey. R
pull or press the remote operating switch
on the driver's door. R
press the close button or STOP button on
the tailgate. R
pull the handle on the tailgate.
G WARNING
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. If the tailgate
is open when the engine is running, particu-
larly if the vehicle is moving, exhaust fumes
could enter the passenger compartment.
There is a risk of poisoning.
Turn off the engine before opening the tail-
gate. Never drive with the tailgate open.
! The tailgate swings upwards and to the
rear when opened. Therefore, make sure
that there is sufficient clearance above and
behind the tailgate.
Two warning tones sound while the tailgate is
opening or closing.
The opening dimensions of the tailgate can be
found in the "Vehicle data" section
( Y
page 383).
Opening automatically
You can open the tailgate automatically with
the SmartKey or the handle in the tailgate. X
Press and hold the T button on the key
until the tailgate opens.
or X
If the tailgate is unlocked, pull the handle
and let it go again immediately.Cargo compartment 87
Opening and closing Z

Closing automatically Vehicles with EASY-PACK tailgate: you can
also close the tailgate automatically from out-
side.
For exa mple , vehicle s wit h KEYLESS-GOX
To close: press button C on the tailgate.
or X
Vehicles with EASY-PACK tailgate and
KEYLESS-GO or KEYLESS-GO start func-
tion: if the key is located in the immediate
vicinity of the vehicle, press the T but-
ton on the key.
You can release the button as soon as the
tailgate starts to close.
Vehicles with EASY-PACK tailgate and
KEYLESS-GO: when the driver's door is
closed you can simultaneously close the tail-
gate and lock the vehicle. The KEYLESS-GO
key must be in the rear detection range of the
vehicle. X
To close the tailgate and lock the vehi-
cle: press locking button D on the tailgate.
If a SmartKey is detected outside the vehi-
cle within the rear detection range of KEY-
LESS-GO, the tailgate closes.
The vehicle is locked. X
To stop the closing process : press but-
ton C on the tailgate again.
or X
Pull the handle in the tailgate.
or X
Press the T button on the key until the
tailgate stops. or X
Press or pull the remote operating switch
on the driver's door.
Opening/closing automatically from
inside
Important safety notes
G WARNING
Parts of the body could become trapped dur-
ing automatic closing of the tailgate. More-
over, people, e.g. children, may be standing in
the closing area or may enter the closing area
during the closing process. There is a risk of
injury.
Make sure that nobody is in the vicinity of the
closing area during the closing process.
Use one of the following options to stop the
closing process: R
press the T button on the SmartKey. R
pull or press the remote operating switch
on the driver's door. R
press the closing or locking button on the
tailgate. R
pull the handle on the tailgate
G WARNING
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. If the tailgate
is open when the engine is running, particu-
larly if the vehicle is moving, exhaust fumes
could enter the passenger compartment.
There is a risk of poisoning.
Turn off the engine before opening the tail-
gate. Never drive with the tailgate open.
! The tailgate swings upwards and to the
rear when opened. Therefore, make sure
that there is sufficient clearance above and
behind the tailgate.
Two warning tones sound while the tailgate is
opening or closing.88
Cargo compartment
Opening and closing

The opening dimensions of the tailgate can be
found in the "Vehicle data" section
( Y
page 383).
Opening and closing automatically You can open the tailgate from the driver's
seat when the vehicle is stationary and
unlocked.
It is only possible to close the tailgate from
the driver's seat on vehicles with the EASY-
PACK tailgate.
X
To open: pull remote operating switch for
the tailgate C until the tailgate opens.X
To close: turn the SmartKey to position 1
or 2 in the ignition lock ( Y
page 149).X
Press and hold remote operating switch for
the tailgate C until the tailgate is com-
pletely closed.
Limiting the opening angle of the tail-
gate
General notes
! Make sure there is sufficient clearance to
open the tailgate fully when setting the
opening angle. The tailgate could otherwise
be damaged. Ideally, set the opening angle
outside.
You can limit the opening angle of the tail-
gate. This could be useful, for example, if
there is insufficient space above the tailgate.
It is possible to limit the tailgate in the top half
of its opening range. To open the tailgate fully, pull the handle on
the outside of the tailgate again after it has
stopped automatically. This does not delete
the stored position.
Activating X
To open the tailgate: pull the handle on
the tailgate. X
To stop the opening process at the
desired position: R
press the closing button in the tailgate, or R
pull the handle on the outside of the tail-
gate again, or R
press the tailgate button on the key. X
To store the position: press and hold the
closing button in the tailgate until two short
tones sound.
The opening angle limiter is activated. The
tailgate will now stop in the stored position
when opening.
Deactivating X
Press and hold the closing button in the
tailgate until you hear a short tone.
Emergency release
General notes
! The tailgate swings upwards and to the
rear when opened. Therefore, make sure
that there is sufficient clearance above and
behind the tailgate.
The opening dimensions of the tailgate can be
found in the "Vehicle data" section
( Y
page 383).
If the tailgate can no longer be unlocked: R
using the SmartKey, or R
using the remote operating switch in the
door control panel:
Use the emergency release on the inside of
the tailgate.Cargo compartment 89
Opening and closing Z

You can reach the emergency release via the
cargo compartment.
Opening X
Fold the rear seat backrest forwards
( Y
page 284). X
Take the mechanical key out of the Smart-
Key ( Y
page 79).X
Insert mechanical key D into opening C
in the trim and push it in. X
Open the tailgate. X
Insert the mechanical key into the Smart-
Key ( Y
page 79).
Side windows
Important safety notes
G WARNING
While opening the side windows, body parts
could become trapped between the side win-
dow and the door frame as the side window
moves. There is a risk of injury.
Make sure that nobody touches the side win-
dow during the opening procedure. If some-
body becomes trapped, release the switch or
pull the switch to close the side window again.
G WARNING
While closing the side windows, body parts in
the closing area could become trapped. There
is a risk of injury.
When closing make sure that no parts of the
body are in the closing area. If somebody becomes trapped, release the switch or press
the switch to open the side window again.
G WARNING
If children operate the side windows they
could become trapped, particularly if they are
left unsupervised. There is a risk of injury.
Activate the override feature for the rear side
windows. When leaving the vehicle, always
take the SmartKey with you and lock the vehi-
cle. Never leave children unsupervised in the
vehicle.
Side window reversing feature The side windows are equipped with an auto-
matic reversing feature. If a solid object
blocks or restricts a side window from trav-
eling upwards during the automatic closing
process, the side window opens again auto-
matically. During the manual closing process,
the side window only opens again automati-
cally after the corresponding switch is
released. The automatic reversing feature is
only an aid and is no substitute for your atten-
tion when closing a side window.
G WARNING
The reversing feature does not react: R
to soft, light and thin objects, e.g. small fin-
gers R
while resetting
This means that the reversing feature cannot
prevent someone being trapped in these sit-
uations. There is a risk of injury.
Make sure that no body parts are in close
proximity during the closing procedure. If
someone becomes trapped, press the switch
to open the side window again.90
Side windows
Opening and closing

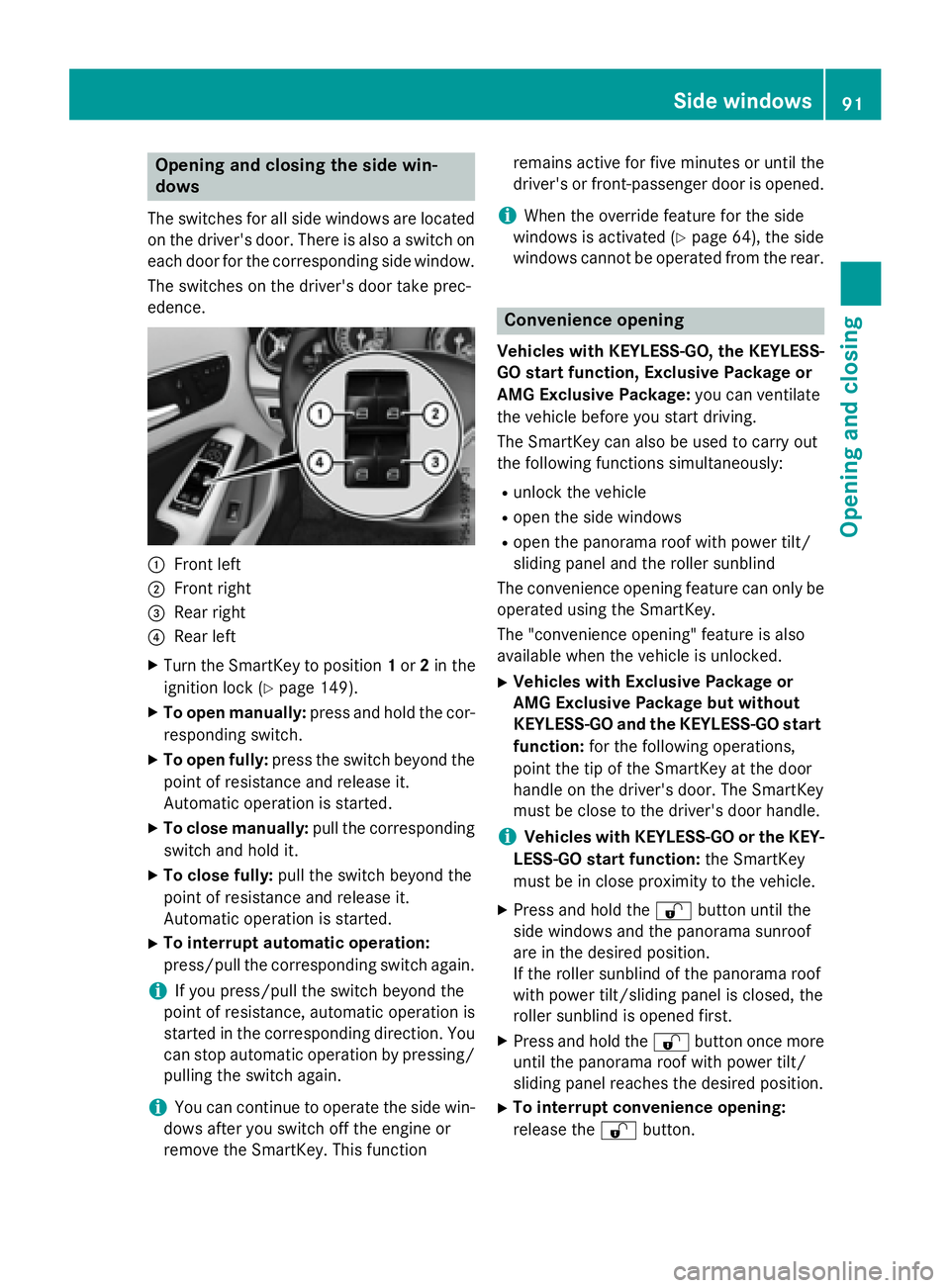

Opening and closing the side win-
dows The switches for all side windows are located
on the driver's door. There is also a switch on
each door for the corresponding side window.
The switches on the driver's door take prec-
edence.
C
Front leftD
Front right

Convenience closing feature
Important safety notes
G WARNING
When the convenience closing feature is oper-
ating, parts of the body could become trapped
in the closing area of the side window and the
sliding sunroof. There is a risk of injury.
Observe the complete closing procedure
when the convenience closing feature is oper-
ating. Make sure that no body parts are in
close proximity during the closing procedure.
Vehicles with KEYLESS-GO, the KEYLESS-
GO start function, Exclusive Package or
AMG Exclusive Package: at the same time
you can: R
lock the vehicle R
close the side windows R
close the panorama roof with power tilt/
sliding panel
On vehicles with a panorama roof with power
tilt/sliding panel, you can then close the
roller sunblind.
i Notes on the automatic reversing feature
for: R
the side window ( Y
page 90)R
the panorama roof with power tilt/slid-
ing panel ( Y
page 95)R
the roller sunblind ( Y
page 97)
Using the SmartKey X
Vehicles with Exclusive Package or
AMG Exclusive Package but without
KEYLESS-GO and the KEYLESS-GO start
function: for the following operations,
point the tip of the SmartKey at the door
handle on the driver's door. The SmartKey
must be close to the driver's door handle.
i Vehicles with KEYLESS-GO or the KEY-
LESS-GO start function: the SmartKey
must be in close proximity to the vehicle. X
Press and hold the 7 button until the
side windows and the panorama roof with
power tilt/sliding panel are fully closed. X
Make sure that all the side windows and the
panorama roof with power tilt/sliding
panel are closed.
On vehicles with a panorama roof with power
tilt/sliding panel: X
Press and hold the 7 button again until
the roller sunblind of the panorama roof
with power tilt/sliding panel closes. X
To interrupt convenience closing:
release the 7 button.
Using KEYLESS-GO The driver's door and the door at which the
handle is used, must both be closed. The
SmartKey must be outside the vehicle. The
gap between the SmartKey and the corre-
sponding door handle should not be greater
than 3 ft (1 m).
X
Touch recessed sensor surface C on the
door handle until the side windows and the
panorama roof with power tilt/sliding
panel are fully closed.
i Make sure you only touch recessed sen-
sor surface C . X
Make sure that all the side windows are
closed. X
Make sure that all the side windows and the
panorama roof with power tilt/sliding
panel are closed.92
Side windows
Opening and closing

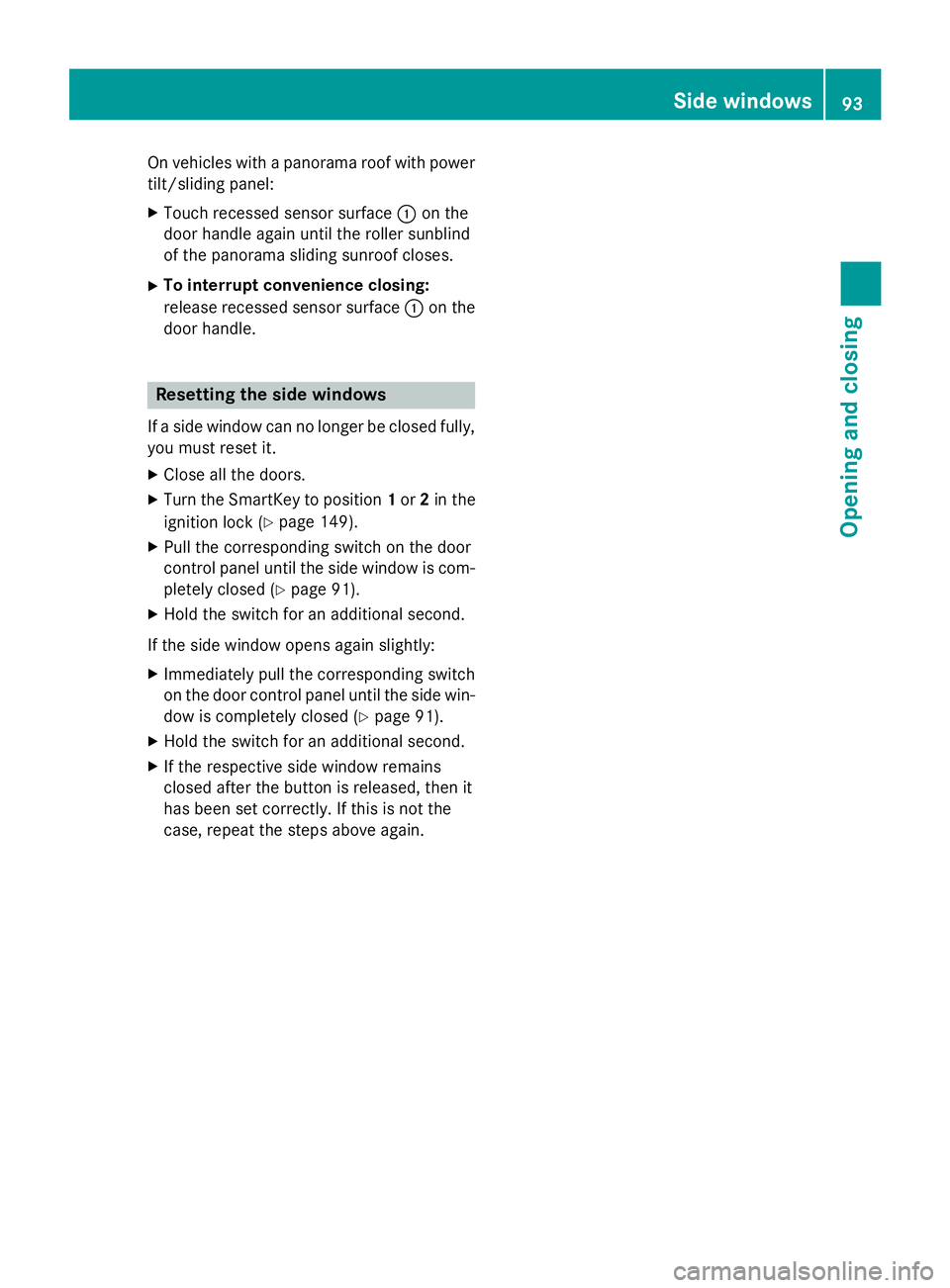

On vehicles with a panorama roof with power
tilt/sliding panel: X
Touch recessed sensor surface C on the
door handle again until the roller sunblind
of the panorama sliding sunroof closes. X
To interrupt convenience closing:
release recessed sensor surface C on the
door handle.
Resetting the side windows If a side window can no longer be closed fully,
you must reset it. X
Close all the doors. X
Turn the SmartKey to position 1 or 2 in the
ignition lock ( Y
page 149).X
Pull the corresponding switch on the door
control panel until the side window is com-
pletely closed ( Y
page 91).X
Hold the switch for an additional second.
If the side window opens again slightly: X
Immediately pull the corresponding switch
on the door control panel until the side win-
dow is completely closed ( Y
page 91).X
Hold the switch for an additional second. X
If the respective side window remains
closed after the button is released, then it
has been set correctly. If this is not the
case, repeat the steps above again. Side windows 93
Opening and closing Z

Problems with the side windows
G WARNING
If you close a side window again immediately after it has been blocked or reset, the side window
closes with increased or maximum force. The reversing feature is then not active. Parts of the
body could be trapped in the closing area in the process. This poses an increased risk of injury or
even fatal injury.
Make sure that no parts of the body are in the closing area. To stop the closing process, release
the switch or push the switch again to reopen the side window.
Problem
Possible causes/consequences and P Solutions
A side window cannot
be closed because it is
blocked by objects, e.g.
leaves in the window
guide. X
Remove the objects. X
Close the side window.
A side window cannot
be closed and you can-
not see the cause. If a side window is obstructed during closing and reopens again
slightly: X
Immediately after the window blocks, pull the corresponding
switch again until the side window has closed.
The side window is closed with increased force.
If a side window is obstructed again during closing and reopens
again slightly: X
Immediately after the window blocks, pull the corresponding
switch again until the side window has closed.
The side window is closed without the anti-entrapment feature.
Panorama roof with power tilt/sliding
panel
Important safety notes
In the following section, the term "sliding sun-
roof" refers to the panorama roof with power
tilt/sliding panel.
G WARNING
While opening and closing the sliding sunroof,
body parts in close proximity could become
trapped. There is a risk of injury.
Make sure that no body parts are in close
proximity during the opening and closing pro-
cedures. If somebody becomes trapped: R
release the switch immediately, or R
during automatic operation, push the
switch briefly in any direction
The opening or closing procedure will be stop-
ped.
G WARNING
If children operate the sliding sunroof they
could become trapped, particularly if they are
left unsupervised. There is a risk of injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children unsupervised in the vehicle.94
Panorama roof with power tilt/sliding panel
Opening and closing
