backrest back. Otherwise, it could be dam-
aged.
X
Move the driver's or front-passenger seat
forward if necessary. X
Fold rear seat backrest C back until it
engages.
If the rear seat backrest is not engaged and
locked, this will be shown in the multifunction
display in the instrument cluster. A warning
tone also sounds. X
Move the driver's or front-passenger seat
back if necessary.
i You should always engage the rear seat
backrests if you do not need the through-
loading feature. This will prevent unauthor-
ized access to the trunk from the vehicle inte-
rior.

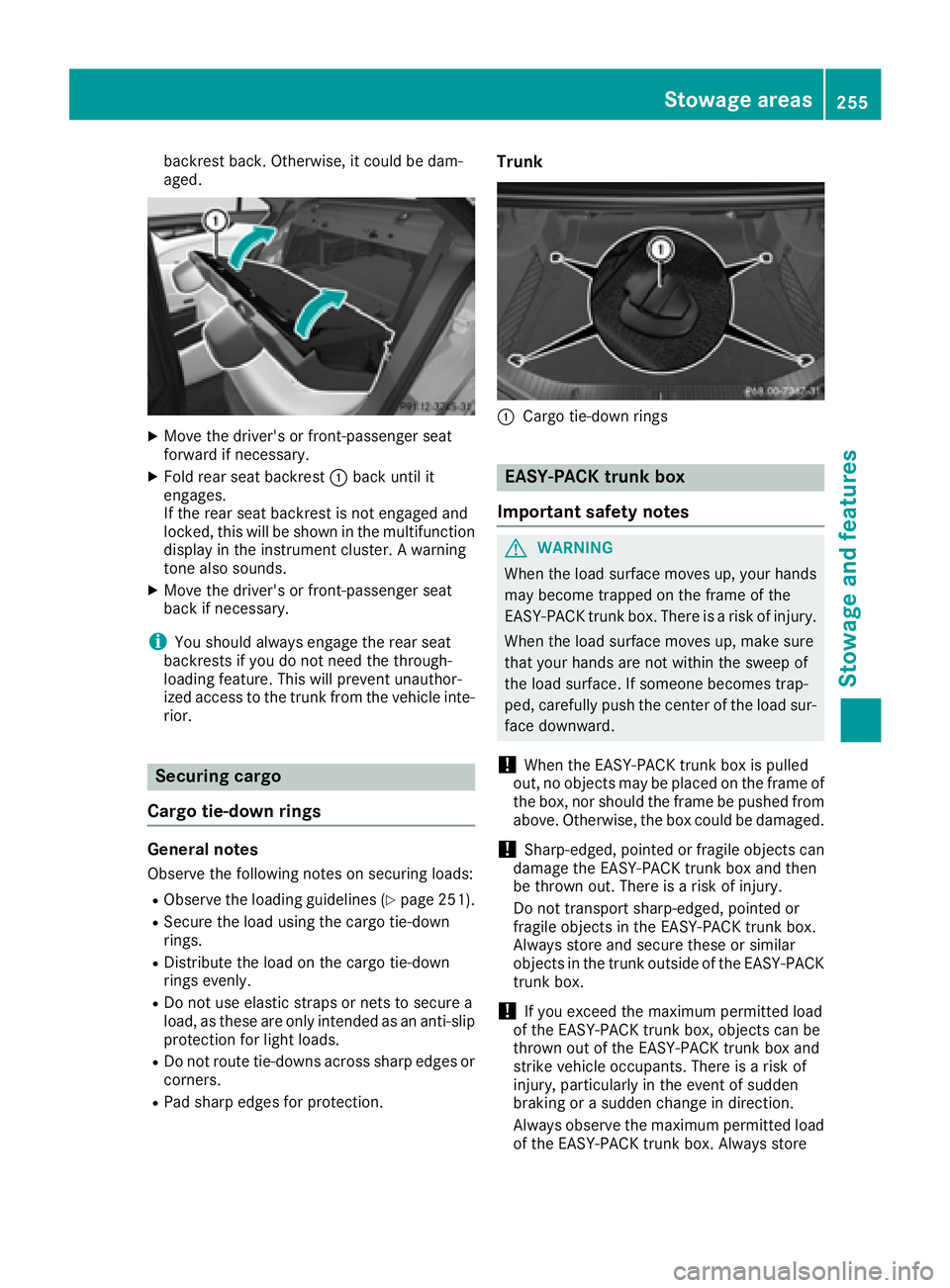

Securing cargo
Cargo tie-down rings
General notes
Observe the following notes on securing loads: R
Observe the loading guidelines ( Y
page 251).R
Secure the load using the cargo tie-down
rings. R
Distribute the load on the cargo tie-down
rings evenly. R
Do not use elastic straps or nets to secure a
load, as these are only intended as an anti-slip
protection for light loads. R
Do not route tie-downs across sharp edges or
corners. R
Pad sharp edges for protection. Trunk
C
Cargo tie-down rings
EASY-PACK trunk box
Important safety notes
G WARNING
When the load surface moves up, your hands
may become trapped on the frame of the
EASY-PACK trunk box. There is a risk of injury.
When the load surface moves up, make sure
that your hands are not within the sweep of
the load surface. If someone becomes trap-
ped, carefully push the center of the load sur-
face downward.
! When the EASY-PACK trunk box is pulled
out, no objects may be placed on the frame of
the box, nor should the frame be pushed from
above. Otherwise, the box could be damaged.
! Sharp-edged, pointed or fragile objects can
damage the EASY-PACK trunk box and then
be thrown out. There is a risk of injury.
Do not transport sharp-edged, pointed or
fragile objects in the EASY-PACK trunk box.
Always store and secure these or similar
objects in the trunk outside of the EASY-PACK
trunk box.
! If you exceed the maximum permitted load
of the EASY-PACK trunk box, objects can be
thrown out of the EASY-PACK trunk box and
strike vehicle occupants. There is a risk of
injury, particularly in the event of sudden
braking or a sudden change in direction.
Always observe the maximum permitted load
of the EASY-PACK trunk box. Always storeStowage areas 255
Stowage and features Z

and secure heavy objects in the trunk outside
of the EASY-PACK trunk box.

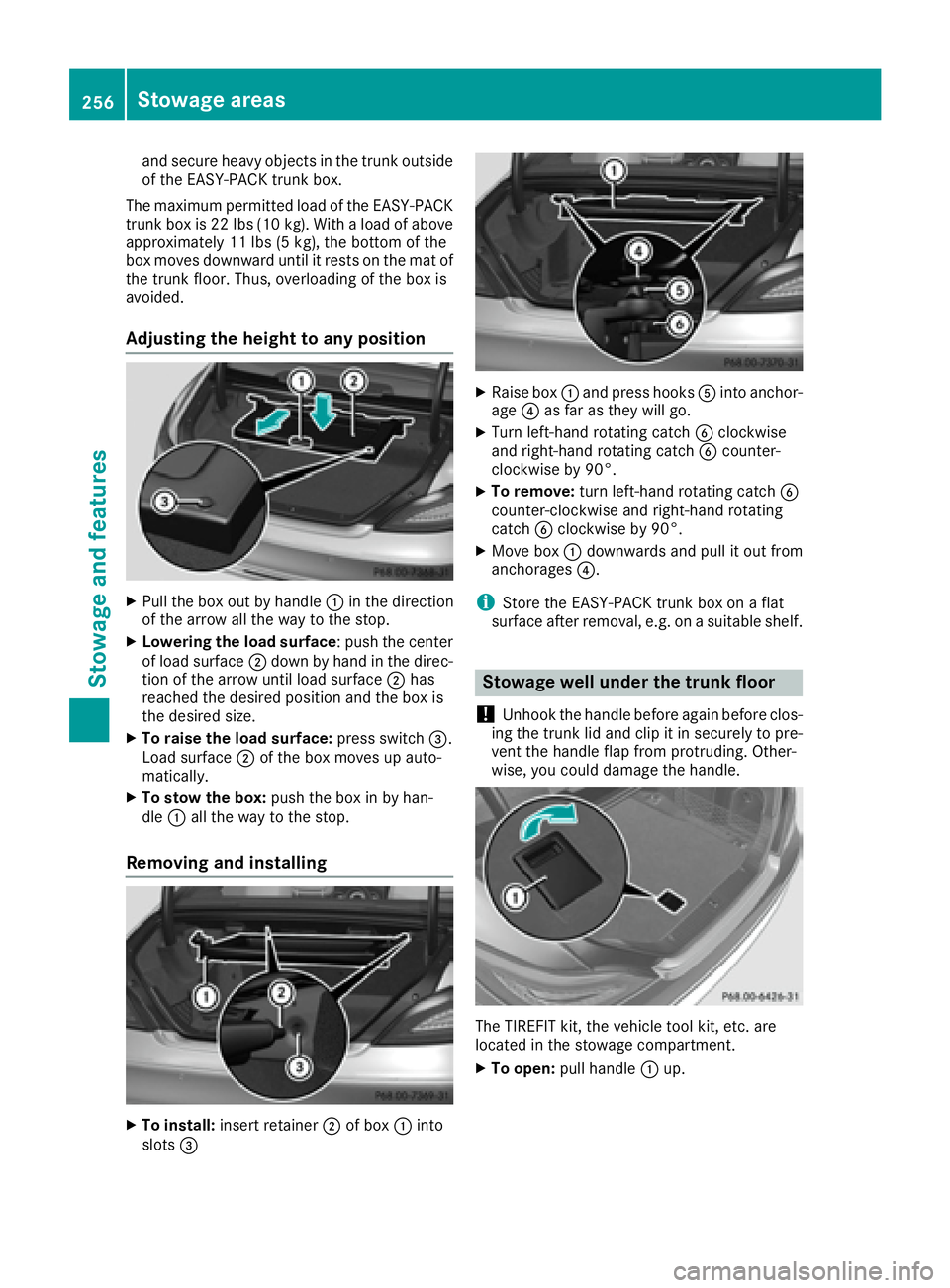

The maximum permitted load of the EASY-PACK
trunk box is 22 lbs (10 kg). With a load of above
approximately 11 lbs (5 kg), the bottom of the
box moves downward until it rests on the mat of
the trunk floor. Thus, overloading of the box is
avoided.
Adjusting the height to any position X
Pull the box out by handle C in the direction
of the arrow all the way to the stop. X
Lowering the load surface : push the center
of load surface D down by hand in the direc-
tion of the arrow until load surface D has
reached the desired position and the box is
the desired size. X
To raise the load surface: press switch

X
Hook handle C into rain trough D .

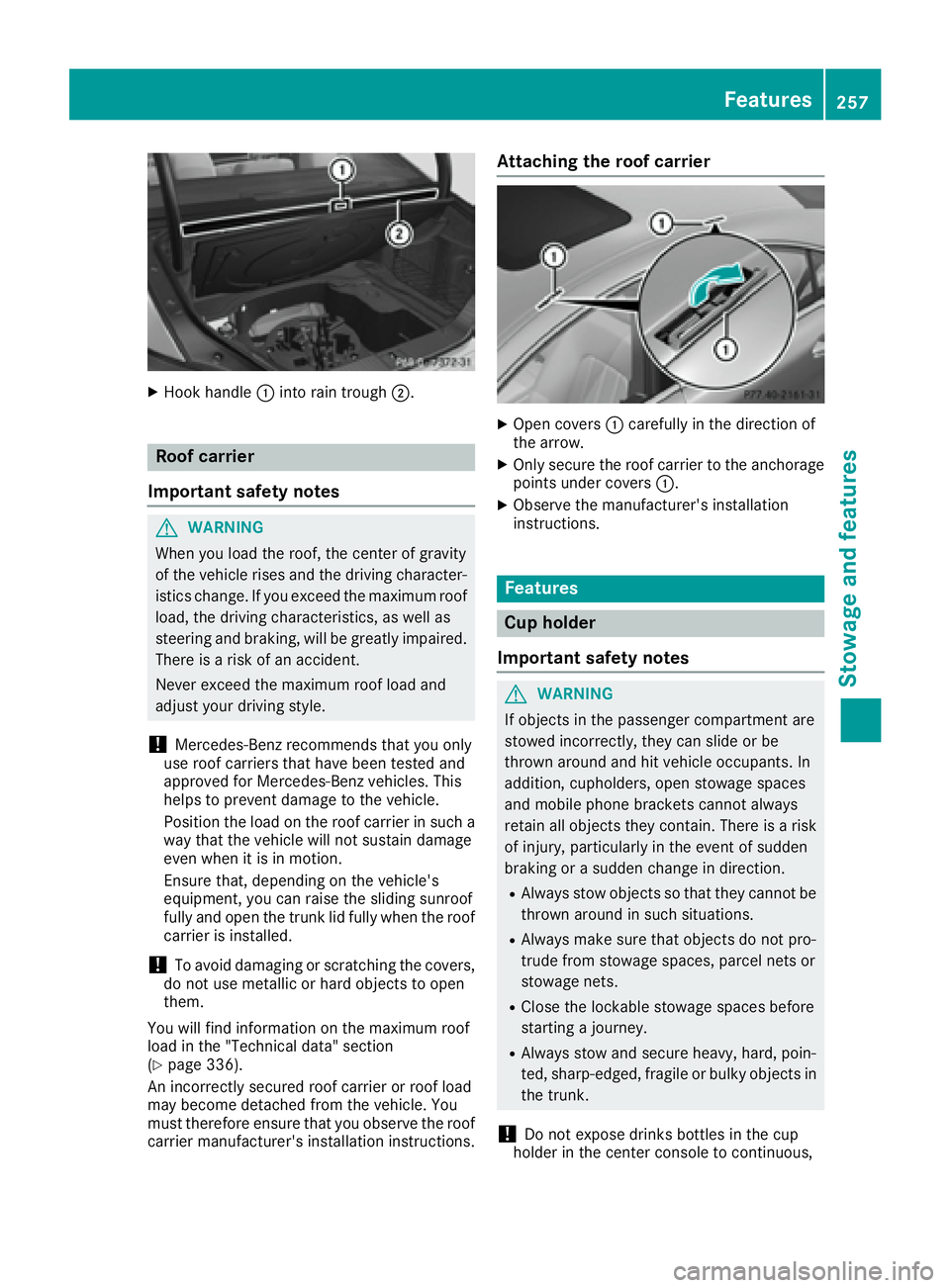

Roof carrier
Important safety notes
G WARNING
When you load the roof, the center of gravity
of the vehicle rises and the driving character-
istics change. If you exceed the maximum roof
load, the driving characteristics, as well as
steering and braking, will be greatly impaired.
There is a risk of an accident.
Never exceed the maximum roof load and
adjust your driving style.
! Mercedes-Benz recommends that you only
use roof carriers that have been tested and
approved for Mercedes-Benz vehicles. This
helps to prevent damage to the vehicle.
Position the load on the roof carrier in such a
way that the vehicle will not sustain damage
even when it is in motion.
Ensure that, depending on the vehicle's
equipment, you can raise the sliding sunroof
fully and open the trunk lid fully when the roof
carrier is installed.
! To avoid damaging or scratching the covers,
do not use metallic or hard objects to open
them.
You will find information on the maximum roof
load in the "Technical data" section
( Y
page 336).
An incorrectly secured roof carrier or roof load
may become detached from the vehicle. You
must therefore ensure that you observe the roof
carrier manufacturer's installation instructions. Attaching the roof carrier X
Open covers C carefully in the direction of
the arrow. X
Only secure the roof carrier to the anchorage
points under covers C .X
Observe the manufacturer's installation
instructions.
Features
Cup holder
Important safety notes
G WARNING
If objects in the passenger compartment are
stowed incorrectly, they can slide or be
thrown around and hit vehicle occupants. In
addition, cupholders, open stowage spaces
and mobile phone brackets cannot always
retain all objects they contain. There is a risk
of injury, particularly in the event of sudden
braking or a sudden change in direction. R
Always stow objects so that they cannot be
thrown around in such situations. R
Always make sure that objects do not pro-
trude from stowage spaces, parcel nets or
stowage nets. R
Close the lockable stowage spaces before
starting a journey. R
Always stow and secure heavy, hard, poin-
ted, sharp-edged, fragile or bulky objects in
the trunk.
! Do not expose drinks bottles in the cup
holder in the center console to continuous, Features 257
Stowage and features Z

strong and direct sunlight. The passenger
compartment in the area of the center con-
sole can otherwise be damaged by the con-
centrated and reflected sunlight.
Observe the loading guidelines ( Y
page 251).

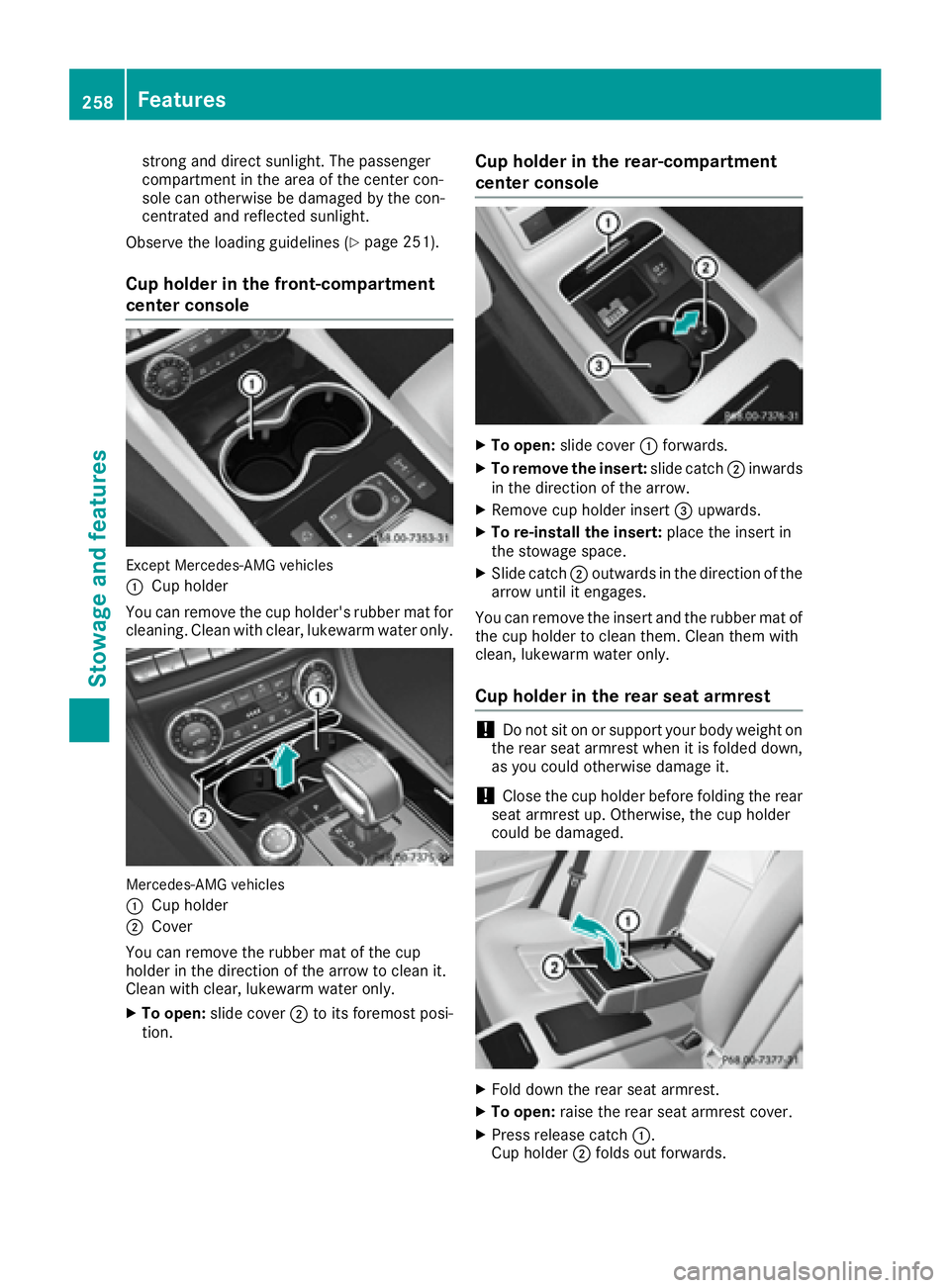

Cup holder in the front-compartment
center console
Except Mercedes-AMG vehicles
C
Cup holder
You can remove the cup holder's rubber mat for
cleaning. Clean with clear, lukewarm water only.
Mercedes-AMG vehicles
C
Cup holderD
Cover
You can remove the rubber mat of the cup
holder in the direction of the arrow to clean it.
Clean with clear, lukewarm water only. X
To open: slide cover D to its foremost posi-
tion. Cup holder in the rear-compartment
center console X
To open: slide cover C forwards.X
To remove the insert: slide catch D inwards
in the direction of the arrow. X
Remove cup holder insert

X
Swing the rear seat armrest cover back down,
if necessary. X
To close: raise the rear seat armrest cover.
Swing cup holder D back until it engages.

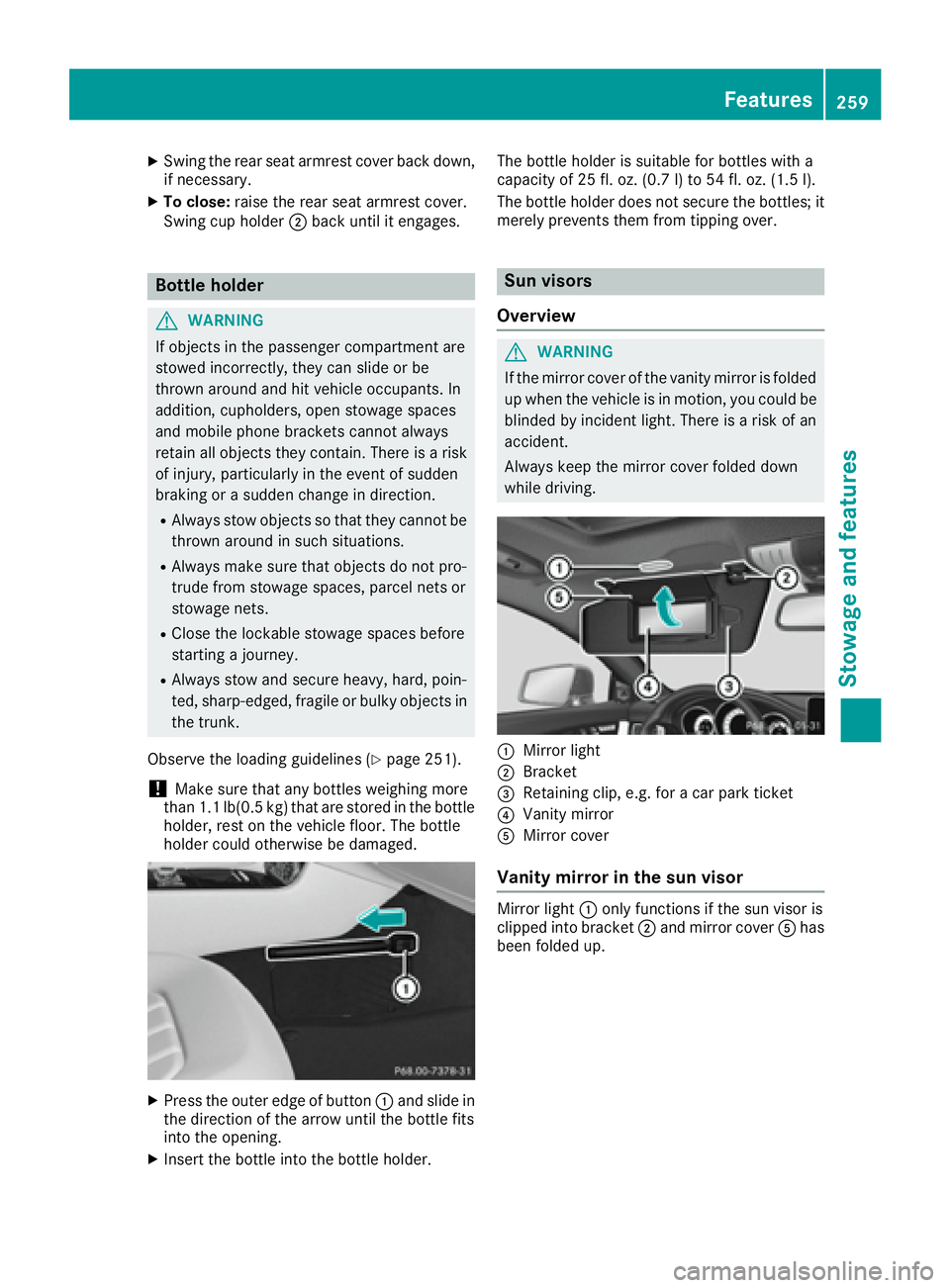

Bottle holder
G WARNING
If objects in the passenger compartment are
stowed incorrectly, they can slide or be
thrown around and hit vehicle occupants. In
addition, cupholders, open stowage spaces
and mobile phone brackets cannot always
retain all objects they contain. There is a risk
of injury, particularly in the event of sudden
braking or a sudden change in direction. R
Always stow objects so that they cannot be
thrown around in such situations. R
Always make sure that objects do not pro-
trude from stowage spaces, parcel nets or
stowage nets. R
Close the lockable stowage spaces before
starting a journey. R
Always stow and secure heavy, hard, poin-
ted, sharp-edged, fragile or bulky objects in
the trunk.
Observe the loading guidelines ( Y
page 251).
! Make sure that any bottles weighing more
than 1.1 lb(0.5 kg) that are stored in the bottle
holder, rest on the vehicle floor. The bottle
holder could otherwise be damaged.
X
Press the outer edge of button C and slide in
the direction of the arrow until the bottle fits
into the opening. X
Insert the bottle into the bottle holder. The bottle holder is suitable for bottles with a
capacity of 25 fl. oz. (0.7 l) to 54 fl. oz. (1.5 l).
The bottle holder does not secure the bottles; it
merely prevents them from tipping over.
Sun visors
Overview
G WARNING
If the mirror cover of the vanity mirror is folded
up when the vehicle is in motion, you could be
blinded by incident light. There is a risk of an
accident.
Always keep the mirror cover folded down
while driving.
C
Mirror light D
Bracket

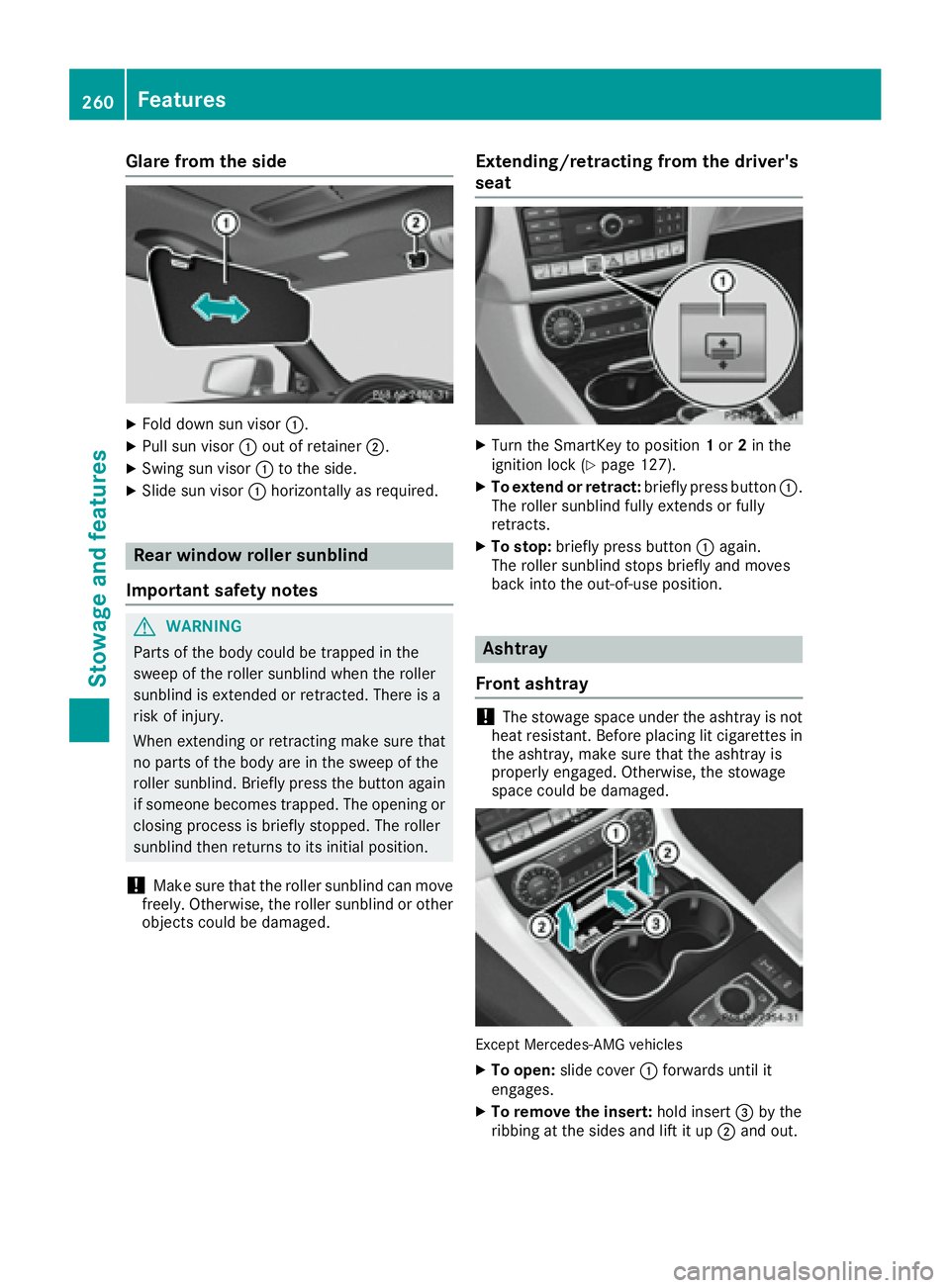

Glare from the side X
Fold down sun visor C .X
Pull sun visor C out of retainer D .X
Swing sun visor C to the side.X
Slide sun visor C horizontally as required.
Rear window roller sunblind
Important safety notes
G WARNING
Parts of the body could be trapped in the
sweep of the roller sunblind when the roller
sunblind is extended or retracted. There is a
risk of injury.
When extending or retracting make sure that
no parts of the body are in the sweep of the
roller sunblind. Briefly press the button again
if someone becomes trapped. The opening or
closing process is briefly stopped. The roller
sunblind then returns to its initial position.
! Make sure that the roller sunblind can move
freely. Otherwise, the roller sunblind or other
objects could be damaged. Extending/retracting from the driver's
seat X
Turn the SmartKey to position 1 or 2 in the
ignition lock ( Y
page 127). X
To extend or retract: briefly press button C .
The roller sunblind fully extends or fully
retracts. X
To stop: briefly press button C again.
The roller sunblind stops briefly and moves
back into the out-of-use position.
Ashtray
Front ashtray
! The stowage space under the ashtray is not
heat resistant. Before placing lit cigarettes in
the ashtray, make sure that the ashtray is
properly engaged. Otherwise, the stowage
space could be damaged.
Except Mercedes-AMG vehicles X
To open: slide cover C forwards until it
engages. X
To remove the insert: hold insert

X

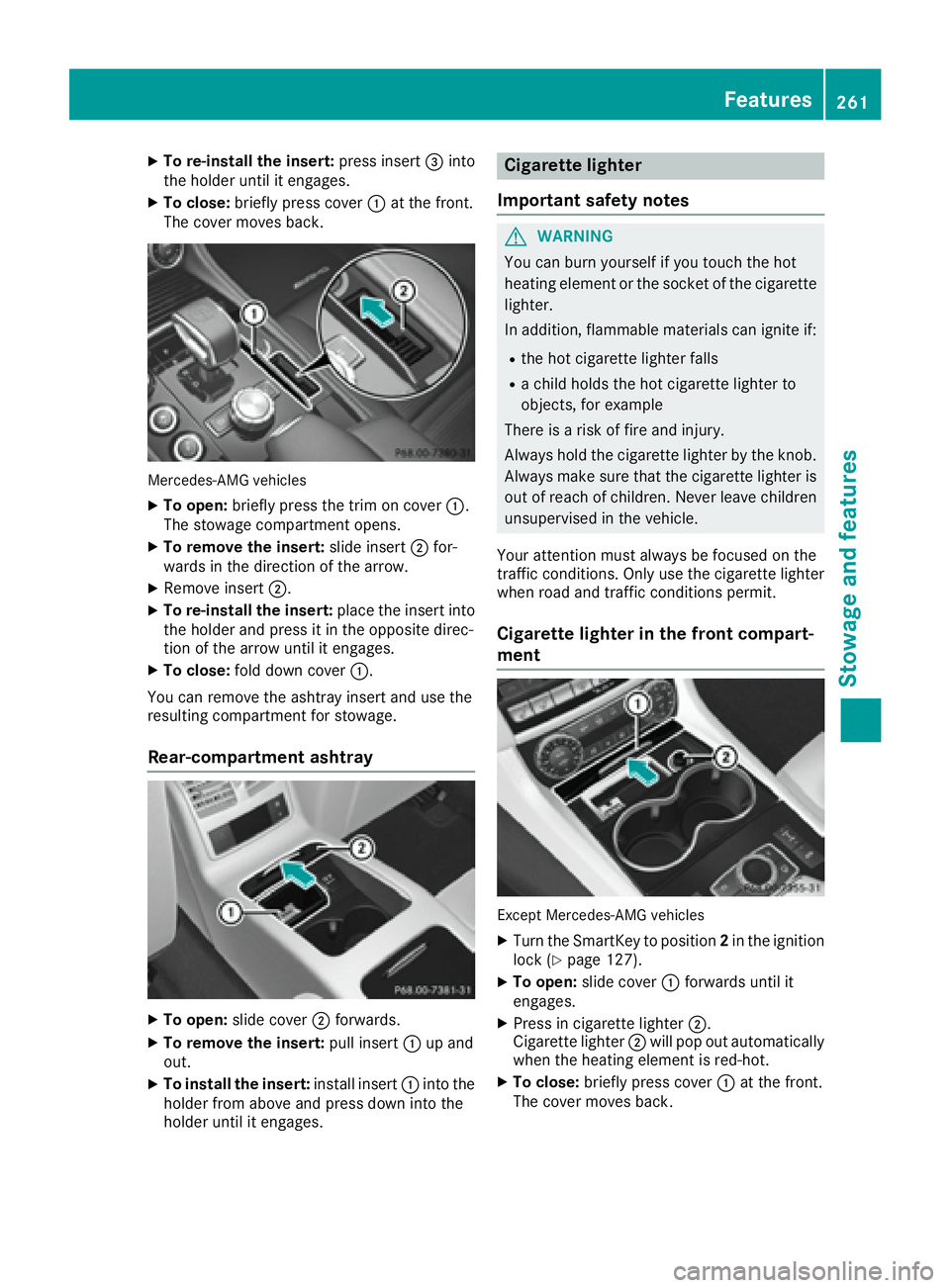

To re-install the insert: press insert

Mercedes-AMG vehicles X
Turn the SmartKey to position 2 in the ignition
lock ( Y
page 127).X
To open: briefly press the trim on cover C .
The stowage compartment opens. X
Press in cigarette lighter D .
Cigarette lighter D will pop out automatically
when the heating element is red-hot.

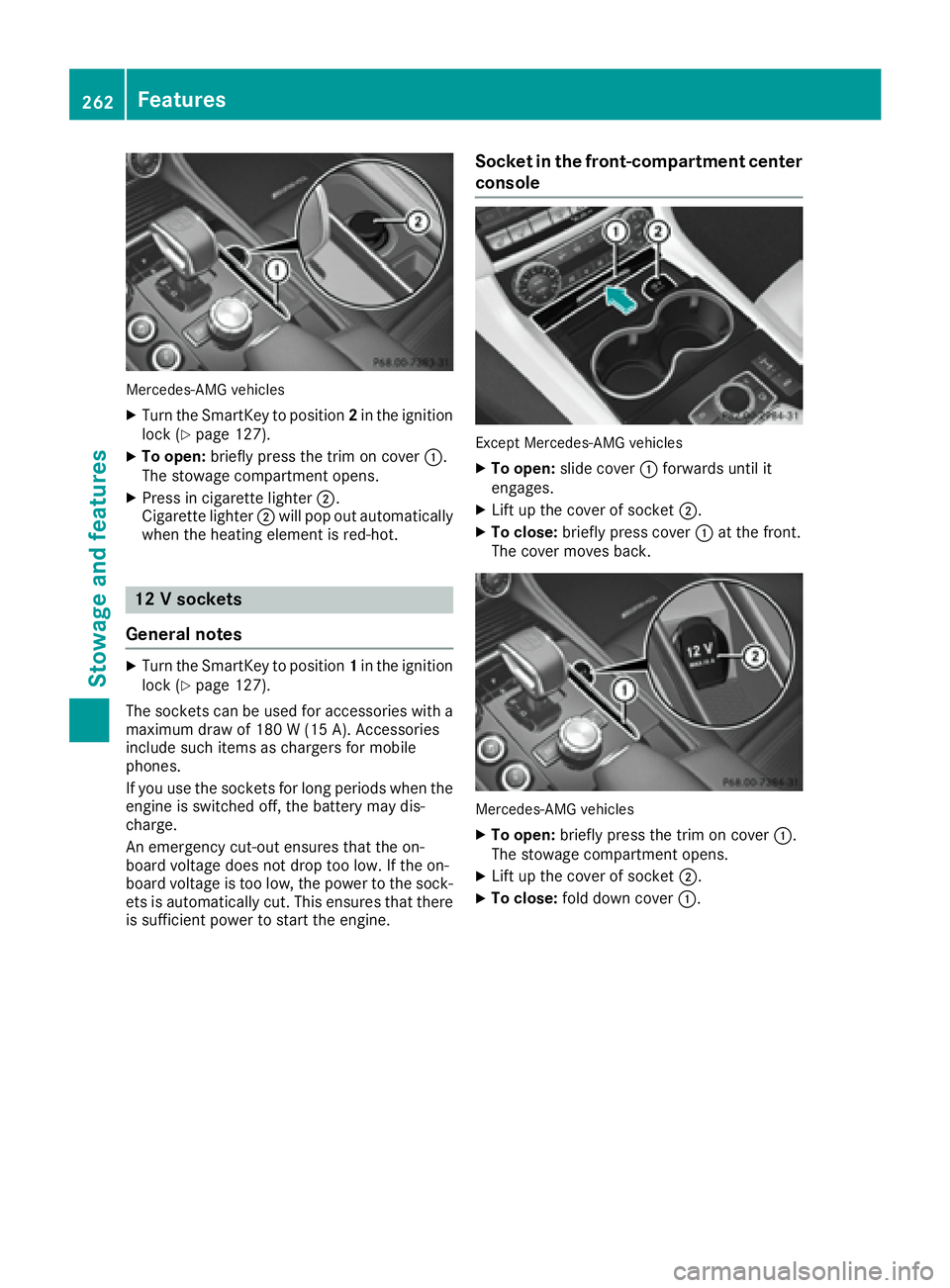

12 V sockets
General notes X
Turn the SmartKey to position 1 in the ignition
lock ( Y
page 127).
The sockets can be used for accessories with a
maximum draw of 180 W (15 A). Accessories
include such items as chargers for mobile
phones.
If you use the sockets for long periods when the
engine is switched off, the battery may dis-
charge.
An emergency cut-out ensures that the on-
board voltage does not drop too low. If the on-
board voltage is too low, the power to the sock-
ets is automatically cut. This ensures that there
is sufficient power to start the engine. Socket in the front-compartment center
console
Except Mercedes-AMG vehicles X
To open: slide cover C forwards until it
engages. X
Lift up the cover of socket D .X
To close: briefly press cover C at the front.
The cover moves back.
Mercedes-AMG vehicles X
To open: briefly press the trim on cover C .
The stowage compartment opens. X
Lift up the cover of socket D .X
To close: fold down cover C .262
Features
Stowage and features
