2016 MERCEDES-BENZ CLS Owners Manual

G

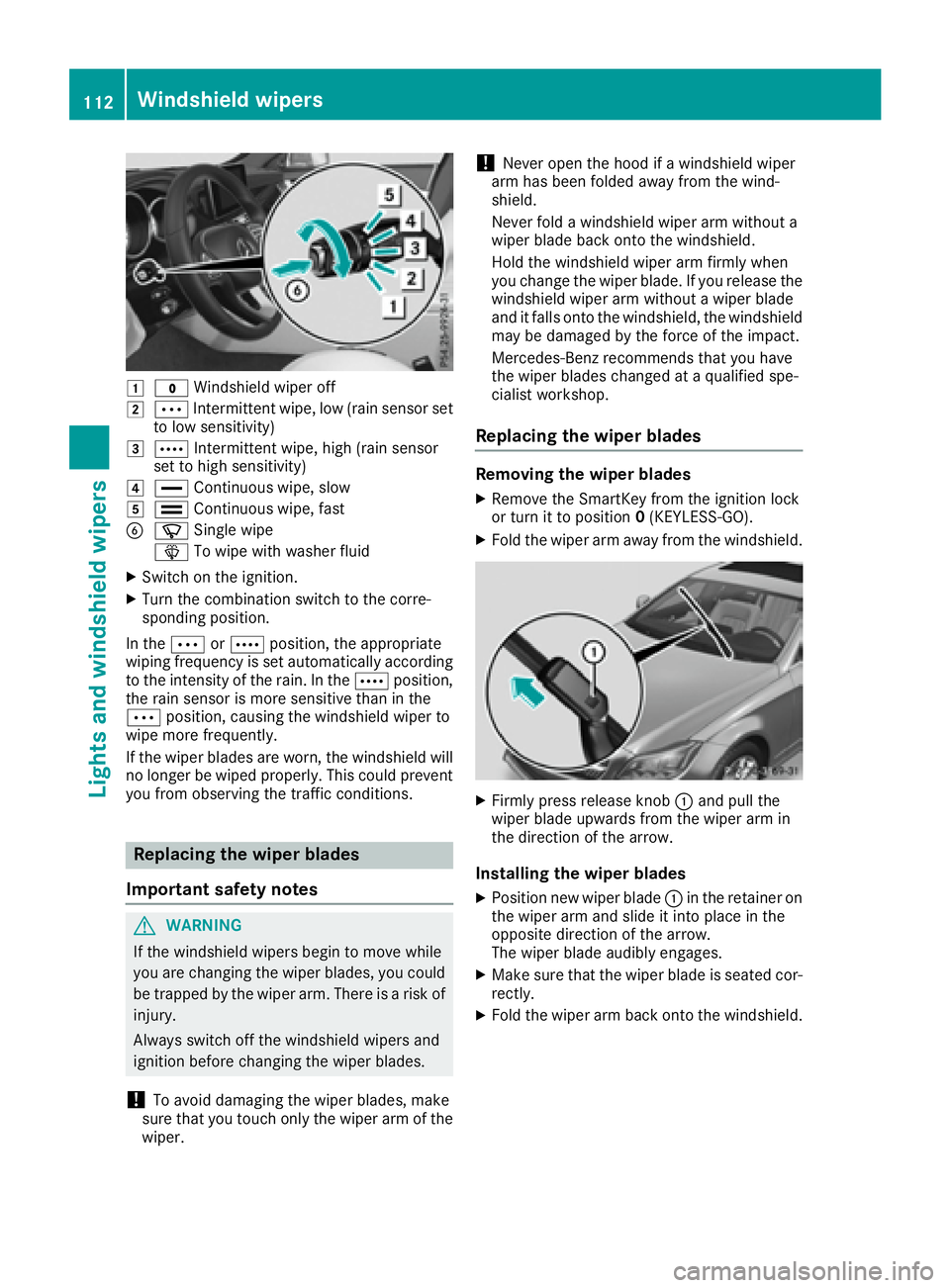

? Windshield wiper offH
b Intermittent wipe, low (rain sensor set
to low sensitivity)I
c Intermittent wipe, high (rain sensor
set to high sensitivity)J

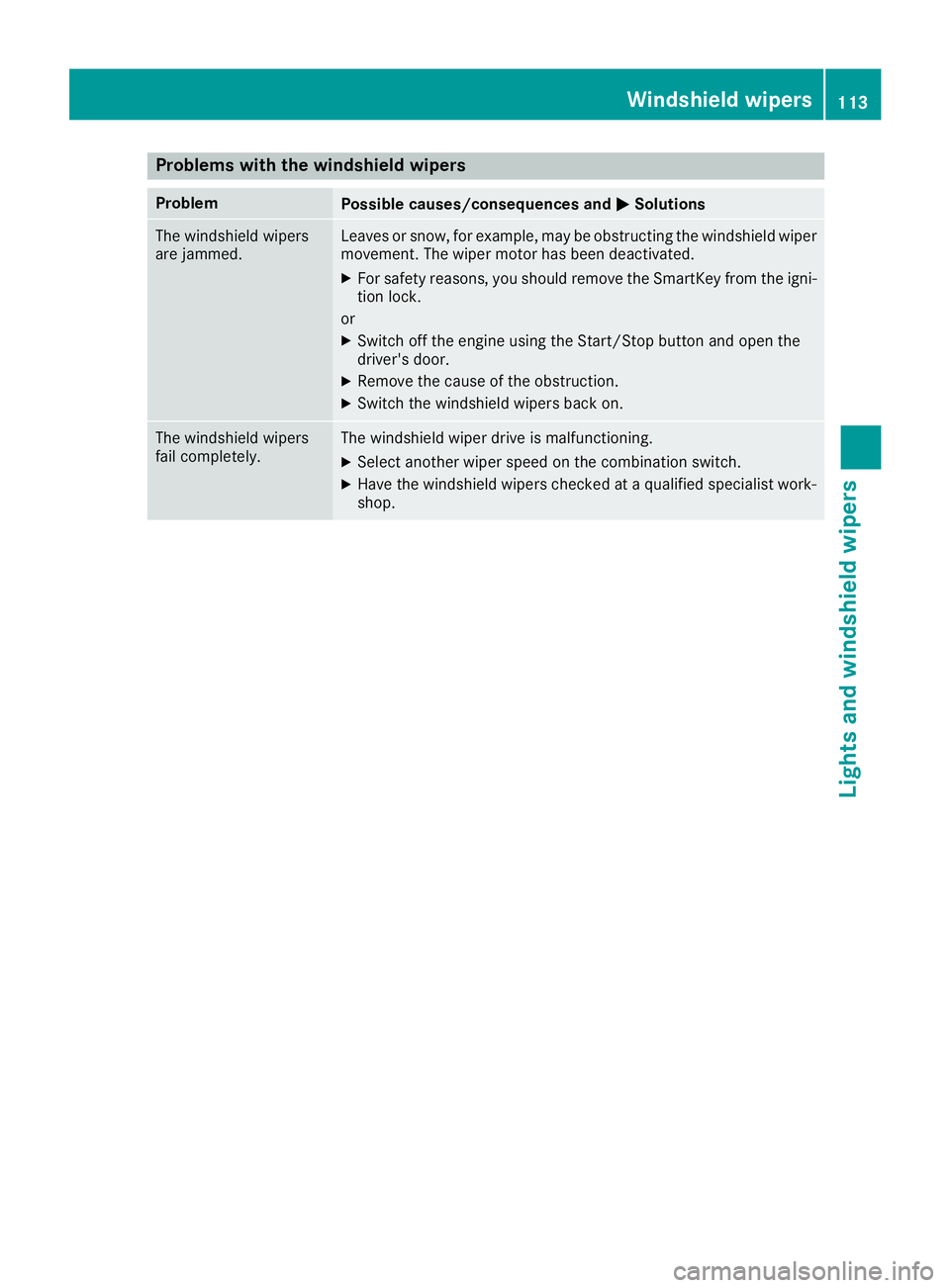

Problems with the windshield wipers Problem
Possible causes/consequences and P Solutions
The windshield wipers
are jammed. Leaves or snow, for example, may be obstructing the windshield wiper
movement. The wiper motor has been deactivated. X
For safety reasons, you should remove the SmartKey from the igni-
tion lock.
or X
Switch off the engine using the Start/Stop button and open the
driver's door. X
Remove the cause of the obstruction. X
Switch the windshield wipers back on.
The windshield wipers
fail completely. The windshield wiper drive is malfunctioning. X
Select another wiper speed on the combination switch. X
Have the windshield wipers checked at a qualified specialist work-
shop. Windshield wipers 113
Lights and windshield wipers Z

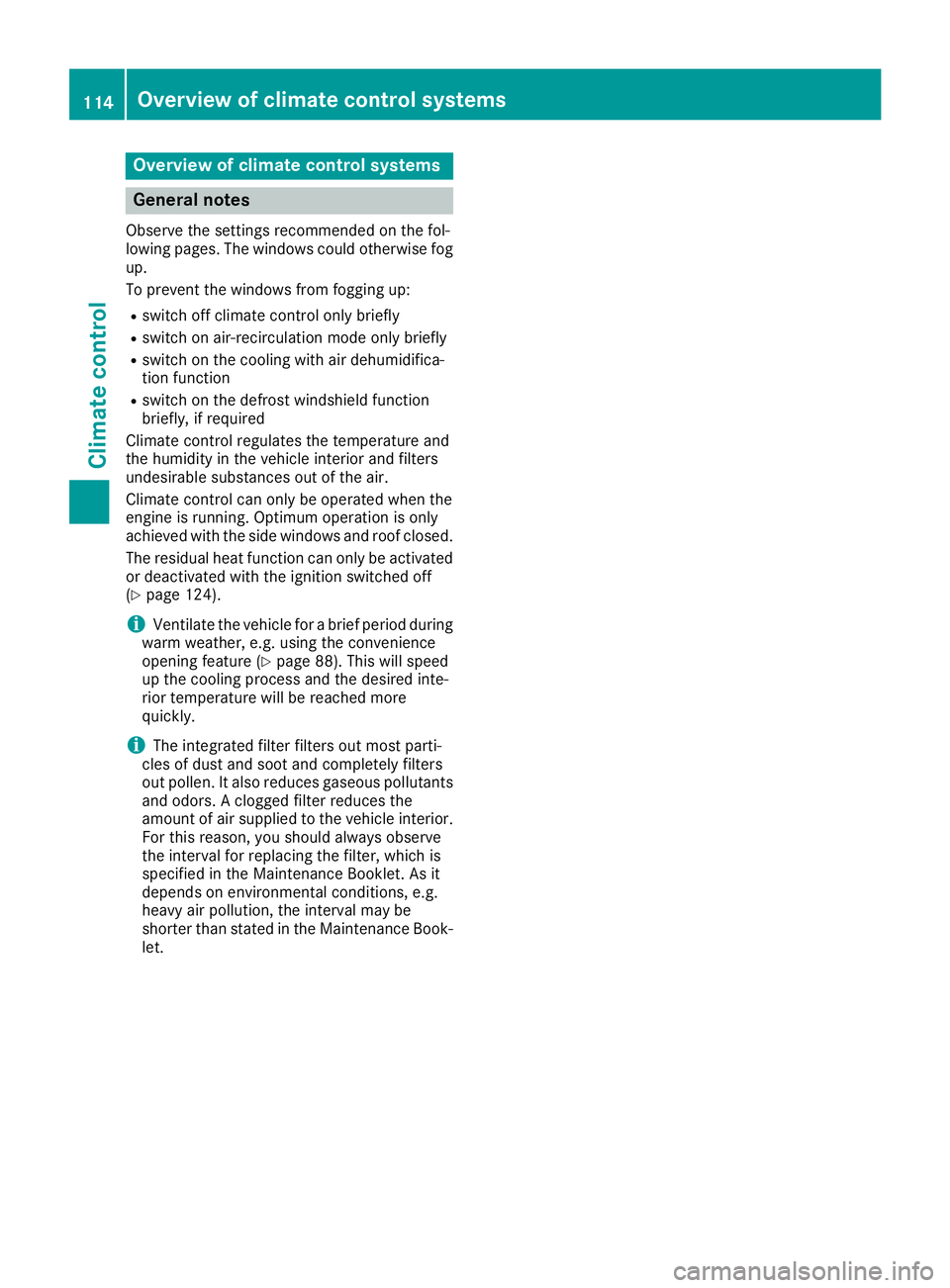

Overview of climate control systems
General notes Observe the settings recommended on the fol-
lowing pages. The windows could otherwise fog
up.
To prevent the windows from fogging up: R
switch off climate control only briefly R
switch on air-recirculation mode only briefly R
switch on the cooling with air dehumidifica-
tion function R
switch on the defrost windshield function
briefly, if required
Climate control regulates the temperature and
the humidity in the vehicle interior and filters
undesirable substances out of the air.
Climate control can only be operated when the
engine is running. Optimum operation is only
achieved with the side windows and roof closed.
The residual heat function can only be activated
or deactivated with the ignition switched off
( Y
page 124).
i Ventilate the vehicle for a brief period during
warm weather, e.g. using the convenience
opening feature ( Y
page 88). This will speed
up the cooling process and the desired inte-
rior temperature will be reached more
quickly.
i The integrated filter filters out most parti-
cles of dust and soot and completely filters
out pollen. It also reduces gaseous pollutants
and odors. A clogged filter reduces the
amount of air supplied to the vehicle interior.
For this reason, you should always observe
the interval for replacing the filter, which is
specified in the Maintenance Booklet. As it
depends on environmental conditions, e.g.
heavy air pollution, the interval may be
shorter than stated in the Maintenance Book-
let.114
Overview of climate control systems
Climate control

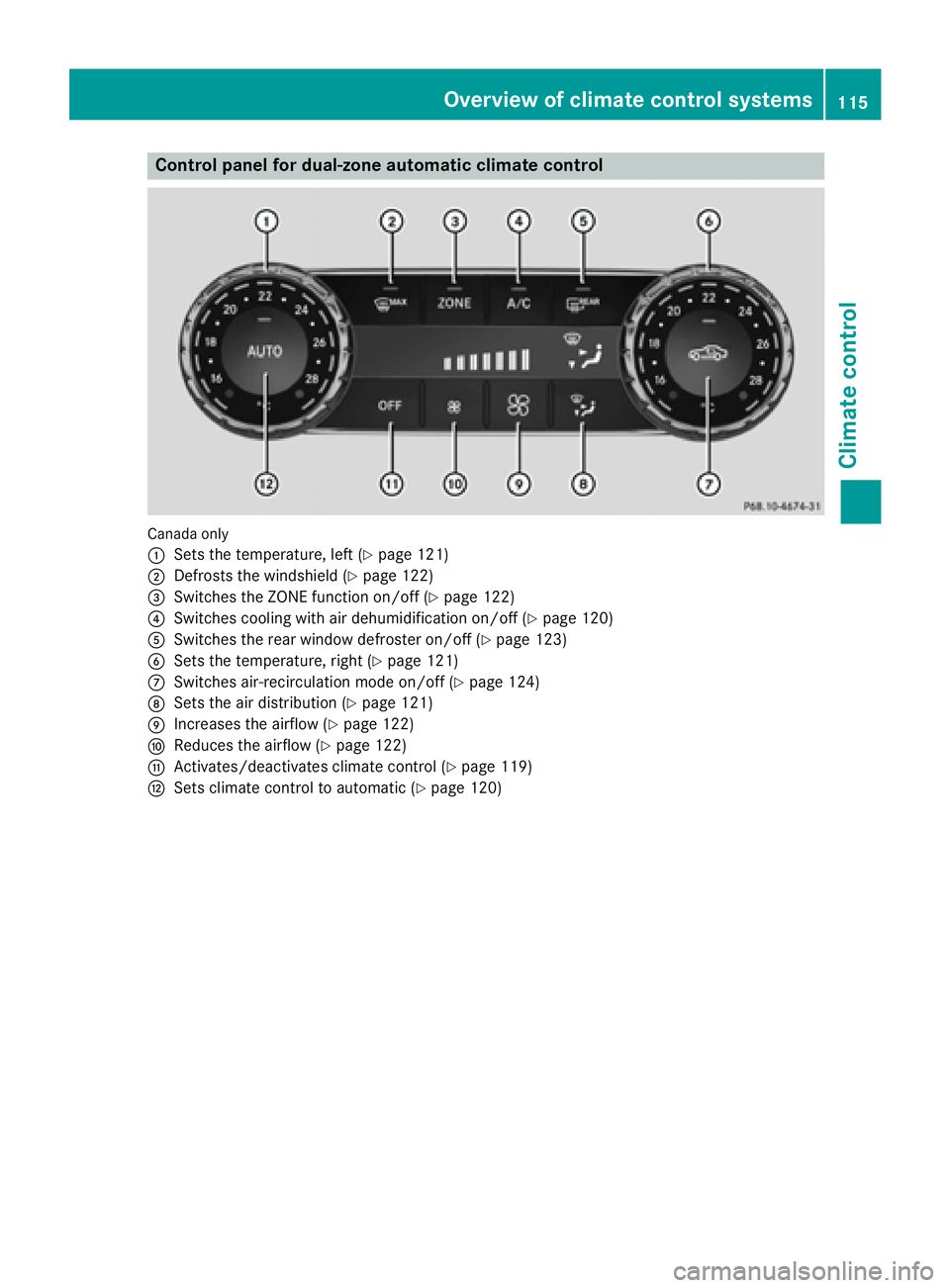

Control panel for dual-zone automatic climate control
Canad a only
C
Sets the temperature, left ( Y
page 121)D
Defrosts the windshield ( Y
page 122)

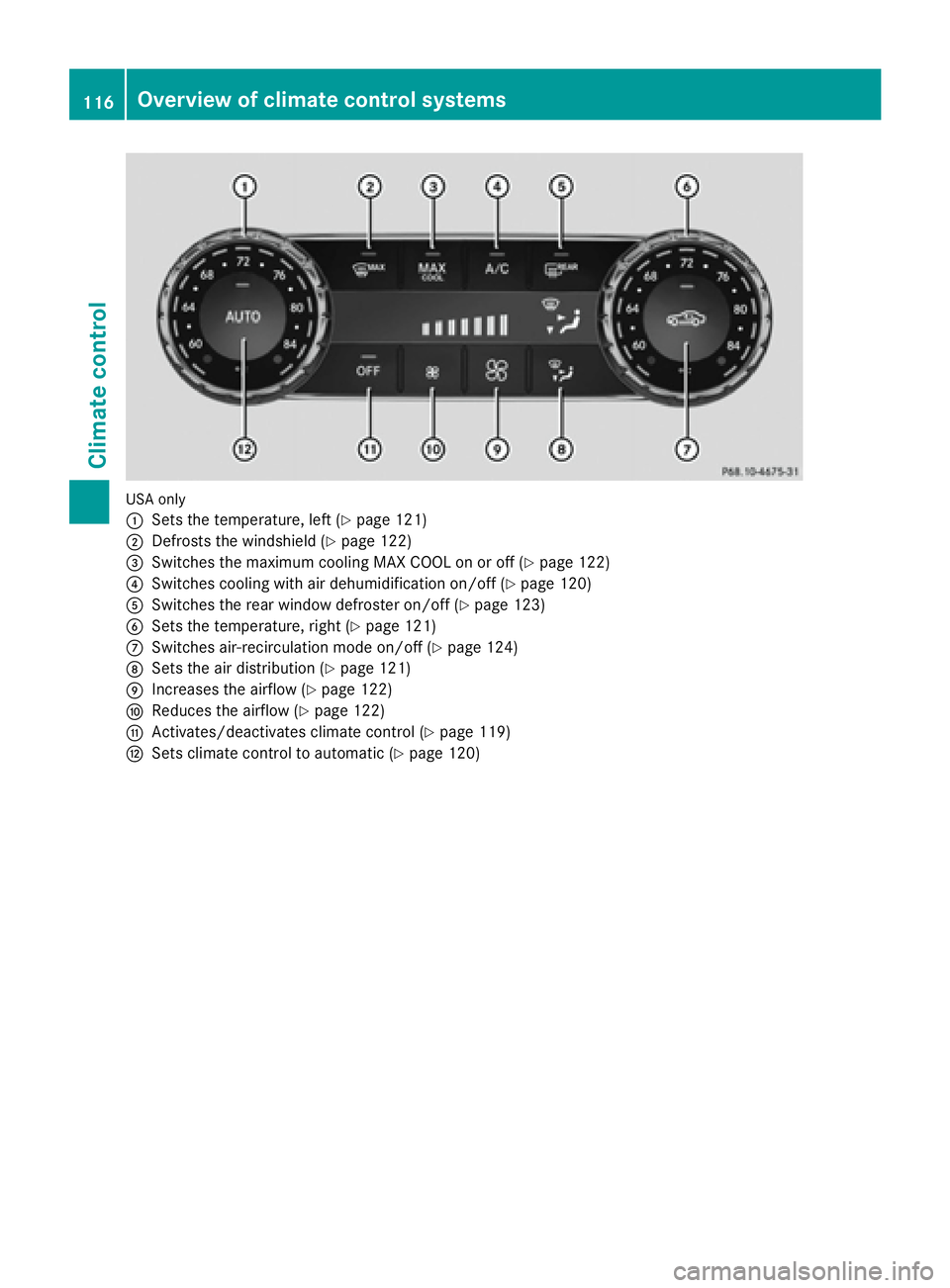

USA only
C
Sets the temperature, left ( Y
page 121)D
Defrosts the windshield ( Y
page 122)

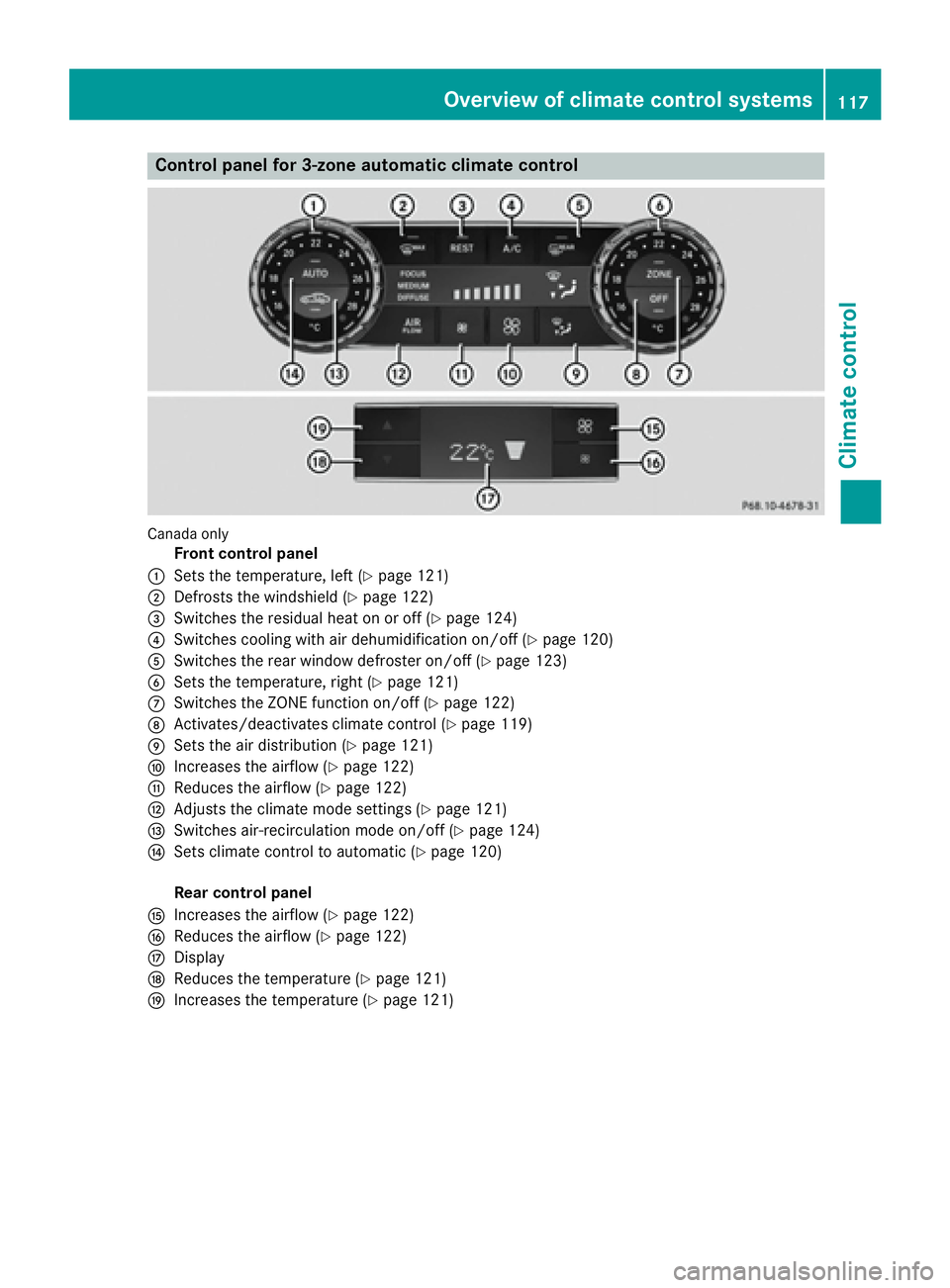

Control panel for 3-zone automatic climate control
Canad a only
Front control panelC
Sets the temperature, left ( Y
page 121)D
Defrosts the windshield ( Y
page 122)

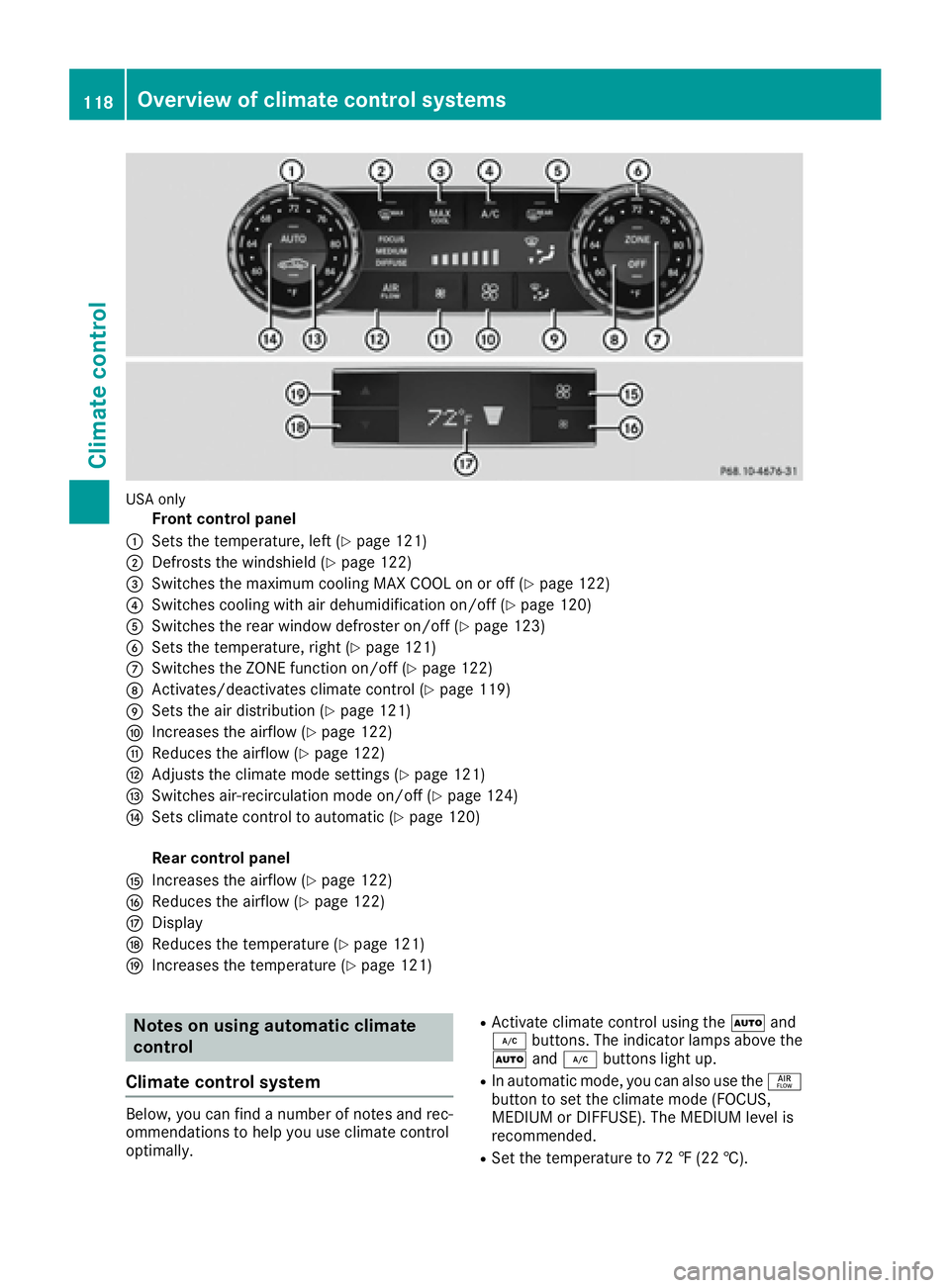

USA only
Front control panelC
Sets the temperature, left ( Y
page 121)D
Defrosts the windshield ( Y
page 122)
