2016 LINCOLN MKZ HYBRID Owners Manual

Protected components
Fuse amp rating
Fuse or relay number
Fuel pump feed.
30A 1
56
Not used.
-
57
Not used.
-
58
Vacuum pump relay.
40A 1
59
Pulse width modulated fan.
40A 1
60
Not used.
-
61
Body control module 1.
50A 2
62
Not used.
-
63
PHEV charger.
40A 1
64
Front heated seat.
20A 1
65
Not used.
-
66
Body control module 2.
50A 2
67
278
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Heated rear window.
40A 1
68
Anti-lock brake system valves.
30A 1
69
Passenger seat.
30A 1
70
Not used.
-
71
Panoramic roof #1.
30A 1
72
Rear climate controlled seats.
20A 1
73
Driver seat module.
30A 1
74
Not used.
-
75
iShifter.
20A 1
76
Transmission oil pump.
Front climate controlled seats.
30A 1
77
Trailer tow module.
40A 1
78
Blower motor.
40A 1
79
279
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Power decklid.
30A 1
80
Inverter.
40A 1
81
Anti-lock brake system pump.
60A 2
82
Wiper motor #1.
25A 1
83
Not used.
-
84
Panoramic roof #2.
30A 1
85
1 M-type fuse.
2 J-type fuse.

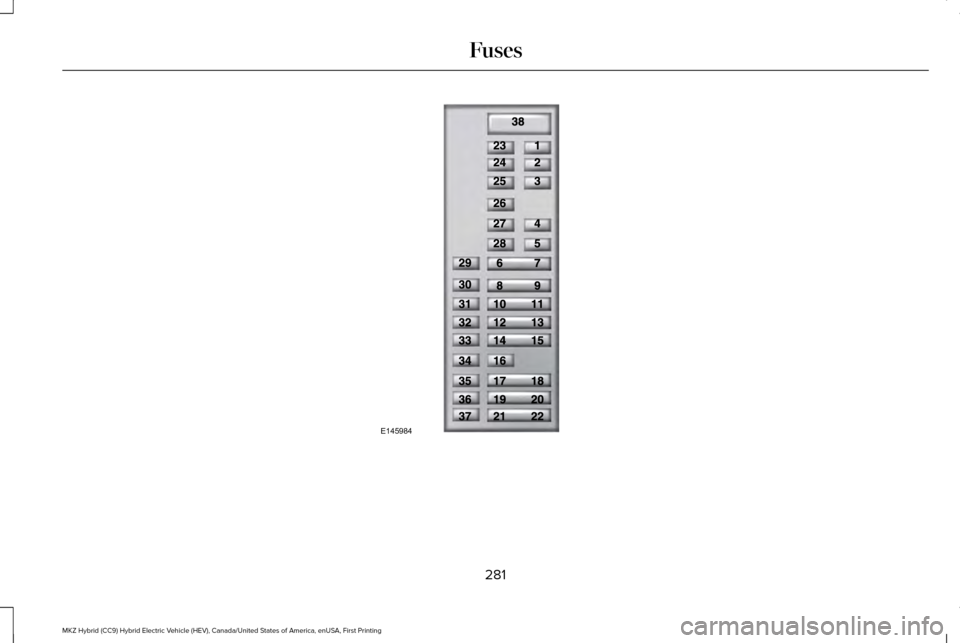

Passenger Compartment Fuse Panel
The fuse panel is under the instrument panel
to the left of the steering column.
280
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Fuses

281
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing FusesE145984

Protected components
Fuse amp rating
Fuse or relay number
Lighting (ambient, glove box, vanity, dome, trunk).
10A 1
1
Memory seats, Lumbar, Power mirror.
7.5A 1
2
Driver door unlock.
20A 1
3
Not used (spare).
5A 1
4
Subwoofer amplifier.
20A 1
5
Heated seat relay coil.
10A 2
6
Not used (spare).
10A 2
7
Not used (spare).
10A 2
8
Not used (spare).
10A 2
9
Power trunk logic.
5A 2
10
Keypad.
Cellphone passport module.
282
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Not used (spare).
5A 2
11
Climate control.
7.5A 2
12
Gear shift.
Steering wheel column.
7.5A 2
13
Instrument cluster.
Datalink logic.
Battery electronic control module.
10A 2
14
Datalink/Gateway module.
10A 2
15
Decklid release.
15A 1
16
Child lock.
Tracking and blocking module.
5A 2
17
Ignition.
5A 2
18
Push button start/stop.
Passenger airbag disabled indicator, Transmission range.
7.5A 2
19
Adaptive headlamps.
7.5A 2
20
283
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Humidity and in-car temperature.
5A 2
21
Occupant classification sensor.
5A 2
22
Delayed accessory (power inverter, moonroof, all smart
window, driver window switch pack).
10A 1
23
Central lock/unlock.
20A 1
24
Driver door (window, mirror).
30A 1
25
Front passenger door (window, mirror).
30A 1
26
Moonroof.
30A 1
27
Amplifier.
20A 1
28
Rear driver side door (window).
30A 1
29
Rear passenger side door (window).
30A 1
30
Not used (spare).
15A 1
31
284
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
GPS.
10A 1
32
Voice control.
Display.
Adaptive cruise control.
Radio frequency receiver.
Radio.
20A 1
33
Active noise control.
Run/start (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker).
30A 1
34
Restraints control module.
5A 1
35
Auto-dimming rear view mirror.
15A 1
36
All wheel drive.
15A 1
37
Heated steering wheel.
Not used (spare).
30A
38
1 Micro fuse.
2 Dual micro fuse.
285
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Fuses
