2016 LINCOLN MKZ HYBRID Owners Manual

270

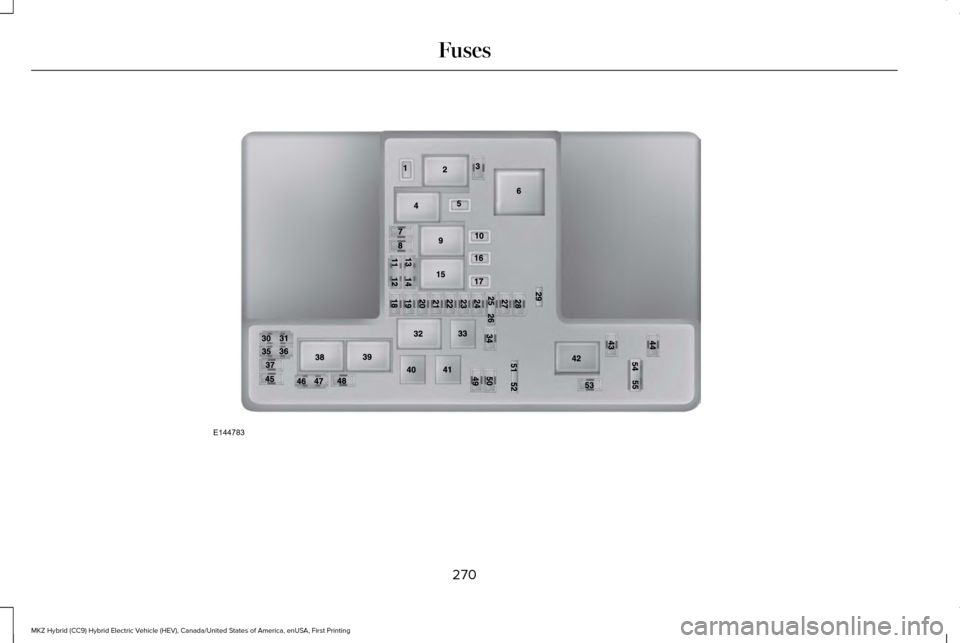

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing FusesE144783

Protected components
Fuse amp rating
Fuse or relay number
Wiper Motor 2.
25A 3
1
Not used.
–
2
Rain sensor.
15A 1
3
Blower motor relay.
–
4
Power point 3 - back of console.
20A 3
5
Not used.
–
6
Powertrain control module - vehicle power 1.
20A 1
7
Powertrain control module - vehicle power 2.
20A 1
8
Powertrain control module relay.
–
9
Power point 1 - driver front.
20A 3
10
Powertrain control module - vehicle power 4.
15A 2
11
Powertrain control module - vehicle power 3.
15A 2
12
271
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Not used.
–
13
Not used.
–
14
Run/start relay.
–
15
Power point 2 - console.
20A 3
16
Transmission oil pump.
20A 3
17
Powertrain and hybrid powertrain control module - keep
alive power.
10A 1
18
Run/start electronic power assist steering.
10A 1
19
Run/start lighting.
10A 1
20
Run/start transmission switch.
15A 1
21
HEV inverter.
Not used.
–
22
Run/start: blind spot information system, rear view camera,
adaptive cruise control, heads-up display, shifter.
15A 1
23
Run/Start 7 PHEV.
10A 1
24
Transmission oil run/start.
272
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Run/start anti-lock brake system.
10A 2
25
Run/start powertrain control module.
10A 2
26
Fuel door solenoid.
10A 1
27
Not used.
–
28
Hybrid content vehicle power 5.
15A 1
29
Not used.
–
30
Not used.
–
31
HEV/PHEV pulse width modulated fan relay.
–
32
Not used.
–
33
Not used.
–
34
Charger fan.
15A 2
35
HEV battery electronic control module fan.
15A 2
36
Remote CD.
5A 1
37
273
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Vacuum pump #1 relay.
–
38
Vacuum pump #2 relay.
–
39
Fuel pump relay.
–
40
Horn relay.
–
41
Not used.
–
42
Not used.
–
43
Not used.
–
44
Vacuum pump monitor.
5A 1
45
Charge port light.
10A 2
46
Brake on/off switch.
10A 2
47
Horn.
20A 1
48
Air flow monitor.
5A 1
49
Not used.
–
50
Hybrid content vehicle power 1.
15A 2
51
274
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Hybrid content vehicle power 2.
15A 2
52
Power seats.
10A 1
53
Hybrid content vehicle power 3.
10A 2
54
Hybrid content vehicle power 4.
10A 2
55
1 Micro fuse.
2 Dual micro fuse.
3 M-type fuse.
275
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Fuses

Power Distribution Box - Bottom There are fuses located on the bottom of the
fuse box. To access the bottom of the fuse
box, do the following:
1.
Release the two latches, located on both
sides of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse box to access the bottom side.
276
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing FusesE145983

277

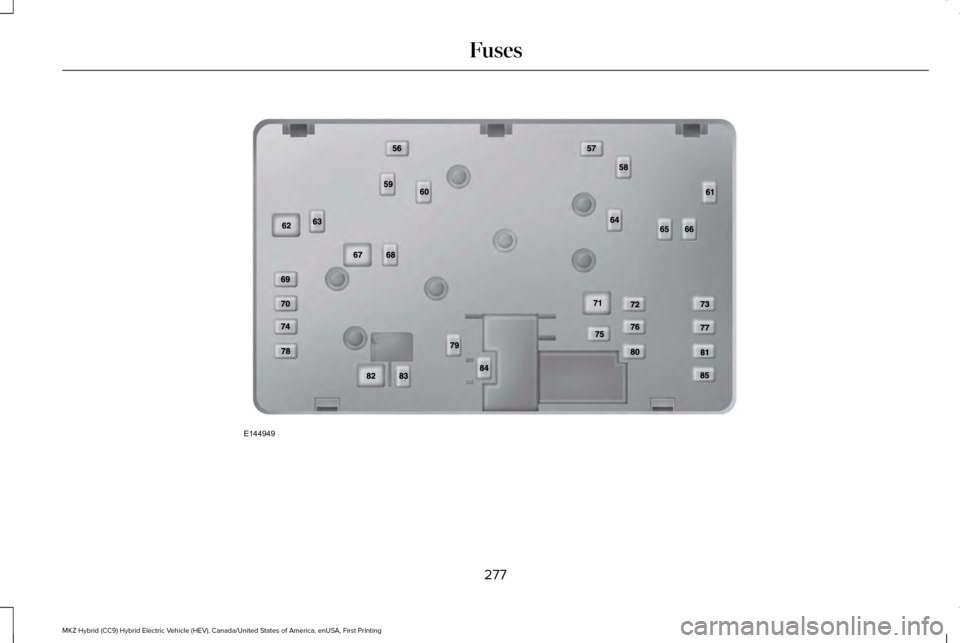

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing FusesE144949
