5216-3. Do-it-yourself maintenance
6
Maintenance and care
RX450h_U_OM0E013U Remove the taillight unit.
Attach 2 long pieces of mask-
ing tape to the taillight unit and
fold the excess in half.
Hold the folded portion and
pull it toward the rear of the
vehicle to remove the light unit.
Turn the bulb base counterclock-
wise and remove it.
Remove the light bulb. 4
1
2
5
6

522 6-3. Do-it-yourself maintenance

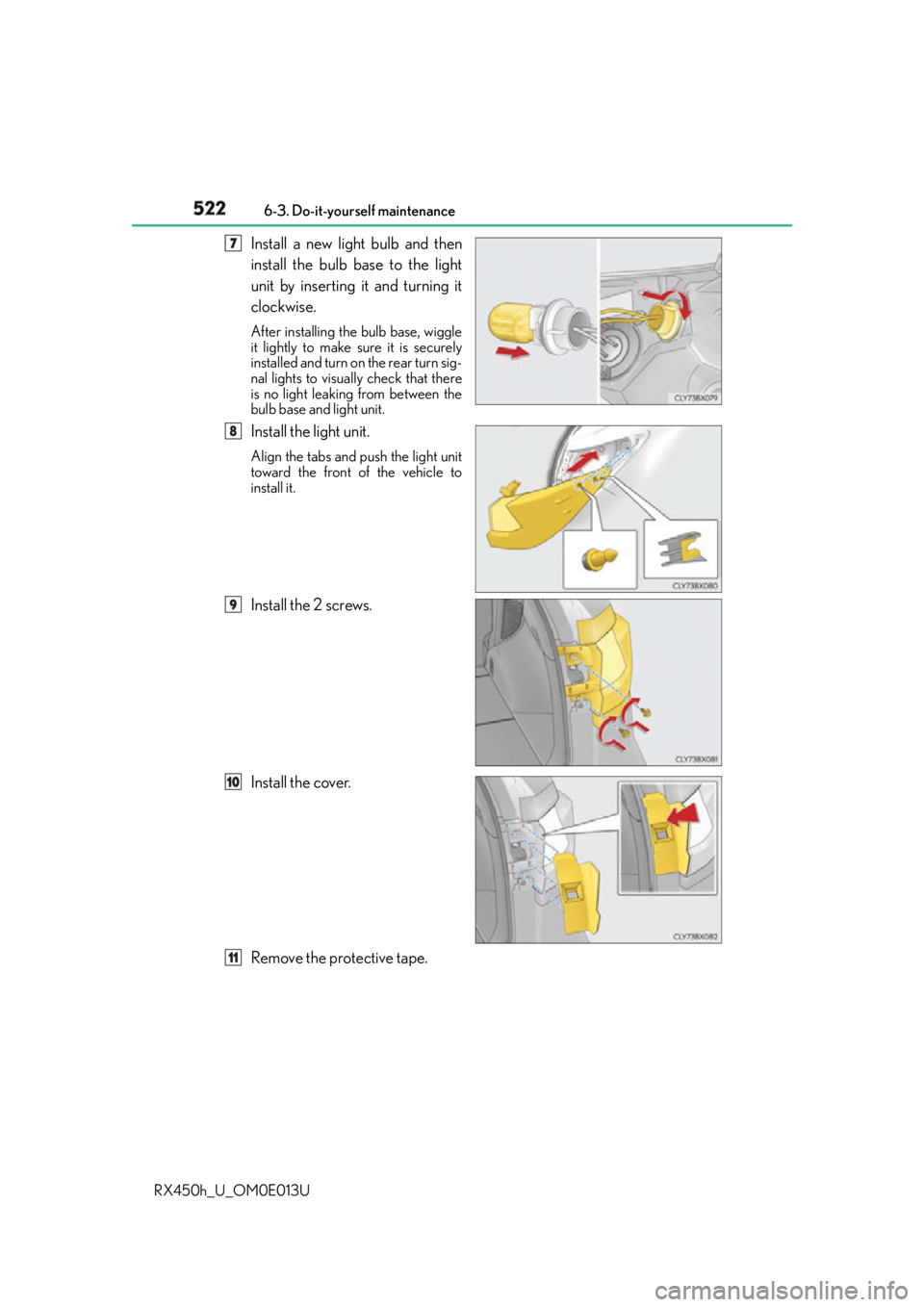

RX450h_U_OM0E013U Install a new light bulb and then
install the bulb base to the light
unit by inserting it and turning it
clockwise. After installing the bulb base, wiggle
it lightly to make sure it is securely
installed and turn on the rear turn sig-
nal lights to visually check that there
is no light leaking from between the
bulb base and light unit.
Install the light unit. Align the tabs and push the light unit
toward the front of the vehicle to
install it.
Install the 2 screws.
Install the cover.
Remove the protective tape. 47
8
9
10
11

5236-3. Do-it-yourself maintenance
6
Maintenance and care
RX450h_U_OM0E013U ■
Back-up lights
Open the back door and remove
the cover. Using a flathead screwdriver, remove
the cover.
To prevent scratching to the vehicle,
wrap the tip of the flathead screw-
driver with a cloth, etc.
Turn the bulb base counterclock-
wise and remove it.
Remove the light bulb.
Install a new light bulb and then
install the bulb base to the light
unit by inserting it and turning it
clockwise. After installing the bulb base, wiggle
it lightly to make sure it is securely
installed and turn on the back-up
lights to visually check that there is no
light leaking from between the bulb
base and light unit. 1
2
3
4

524 6-3. Do-it-yourself maintenance
RX450h_U_OM0E013U Install the cover. Align the tabs of the cover with the
grooves and install the cover.
■
Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by your Lexus
dealer. ●
Headlight low beams ●
Headlight high beams ●
Front turn signal lights (vehic les with triple-beam headlights)●
Parking lights and daytime running lights ●
Front fog lights ●
Cornering lights (if equipped) ●
Front side marker lights (vehicles with triple-beam headlights) ●
Side turn signal lights ●
Stop/tail lights ●
Rear turn signal light (vehic les with triple-beam headlights)●
Rear side marker lights ●
High mounted stoplight ●
License plate lights ●
Outer foot lights 5

5256-3. Do-it-yourself maintenance
6
Maintenance and care
RX450h_U_OM0E013U ■
LED lights
The headlight low beams, headlight high beams, front turn signal lights (vehicles with tri-
ple-beam headlights), parking lights and dayt ime running lights, front fog lights, corner-
ing lights (if equipped), front side marker lights (vehicles with tr iple-beam headlights),
side turn signal lights, stop/t ail lights, rear turn signal lig ht (vehicles with triple-beam
headlights), rear side marker lights, high moun ted stoplight, license plate lights, and outer
foot lights consist of a number of LEDs. If an y of the LEDs has burned out, take your vehi-
cle to your Lexus dealer to have the light replaced. ■
Condensation build-up on the inside of a lens
Temporary condensation build-up on the inside of the headlight lens does not indicate a
malfunction. Contact your Lexus dealer for mo re information in the following situations:●
Large drops of water have built up on the inside of a lens.●
Water has built up inside a headlight. ■
When replacing light bulbs
 P. 5 1 0
WA R N I N G ■
To p r e v e n t i n j u r y
Before performing any light bulb replacement procedure, be sure to turn the power
switch off. Failure to do so may result in burns from hot components or a part of your
body may get caught on an operating comp onent, possibly causing serious injury.■
Replacing light bulbs ●
Turn off the lights. Do not attempt to replace the bulb immediately after turning off the
lights.
The bulbs become very hot and may cause burns. ●
Do not touch the glass portion of the light bulb with bare hands. When it is unavoid-
able to hold the glass portion, use and ho ld with a clean dry cloth to avoid getting
moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.●
Fully install light bulbs and any parts used to secure them. Failure to do so may result
in heat damage, fire, or water entering the headlight unit. This may damage the head-
lights or cause condensation to build up on the lens.●
Do not attempt to repair or disassemble the light bulbs, connectors, electric circuits
or component parts.
Doing so may result in death or se rious injury due to electric shock.■
To prevent damage or fire ●
Make sure bulbs are fully seated and locked. ●
Check the wattage of the bulb before installin g to prevent heat damage.

526 6-3. Do-it-yourself maintenance
RX450h_U_OM0E013U

527
7When trouble arises
RX450h_U_OM0E013U 7-1. Essential information
Emergency flashers .................. 528
If your vehicle has to be
stopped in an
emergency................................. 529
7-2. Steps to take in an
emergency
If your vehicle needs to be
towed ...........................................530
If you think something is
wrong ........................................... 535
If a warning light turns
on or a warning buzzer
sounds.......................................... 536
If a warning message is
displayed..................................... 543
If you have a flat tire................... 549
If the hybrid system will not
start .................................................561
If the shift lever cannot be
shifted from P............................ 563
If the electronic key does
not operate properly ............. 564
If the 12-volt battery is
discharged .................................568
If your vehicle overheats .......... 574
If the vehicle becomes
stuck ............................................. 578

528
RX450h_U_OM0E013U 7-1. Essential information

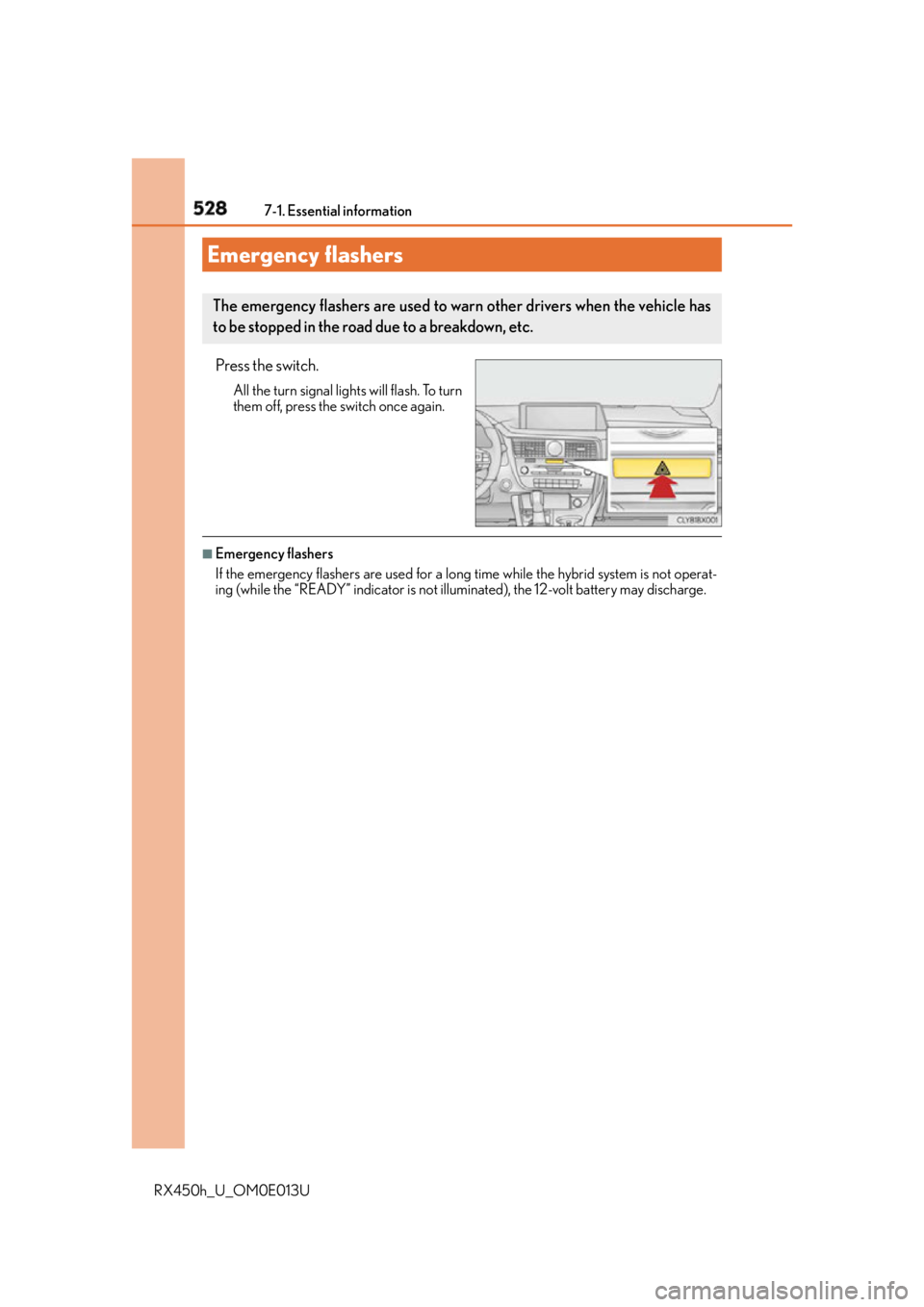

Press the switch. All the turn signal lights will flash. To turn
