6127-2. Steps to take in an emergency
LS460/LS460L_GE (OM50G06E)
■When the tire pressure warning light comes on (vehicles with the tire pressure
warning system)
Carry out the following procedure after the tire temperature has lowered sufficiently.
●Check the tire inflation pressure and adjust it to the appropriate level.
●If the warning light does not go out after several minutes, check that the tire infla-
tion pressure is at the specified level and carry out initialization.
The warning light may come on again if the above operations are conducted without
first allowing the tire temperature to lower sufficiently.
■The tire pressure warning light may come on due to natural causes (vehicles with
the tire pressure warning system)
The tire pressure warning light may come on due to natural causes such as natural
air leaks and tire inflation pressure changes caused by temperature. In this case,
adjusting the tire inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with a spare tire (vehicles with the tire pressure warning
system)
The spare tire is also equipped with a tire pressure warning valve and transmitter. The
tire pressure warning light will turn on if the tire inflation pressure of the spare tire is
low. If a tire goes flat, the tire pressure warning light will not turn off even though the
flat tire has been replaced with the spare tire.
■Conditions that the tire pressure warning system may not function properly (vehi-
cles with the tire pressure warning system)
 P. 561
■If the tire pressure warning light frequently comes on after blinking for 1 minute
(vehicles with the tire pressure warning system)
If the tire pressure warning light frequently comes on after blinking for 1 minute when
the engine switch is turned to IGNITION ON mode, have it checked by your Lexus
dealer.
■Warning buzzer
In some cases, the buzzer may not be heard due to ambient noise or sounds from the
audio system.
■Customization (for GCC countries* and Yemen)
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features P. 678)
*: Saudi Arabia, Sultanate of Oman, Bahrain, United Arab Emirates, Qatar, Kuwait

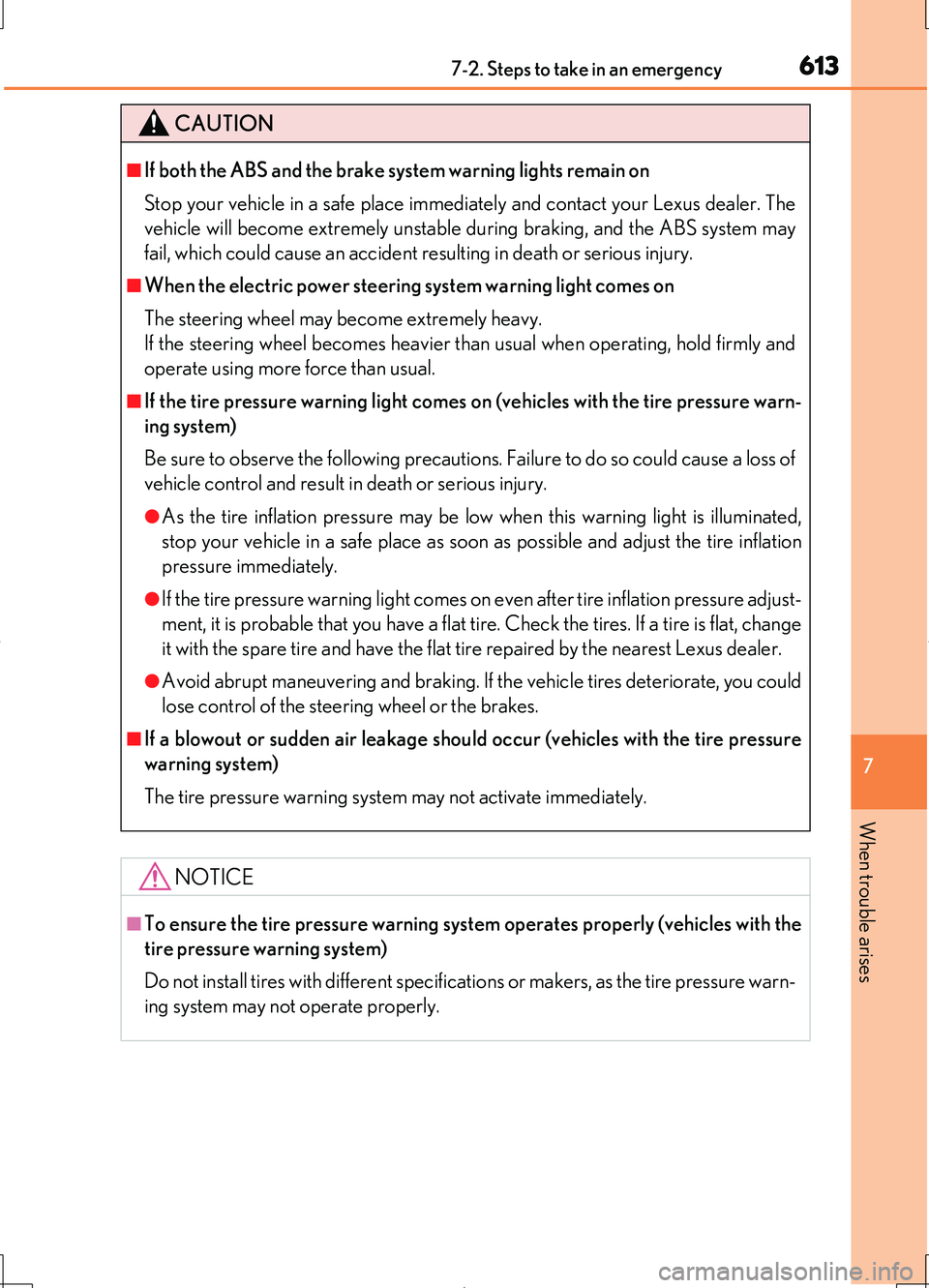

6137-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)
CAUTION
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact your Lexus dealer. The
vehicle will become extremely unstable during braking, and the ABS system may
fail, which could cause an accident resulting in death or serious injury.
■When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold firmly and
operate using more force than usual.
■If the tire pressure warning light comes on (vehicles with the tire pressure warn-
ing system)
Be sure to observe the following precautions. Failure to do so could cause a loss of
vehicle control and result in death or serious injury.
●As the tire inflation pressure may be low when this warning light is illuminated,
stop your vehicle in a safe place as soon as possible and adjust the tire inflation
pressure immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If a tire is flat, change
it with the spare tire and have the flat tire repaired by the nearest Lexus dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could
lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur (vehicles with the tire pressure
warning system)
The tire pressure warning system may not activate immediately.
NOTICE
■To ensure the tire pressure warning system operates properly (vehicles with the
tire pressure warning system)
Do not install tires with different specifications or makers, as the tire pressure warn-
ing system may not operate properly.

6147-2. Steps to take in an emergency
LS460/LS460L_GE (OM50G06E)
Master warning light
The master warning light also comes
on or flashes in order to indicate that a
message is currently being displayed
on the multi-information display.
Multi-information display
If any of the warning messages is shown again after the following actions
have been performed, co ntact your Lexus dealer.
If a warning message is displayed
The multi-information display shows warnings for system malfunctions,
incorrectly performed operations, and messages that indicate a need
for maintenance. When a message is shown, perform the correction
procedure appropriate to the message.
1
2

6157-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)
The warning lights and warning buzzers operate as follows depending on
the content of the message. If a message indicates the need for inspection
by a dealer, have the vehicle inspecte d by your Lexus dealer immediately.
*: A buzzer sounds the first time a message is shown on the multi-information
display.
Messages and warnings
System warn-
ing light
Warning
buzzer*Warning
Remains onSounds
Indicates an important situation
such as the malfunction of the
system related to driving that
may result in danger
Remains on or
flashesSounds
Indicates an important situation
such as the malfunction of the
system shown on the multi-infor-
mation display
FlashesSounds
Indicates a situation such as
damage to the vehicle that may
result in danger
Remains onDoes not
sound
Indicates a condition such as a
malfunction of electrical compo-
nents and the need for mainte-
nance
FlashesDoes not
sound
Indicates a situation such as the
incorrect performance of an
operation and how to perform
the operation correctly

6167-2. Steps to take in an emergency
LS460/LS460L_GE (OM50G06E)
■Warning message in radar cruise mode (if equipped)
In the following cases, the warning message may not be displayed even if vehicle-to-
vehicle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
■The LKA (Lane-Keeping Assist) lane de parture warning function (if equipped)
In the following cases, the warning message will not be displayed even if a lane line is
crossed.
●When the vehicle speed deviates from the operating range of the LKA system
functions
●When the lane lines cannot be recognized
●When the steering wheel is turned as far as necessary to cause the vehicle to
change lanes
■System warning lights
The master warning light does not come on or flash in the following cases. Instead, a
separate system warning light will come on or flash along with the message shown
on the multi-information display.
●Malfunction of the brake system
The brake system warning light (red indicator) comes on. ( P. 605)
●Malfunction of the electronically controlled brake system or electric parking brake
The brake system warning light (yellow indicator) comes on. ( P. 607)
●Malfunction of the ABS
The ABS warning light comes on. ( P. 606)
●Malfunction of the charging system
The charging system warning light comes on. ( P. 606)
●Indicates that a door or the trunk is not fully closed
The open door warning light comes on. ( P. 608)
●High engine coolant temperature
The needle of the engine coolant temperature gauge enters the red zone.
( P. 641)

659
8
8-1. Specifications
Vehicle specifications
LS460/LS460L_GE (OM50G06E)
*: Minimum pedal clearance when depressed with a force of 500 N (51 kgf, 112 lbf)
while the engine is running.
When performing the brake pedal inspection, also be sure to check that the
brake system warning light is not illuminated when the engine is running (If the
brake system warning light is illuminated, refer to P. 605).
Brakes
Pedal clearance*147 mm (5.8 in.) Min.
Pedal free play1.0 - 2.0 mm (0.04 - 0.08 in.)
Fluid typeSAE J1703 or FMVSS No.116 DOT 3 or,
SAE J1704 or FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

685What to do if... (Troubleshooting)
LS460/LS460L_GE (OM50G06E)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat can-
not be operated if the window lock switch is pressed.
( P. 236)
●The auto power off function will be operated if the vehicle is left
in ACCESSORY mode for a period of time. ( P. 261)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
( P. 608)
●The parking brake indicator is on
Is the parking brake released? ( P. 279)
Depending on the situation, othe r types of warning buzzer may
also sound. ( P. 605, 614)
The windows do not open or close by operating the power win-
dow switches
The engine switch is turned off automatically
A warning buzzer sounds during driving

686What to do if... (Troubleshooting)
LS460/LS460L_GE (OM50G06E)
●Did anyone inside the vehicle open a door or anything move
inside the vehicle* during setting the alarm?
The sensor detects them and the alarm sounds. ( P. 112)
*: If the vehicle is equipped with intrusion sensor and tilt sensor.
Do one of the following to stop the alarm:
Vehicles without airbag manual on-off system
• Unlock the doors or open the trunk.
• Turn the engine switch to ACCESSORY or IGNITION ON
mode, or start the engine.
Vehicles with airbag manual on-off system
• Unlock the doors or open the trunk using the entry function or
wireless remote control.
•Start the engine.
●Is the message displayed on the multi-information display?
Check the message on the multi-information display.
( P. 614)
●When a warning light turns on or a warning message is dis-
played, refer to P. 605, 614.
An alarm is activated and the horn sounds
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed
