120

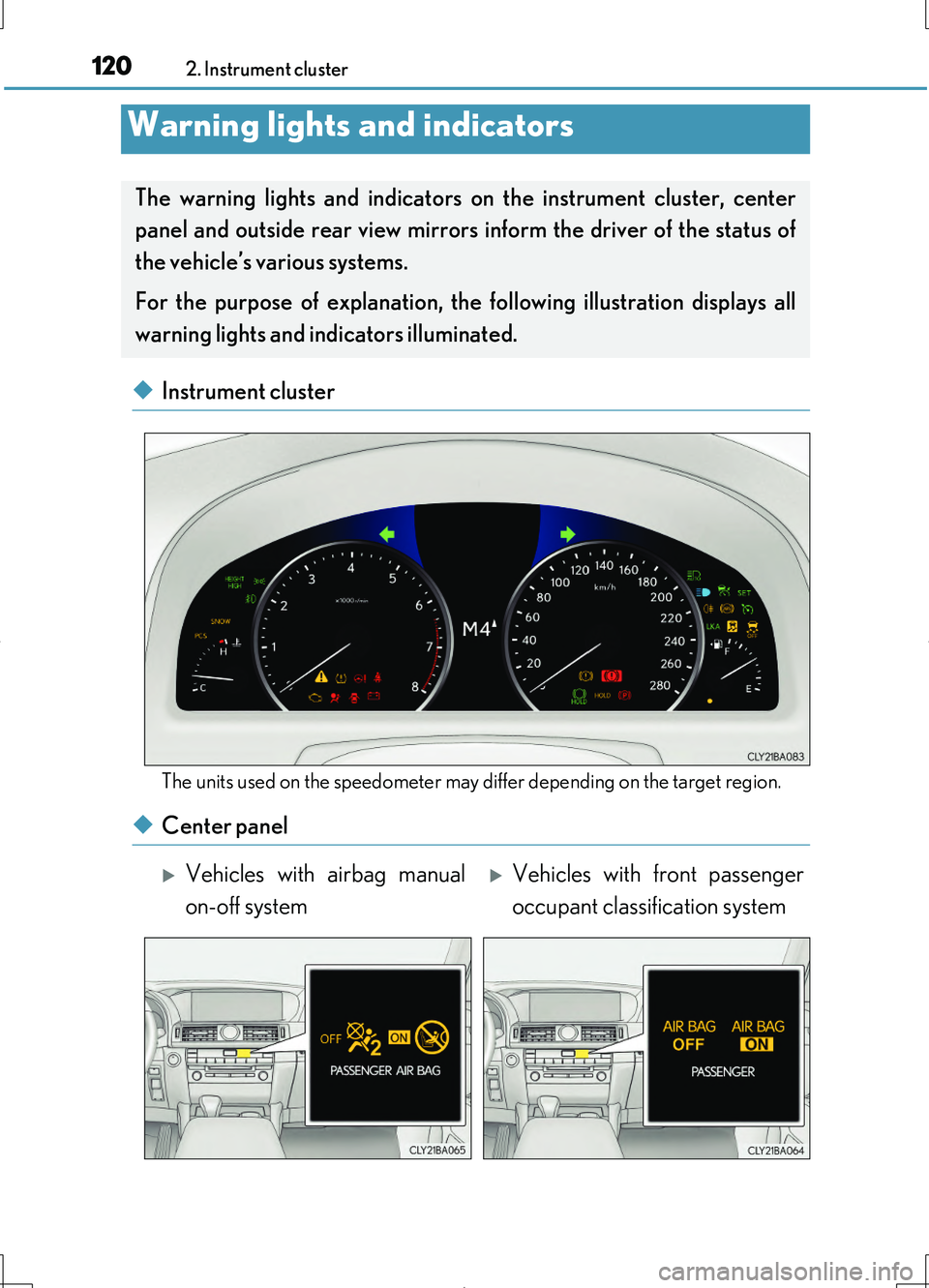

LS460/LS460L_GE (OM50G06E)
2. Instrument cluster
◆Instrument cluster
The units used on the speedometer may differ depending on the target region.
◆Center panel
Warning lights and indicators
The warning lights and indicators on the instrument cluster, center
panel and outside rear view mirrors inform the driver of the status of
the vehicle’s various systems.
For the purpose of explanation, the following illustration displays all
warning lights and indicators illuminated.
Vehicles with airbag manual
on-off system
Vehicles with front passenger
occupant classification system

1222. Instrument cluster
LS460/LS460L_GE (OM50G06E)
Warning lights inform the driver of malfunctions in the indicated vehicle’s
systems.
*1: These lights come on when the engine switch is turned to IGNITION ON mode
to indicate that a system check is being performed. They will go off after the
engine is on, or after a few seconds. There may be a malfunction in a system if the
lights do not come on, or go off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate a malfunction.
Warning lights
*1Brake system warning light
( P. 605)
*1, 2Brake hold operated
indicator ( P. 607)
*1Charging system warning
light ( P. 606)
*1, 2Parking brake indicator
( P. 607)
*1Malfunction indicator
lamp ( P. 606)
*1Brake system warning light
( P. 607)
*1SRS warning light
( P. 606)
Open door warning light
( P. 608)
*1ABS warning light
( P. 606)
Low fuel level warning light
( P. 608)
*1Electric power steering
system warning light
( P. 606)
Seat belt reminder light
( P. 608)
*1, 2
(if equipped)
Pre-crash safety system
warning light ( P. 607)
*1
Master warning light
( P. 608)
*1
Slip indicator (P. 607)
*1
(if equipped)
Tire pressure warning light
( P. 609)

1232. Instrument cluster
2
Instrument cluster
LS460/LS460L_GE (OM50G06E)
The indicators inform the driver of the operating state of the vehicle’s vari-
ous systems.
Indicators
Turn signal indicator
( P. 278)
*1Brake hold operated indi-
cator ( P. 282)
Tail light indicator
( P. 285)
Cruise control “SET”
indicator
( P. 309, 313, 328)
Headlight high beam
indicator ( P. 287)
Cruise control indicator
( P. 309, 313, 328)
(if equipped)
Adaptive High-beam Sys-
tem indicator ( P. 291)(if equipped)
Radar cruise control
indicator ( P. 313, 328)
Front fog light indicator
( P. 298)(if equipped)
LKA (Lane-Keeping
Assist) indicator
( P. 344)
(if equipped)
Rear fog light indicator
( P. 298)
*1
(if equipped)
“HEIGHT HIGH” indica-
tor ( P. 358)
*1
(if equipped)
Gear Shift Indicator
( P. 273)
*1, 2
Slip indicator (P. 362)
Snow mode indicator
( P. 266, 274)
*1VSC (Vehicle Stability
Control) OFF indicator
( P. 363)
*1Parking brake indicator
( P. 279)
*1, 3
(if equipped)
Pre-crash safety system
warning light ( P. 370)
*1Brake hold standby indica-
tor ( P. 282)
*4
(if equipped)
BSM (Blind Spot Monitor)
outside rear view mirror
indicators ( P. 381)

1242. Instrument cluster
LS460/LS460L_GE (OM50G06E)
*1: These lights come on when the engine switch is turned to IGNITION ON mode
to indicate that a system check is being performed. They will go off after the
engine is on, or after a few seconds. There may be a malfunction in a system if the
lights do not come on, or go off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off. The light flashes faster than
usual to indicate that the system is operating.
*4: In order to confirm operation, the BSM outside rear view mirror indicators illumi-
nate in the following situations:
• When the engine switch is turned to IGNITION ON mode while the BSM main
switch is set to ON.
• When the BSM main switch is set to ON while the engine switch is in IGNI-
TION ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators
will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Lexus dealer.
*1
(if equipped)
“AIR BAG ON/
OFF” indicator
( P. 64)
*1
(if equipped)
“PASSENGER
AIR BAG” indica-
tor ( P. 69)
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on
when you start the engine, this could mean that these systems are not available to
help protect you in an accident, which could result in death or serious injury. Have
the vehicle inspected by your Lexus dealer immediately if this occurs.

2664-2. Driving procedures
LS460/LS460L_GE (OM50G06E)
■Sport mode/Comfort mode/Eco drive mode
 P. 354
■Snow mode
Snow mode can be selected to suit the conditions when driving on slip-
pery road surfaces, such as on snow.
Press the switch.
The snow mode indicator light will
come on.
Press the switch again to return to
normal mode.
■S mode
●When the shift range is 6 or lower, holdin g the shift lever toward “+” sets the shift
range to 8.
●When the shift lever is moved toward “-”, the shift range is downshifted to a range
that enables engine braking force that is suitable to driving conditions.
●To prevent the engine from over-revving, upshifting may automatically occur.
■Downshifting restrictions warning buzzer (in the S mode)
To help ensure safety and driving performance, downshifting operation may some-
times be restricted. In some circumstances, downshifting may not be possible even
when the shift lever is operated. (A buzzer will sound twice.)
■When driving with cruise control, dynamic radar cruise control or dynamic radar
cruise control with full speed range activated
Even when performing the following actions with the intent of enabling engine brak-
ing, engine braking will not activate because cruise control, dynamic radar cruise
control or dynamic radar cruise control with full speed range will not be canceled.
●While driving in S mode, downshifting to 7, 6, 5 or 4. ( P. 309, 313, 328)
●When switching the driving mode to sport mode while driving in D position.
( P. 354)
Selecting the driving mode

2744-2. Driving procedures
LS460/LS460L_GE (OM50G06E)
■Sport mode/Comfort mode/Eco drive mode
 P. 354
■Snow mode
Snow mode can be selected to suit the conditions when driving on slip-
pery road surfaces, such as on snow.
Press the switch.
The snow mode indicator light will
come on.
Press the switch again to return to
normal mode.
■Automatic deactivation of shift range selection in the D position
Shift range selection in the D position will be deactivated in the following situations:
●When the vehicle comes to a stop
●If the accelerator pedal is depressed for more than a certain period of time
●When the shift lever is shifted to other than D
■Downshifting restrictions warning buzzer
To help ensure safety and driving performance, downshifting operation may some-
times be restricted. In some circumstances, downshifting may not be possible even
when the shift lever or paddle shift switch is operated. (A buzzer will sound twice.)
■When driving with cruise control, dynamic radar cruise control or dynamic radar
cruise control with full speed range activated
Even when performing the following actions with the intent of enabling engine brak-
ing, engine braking will not activate because cruise control, dynamic radar cruise
control or dynamic radar cruise control with full speed range will not be canceled.
●While driving in the D position, downshifting to 7, 6, 5 or 4. ( P. 309, 313, 328)
●When switching the driving mode to sp ort mode while driving in D position.
(  P. 354)
Selecting the driving mode

2814-2. Driving procedures
4
Driving
LS460/LS460L_GE (OM50G06E)
■Parking brake indicator light
●Depending on the engine switch mode, the parking brake indicator light will come
on and stay on as described below:
IGNITION ON mode: Comes on until the parking brake is released.
Not in IGNITION ON mode: Stays on for approximately 15 seconds.
●When the engine switch is turned off with the parking brake set, the parking brake
indicator light will stay on for about 15 seconds. This does not indicate a malfunc-
tion.
■Parking brake engaged warning buzzer
A buzzer will sound if the vehicle is driven at a speed of approximately 5 km/h (3
mph) or more with the parking brake engaged.
■When there is a malfunction in the system
Warning lights and/or warning message will turn on or flash. ( P. 607, 614)
Depending on the condition, the parking brake indicator light may flash.
■Usage in winter time
 P. 399
NOTICE
■When parking the vehicle
Before you leave the vehicle, set the parking brake, shift the shift lever to P and
make sure that the vehicle does not move.
■When the system malfunctions
Stop the vehicle in a safe place and check the warning messages.
■When the parking brake cannot be released due to a malfunction
Use the parking brake release tool to manually release the parking brake.
( P. 629)
Driving the vehicle with the parking brake set will lead to brake components over-
heating, which may affect braking performance and increase brake wear.

2824-2. Driving procedures
LS460/LS460L_GE (OM50G06E)
Turns the brake hold system on
The brake hold standby indicator
(green) comes on. While the system is
holding the brake, the brake hold
operated indicator (yellow) comes on.
■Brake hold system operating conditions
The brake hold system cannot be turned on in the following conditions:
●The trunk or hood is not closed.
●The driver’s door is not closed.
●The driver is not wearing the seat belt.
If any of the conditions above are detected when the brake hold system is enabled,
the system will turn off and the brake hold standby indicator light will go off. In addi-
tion, if any of the conditions are detected while the system is holding the brake, a
warning buzzer will sound and a message will be shown on the multi-information dis-
play. The parking brake will then be set automatically.
Brake Hold
The brake hold system keeps the brake applied when the shift lever is in
D, N, or S (vehicles without paddle shift switches) or M (vehicles with
paddle shift switches) with the syst em on and the brake pedal has been
depressed to stop the vehicle. The system releases the brake when the
accelerator pedal is depressed with th e shift lever in D, S or M to allow
smooth start off.
