2016 Lexus GS350 Owner's Manual

4657-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
7
When trouble arises
(GS F only)
Indicates that the LDA (Lane Departure Alert with steer-
ing control) system has determined that the driver does
not have their hands on the steering wheel while the
steering control function is on
 Firmly hold the steering wheel.
(If equipped)
Indicates that the LKA (Lane- Keeping Assist) system has
determined that the driver does not have their hands on
the steering wheel while the steering control function is
on
 Firmly hold the steering wheel.
Indicates that the parking brake system is overheating
A buzzer also sounds.
 Do not use the parking brake until the message dis-
appears.
Indicates an engine malfunction
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Wa r n i n g m e s s a g eDetails/Actions
(U.S.A.) (Canada)
(U.S.A.) (Canada)

4667-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
Indicates an engine malfunctionA buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Indicates an engine malfunction
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or,
• The seat belt pretensioner system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Indicates a malfunction in:
• The ABS; or
• The brake assist system
A buzzer also sounds.
 Immediately stop the vehicle in a safe place and
contact your Lexus dealer. Continuing to drive the
vehicle may be dangerous.
Wa r n i n g m e s s a g eDetails/Actions
(U.S.A.) (Canada)
(U.S.A.) (Canada)

4677-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
7
When trouble arises
Indicates that the engine coolant temperature is too high A buzzer also sounds.
 P. 5 2 8
(GS350/GS200t only)
Indicates a malfunction in the vehicle’s charging system.
Immediately stop the vehicle in a safe place and
contact your Lexus dealer. Continuing to drive the
vehicle may be dangerous.
(If equipped)
Indicates that the radar sensor is dirty or covered with
ice A buzzer also sounds.
 Clean the sensor.
Wa r n i n g m e s s a g eDetails/Actions

4687-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
(If equipped)
Indicates that the dynamic radar cruise control system
cannot be used temporarily due to bad weatherA buzzer also sounds.
 Use the radar cruise control system when it
becomes available again.
(If equipped)
Indicates that the radar crui se control system brake con-
trol function is temporarily unavailable
 Depress the brake.
Indicates a malfunction in the smart access system with
push-button start
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates that a Blind Spot Monitor sensor or the sur-
rounding area on the bumper is dirty or covered with ice
A buzzer also sounds.
 Clean the sensor and its surrounding area on the
bumper.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)

4697-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
7
When trouble arises

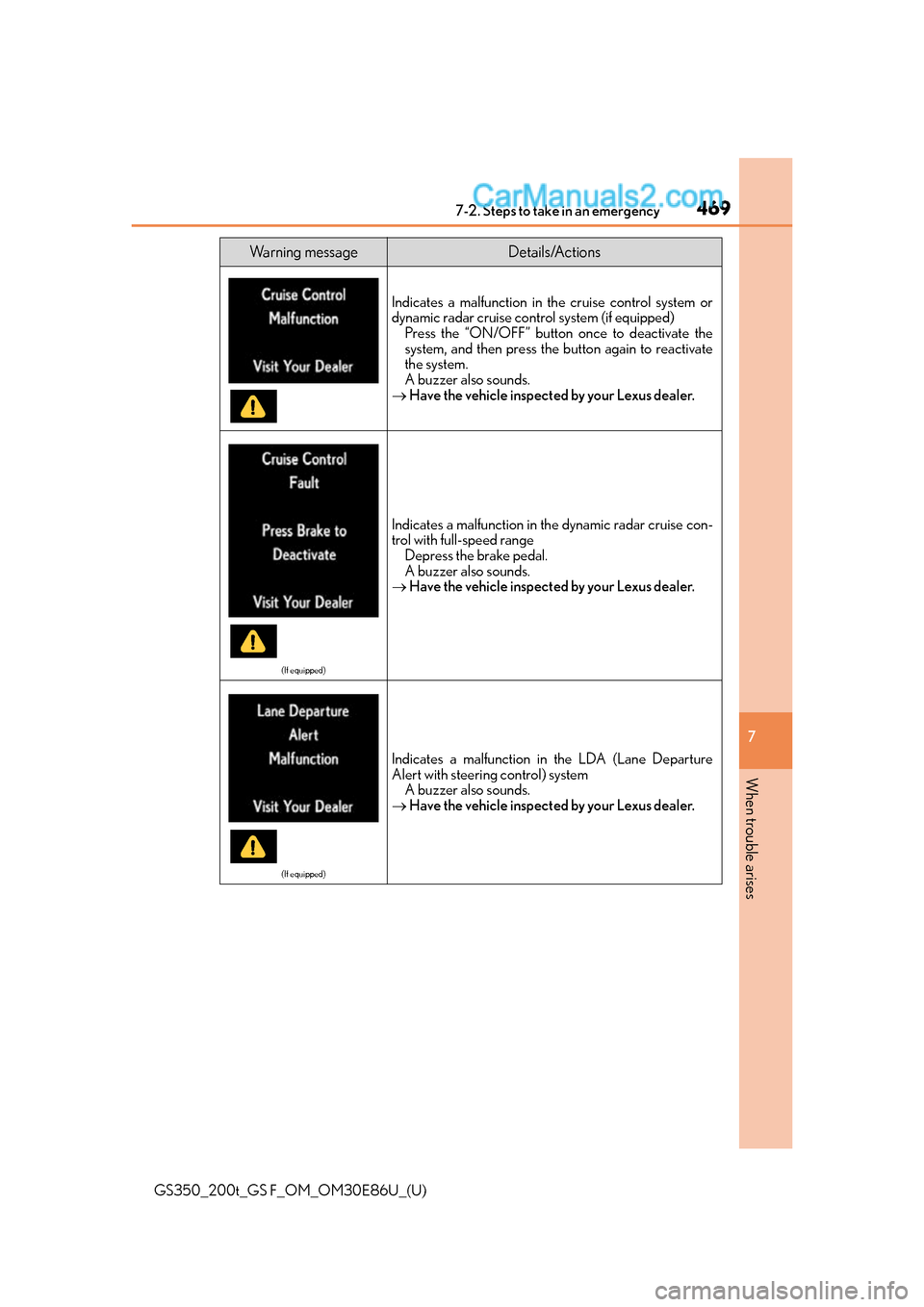

Indicates a malfunction in th e cruise control system or
dynamic radar cruise control system (if equipped)
Press the “ON/OFF” button once to deactivate the
system, and then press the button again to reactivate
the system.
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in th e dynamic radar cruise con-
trol with full-speed range Depress the brake pedal.
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the LDA (Lane Departure
Alert with steering control) system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Wa r n i n g m e s s a g eDetails/Actions

4707-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
(If equipped)
Indicates a malfunction in the LKA (Lane-Keeping
Assist) systemA buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
The operation conditions of the camera sensor (temper-
ature, etc.) are not met.
 When the operation conditions of the camera sen-
sor (temperature, etc.) are met, the following sys-
tems will become available.
• PCS (Pre-Collision System)
• LKA (Lane-Keeping Assist) system
• LDA (Lane Departure Alert with steering control) system
• Automatic High Beam
(If equipped)
Indicates that the system is temporarily unavailable due
to a malfunction in a sensor other than the camera sen-
sor A buzzer also sounds.
 Turn the LDA (Lane Departure Alert with steering
control) system off, wait for a little while, and then
turn the LDA (Lane Departure Alert with steering
control) system back on.
(If equipped)
Indicates that the system is temporarily unavailable due
to a malfunction in a sensor other than the camera sen-
sor
A buzzer also sounds.
 Turn the LKA (Lane-Keeping Assist) system off, wait
for a little while, and then turn the LKA (Lane-Keep-
ing Assist) system back on.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)

4717-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
7
When trouble arises
(If equipped)
Dirt, rain, condensation, ice, snow, etc., are present on
the windshield in front of the camera sensor. The following systems will be temporarily unusable.
• PCS (Pre-Collision System)
• LKA (Lane-Keeping Assist) system
• LDA (Lane Departure Alert with steering control) system
• Automatic High Beam
 Turn the system off, remove any dirt, rain, condensa-
tion, ice, snow, etc., from the windshield, and then
turn the system back on.
(If equipped)
Indicates a malfunction in the PCS (Pre-Collision Sys-
tem)
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot Monitor)
system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)

4727-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
Indicates abnormal engine oil pressureA buzzer also sounds.
 Immediately stop the vehicle in a safe place and
contact your Lexus dealer.
Indicates that the automatic transmission fluid tempera-
ture is too high
A buzzer also sounds.
 Immediately stop the vehicle in a safe place and
contact your Lexus dealer.
(AWD models only)
Indicates a malfunctio n in the AWD system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the VGRS (Variable Gear
Ratio Steering)
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Wa r n i n g m e s s a g eDetails/Actions
