2016 Lexus GS F Owner's Manual

GS350_200t_GS F_OM_OM30E86U_(U)
3595-5. Using the other interior features
5
Interior features
The GPS clock’s time is automatically
adjusted by utilizing GPS time informa-
tion.
For details, refer to “NAVIGATION
SYSTEM OWNER’S MANUAL”.
Open the ashtray lid.
To remove the ashtray, pull the ashtray
lid upwards.
Clock
Ashtrays (if equipped)
WA R N I N G
●Keep the ashtray closed when not in use. In the event of sudden braking or sudden
swerving, an accident may occur due to an occupant being struck by the open ash-
tray or ash flying out.
●To p r e v e n t f i r e
• Fully extinguish matches and cigarettes before putting them in the ashtray, thenmake sure the ashtray is fully closed.
• Do not place paper or any other type of flammable object in the ashtray.

360
GS350_200t_GS F_OM_OM30E86U_(U)5-5. Using the other interior features
Please use as a power supply for electronic goods that use less than 12 V DC /
10 A (power consumption of 120 W).
The power outlets can be used when the engine switch is in ACCESSORY or IGNI-
TION ON mode.
Fold down the armrest for use.
Power outlets
XFrontXRear
Open the lid.
NOTICE
●To avoid damaging the power outlets, close the power outlet lids when the power out-
lets are not in use.
Foreign objects or liquids that enter the power outlets may cause a short circuit.
●To prevent battery discharge, do not use the power outlets longer than necessary
when the engine is off.
Armrest
NOTICE
To prevent damage to the armrest, do not apply too much load on the armrest.

GS350_200t_GS F_OM_OM30E86U_(U)
3615-5. Using the other interior features
5
Interior features
■Rear sunshade
The rear sunshade can be raised and lowered by operating the button shown
below.Pull up the lever to release the lock.
Slide the armrest.
Raise/lower
■Rear door sunshades
Pull the tab of the rear door sun-
shade and hook the shade on using
the anchors.
To retract the rear door sunshade,
unhook the shade and retract it
slowly.
Rear sunshade (if equipped)/rear door sunshades (if equipped)
XFrom the front seatsXFrom the rear seats (if equipped)
1
2
3

362
GS350_200t_GS F_OM_OM30E86U_(U)5-5. Using the other interior features
●The rear sunshade can be used when the
engine switch is in IGNITION ON mode.
●The rear sunshade can be operated for approximately 1 minute even after the engine
switch is turned to ACCESSORY mode or turned off.
●Reverse operation feature: To ensure adequate rear visibility, the rear sunshade auto-
matically lowers when the shift lever is shifted to R.
However, the rear sunshade is raised again if any of the following occurs:
• The button is pressed again.
*• Shift the shift lever into P.
• The shift lever is shifted out of R, and the vehicle reaches a speed of 9 mph (15 km/h).If the engine is off when the rear sunshade has been lowered due to the reverse opera-
tion feature, it will not be raised even when the engine is turned on again and the vehi-
cle reaches a speed of 9 mph (15 km/h). To raise the sunshade again, press the button.
*: Occasionally, the reverse function may not be carried out after the switch has been
pressed. Repeat the above operation to operate the function.
●Vehicles with rear control panel: To prevent inadvertent operation, some buttons on the
rear armrest can be locked. ( →P. 3 4 1 )
●Vehicles with rear control panel: Control panel illumination on the rear armrest can be
turned off. ( →P. 3 4 1 )
●Time elapsed before the reverse operation feature activates can be changed.
(Customizable features: →P. 5 6 8 )
WA R N I N G
When the rear sunshade is being operated, do not place fingers or other objects in the
fastener section or in the opening.
They may get caught, causing injury.
NOTICE
●To prevent battery discharge, do not operate the rear sunshade when the engine is
off.
●Observe the following precautions to ensure normal operation of the rear sunshade
and rear door sunshades.
• Do not place excessive load on the motor or other components of the rear sun- shade.
• Do not place objects where they may hinder opening and closing operations.
• Do not attach items to the rear sunshade and rear door sunshades.
• Keep the opening clean and clear of obstructions.
• Do not operate the rear sunshade continuously for long periods of time.

GS350_200t_GS F_OM_OM30E86U_(U)
3635-5. Using the other interior features
5
Interior features
Long objects can be loaded into the vehicle by utilizing the trunk space and rear
seat area.Fold down the armrest.
Fold down the handle and open the
armrest door.
The armrest door can be locked and
unlocked using the mechanical key.Unlock
Lock
Trunk storage extension
1
2
1
2
WA R N I N G
Ensure that the armrest door is closed when not in use.
In the event of sudden braking, items stored in the trunk may be thrown forward into
the cabin, resulting in injury.

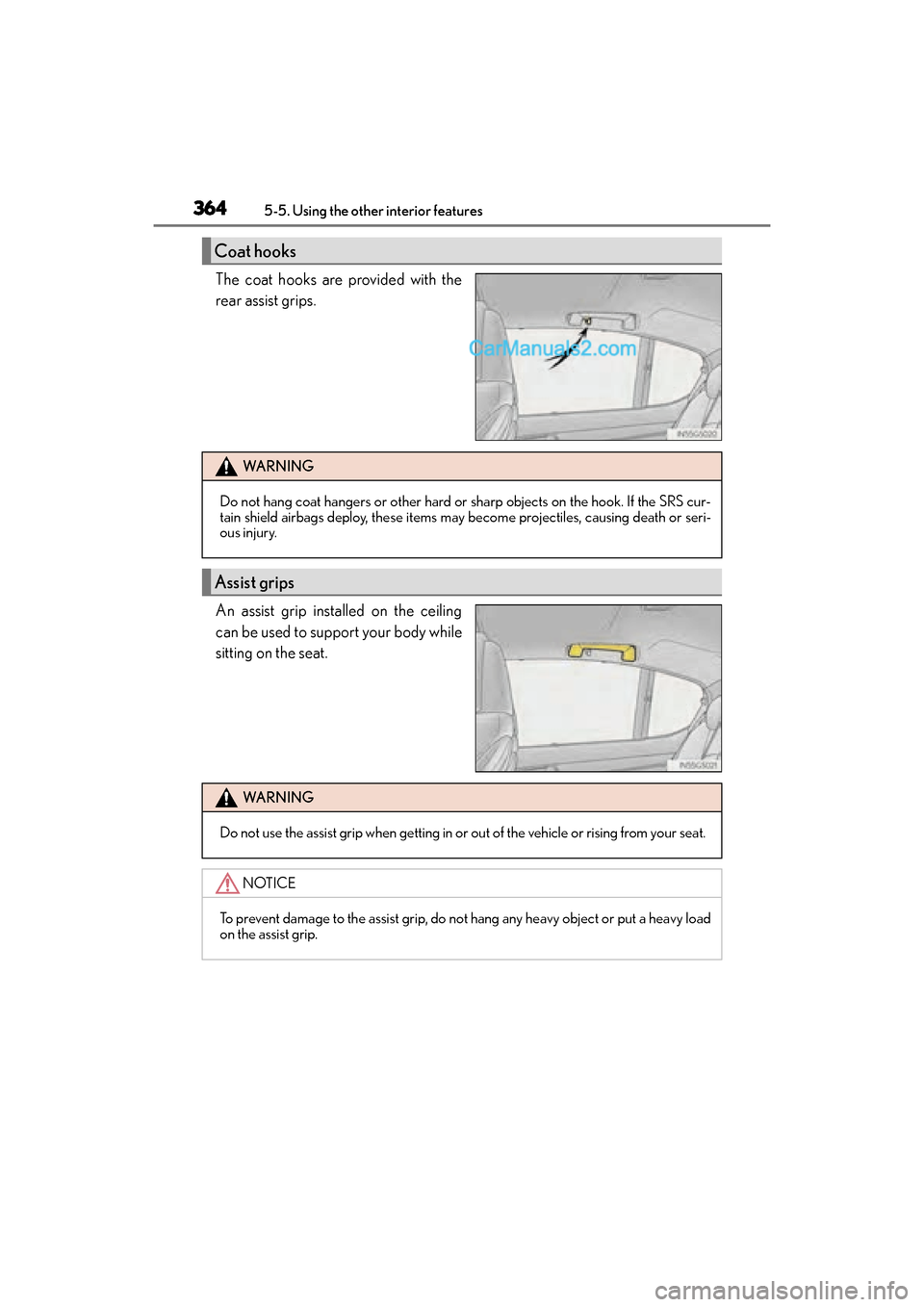

364
GS350_200t_GS F_OM_OM30E86U_(U)5-5. Using the other interior features
The coat hooks are provided with the
rear assist grips.
An assist grip installed on the ceiling
can be used to support your body while
sitting on the seat.
Coat hooks
WA R N I N G
Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS cur-
tain shield airbags deploy, these items may become projectiles, causing death or seri-
ous injury.
Assist grips
WA R N I N G
Do not use the assist grip when getting in or out of the vehicle or rising from your seat.
NOTICE
To prevent damage to the assist grip, do not hang any heavy object or put a heavy load
on the assist grip.

365
GS350_200t_GS F_OM_OM30E86U_(U)5-5. Using the other interior features
5
Interior features
Garage door opener
The HomeLink® wireless control system in your vehicle has 3 buttons which can
be programmed to operate 3 different devices. Refer to the programming meth-
ods on the following pages to determine the method which is appropriate for the
device.
HomeLink
® indicator light
Garage door operation indicators
HomeLink
® icon
Illuminates while HomeLink® is operat-
ing.
Buttons
■Before programming HomeLink®
●During programming, it is possible that garage doors, gates, or other
devices may operate. For this reason, make sure that people and objects
are clear of the garage door or other devices to prevent injury or other
potential harm.
●It is recommended that a new battery be placed in the remote control
transmitter for more accurate programming.
●Garage door opener motors manufactured after 1995 may be equipped
with rolling code protection. If this is the case, you may need a stepladder
or other sturdy, safe device to reach the “Learn” or “Smart” button on the
garage door opener motor.
The garage door opener can be progra mmed to operate garage doors, gates,
entry doors, door locks, home lighting systems, security systems, and other
devices.
Programming HomeLink®
1
2
3
4

366
GS350_200t_GS F_OM_OM30E86U_(U)5-5. Using the other interior features
■Programming HomeLink®
Press and release the HomeLink® button you want to program and check
that the HomeLink® indicator light flashes (orange).
Perform within 60 seconds of , or the indicator light will stop flashing and
programming will not be able to be completed.
Point the remote control transmit-
ter for the device at the rear view
mirror, 1 to 3 in. (25 to 75 mm)
from the HomeLink
® buttons.
Keep the HomeLink® indicator light
in view while programming.
XFor U.S.A. owners
Press and hold the handheld
transmitter button until the
HomeLink
® indicator light
changes from slowly flashing
orange to rapidly flashing green
(rolling code) or continuously lit
green (fixed code), then release
the button.
XProgramming an entry gate (for U.S.A. owners)/Programming a device in
the Canadian market
Press and release the remote control transmitter button at 2 second inter-
vals, repeatedly, until the HomeLink
® indicator light changes from slowly
flashing (orange) to rapidly flashing (green) (rolling code) or continuously
lit (green) (fixed code).
Te s t t h e H o m e L i n k
® operation by pressing the newly programmed button
and observing the indicator light:
●Device with fixed code: If the indicator light is solid/continuous, pro-
gramming has been completed and your garage door or other device
should operate when the HomeLink
® button is pressed and released.
●Device with rolling code: If the indicator light flashes rapidly, your
garage door opener motor (or other device) is equipped with a rolling
code. Complete the programming process by firmly pressing and hold-
ing the programmed HomeLink
® button for 2 seconds and then release
the button.
1
31
2
3
3
4
