2016 Hyundai Sonata Hybrid Owner's Manual

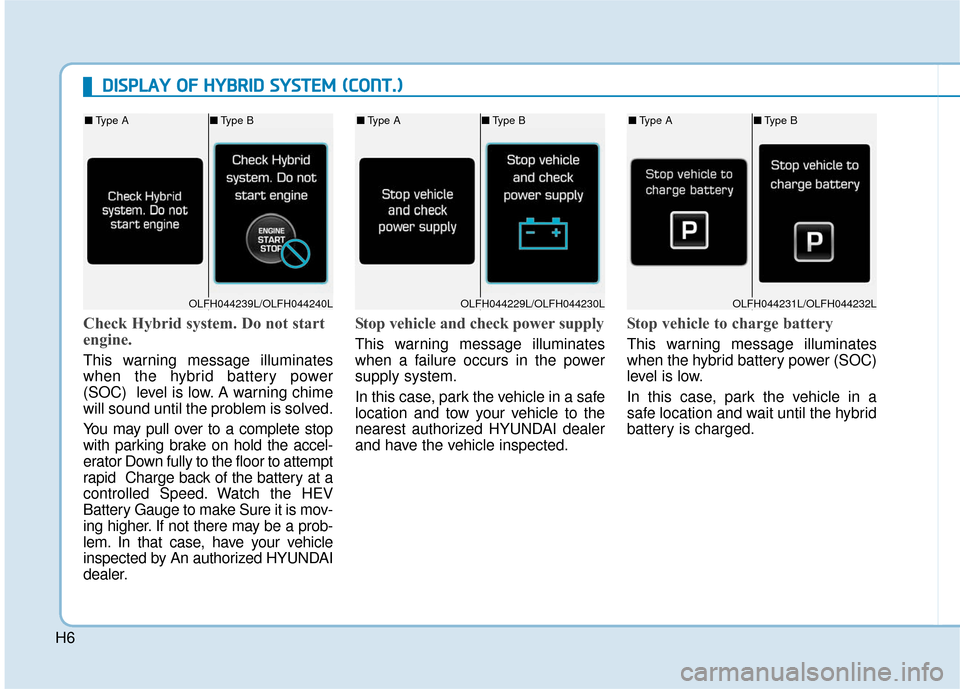

H6
Check Hybrid system. Do not start
engine.
This warning message illuminates
when the hybrid battery power
(SOC) level is low. A warning chime
will sound until the problem is solved.
You may pull over to a complete stop
with parking brake on hold the accel-
erator Down fully to the floor to attempt
rapid Charge back of the battery at a
controlled Speed. Watch the HEV
Battery Gauge to make Sure it is mov-
ing higher. If not there may be a prob-
lem. In that case, have your vehicle
inspected by An authorized HYUNDAI
dealer.
Stop vehicle and check power supply
This warning message illuminates
when a failure occurs in the power
supply system.
In this case, park the vehicle in a safe
location and tow your vehicle to the
nearest authorized HYUNDAI dealer
and have the vehicle inspected.
Stop vehicle to charge battery
This warning message illuminates
when the hybrid battery power (SOC)
level is low.
In this case, park the vehicle in a
safe location and wait until the hybrid
battery is charged.
D DI
IS
S P
P L
LA
A Y
Y
O
O F
F
H
H Y
Y B
BR
RI
ID
D
S
S Y
Y S
ST
T E
EM
M
(
( C
C O
O N
NT
T.
.)
)
OLFH044229L/OLFH044230L
■ Type A ■Type B
OLFH044231L/OLFH044232L
■Type A ■Type B
OLFH044239L/OLFH044240L
■Type A ■Type B

H7
Refuel to prevent Hybrid battery
damage
This warning message illuminates
when the fuel tank is nearly empty.
You should refill the fuel tank to pre-
vent hybrid battery damage.
Do not continue to run the vehicle
out of gas thinking that vehicle
can continue to operate in EV
only. it may damage the HEV
Battery.
Refill inverter coolant
This warning message illuminates
when the inverter coolant is nearly
empty.
You should refill the inverter coolant.
Stop vehicle and check brakes
This warning message illuminates
when a failure occurs in the brake
system.
In this case, park the vehicle in a safe
location and tow your vehicle to the
nearest authorized HYUNDAI dealer
and have the vehicle inspected.
NOTICE
OLFH044241L/OLFH044242L
■Type A ■Type B
OLFH044243L/OLFH044244L
■Type A ■Type B
OLFH044233L/OLFH044234L
■Type A ■Type B

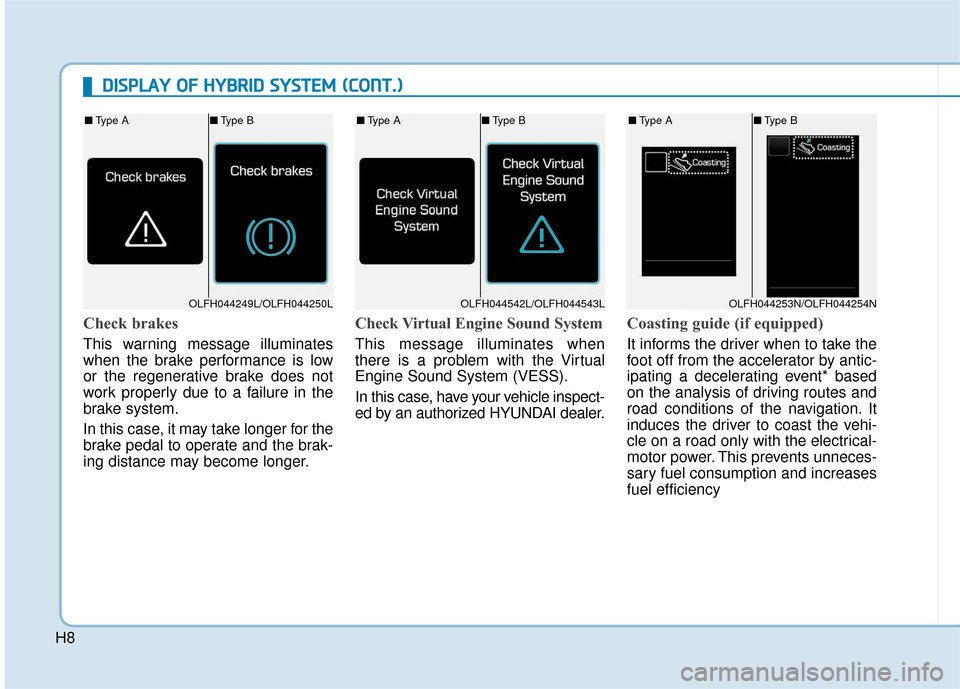

H8
Check brakes
This warning message illuminates
when the brake performance is low
or the regenerative brake does not
work properly due to a failure in the
brake system.
In this case, it may take longer for the
brake pedal to operate and the brak-
ing distance may become longer.
Check Virtual Engine Sound System
This message illuminates when
there is a problem with the Virtual
Engine Sound System (VESS).
In this case, have your vehicle inspect-
ed by an authorized HYUNDAI dealer.
Coasting guide (if equipped)
It informs the driver when to take the
foot off from the accelerator by antic-
ipating a decelerating event* based
on the analysis of driving routes and
road conditions of the navigation. It
induces the driver to coast the vehi-
cle on a road only with the electrical-
motor power. This prevents unneces-
sary fuel consumption and increases
fuel efficiency
D DI
IS
S P
P L
LA
A Y
Y
O
O F
F
H
H Y
Y B
BR
RI
ID
D
S
S Y
Y S
ST
T E
EM
M
(
( C
C O
O N
NT
T.
.)
)
OLFH044542L/OLFH044543L
■ Type A ■Type B
OLFH044249L/OLFH044250L
■Type A ■Type B
OLFH044253N/OLFH044254N
■Type A ■Type B

H9
❈Examples of decelerating events:
U-turn, turnings to the right/left,
traffic circles, highway junctions,
tollgates, and roadside unmanned
cameras to detect speeding.■Type B
Operation conditions
Press the Engine Start/Stop button. In the User Settings Mode, select
Driving Assistance, and then Coasting Guide to turn on the system.
Cancel the selection of coasting guide to turn off the system.
To activate the system, take the following procedures. Enter your destina-
tion information on the navigation and select the driving route. Select the
ECO mode in the Integrated Driving Control System. Then, satisfy the fol-
lowing.
- The driving speed should be between 37 mph (60 km/h) and 99 mph
(160 km/h).
❈ The operating condition (driving speed) varies in a situation, as there
may be a difference in displaying the driving speeds between the instru-
ment cluster and the navigation, and as there may a difference between
the actual driving speed and the driving speed display in accordance
with a tire inflating condition.
OLFH044554N/OLFH044555N
■ Type A
OLFH044182N/OLFH044556N

H10
Information
Coasting guide is only a supplemental
system to promote the fuel-efficient
driving. Thus, the operating conditions
may be different in accordance with
traffic/road conditions (i.e. driving in a
traffic jam, driving on a slope, driving
on a curve). Thus, take the actual driv-
ing conditions into consideration, such
as distances from the vehicles ahead/
behind, while referring to the coasting
guide system as guidance.
i
D
DI
IS
S P
P L
LA
A Y
Y
O
O F
F
H
H Y
Y B
BR
RI
ID
D
S
S Y
Y S
ST
T E
EM
M
(
( C
C O
O N
NT
T.
.)
)

H11
Energy flow
The hybrid system informs the driv-
ers its energy flow in various operat-
ing modes. While driving, the current
energy flow is specified in 11 modes.
Vehicle Stop
The vehicle is stopped.
(No energy flow)
EV Propulsion
Only the motor power is used to drive
the vehicle.
(Battery ➞Wheel)
S SO
O N
NA
AT
TA
A
H
H E
EV
V
E
E N
N E
ER
R G
G Y
Y
F
F L
LO
O W
W
OLFH044213N/OLFH044214N
■ Type A■Type B
OLFH044215N/OLFH044216N
■Type A■Type B

H12
Power Assist
Both the motor and the engine power
are used to drive the vehicle.
(Battery & Energy ➞Wheel)
Engine Only Propulsion
Only the engine power is used to
drive the vehicle.
(Engine ➞Wheel)
Engine Generation
When the vehicle is stopped, the
high-voltage battery is charged up by
the engine.
(Engine ➞Battery)
S SO
O N
NA
AT
TA
A
H
H E
EV
V
E
E N
N E
ER
R G
G Y
Y
F
F L
LO
O W
W
(
( C
C O
O N
NT
T.
.)
)
OLFH044217N/OLFH044218N
■ Type A■Type B
OLFH044219N/OLFH044220N
■Type A■Type B
OLFH044221N/OLFH044222N
■Type A■Type B

H13
Regeneration
The high-voltage battery is charged
up by the regenerative brake system.
(Wheel ➞Battery)
Engine Brake
The engine braking is used to decel-
erate the vehicle.
(Wheel ➞Engine)
Power Reserve
The engine is simultaneously used to
drive the vehicle and to charge up
the high-voltage battery.
(Engine ➞Wheel & Battery)
■Type A■Type B
OLFH044223N/OLFH044224N
■Type A■Type B
OLFH044215N/OLFH044216N
■Type A■Type B
OLFH044219N/OLFH044220N
