2016 Hyundai Sonata Hybrid Owner's Manual

3-66
Convenient features of your vehicle
Regenerative BrakeWarning Light
This warning light illuminates :
When the regenerative brake does
not operate and the brake does not
perform well. This causes the Brake
Warning light (red) and Regenerative
Brake Warning Light (yellow) to illu-
minate simultaneously.
In this case, drive safely and have
your vehicle inspected by an author-
ized HYUNDAI dealer.
Anti-lock Brake System(ABS) Warning Light
This warning light illuminates in
one of the following situations:
When the Engine Start/Stop button
is in the ON position.
- It illuminates for approximately 3seconds and then goes off.
There is a malfunction with the ABS (The normal braking system is still
operational without the assistance
of the anti-lock brake system).
In this case, have the vehicle
inspected by an authorized
HYUNDAI dealer.
Electronic Brake forceDistribution (EBD)System Warning Light
These two warning lights illuminate
at the same time while driving in
the following situation:
The ABS and the regular brake
system may not properly operate.
In this case, have the vehicle
inspected by an authorized
HYUNDAI dealer.
(yellow color)
(red color)
The operation of the brake
pedal may be more difficult than
normal and the braking dis-
tance can increase.
WARNING

3-67
Convenient features of your vehicle
3
Information
When the ABS warning light illumi-
nates, or when both the ABS and the
Parking Brake & Brake Fluid warning
lights illuminate, the speedometer, the
odometer, or the tripmeter may not
properly operate. Also, the EPS
Warning Light may illuminate, and the
efforts to operate the steering wheel
may need to be increased or decreased.
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
Electronic ParkingBrake (EPB) WarningLight (if equipped)
This warning light illuminates:
When the Engine Start/Stop button
is in the ON position.
- It illuminates for approximately 3seconds and then goes off.
When there is a malfunction with the EPB.
In this case, have the vehicle
inspected by an authorized
HYUNDAI dealer.
Information
The Electric Parking Brake (EPB)
warning light may illuminate, when
the Electronic Stability Control (ESC)
indicator illuminates due to the ESC
malfunction (This does not indicate
the EPB malfunction).
i
i
When both the ABS and Parking
Brake & Brake Fluid Warning
Lights are on, the brake system
will not work normally and you
may experience an unexpected
and dangerous situation during
sudden braking.
In this case, avoid high speed
driving and abrupt braking.
Have the vehicle inspected by
an authorized HYUNDAI dealer
as soon as possible.
WARNINGEPB

3-68
Convenient features of your vehicle
Malfunction IndicatorLamp (MIL)
This warning light illuminates in
one of the following situations:
You turn ON the Engine Start/Stop
button.
- It remains on until the engine isstarted.
There is a malfunction with the emission control system.
In this case, have the vehicle
inspected by an authorized
HYUNDAI dealer. Driving with the Malfunction
Indicator Lamp (MIL) on may cause
damage to the emission control
systems which could affect dri-
vability and/or fuel economy.
When the Malfunction Indicator
Lamp (MIL) illuminates, the catalyt-
ic converter is possibly damaged,
resulting in loss of engine power.
In this case, have the vehicle
inspected by an authorized
HYUNDAI dealer as soon as possi-
ble.
Charging System
Warning Light
When this warning light illuminates
while running the engine, the battery is
not being charged. Immediately turn
OFF all electrical accessories. Try not
to use electrically operated controls,
such as the power windows. Keep run-
ning the engine. Have the vehicle
inspected by an authorized HYUNDAI
dealer as soon as possible.
NOTICE
NOTICE

3-69
Convenient features of your vehicle
3
Engine Oil PressureWarning Light
This warning light illuminates:
When the Engine Start/Stop button
is in the ON position.
- It remains on until the engine isstarted.
When the engine oil pressure is low.
When the engine oil pressure is low,
follow the below procedures:
1.Carefully drive to the nearest safe location and stop your vehicle.
2.Turn OFF the engine and check the engine oil level (For more
information, refer to the “Engine
Oil” in the chapter 7). If the level
is low, add engine oil.
When the warning light remains
ON after adding engine oil and
restarting the engine, or when
engine oil refilling is unavailable,
turn OFF the engine. These indi-
cate a mechanical problem, which
needs to be repaired before driving. In this case, have your vehicle
inspected by an authorized
HYUNDAI dealer.
When the Engine Oil Pressure
Warning Light illuminates, turn
OFF the engine, and check the
engine oil level, in an attempt to
prevent severe engine damage.
These should be done as soon as
it is safe to do so. When the oil
level is low, add the engine oil to
the proper level and start the
engine again. When the light stays
ON, while running the engine,
immediately turn OFF the engine.
In this case, have your vehicle
inspected by an authorized
HYUNDAI dealer.
Low Fuel Level Warning Light
This warning light illuminates:
When the fuel tank is nearly empty.
When the fuel tank is nearly empty:
Add fuel as soon as possible.
Driving with the Low Fuel Level
warning light on or with the fuel
level below "E (Empty)" may
cause the engine to misfire and
damage the catalytic converter.
Driving the vehicle in EV mode after fuel runs out may damage
the hybrid battery
NOTICE
NOTICE

3-70
Convenient features of your vehicle
Master Warning Light
This warning light illuminates in
one of the following situations:
When there is a problem with theCollision Warning System (FCWS).
When there is a problem with the Smart Cruise Control (SCC).
When there is a problem with the Blind Spot Detection (BSD).
When washer fluid level is low.
When there is a problem with the Tire Pressure Monitoring System
(TPMS).
To identify the cause of the warning,
look at the LCD display.
Icy road warning light (if equipped)
This warning light is to warn the driv-
er the road may be icy.
When the temperature on the out-
side temperature gauge is approxi-
mately below 40°F (4°C), the Icy
Road Warning Light and Outside
Temperature Gauge blinks 10 times,
and then illuminates. Also, the warn-
ing chime sounds 3 times.
Information
If the icy road warning light appears
while driving, you should drive more
attentively and safely refraining from
over-speeding, rapid acceleration,
sudden braking or sharp turning, etc.
i
OLFH045428N

3-71
Convenient features of your vehicle
3

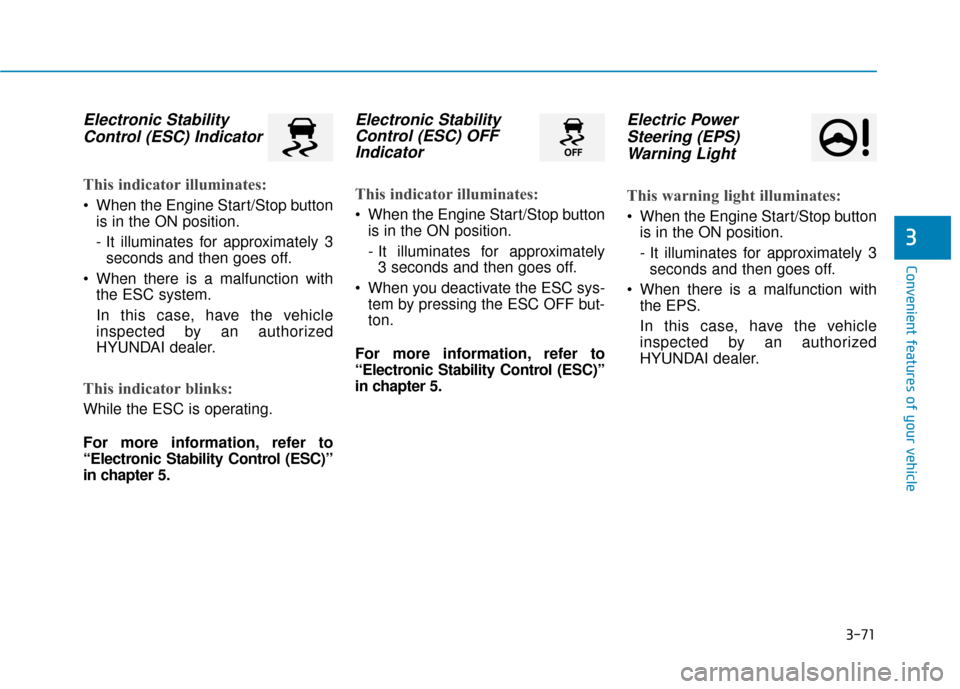

Electronic StabilityControl (ESC) Indicator
This indicator illuminates:
When the Engine Start/Stop button
is in the ON position.
- It illuminates for approximately 3seconds and then goes off.
When there is a malfunction with the ESC system.
In this case, have the vehicle
inspected by an authorized
HYUNDAI dealer.
This indicator blinks:
While the ESC is operating.
For more information, refer to
“Electronic Stability Control (ESC)”
in chapter 5.
Electronic StabilityControl (ESC) OFFIndicator
This indicator illuminates:
When the Engine Start/Stop button
is in the ON position.
- It illuminates for approximately 3 seconds and then goes off.
When you deactivate the ESC sys- tem by pressing the ESC OFF but-
ton.
For more information, refer to
“Electronic Stability Control (ESC)”
in chapter 5.
Electric Power Steering (EPS)Warning Light
This warning light illuminates:
When the Engine Start/Stop button
is in the ON position.
- It illuminates for approximately 3seconds and then goes off.
When there is a malfunction with the EPS.
In this case, have the vehicle
inspected by an authorized
HYUNDAI dealer.

3-72
Convenient features of your vehicle

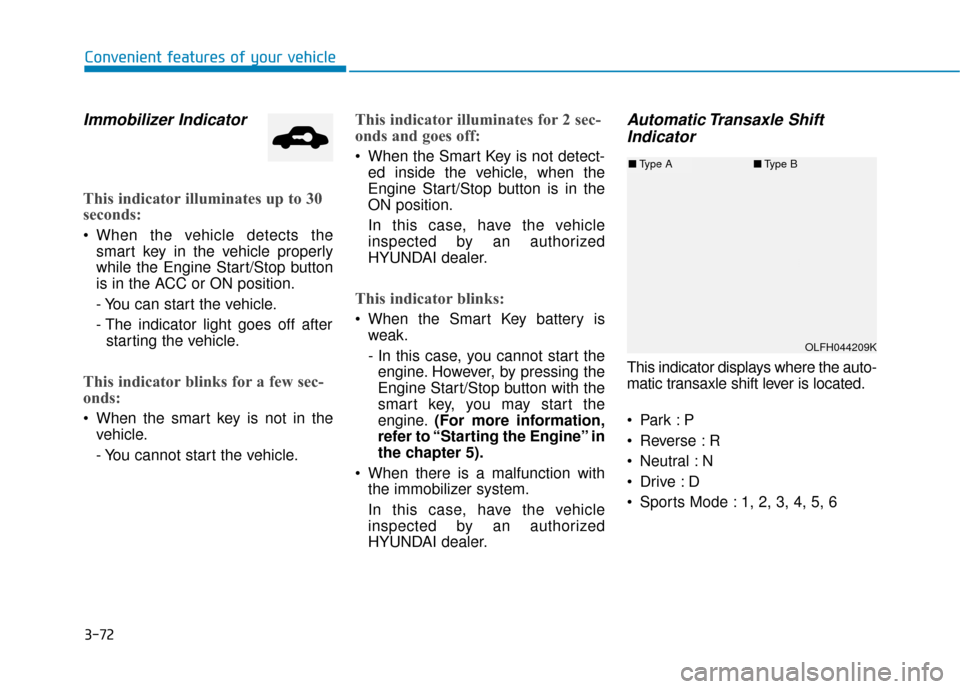

Immobilizer Indicator
This indicator illuminates up to 30
seconds:
When the vehicle detects thesmart key in the vehicle properly
while the Engine Start/Stop button
is in the ACC or ON position.
- You can start the vehicle.
- The indicator light goes off afterstarting the vehicle.
This indicator blinks for a few sec-
onds:
When the smart key is not in the vehicle.
- You cannot start the vehicle.
This indicator illuminates for 2 sec-
onds and goes off:
When the Smart Key is not detect-ed inside the vehicle, when the
Engine Start/Stop button is in the
ON position.
In this case, have the vehicle
inspected by an authorized
HYUNDAI dealer.
This indicator blinks:
When the Smart Key battery isweak.
- In this case, you cannot start theengine. However, by pressing the
Engine Start/Stop button with the
smart key, you may start the
engine. (For more information,
refer to “Starting the Engine” in
the chapter 5).
When there is a malfunction with the immobilizer system.
In this case, have the vehicle
inspected by an authorized
HYUNDAI dealer.
Automatic Transaxle ShiftIndicator
This indicator displays where the auto-
matic transaxle shift lever is located.

Reverse : R
Neutral : N

Sports Mode : 1, 2, 3, 4, 5, 6
OLFH044209K
■ Type A ■Type B

3-73
Convenient features of your vehicle
3
Shift Indicator Pop-up (if equipped)
The current shift lever location is dis-
played for 2 seconds when shifting
into other shift lever locations.
Turn Signal Indicator
This indicator blinks:
When you turn the turn signal lighton.
If any of the following occurs, there
may be a malfunction with the turn
signal system. In this case, have the
vehicle inspected by an authorized
HYUNDAI dealer. - The indicator does not blink butilluminates.
- The indicator blinks more rapidly.
- The indicator does not illuminate at all.
High Beam Indicator
This indicator illuminates:
When the headlights are on and in the high beam position
When the turn signal lever is in the Flash-to-Pass position.
Light ON Indicator
This indicator illuminates:
When the tail lights and headlightsare on.
OLF044421/OLF044420
■ Type A ■Type B
