2016 Hyundai Equus Digital Navigation System

Bluetooth
®
Bluetooth® l 4-5
i Information
!Ÿ
Press the Help button on the screen
to view the help section with informa-
tion related to pairing and connecting
Bluetooth
® devices, and using Handsfree
related features.
!Ÿ
To learn more about searching from
Bluetooth
® devices and pairing, refer to
the user's manual for your Bluetooth
®
device.
!Ÿ
If the system becomes unstable or the
authentication popup is not displayed due
to some communication error, please wait
or reset the Bluetooth
® device and try
again.
When a phone is already paired
Press the PHONE key Ü Select the
Connections icon.
Select the device you want to connect and
press the
Connect button.
If the phone you want to connect does not
exist, Press the
Add New button
to pair a new Bluetooth
® device.
i Information
!Ÿ
Bluetooth® features supported within the
vehicle are as follows. Some features
may not be supported depending on your
Bluetooth
® device.
- Outgoing/Incoming Handsfree calls
- Operations during a call (Switch to Private,
Switch to call waiting, MIC on/off)
- Downloading Call History
- Downloading Mobile Contacts
- Downloading SIM Contacts
- Bluetooth
® device auto connection
- Bluetooth Audio Streaming
!Ÿ
Up to five Bluetooth® devices can be
paired to the Car Handsfree system.
!Ÿ
Only one Bluetooth® device can be con-
nected at a time.
!Ÿ
Other devices cannot be paired while a
Bluetooth
® device is connected.
!Ÿ
Only Bluetooth® Handsfree and Bluetooth
audio related features are supported.
)@7*@ŠÙ<64"@/>
1BSUJOEE


 )@7*@ŠÙ<64"@/>
1BSUJOEE




Bluetooth®
4-6
i Information
!Ÿ
Normal operations are possible only
within devices that support Handsfree
or audio features, such as a Bluetooth
®
mobile phone or a Bluetooth audio device.
!Ÿ
If a connected Bluetooth® device becomes
disconnected due to being out of com-
munication range, turning the device OFF,
or a Bluetooth
® communication error, cor-
responding Bluetooth
® devices are auto-
matically searched and connected.
!Ÿ
If the system becomes unstable due to
communication errors between the car
Handsfree and the Bluetooth
® device, reset
the Bluetooth
® and try again. Upon resetting
Bluetooth
®, the system is restored to its fac-
tory release state.
!Ÿ
To pair a new device, first disconnect the
currently connected device.
Disconnecting a Device
Select the device you want to disconnect
Ü Press the
Disconnect button.
The currently connected Bluetooth® device
is disconnected.
Delete a Device
Select the device you want to deleteÜ
Press the
MENU key Ü Select Delete .
A device cannot be deleted when it is con-
nected.
To delete a paired device, first disconnect
the Bluetooth
® connection.
Press
Delete All to delete all paired
Bluetooth
® devices.
i Information
!Ÿ
If a paired phone is deleted, the call his-
tory and contacts will also be deleted.
)@7*@ŠÙ<64"@/>
1BSUJOEE


 )@7*@ŠÙ<64"@/>
1BSUJOEE




Bluetooth
®
Bluetooth® l 4-7

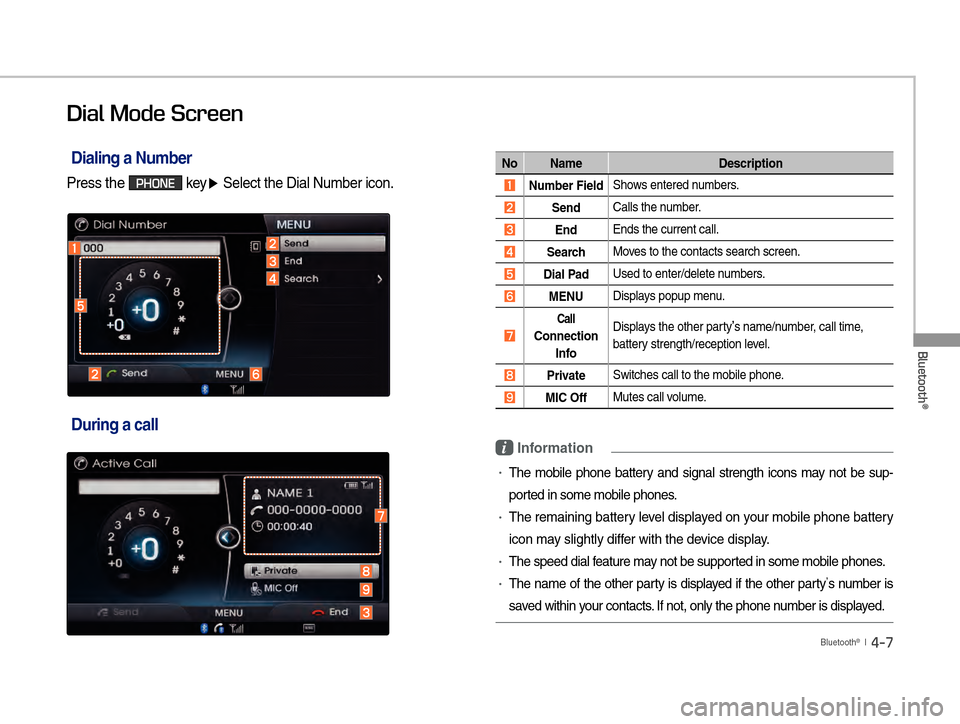

Dial Mode Screen
Dialing a Number
Press the PHONE keyÜ Select the Dial Number icon.
ò
÷
ó
ó
ô
õ
ö
During a call
ø
ù
ú
ô
No Name Description
ò Number Field Sho
ws entered n
umbers.
ó Send Calls the n
umber
.
ô End Ends the current call.
õ Search Mo
v
es to the contacts search screen.
ö Dial Pad Used to enter/delete n
umbers
.
÷ MENU Displa
ys popup men
u.
ø
Call
Connection Info Displays the other partys
s name/number, call time,
battery strength/reception level.
ù Private Switches call to the mobile phone
.
ú MIC Off Mutes call v
olume
.
i Information
!Ÿ
The mobile phone battery and signal strength icons may not be sup-
ported in some mobile phones.
!Ÿ
The remaining battery level displayed on your mobile phone battery
icon may slightly differ with the device display.
!Ÿ
The speed dial feature may not be supported in some mobile phones.
!Ÿ
The name of the other party is displayed if the other party
ss number is
saved within your contacts. If not, only the phone number is displayed.
)@7*@ŠÙ<64"@/>
1BSUJOEE


 )@7*@ŠÙ<64"@/>
1BSUJOEE




Bluetooth®
4-8
Using Bluetooth®
Making a Call
Turn the controller left/right to dial num-
bers Ü Press the
Send button.
If you Press the Send button
without entering a number, the Call History
screen is displayed.
Select the
button to delete dialed num-
bers.
Press and hold the dial pad +0 (over 0.8
seconds) to enter a "+".
i Information
!Ÿ
Some features will not operate during a
Bluetooth
® Handsfree call.
Making a Call from Speed Dial
Enter the 1 or 2 digit speed dial number
with the Dial Pad. (Press and hold the last
number)
i Information
!Ÿ
For speed dials saved within mobile
phones, up to 2 digits are supported.
!Ÿ
The speed dial feature may not be sup-
ported in some mobile phones.
Calling through Redial
Press the hold (over 0.8 seconds) the
Send button or the key
on the steering remote controller.
A call is made to the most recently called
number.
Redialing is not possible when there is no
call history or the Bluetooth
® phone has
not been connected.
)@7*@ŠÙ<64"@/>
1BSUJOEE


 )@7*@ŠÙ<64"@/>
1BSUJOEE




Bluetooth
®
Bluetooth® l 4-9
Answering a Call
Incoming call notice Ü Press the
Accept button or the key on
the steering remote controller.
When a call is received on the connected
phone, the bell will sound and the phone
number of the other party will be displayed
on the incoming call pop-up, as shown here.
i Information
!Ÿ
When the incoming call pop-up is dis-
played, most functions within AV mode
will not operate. Only the call volume and
Navigation screens can be operated.
!Ÿ
The telephone number may not be dis-
played in some mobile phones.
Rejecting a Call
Incoming call notice Ü Press the
Reject button or press the
key on the steering remote controller.
The incoming call is rejected.
i Information
!Ÿ
The reject call function may not be sup-
ported in some mobile phones.
)@7*@ŠÙ<64"@/>
1BSUJOEE


 )@7*@ŠÙ<64"@/>
1BSUJOEE




Bluetooth®
4-10
Operating features during a Call
Switching Call to Bluetooth® Phone
During Handsfree call Ü Press the
Private button or press and hold the
key(over 0.8 seconds) on the
steering remote controller.
The call will be switched from the Handsfree
to the Bluetooth
® mobile phone.
Switching Call to the Handsfree
During call on mobile phone Ü Press
the
Use Handsfree button or press the
key(over 0.8 seconds) on the
steering remote controller.
The call will be switched from the Bluetooth®
mobile phone to the car Handsree.
End a Call
While on a callÜ Press the End
button or press the
key on the
steering remote controller.
The Bluetooth® Handsfree call will end.
)@7*@ŠÙ<64"@/>
1BSUJOEE


 )@7*@ŠÙ<64"@/>
1BSUJOEE




Bluetooth
®
Bluetooth® l 4-11
Switching to Call Waiting
If another person calls while you are
already on a call, the current call must be
placed on hold or ended to answer the new
call.
ò
ó
ô
õ
If there is waiting call, press the
key on the steering remote controller or
press the
Switch button on the
Phone screen.
No Name Description
ò Hold 1st
call Places current call on call
w
aiting and ans

wer new call.
ó End 1st
call Ends current call and answ

er
new call.
ô Reject Rejects ne
w call and maintains
current call.
õ Switc

h
If there is a call waiting,
switches to the waiting call
waiting call.
i Information
!Ÿ
Call waiting is a feature that allows the
caller to answer a second call while
already on a call. When call waiting is
used, the first call is placed on waiting
mode.
!Ÿ
The Call Waiting feature may not be sup-
ported in some mobile phones.
Turning MIC On/Off
While on a call Ü Select MIC Off .
If you press the MIC Off button, The out-
going volume is muted and blocked to the
other party.
)@7*@ŠÙ<64"@/>
1BSUJOEE


 )@7*@ŠÙ<64"@/>
1BSUJOEE




Bluetooth®
4-12
Adjusting Ring/Call Volume
While on a call Ü Turn the VOLUME
knob on the head unit or press the
VOL +
VOL-
keys on the steering remote
controller Ü Adjust the ring/call volume.
i Information
!Ÿ
The call volume as heard by the other
party may differ depending on your mobile
phone.
Contacts
Press the PHONE keyÜ Select the
Contacts icon.
ò
ò ó ô
õ
ö
No Name Description
ò Send Call the corresponding
n
umber

.
ó End Ends the current call
ô Search Search contacts b
y name or
n
umber.
õ Contacts
List List of Downloaded
Contacts
.
ö MENU Displa
ys popup men
u.
