Maintenance
64
7
Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.
Never touch the glass with bare hands. Residual oil may cause the
bulb to overheat and burst when lit.
A bulb should be operated only when installed in a headlight.
If a bulb becomes damaged or cracked, replace it immediately
and carefully dispose of it.Headlight (HID type)
If the light bulb does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
OHD076046
WARNING
-
HID Headlight low beam
Do not attempt to replace or
inspect the low beam (XENON
bulb) due to electric shock dan-
ger. If the low beam (XENON
bulb) is not working, have your
vehicle checked by an author-
ized HYUNDAI Dealer.
WARNING - Halogen
bulbs
Handle halogen bulbs with care. Halogen bulbs contain
pressurized gas that will pro-
duce flying pieces of glass that
could cause injuries if broken.
Wear eye protection when changing a bulb. Allow the
bulb to cool down before han-
dling it.
CAUTION
If your vehicle is equipped withHigh Intensity Discharge (HID)headlights, these headlightscontain mercury. So if you needto have your vehicle disposed,you should remove the HIDHeadlights before disposal. Theremoved HID headlights shouldbe recycled, re-used or dis-posed as hazardous waste.

765
Maintenance
HID lamps have superior perform-
ance vs. halogen bulbs. HID lamps
are estimated by the manufacturer to
last twice as long or longer than
halogen bulbs depending on their
frequency of use. They will probably
require replacement at some point in
the life of the vehicle. Cycling the
headlamps on and off more than typ-
ical use will shorten HID lamps life.
HID lamps do not fail in the same
manner as halogen incandescent
lamps. If a headlamp goes out after a
period of operation but will immedi-
ately relight when the headlamp
switch is cycled it is likely the HID
lamp needs to be replaced. HID light-
ing components are more complex
than conventional halogen bulbs and
thus have higher replacement cost.
Headlight (bulb type)
1. Turn off the engine.
2. Open the hood.
3. Remove the headlight bulb coverby turning it counterclockwise.
4. Disconnect the headlight bulb socket connector. 5. Remove the bulb from the head-
light assembly.
6. Install a new headlight bulb.
7. Connect the headlight bulb socket connector.
8. Install the headlight bulb cover by turning it clockwise.
If the headlight aiming adjustment is
necessary after the headlight assem-
bly is reinstalled, consult an author-
ized HYUNDAI dealer.
OHG070045
OHG070044
■ High beam
■Low beam

Maintenance
66
7
Turn signal light
1. Turn off the engine.
2. Open the hood.
3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket. 5. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
6. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
Position (Parking) light, front foglight and front side marker
If the light bulb does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
✽ ✽ NOTICE
A skilled technician should check or
repair the position, front fog lights
and front side marker. Otherwise, it
may damage related parts of the
vehicle.
OHG070042

767
Maintenance

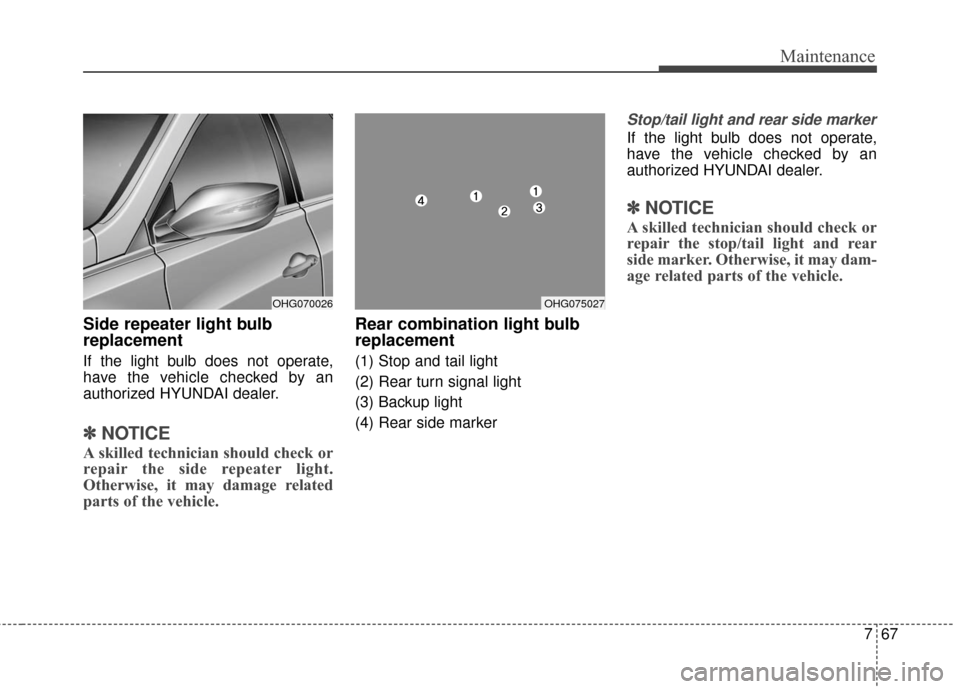

Side repeater light bulb
replacement
If the light bulb does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
✽ ✽NOTICE
A skilled technician should check or
repair the side repeater light.
Otherwise, it may damage related
parts of the vehicle.
Rear combination light bulb
replacement
(1) Stop and tail light
(2) Rear turn signal light
(3) Backup light
(4) Rear side marker
Stop/tail light and rear side marker
If the light bulb does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
✽ ✽NOTICE
A skilled technician should check or
repair the stop/tail light and rear
side marker. Otherwise, it may dam-
age related parts of the vehicle.
OHG070026OHG075027

Maintenance
68
7
Rear turn signal light
1. Turn off the engine.
2. Open the trunk.
3. Remove the service cover by
pulling out the service cover. 4. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
5. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
6. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place.
7. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
8. Install the service cover by putting it into the service hole.
Backup light
1. Turn off the engine.
2. Open the trunk.
3. Loosen the retaining screw of thetrunk lid cover and then remove
the cover.
4. Remove the socket from the assembly by turning the socket
counter clockwise until the tabs on
the socket align with the slots on
the assembly.
OHG070028
OHG070029
OHG070030

769
Maintenance
5. Remove the bulb by pulling itstraight out.
6. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place.
7. Install the socket into the assem- bly by aligning the tabs on the
socket with the slots in the assem-
bly. Push the socket into the
assembly and turn the socket
clockwise.

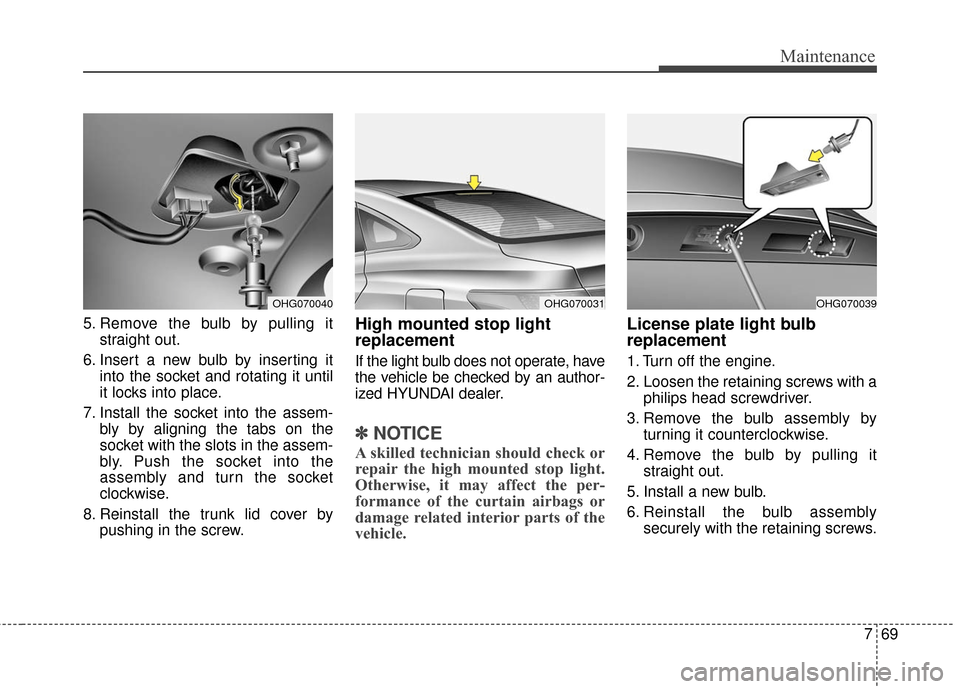

8. Reinstall the trunk lid cover by pushing in the screw.High mounted stop light
replacement
If the light bulb does not operate, have
the vehicle be checked by an author-
ized HYUNDAI dealer.
✽ ✽NOTICE
A skilled technician should check or
repair the high mounted stop light.
Otherwise, it may affect the per-
formance of the curtain airbags or
damage related interior parts of the
vehicle.
License plate light bulb
replacement
1. Turn off the engine.
2. Loosen the retaining screws with a
philips head screwdriver.
3. Remove the bulb assembly by turning it counterclockwise.
4. Remove the bulb by pulling it straight out.
5. Install a new bulb.
6. Reinstall the bulb assembly securely with the retaining screws.
OHG070040OHG070031OHG070039

Maintenance
70
7
Interior light bulb replacement
Glove box lamp and luggage room
lamp
1. Using a flat-blade screwdriver, gently pry the lens from the interi-
or light housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior light housing notches and snap
the lens into place.
WARNING - Interior lights
Prior to working on the Interior
lights, ensure that the lights are
off to avoid burning your fingers
or receiving an electric shock.
■Glove box lamp
■Luggage room lamp
OHG070033/OHG070034
■Map lamp
■Door courtesy lamp
OHG045029/OHG070036

771
Maintenance
■Room lamp
Type A
OHG070037/OHG070038
Type B
OHG071052A
■Vanity mirror lamp
Map lamp, room lamp, door cour-
tesy lamp and vanity mirror lamp
If the light bulb does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
✽ ✽ NOTICE
A skilled technician should check or
repair the interior lights. Otherwise,
it may damage related parts of the
vehicle.
