Maintenance
56
7
Instrument panel (Driver’s side fuse panel)
No.Fuse ratingSymbol Protected component
17.5AIMMOSmart Key Control Module
27.5A A/BAG INDInstrument Cluster
320ASPARE-
410AAUDIOAMP, Smart Key Control Module, Telematics Unit,E/R Junction Block (Power Outlet Relay),
A/V & Navigation Head Unit,Front Monitor (Audio/Navigation), Audio, A/C Control Module
57.5AMODULE 2ESC Control Module, Rear Seat Warmer LH/RH,
Console Switch, A/C Control Module, Rear Power Window Switch LH/RH,
Driver IMS Module, Rear Parking Assist Sensor LH/RH/LH(Center)/RH(Center)
610AMODULE 1
Driver Power Seat Switch, Driver/Passenger Seat Warmer Module, Driver/Passenger Door Module,
Stop Lamp Switch, Crash Pad Switch, Driver/Passenger CCS Control Module,
Steering Tilt & Telescope Module, Instrument Cluster, Blind Spot Detection Radar LH/RH,
Multifunction Switch, Forward Collision Warning Unit, Lane Departure Warning Unit,
Electro Chromic Mirror, ATM Lever Indicator, Tire Pressure Monitoring Module, Telematics Unit
710AHTD MIRRDriver/Passenger Power Outside Mirror, A/C Control Module
87.5AMDPSMDPS Unit
920AC/LIGHTERCenter Tray Outlet
1015AA/BAGSRS Control Module, Passenger Occupant Detection Sensor, A/C Control Module

757
Maintenance
No.Fuse ratingSymbol Protected component
117.5AMODULE 3Smart Key Control Module, Rear Seat Warmer LH/RH
127.5AA/CONA/C Control Module, E/R Junction Block (Blower Relay), Driver/Passenger Seat Warmer Module,
Active Incar Sensor, Driver/Passenger CCS Control Module
1315AIG1 2Steering Wheel Heater
1420AIG1 1E/R Junction Block (ECU 5 10A, ECU 4 10A)
1510AMEMORY 1Driver Power Seat Switch, Data Link Connector, A/C Control Module, Driver/Passenger Door Module,
Instrument Cluster, Tire Pressure Monitoring Module, Auto Light & Photo Sensor
1610AINTERIOR LAMP
Rear Door Lamp LH/RH, MAP Lamp, Garnish Lamp LH/RH, Driver/Passenger Door Mood Lamp,
Driver/Passenger Door Lamp, Driver/Passenger Foot Lamp, Driver/Passenger Door Scuff Lamp,
Rear Door Mood Lamp LH/RH, Vanity Lamp Switch LH/RH, Rear Door Scuff Lamp LH/RH,
Trunk Room Lamp, Rear Personal Lamp Center/LH/RH
1725AWIPERWiper Motor, E/R Junction Block (Washer Relay, Wiper (LO) Relay, Wiper (HI) Relay)
1810ASTOP LAMPSmart Key Control Module, Stop Lamp Switch, Start Stop Button Switch
197.5AMEMORY 2RF Receiver
2010AMULTI MEDIAFront Monitor (Audio/Navigation), A/V & Navigation Head Unit, Telematics Unit, Audio
217.5ASTARTTransaxle Range Switch, PCM

Maintenance
58
7
No.Fuse ratingSymbol Protected component
2220ASUNROOFPanorama Sunroof
2310ATRUNKTrunk Lid Relay, Fuel Filler Door & Trunk Lid Switch
2420AS/HEATER RRRear Seat Warmer LH/RH
2510ADRV P/SEAT-
2625AP/ WDW LHDriver Safety Window Module, Rear Power Window Switch LH
2725AAMPAMP
2825APASS P/SEATPassenger Reclining Limit Switch, Power Seat Relay Box RH
2925AP/WDW RHPassenger Safety Window Module, Rear Power Window Switch RH
3025ASMART KEYSmart Key Control Module
3115AP/HANDLESport Mode Switch, Steering Tilt & Telescopic Module
3220AS/HEATER FRTDriver/Passenger Seat Warmer Module, Driver/Passenger CCS Control Module
3320ADR LOCKDoor Lock/Unlock Relay, ICM Relay Box (Two Turn Unlock Relay)

759
Maintenance
Engine compartment fuse panel
Inside the fuse/relay panel covers, you
can find the fuse/relay label describing
fuse/relay name and capacity.
✽ ✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
OHG076047N
OHG070023

Maintenance
60
7
No.Fuse ratingSymbol Protected component
MULTI
FUSE
160AB+2Smart Junction Box (P/HANDLE 15A, SUNROOF 20A, DRV P/SEAT 10A, PASS P/SEAT 25A,
IPS 2, ARISU-LT 1)
260AB+3Smart Junction Box (P/WDW 25A, P/WDW RH 25A, S/HEATER FRT 10A, TRUNK 10A,
P/OUTLET 1 20A)
340AIG1PDM 1 (ACC) Relay, PDM 2 (IG1) Relay
440AESC1ESC Module
540ARR HTDRR HTD Relay
640ABLOWERBlower Relay
760AB+4Smart Junction Block (STOP LAMP 10A, S/HEATER RR 20A, IPS 3/4, ARISU-LT 2, AMP 25A,
P/OUTLET 2 20A)
880AMDPSMDPS Unit
FUSE
910AA/CONA/C Control Module
1010AB/UP LAMPRear Combination Lamp (IN) LH/RH, Electro Chromic Mirror, Audio, Front Monitor
1110AECU 4PCM, IDB(Injector Driver Box)
Engine compartment main fuse panel

761
Maintenance

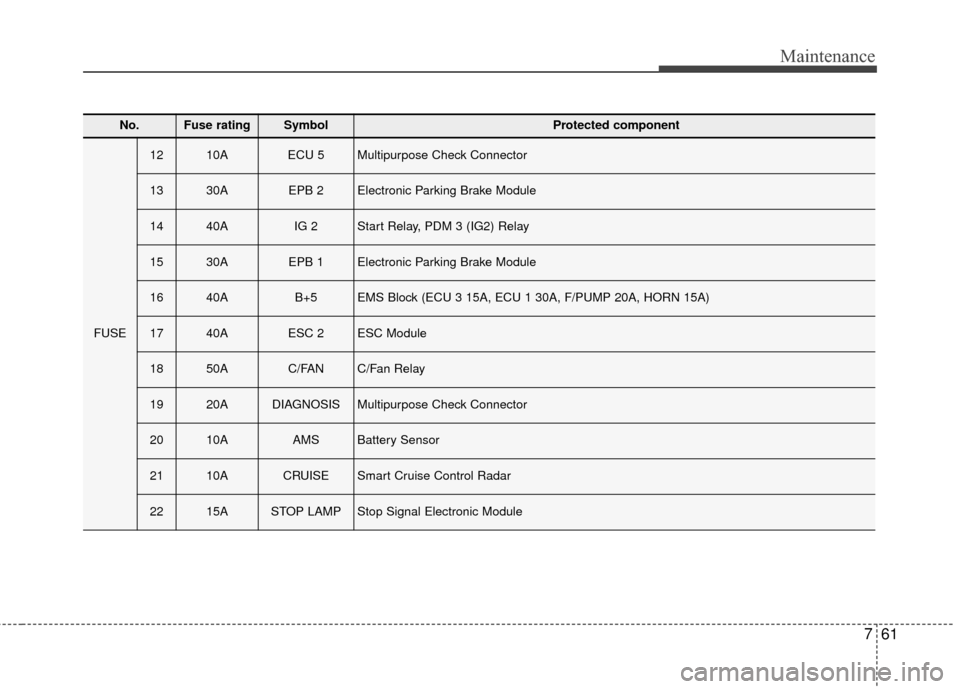

No.Fuse ratingSymbol Protected component
FUSE
1210AECU 5Multipurpose Check Connector
1330AEPB 2Electronic Parking Brake Module
1440AIG 2Start Relay, PDM 3 (IG2) Relay
1530AEPB 1Electronic Parking Brake Module
1640AB+5EMS Block (ECU 3 15A, ECU 1 30A, F/PUMP 20A, HORN 15A)
1740AESC 2ESC Module
1850AC/FANC/Fan Relay
1920ADIAGNOSISMultipurpose Check Connector
2010AAMSBattery Sensor
2110ACRUISESmart Cruise Control Radar
2215ASTOP LAMPStop Signal Electronic Module

Maintenance
62
7
No.Fuse ratingSymbol Protected component
FUSE
2320ADEICERDeicer Relay
2430ADRV P/SEATDriver Lumbar Support Limit Switch, Driver IMS Module,
Power Seat Relay Box LH, Driver Reclining Limit Switch
2540AB+1Smart Junction Box (DR LOCK 20A, SMART KEY 1 25A,
Leak Current Autocut Device (Leak Current Autocut Relay,
Leak Current Autocut Switch, IPS 5))
2620AIGN COILIgnition Coil #1~#6, Condenser #1/#2
2710ASENSOR 2IDB (Injector Driver Box), PCM, Purge Control Solenoid Valve,
Oil Control Valve #1 ~ #4, Variable Intake Solenoid Valve #1, #2, Canister Close Valve,
E/R Junction (C/FAN Relay)
2810AECU 2IDB (Injector Driver Box)
2910AINJECTORPCM, EMS Box (F/Pump Relay)
3015ASENSOR 1PCM, Oxygen Sensor #1~#4
3115AECU 3PCM, IDB (Injector Driver Box)
3220AF/PUMPEMS Block (F/Pump Relay)
3315AHORNEMS Block (Horn Relay), ICM Relay Box(Burglar Horn Relay)
3430AECU 1EMS Block (Engine Control Relay)

763
Maintenance
LIGHT BULBS
Use only the bulbs of the specifiedwattage.
If you do not have necessary tools,
the correct bulbs and the expertise,
consult an authorized HYUNDAI
dealer. In many cases, it is difficult to
replace vehicle light bulbs because
other parts of the vehicle must be
removed before you can get to the
bulb. This is especially true if you
have to remove the headlight assem-
bly to get to the bulb(s).
Removing/installing the headlight
assembly can result in damage to
the vehicle.
✽ ✽ NOTICE
After driving in rain or washing the
vehicle, the headlight and taillight
lenses could appear frosty. This con-
dition is caused by the temperature
difference between the lamp inside
and outside. This is similar to the
condensation on your windows
inside your vehicle during the rain
and doesn’t indicate a problem with
your vehicle. If the water leaks into
the lamp bulb circuitry, have the
vehicle checked by an authorized
HYUNDAI dealer.
Headlight, position light, turn
signal light, front fog light bulb
replacement
(1) Headlight (High) /
DRL (Daytime running light)
(2) Headlight (Low)
(3) Front turn signal light
(4) Position (Parking) light
(5) Front side marker
(6) Front fog light
WARNING - Lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switch is
changed to the OFF position
and turn off the lights to avoid
sudden movement of the vehicle
and burning your fingers or
receiving an electric shock.
CAUTION - Light
replacement
Be sure to replace the burned- out bulb with one of the samewattage rating. Otherwise, itmay cause damage to the fuseor electric wiring system.
OHG075025N
