2016 DODGE VIPER Owners Manual

11. Once the engine is started, remove the jumper cablesin the reverse sequence:
Disconnecting The Jumper Cables
1. Disconnect the negative (-)end of the jumper cable
from the remote negative (-)post of the vehicle with
the discharged battery.
2. Disconnect the opposite end of the negative (-)jumper
cable from the negative (-)post of the booster battery.
3. Disconnect the positive (+)end of the jumper cable
from the positive (+)post of the booster battery.
4. Disconnect the opposite end of the positive (+)jumper
cable from the remote positive (+)post of the vehicle
with the discharged battery.
If frequent jump-starting is required to start your vehicle
you should have the battery and charging system in-
spected at your authorized dealer.CAUTION!
Accessories plugged into the vehicle power outlets
draw power from the vehicle’s battery, even when not
in use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough without engine operation,
the vehicle’s battery will discharge sufficiently to
degrade battery life and/or prevent the engine from
starting.
FREEING A STUCK VEHICLE
If your vehicle becomes stuck in mud, sand, or snow, it
can often be moved using a rocking motion. Turn your
steering wheel right and left to clear the area around the
front wheels. Then shift back and forth between 1st gear
and REVERSE, while gently pushing the accelerator. Use
the least amount of pressure to maintain the rocking
motion, without spinning the wheels, or racing the
engine.
6
WHAT TO DO IN EMERGENCIES 327

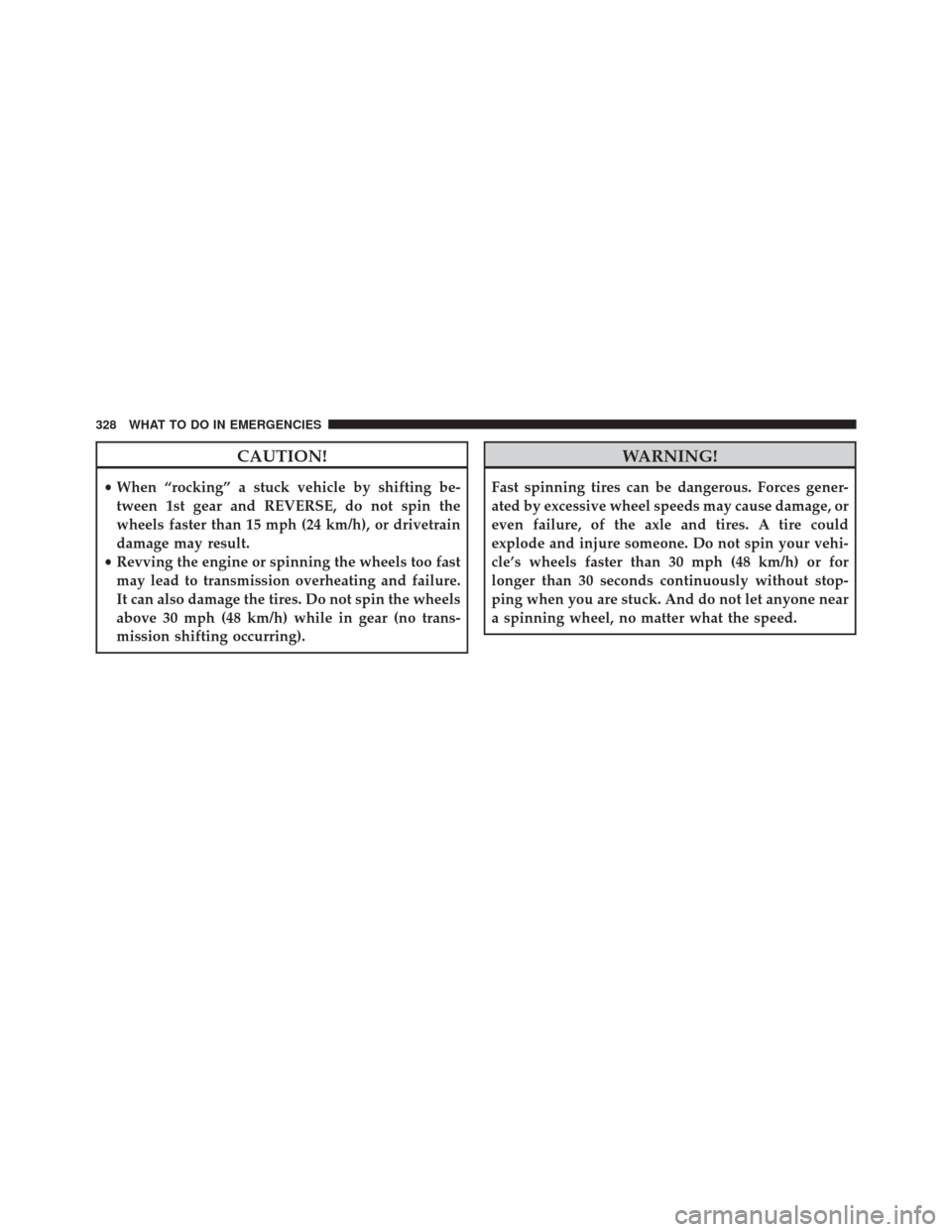

CAUTION!
•When “rocking” a stuck vehicle by shifting be-
tween 1st gear and REVERSE, do not spin the
wheels faster than 15 mph (24 km/h), or drivetrain
damage may result.
• Revving the engine or spinning the wheels too fast
may lead to transmission overheating and failure.
It can also damage the tires. Do not spin the wheels
above 30 mph (48 km/h) while in gear (no trans-
mission shifting occurring).
WARNING!
Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause damage, or
even failure, of the axle and tires. A tire could
explode and injure someone. Do not spin your vehi-
cle’s wheels faster than 30 mph (48 km/h) or for
longer than 30 seconds continuously without stop-
ping when you are stuck. And do not let anyone near
a spinning wheel, no matter what the speed.
328 WHAT TO DO IN EMERGENCIES

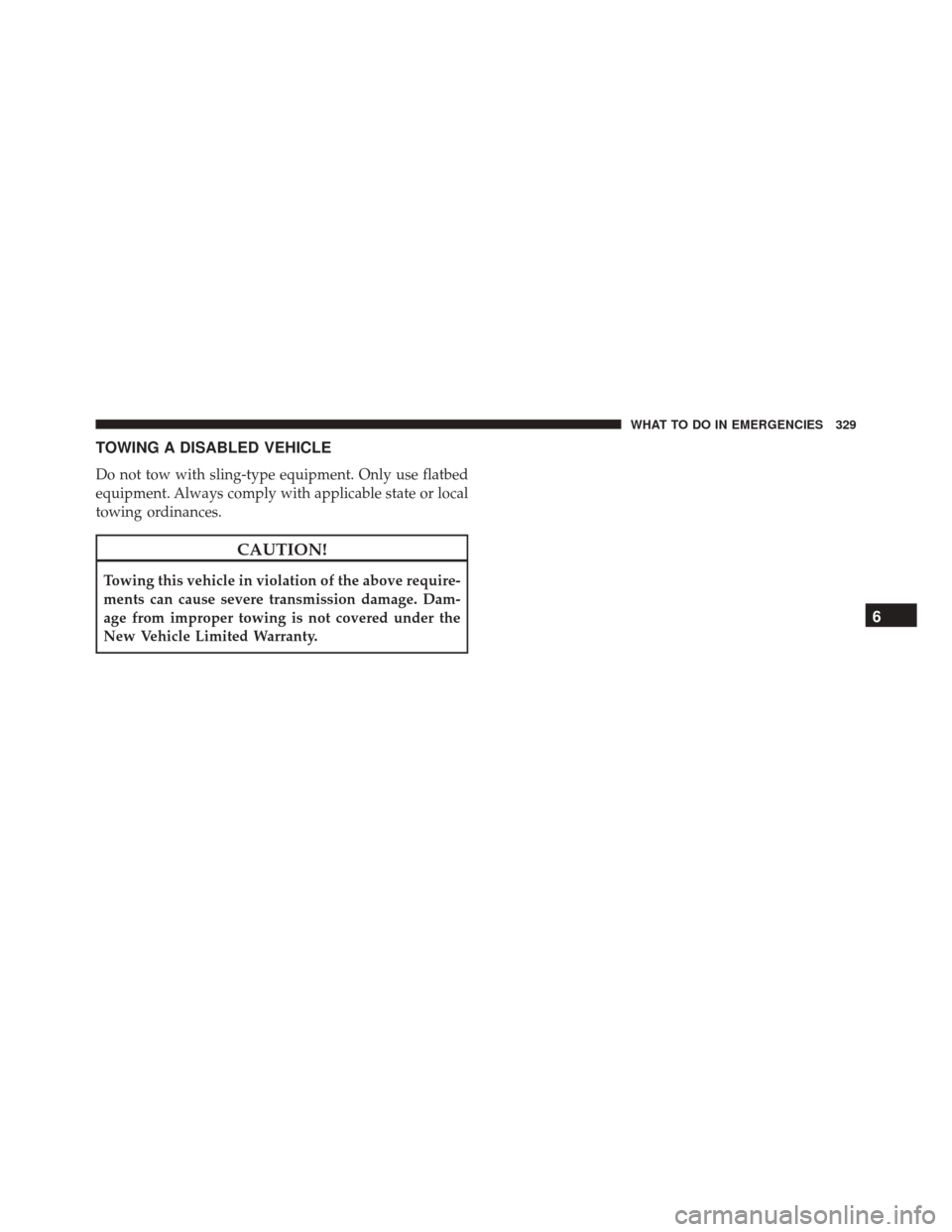

TOWING A DISABLED VEHICLE
Do not tow with sling-type equipment. Only use flatbed
equipment. Always comply with applicable state or local
towing ordinances.
CAUTION!
Towing this vehicle in violation of the above require-
ments can cause severe transmission damage. Dam-
age from improper towing is not covered under the
New Vehicle Limited Warranty.
6
WHAT TO DO IN EMERGENCIES 329

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 8.4L ..........333
 ONBOARD DIAGNOSTIC SYSTEM (OBD II) . . .334
 EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS ......................... .334
 REPLACEMENT PARTS ..................336
 DEALER SERVICE ..................... .336
 MAINTENANCE PROCEDURES ...........337
▫ Engine Oil ......................... .337
▫ Engine Oil Filter ..................... .339
▫ Engine Air Cleaner Filter ................340 ▫
Maintenance-Free Battery ...............341
▫ Hibernation Mode ....................342
▫ Air Conditioner Maintenance .............343
▫ Body Lubrication .....................345
▫ Wiper Blades ....................... .345
▫ Adding Washer Fluid ..................346
▫ Exhaust System ..................... .346
▫ Cooling System ..................... .349
▫ Brake System ....................... .355
▫ Manual Transmission ..................357
7

▫Hydraulic Clutch .....................358
▫ Rear Axle .......................... .358
▫ Appearance Care And Protection From
Corrosion .......................... .359
 FUSES ............................. .366
▫ Power Distribution Center ...............367
 VEHICLE STORAGE ....................374
 REPLACEMENT BULBS .................377
 BULB REPLACEMENT ..................379 ▫
Front Headlamp, Front Park/Turn Signal
Lamp ............................. .379
▫ Front/Rear Side Marker Lamp ............379
▫ Taillamp, Tail/Stop Lamp ................379
▫ Rear Turn Signal Lamp .................379
▫ Backup Lamps ....................... .379
 FLUID CAPACITIES ....................380
 FLUIDS, LUBRICANTS, AND GENUINE
PARTS ............................. .381
▫ Engine ............................ .381
▫ Chassis ........................... .383
332 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 8.4L
1 — Washer Fluid Reservoir6 — Brake/Clutch Fluid Reservoir
2 — Coolant Pressure Cap 7 — Engine Oil Fill
3 — Engine Oil Dipstick 8 — Power Steering Fluid Reservoir
4 — Power Distribution Center 9 — Air Cleaner Filter
5 — Remote Jump Start Positive Battery Post
7
MAINTAINING YOUR VEHICLE 333

ONBOARD DIAGNOSTIC SYSTEM (OBD II)
To meet new government regulations and promote
cleaner air, your vehicle is equipped with a sophisticated
onboard diagnostic system called OBD II. This system
monitors the performance of the emissions and engine
control systems. When these systems are operating prop-
erly, your vehicle will provide excellent performance and
fuel economy, as well as engine emissions well within
current government regulations.
If any of these systems require service, the OBD II system
will turn on the Malfunction Indicator Light. It will also
store diagnostic codes and other information to assist
your service technician in making repairs. Although your
vehicle will usually be drivable and not need towing, see
your authorized dealer for service as soon as possible.
CAUTION!
Prolonged driving with the light on could cause
further damage to the emission control system. It
could also affect fuel economy and driveability. The
vehicle must be serviced before any state emissions
tests can be performed.
If the light is flashing, severe catalytic converter damage
and power loss will soon occur. Immediate service is
required.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration. For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
334 MAINTAINING YOUR VEHICLE
